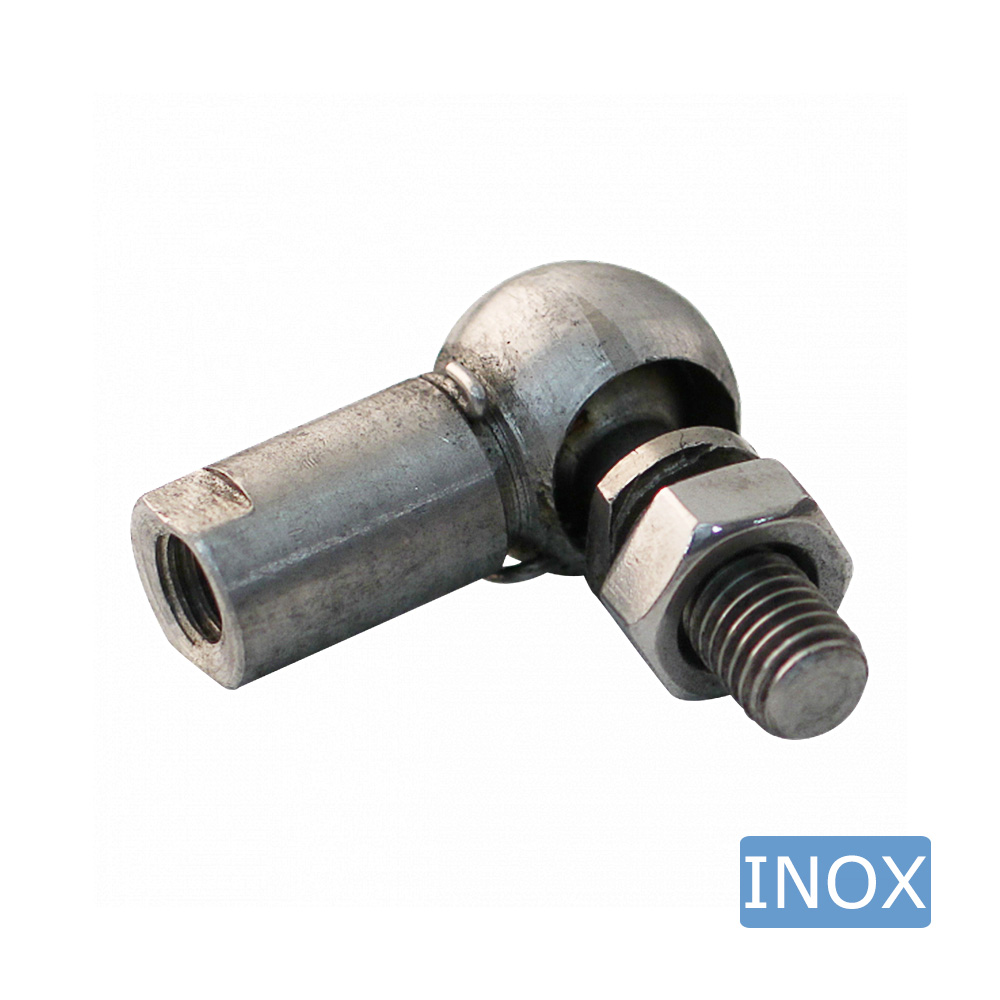

Ball and socket joints - stainless steel

Ball and socket joints - stainless steeldrawing_1

Productinformatie

Legend

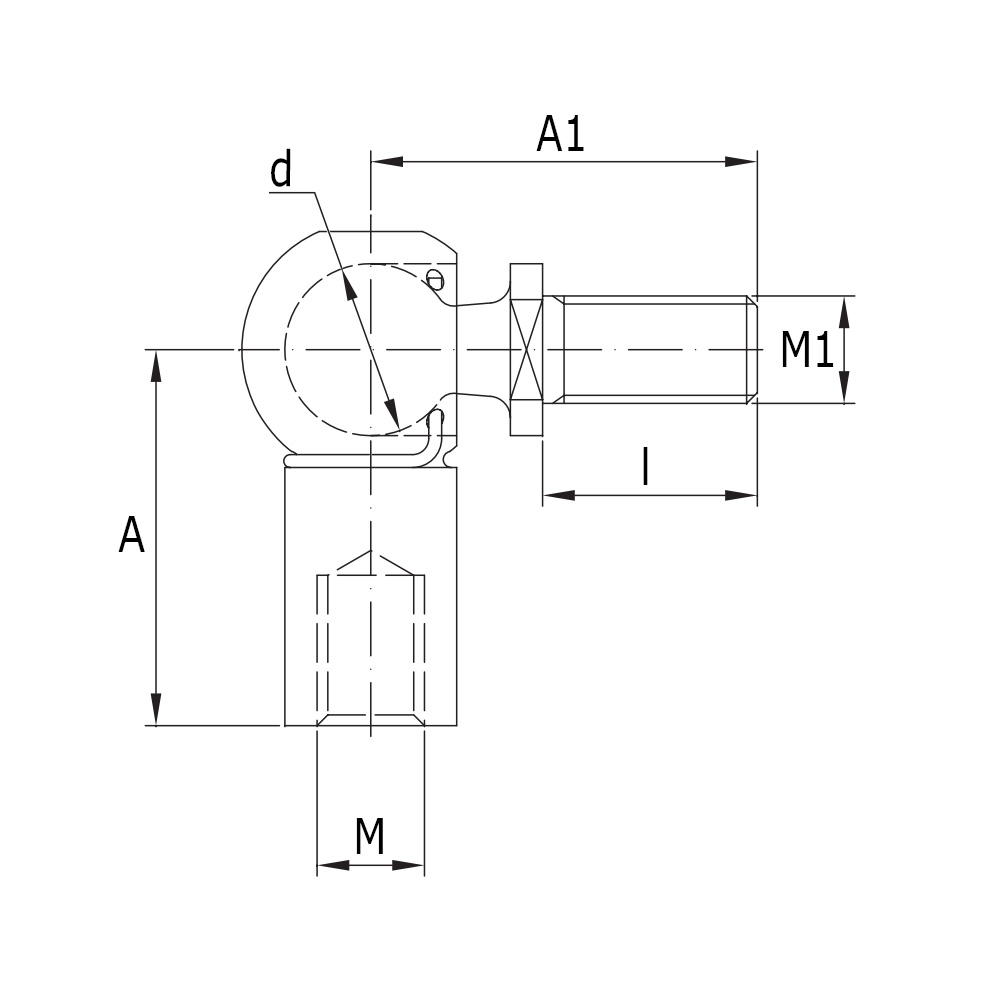

A=Installation length, A1=Bolt length, d=Socket-Ø, l=Thread length, M=Internal thread size, M1=Thread size, N=Max. axial capacity in Newton, Type=Standarized type description

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	Type	A	A1	l	d	N	M	M1
36.6692180808 RVS	Ball and socket joint, intern. M8, extern. M8, A=18, nut incl. - stainless steel 316	WG18	18	23	12	10	800	M 8	M 8
36.6692200808 RVS	Ball and socket joint, intern. M8, extern. M8, A=20, nut incl. - stainless steel 316	WG20	20	22,5	12,5	10	800	M 8	M 8
36.6692300808 RVS	Ball and socket joint, intern. M8, extern. M8, A=30, nut incl. - stainless steel 316	WG30	30	29	16	13	1200	M 8	M 8
36.6692351010 RVS	Ball and socket joint, intern. M10, extern. M10, A=35, nut incl. - stainless steel 316	WG35	35	36	20	16	1800	M10	M10
