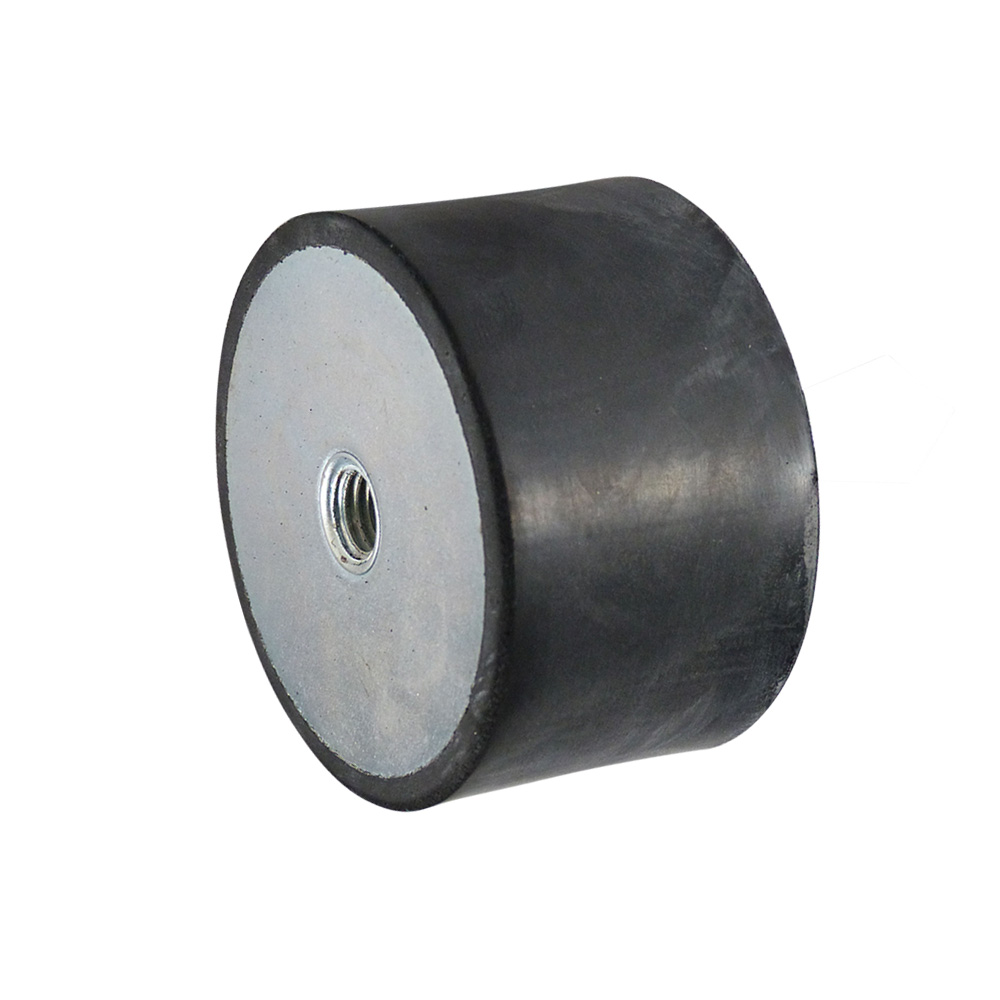

Product information

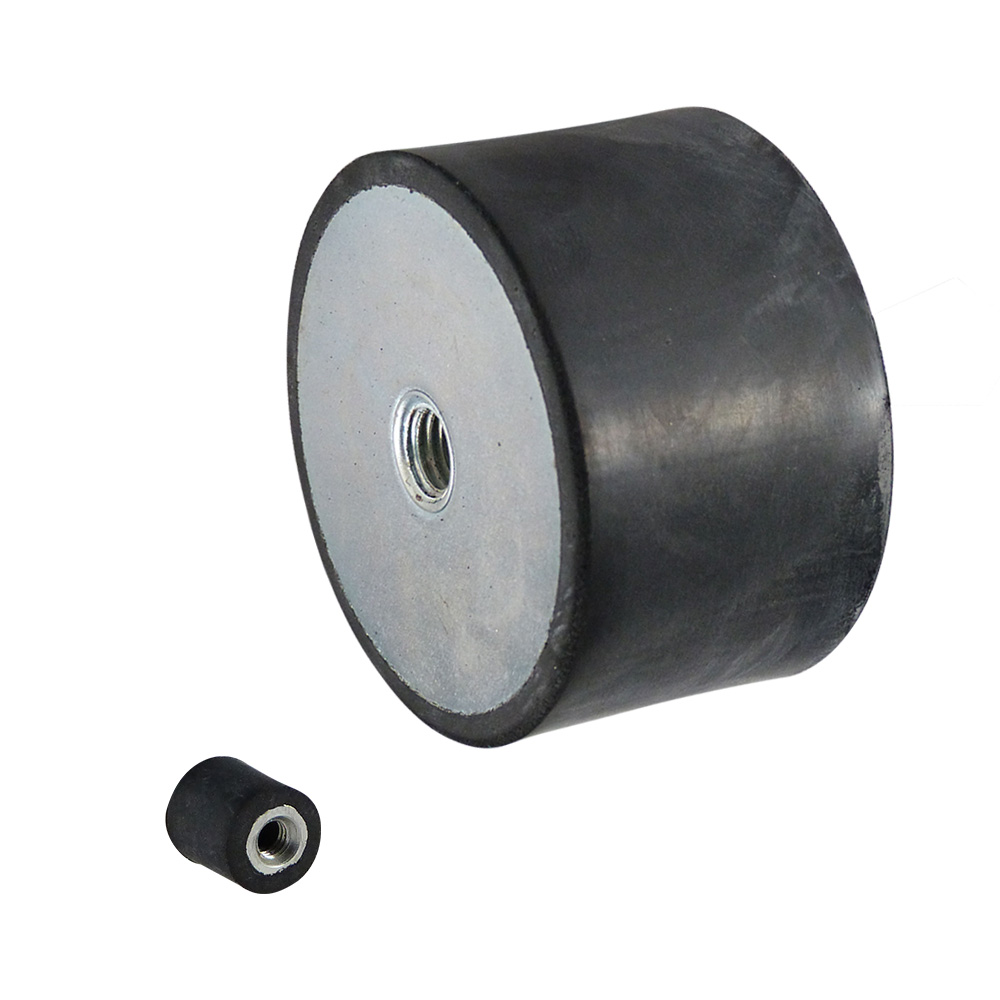

Cylindrical rubber-metal anti-vibration bobbin mounts type C are available in diameters from Ø 6 mm to Ø 200 mm inclusive, and in heights from 7 mm to 100 mm inclusive
Threaded bush on both sides (female thread)
Thread sizes (metric) from M3 to M20 inclusive
Suitable for temperatures from -30 °C to +80 °C
Axial damping
Generally used to reduce vibration and noise levels in motors, compressors, fans, pumps and control cabinets.

Material: Rubber parts - NR (natural rubber) Shore A 55° ± 5% (medium hard) Metal parts - galvanized steel (St37) or stainless steel AISI 304 (A2)

Available on request:

Different Shore hardness
Rubber parts in SBR, NBR, CR, SI or EPDM
Different thread lengths
Metal parts in stainless steel

Legend

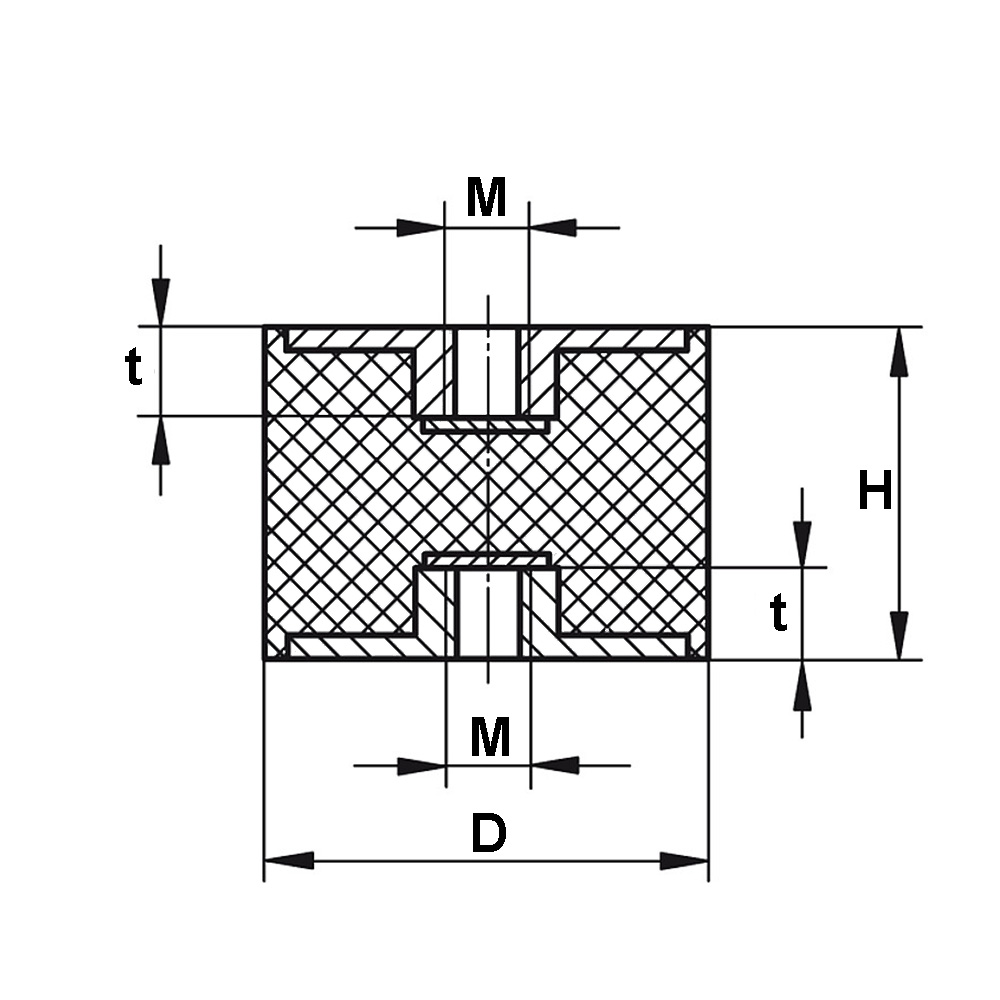

D=diameter, H=height, M=thread size, Mat. A=type of rubber, Mat. B=Material metal components, N=Maximum static load in Newton, Shore A °=Shore-A hardness of the rubber, t=depth of thread

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	M	H	Stiffness in N/mm	N	Shore A °	Max. deflection in mm	D	Material A	Material B	MOQ	Colour/RAL	t
22.C025X30M8	Vibration damper with two threaded bushes type C D25 H30 M8 S55	M 8	30			55° ±5		25	NR	St, 37		Black	8
22.C030X20M8	Vibration damper with two threaded bushes type C D30 H20 M8 S55	M 8	20	1524,29	1067	55° ±5	0,7	30	NR	St, 37		Black	8
22.C030X20M8 RVS	Vibration damper with two threaded bushes type C D30 H20 M8 S55 with stainless steel metal parts	M 8	20			55° ±5		30	NR	RVS A2		Black	8
22.C030X25M8	Vibration damper with two threaded bushes type C D30 H25 M8 S55	M 8	25			55° ±5		30	NR	St, 37		Black	8
22.C030X30M8	Vibration damper with two threaded bushes type C D30 H30 M8 S55	M 8	30	140,67	1055	55° ±5	7,5	30	NR	St, 37		Black	8
22.C030X30M8 EPDM 65	Vibration damper with two threaded bushes type C D30 H30 M8-EPDM-S65	M 8	30			65° ±5		30	EPDM	St, 37	100	Black	8
22.C030X30M8 S50	Vibration damper with two threaded bushes type C D30 H30 M8 - S50 ( minimum 100 pcs)	M 8	30			50° ±5		30	NR	St, 37	0	Black	8
22.C030X30M8 S50 RVS	Vibration damper with two threaded bushes type C D30 H30 M8 - S50 - with stainless steel metal parts	M 8	30			55° ±5		30	NR	RVS A2		Black	8
22.C030X40M8	Vibration damper with two threaded bushes type C D30 H40 M8 S55	M 8	40	210	2100	55° ±5	10	30	NR	St, 37		Black	8
22.C040X20M8	Vibration damper with two threaded bushes type C D40 H20 M8 S55	M 8	20	530	2650	55° ±5	5	40	NR	St, 37		Black	8
22.C040X25M6 EPDM 70	Vibration damper with two threaded bushes type C D40 H25 M8 EPDM Shore 70	M 8	25			70° ±5		40	EPDM	St, 37		Black	8
22.C040X25M8	Vibration damper with two threaded bushes type C D40 H25 M8 S55	M 8	25			55° ±5		40	NR	St, 37		Black	8
22.C040X30M8	Vibration damper with two threaded bushes type C D40 H30 M8 S55	M 8	30	209,87	1574	55° ±5	7,5	40	NR	St, 37		Black	8
22.C040X30M8 RVS	Vibration damper with two threaded bushes type C D40 H30 M8 S55 with stainless steel metal parts	M 8	30			55° ±5		40	NR	RVS A2		Black	8
22.C040X40M8	Vibration damper with two threaded bushes type C D40 H40 M8 S55	M 8	40	139,7	1397	55° ±5	10	40	NR	St, 37		Black	8
22.C040X45M8	Vibration damper with two threaded bushes type C D40 H45 M8 S55	M 8	45			55° ±5		40	NR	St, 37		Black	8
22.C040X60M8	Vibration damper with two threaded bushes type C D40 H60 M8 S55	M 8	60			55° ±5		40	NR	St, 37		Black	8
