Product information

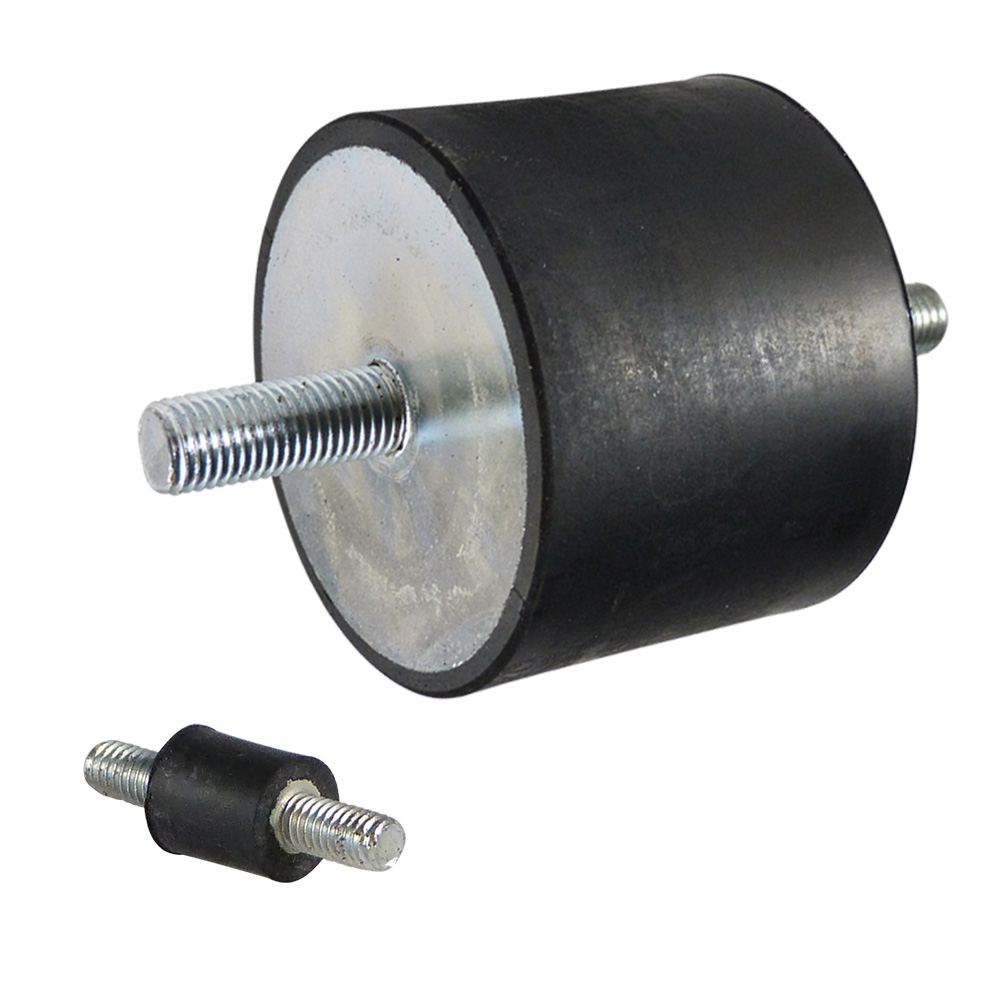

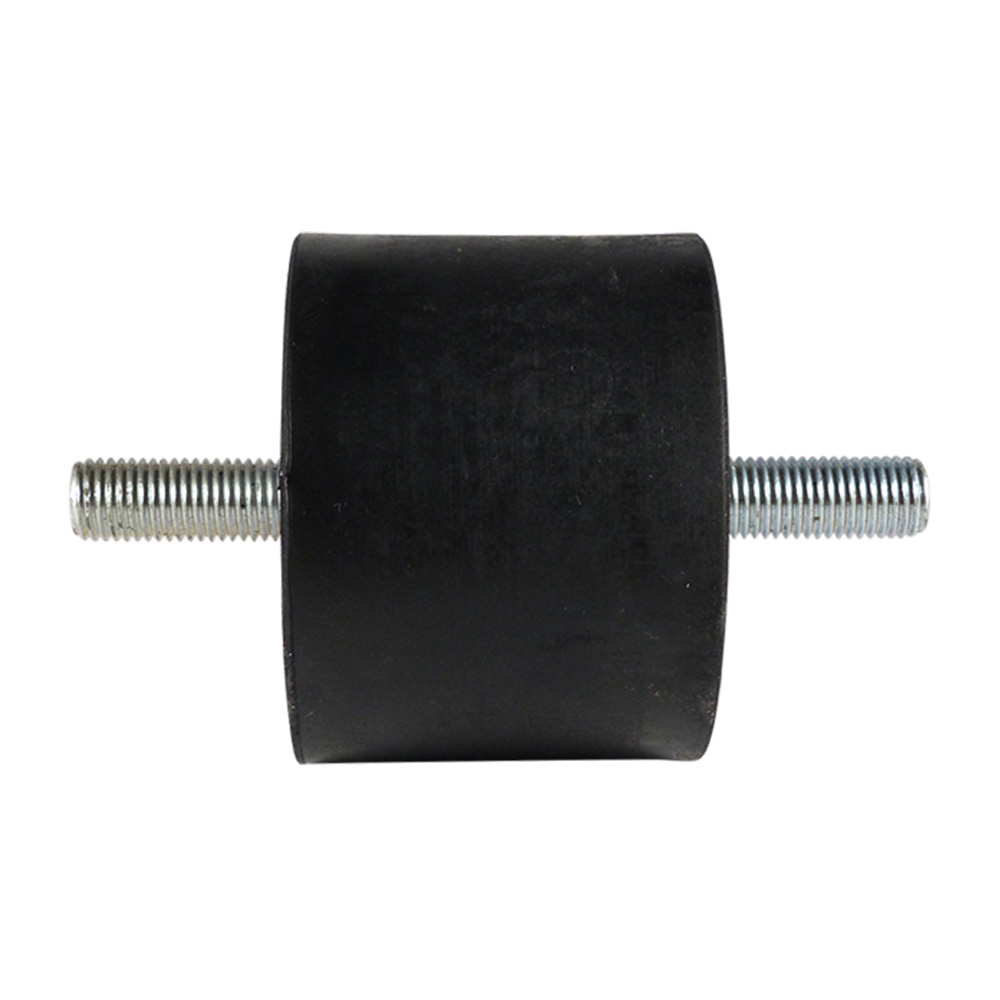

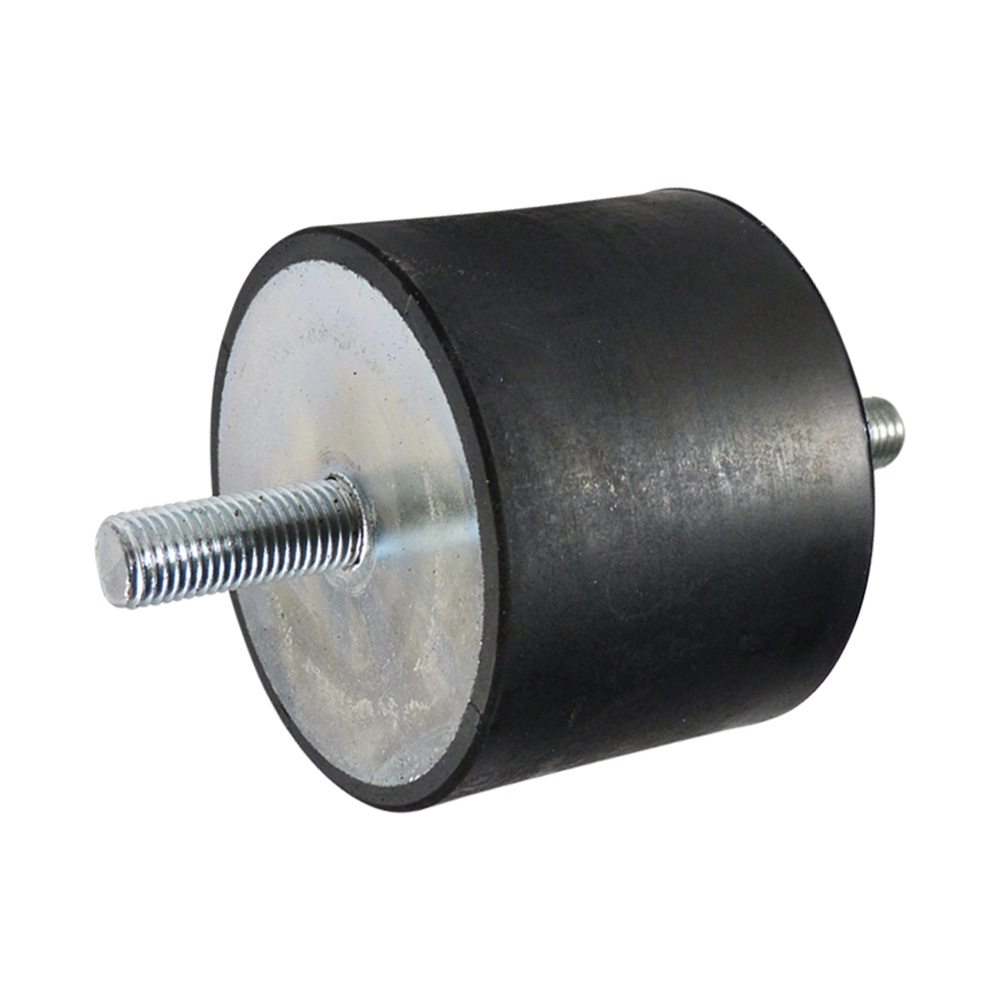

Cylindrical rubber-metal anti-vibration bobbin mounts type A are available in diameters from Ø 6 mm to Ø 200 mm inclusive, and in heights from 5 mm to 100 mm inclusive
Threaded studs on both sides (male thread) - Thread sizes (metric) from M3 to M24 inclusive, in various stud lengths
Suitable for temperatures from -30 °C to +80 °C
Generally used to reduce vibration and noise levels in motors, compressors, fans, pumps and control cabinets

Material: Rubber parts: NR (natural rubber) Shore A 55° ±5% (medium hard), Metal parts - galvanised steel (St37) or stainless steel AISI 304 (A2)

Available on request:

Different Shore hardness
Rubber parts in SBR, NBR, CR, SI or EPDM
Different thread lengths
Metal parts in stainless steel

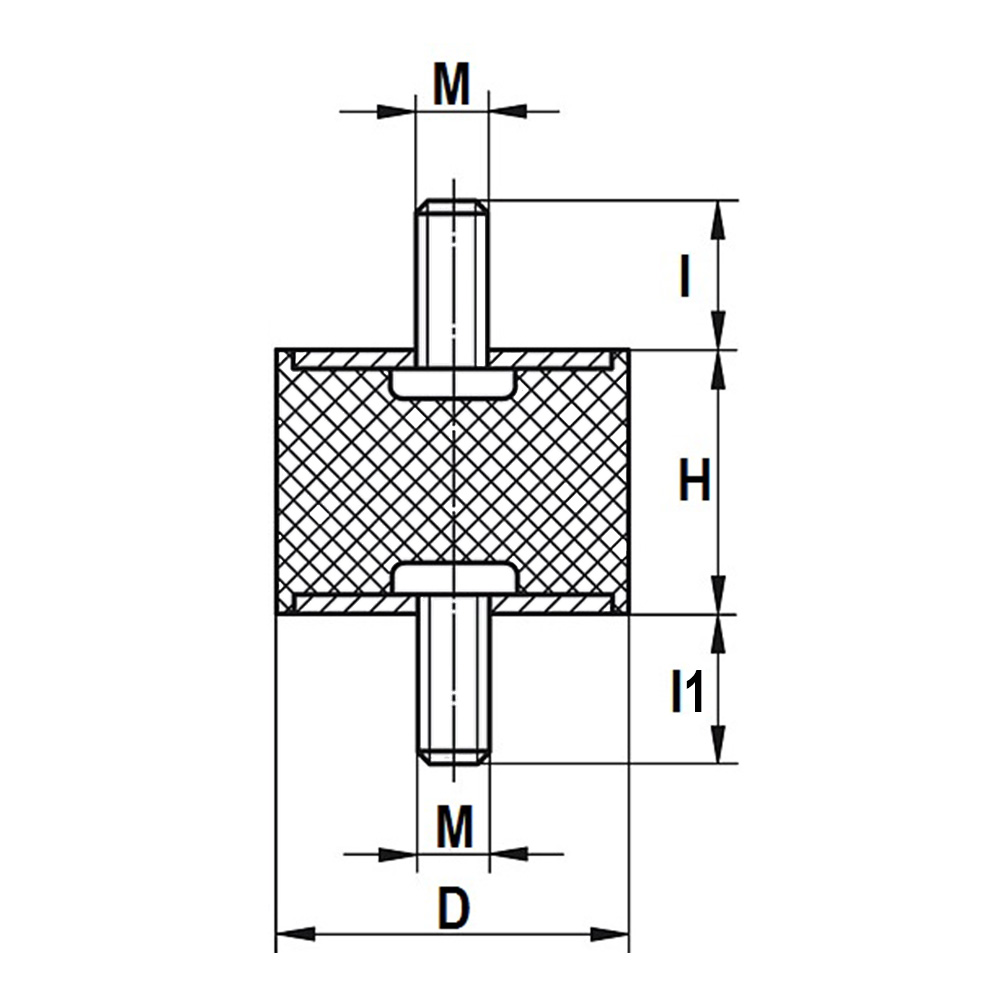

Legend
D=diameter, H=height, l=length of thread, M=thread size, Mat. A=type of rubber, Mat. B=Material metal components, N=Maximum static load in Newton, Shore A °=Shore-A hardness of the rubber

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	M	Stiffness in N/mm	N	H	l	Shore A °	Max. deflection in mm	D	Material A	Material B	MOQ
22.A030X10M8X20	Vibration damper with two threaded bolts type A D30 H10 2X M8X20 S55	M 8			10	20	55 ±5		30	NR 55°	St, 37
22.A025X10M8X20	Vibration damper with two threaded bolts type A D25 H10 2X M8X20 S55	M 8			10	20	55 ±5		25	NR 55°	St, 37
22.A025X25M8X12 S30	Vibration damper with two threaded bolts type A D25 H25 2X M8x12 S30	M 8	0	0	25	12	30 ±5	0	25	NR 55°	St, 37
22.A030X15M8X15	Vibration damper with two threaded bolts type A D30 H15 2X M8X15 S55	M 8			15	15	55 ±5		30	NR 55°	St, 37
22.A030X15M8X20	Vibration damper with two threaded bolts type A D30 H15 2X M8X20 S55	M 8	554,67	2080	15	20	55 ±5	3,75	30	NR 55°	St, 37
22.A030X17M8X13	Vibration damper with two threaded bolts type A D30 H17 2X M8X13 S55	M 8			17	13	55 ±5		30	NR 55°	St, 37
22.A030X17M8X20	Vibration damper with two threaded bolts type A D30 H17 2X M8X20 S55	M 8			17	20	55 ±5		30	NR 55°	St, 37
22.A030X20M8X20	Vibration damper with two threaded bolts type A D30 H20 2X M8X20 S55	M 8	213,4	1067	20	20	55 ±5	5	30	NR 55°	St, 37
22.A030X20M8X20 RVS	Vibration damper with two threaded bolts type A D30 H20 2X M8X20 S55with stainless steel metal parts	M 8			20	20	55 ±5		30	NR 55°	RVS A2
22.A030X25M8X20	Vibration damper with two threaded bolts type A D30 H25 2X M8X20 S55	M 8			25	20	55 ±5		30	NR 55°	St, 37
22.A030X30M8X20	Vibration damper with two threaded bolts type A D30 H30 2X M8X20 S55	M 8	141	1055	30	20	55 ±5	7,5	30	NR 55°	St, 37
22.A030X30M8X20 RVS	Vibration damper with two threaded bolts type A D30 H30 2X M8X20 S55with stainless steel metal parts	M 8	140	1053	30	20	55 ±5	7,5	30	NR 55°	RVS A2
22.A030X30M8X20 S40	Vibration damper with two threaded bolts type A D30 H30 2X M8X20 S40	M 8	67	500	30	20	40 ±5	7,5	30	NR 40°	St, 37
22.A030X40M8X20	Vibration damper with two threaded bolts type A D30 H40 2X M8X20 S55	M 8	93,2	932	40	20	55 ±5	10	30	NR 55°	St, 37
22.A030X50M8X13	Vibration damper with two threaded bolts type A D30 H50 2X M8X13	M 8			50	13	70 ±5		30	NR 70°	St, 37
22.A040X10M8X40	Vibration damper with two threaded bolts type A D40 H10 2X M8X40 S55	M 8			10	23	55 ±5		40	NR 55°	St, 37
22.A040X15M8X23	Vibration damper with two threaded bolts type A D40 H15 2X M8X23 S55	M 8			15	23	55 ±5		40	NR 55°	St, 37
22.A040X20M8X23	Vibration damper with two threaded bolts type A D40 H20 2X M8X23 S55	M 8	486	2430	20	23	55 ±5	5	40	NR 55°	St, 37
22.A040X20M8X33	Vibration damper with two threaded bolts type A D40 H20 2X M8X33 S55	M 8			20	33	55 ±5		40	NR 55°	St, 37
22.A040X25M8X23	Vibration damper with two threaded bolts type A D40 H25 2X M8X23 S55	M 8			25	23	55 ±5		40	NR 55°	St, 37
22.A040X30M8X23	Vibration damper with two threaded bolts type A D40 H30 2X M8X23 S55	M 8	209,87	1574	30	23	55 ±5	7,5	40	NR 55°	St, 37
22.A040X30M8X23 A4	Vibration damper with two threaded bolts type A D40 H30 2X M8X23with stainless-steel metal parts A4	M 8			30	23	55 ±5		40	NR 55°	RVS A4	100
22.A040X40M8X23	Vibration damper with two threaded bolts type A D40 H40 2X M8X23 S55	M 8	139,7	1397	40	23	55 ±5	10	40	NR 55°	St, 37
22.A040X40M8X23 RVS	Vibration damper with two threaded bolts type A D40 H40 2X M8X23with stainless steel metal parts	M 8			40	23	55 ±5		40	NR 55°	RVS A2
22.A050X30M8X23 S80	Vibration damper with two threaded bolts type A D50 H30 2X M8X23 S80	M 8			30	23	80 ±5		50	NR 80°	St, 37
