12.6.1

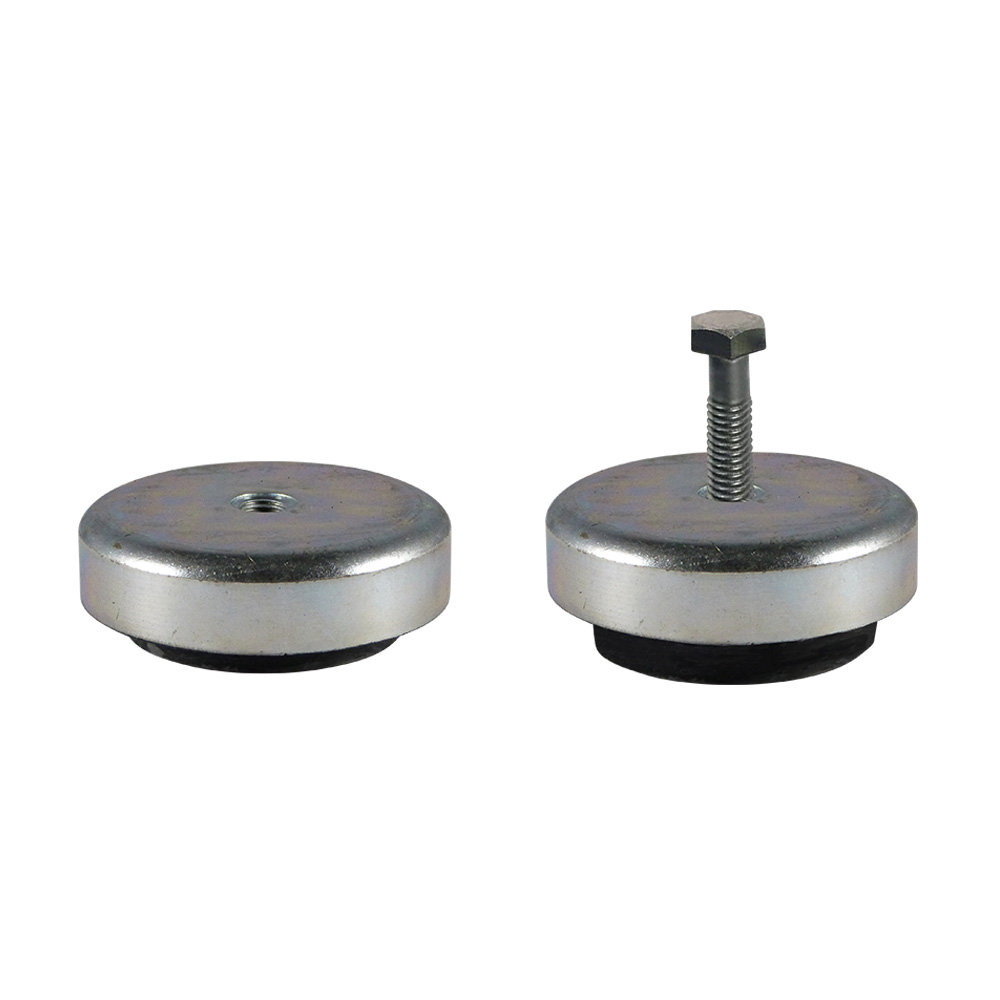

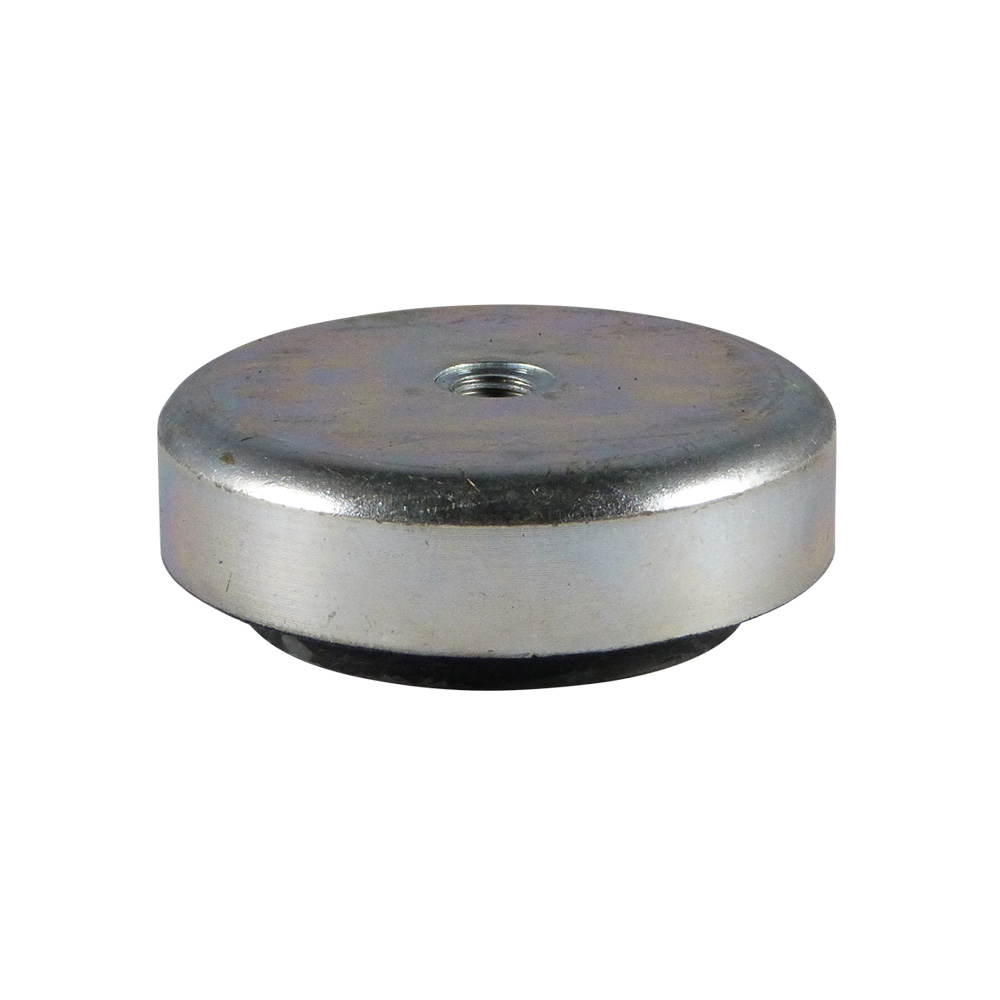

Adjustable machine foot without spindle - anti-vibration design
Product information
- Anti-vibration adjustable machine feet are available with a base measuring Ø 80, 90, 108, 120, 150 or 200mm
- threaded bush size respectively M10, M12, M16 and M20
- Maximum height adjustment respectively 10mm, 12mm or 15mm
- This machine foot has been designed to absorb vibration and impacts
- Mounting and height adjustment with arbitrary bolt length (not included)
- Stable due to rubber anti-slip base
- Suitable for temperatures from -40 °C to +80 °C
- Used for cutting and bending machines for sheet metal, injection moulding machines, lathes, cutting and grinding machines and machines for the textile and printing industries.
Material: Base cover - galvanised steel, Base - NR (natural rubber) 55° Shore A
Colour: Base cover - galvanized steel, Base – black
Available on request:
- Different Shore hardness A 40° of A 70°
- Metal parts in stainless steel A2 or A4

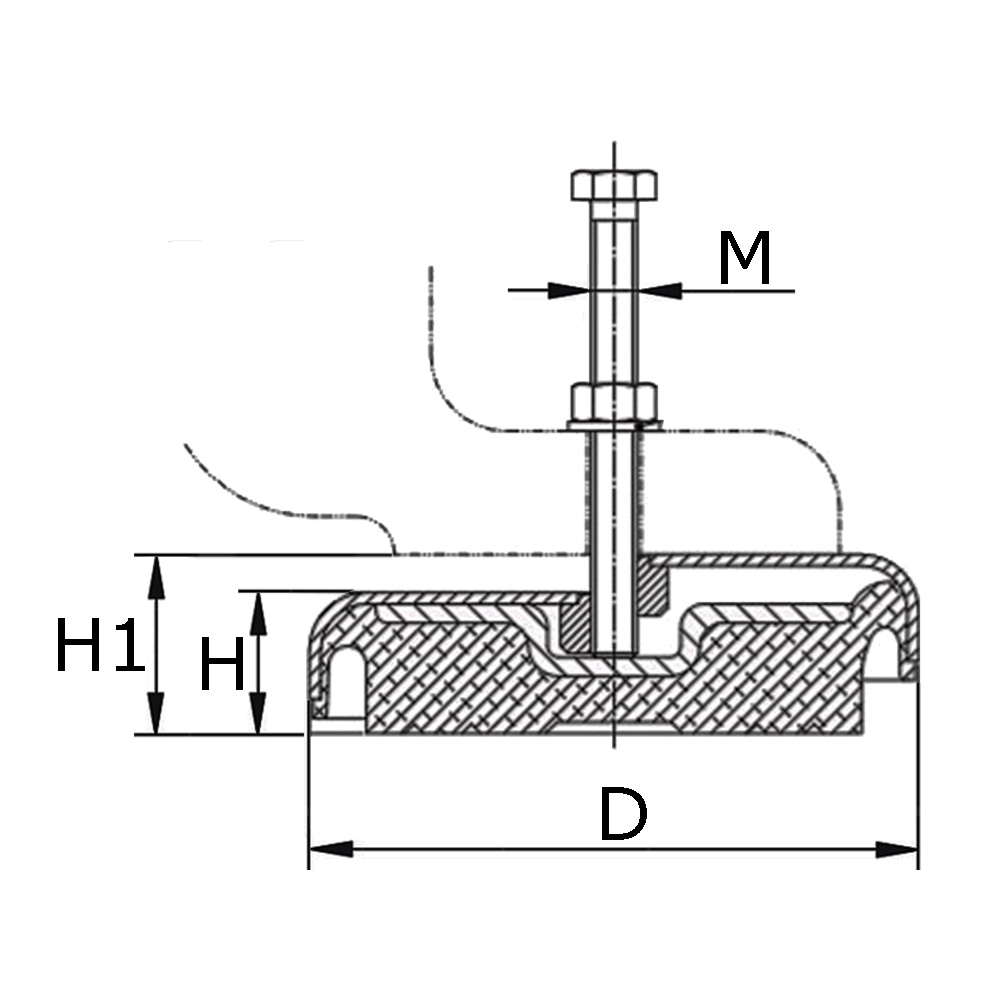

Legend
D=Ø-Base, H=Height minimal, H1=Height maximal, M=Threaded bush size (Metric), Mat. A=type of rubber, Mat. B=Material metal components, N=Maximal load per element in Newton, Shore A °=Shore-A hardness of the rubber
