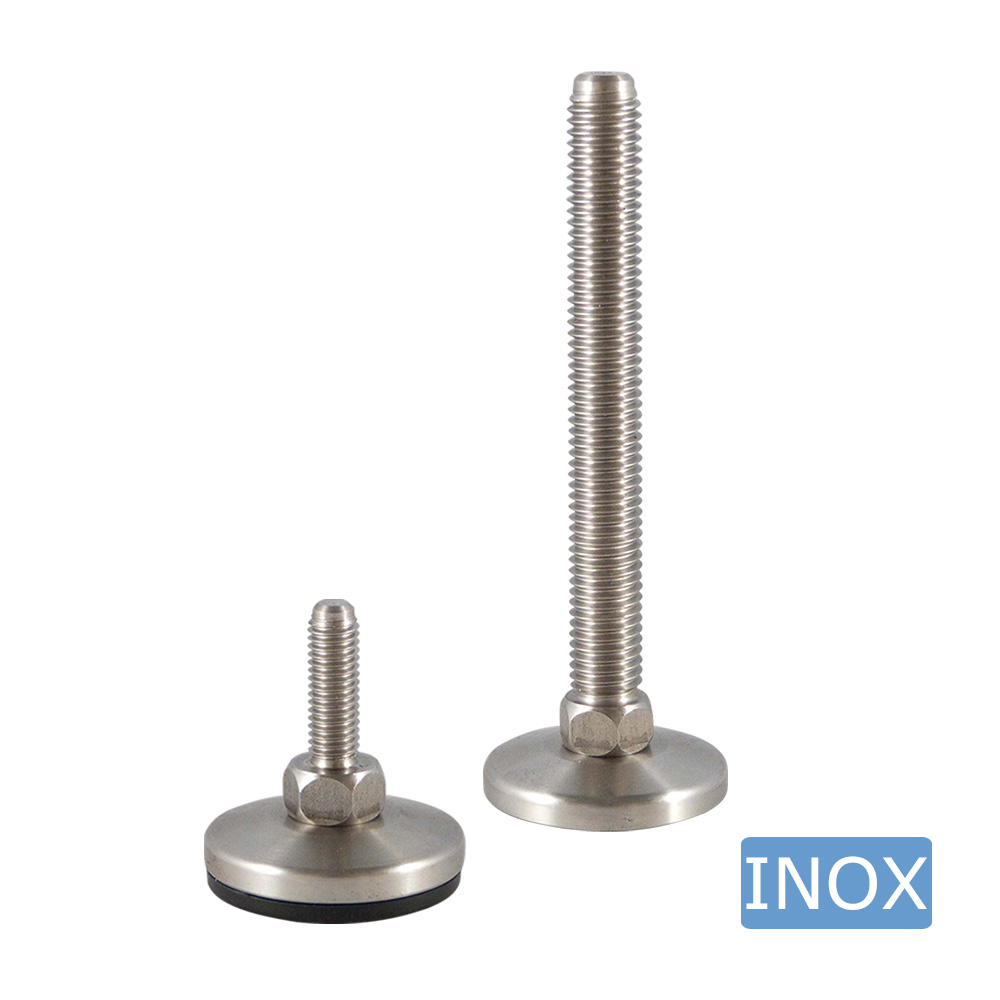

Stainless steel levelling foot – swivel base

Product information

• Stainless steel levelling feet with articulating swivel base are available with stainless steel threaded stems, thread size M8 to M12 inclusive, and thread lengths from 25 mm to 100 mm inclusive
• Base size Ø 30 mm and Ø 40 mm
• Maximum static and vertical load capacity of ±800 kg to ±900 kg inclusive
• Maximum angle of inclination +/- 1.5° or 2.5°
• The threaded stem has a hexagonal shoulder to allow adjustment using an open-ended spanner
• These stainless steel levelling feet are suitable for machines, frames, conveyors, etc. where high demands apply in respect of hygiene standards. Applicable for pharmaceutical-, chemical-, and food industry in general and specifically for cheese and wine production

Material: Base - stainless steel AISI 304 (A2 / 1.4301), Anti-slip sole - NBR (nitrile butadiene rubber) Shore A 90°, Threaded stem – stainless steel AISI 304 (A2 / 1.4301)
Colour: Base - stainless steel-coloured, Anti-slip sole – Black, Threaded stem - stainless steel-coloured

Variants:

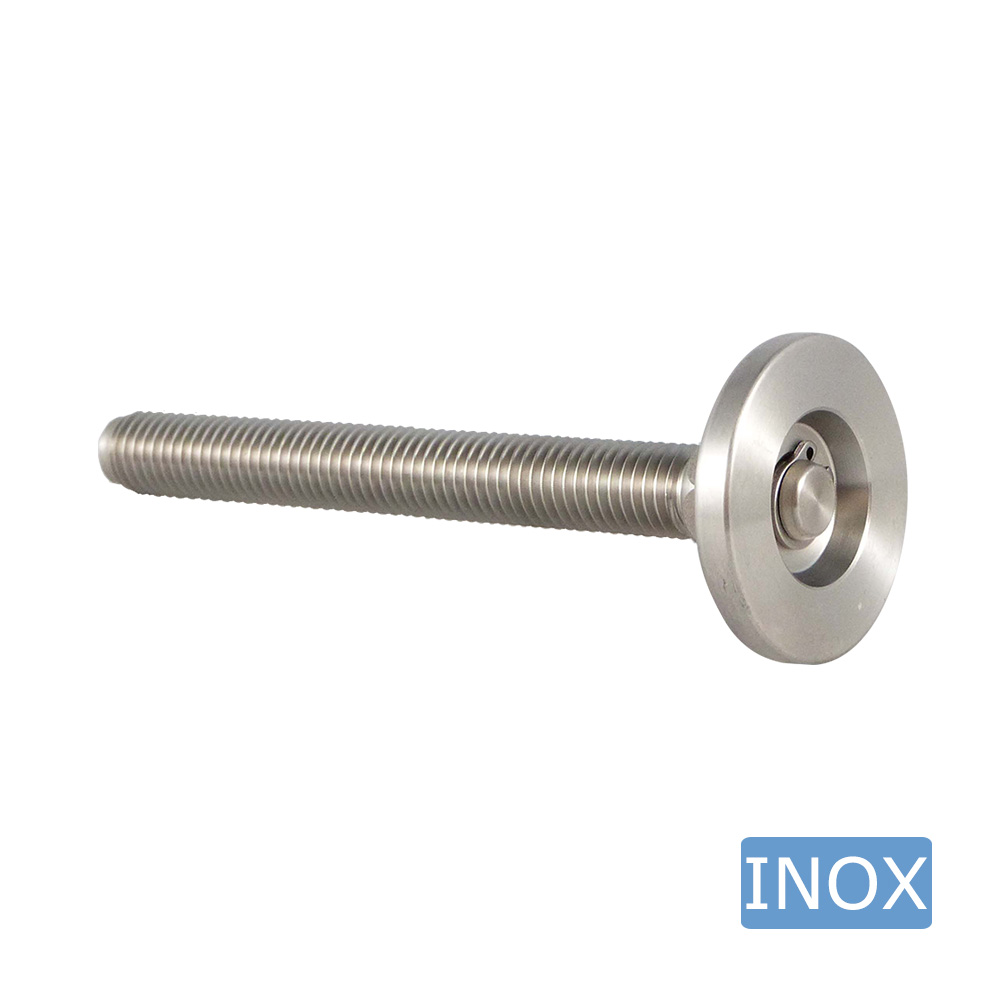

Type A: Base without anti-slip sole

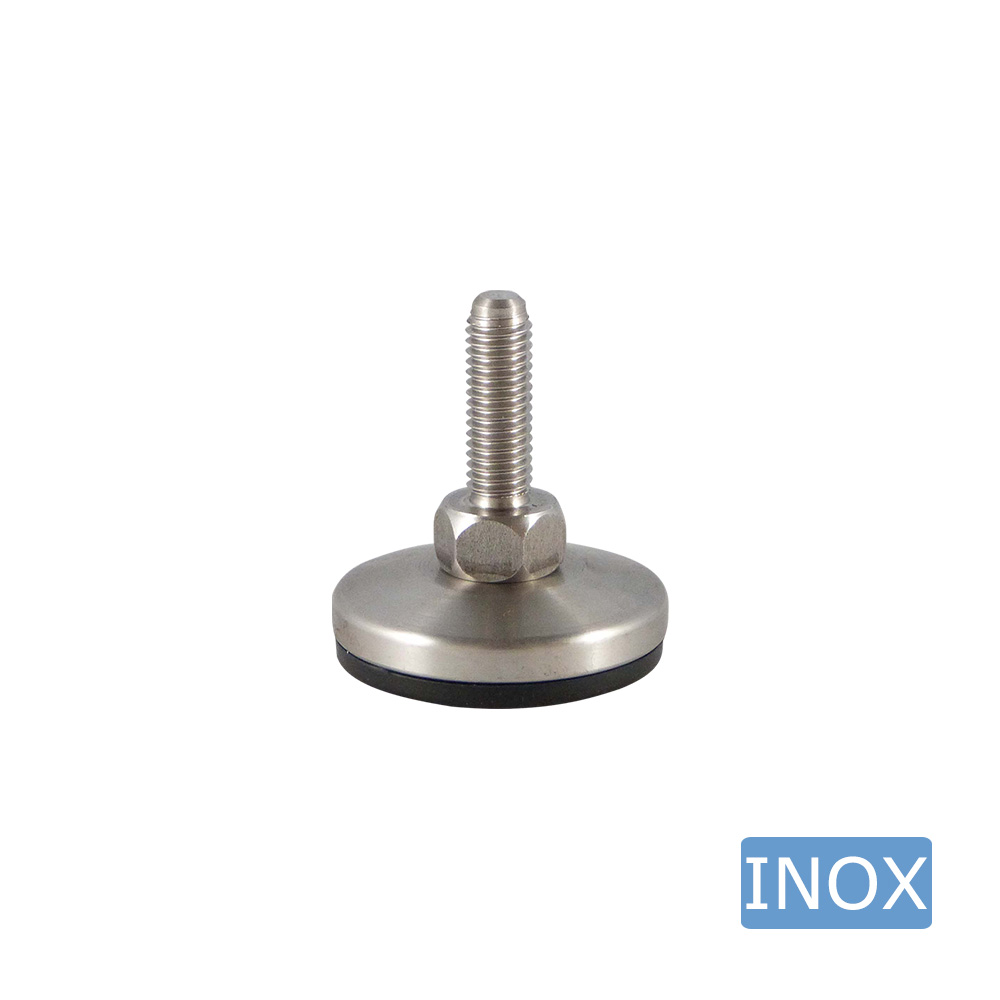

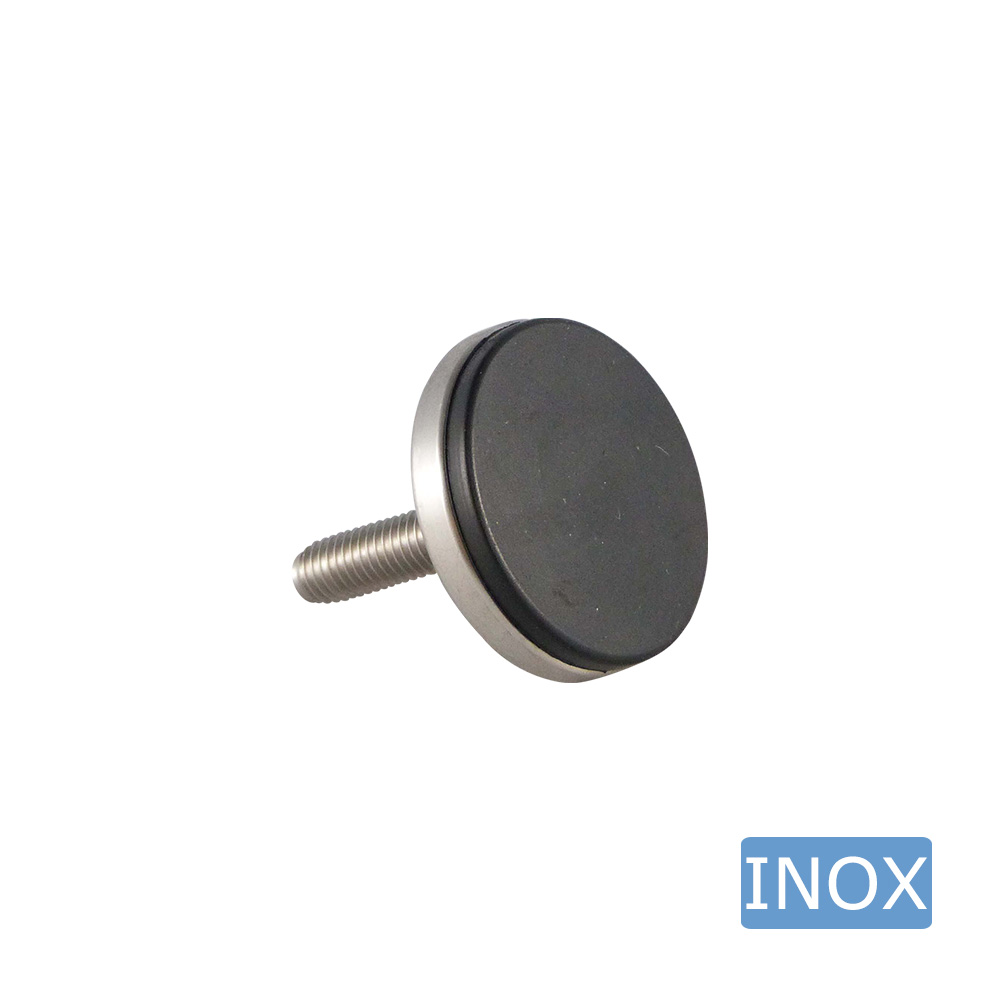

Type B: Base with premounted anti-slip sole
