Levelling foot with ball joint – heavy duty - stainless steel

Product information

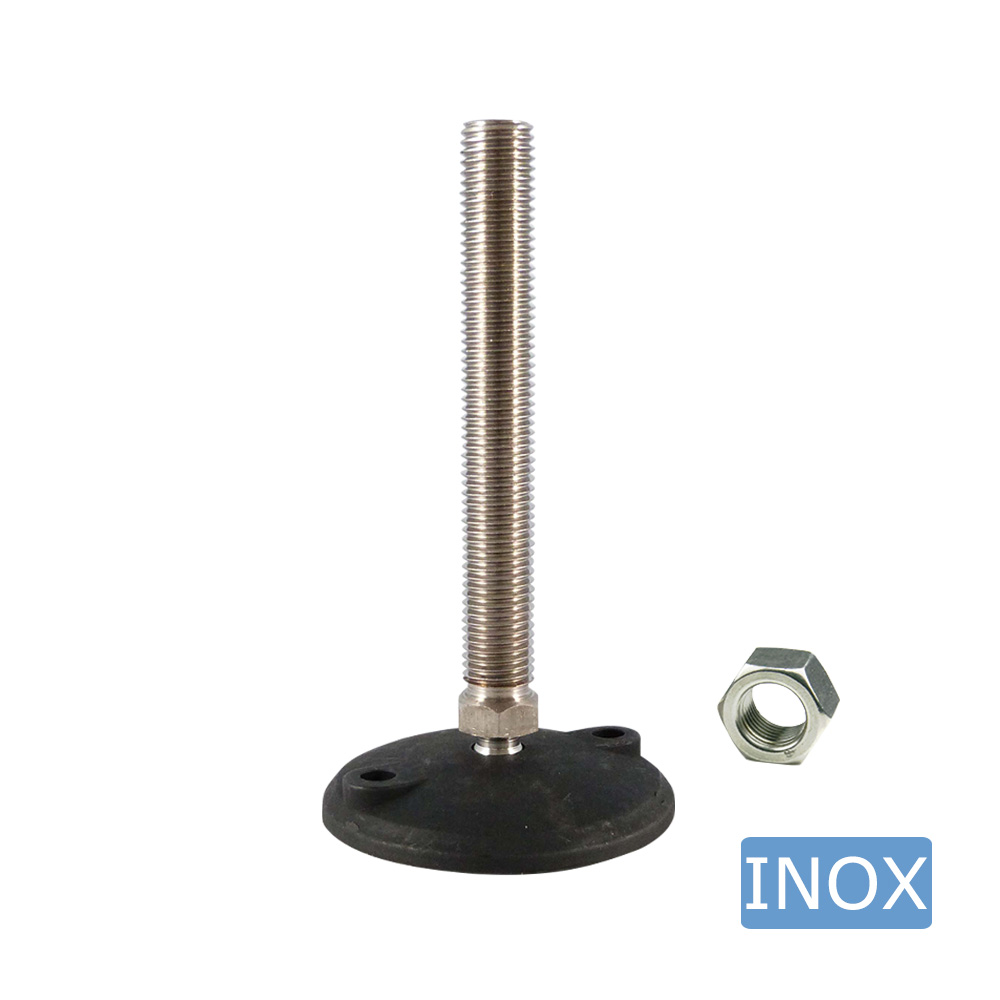

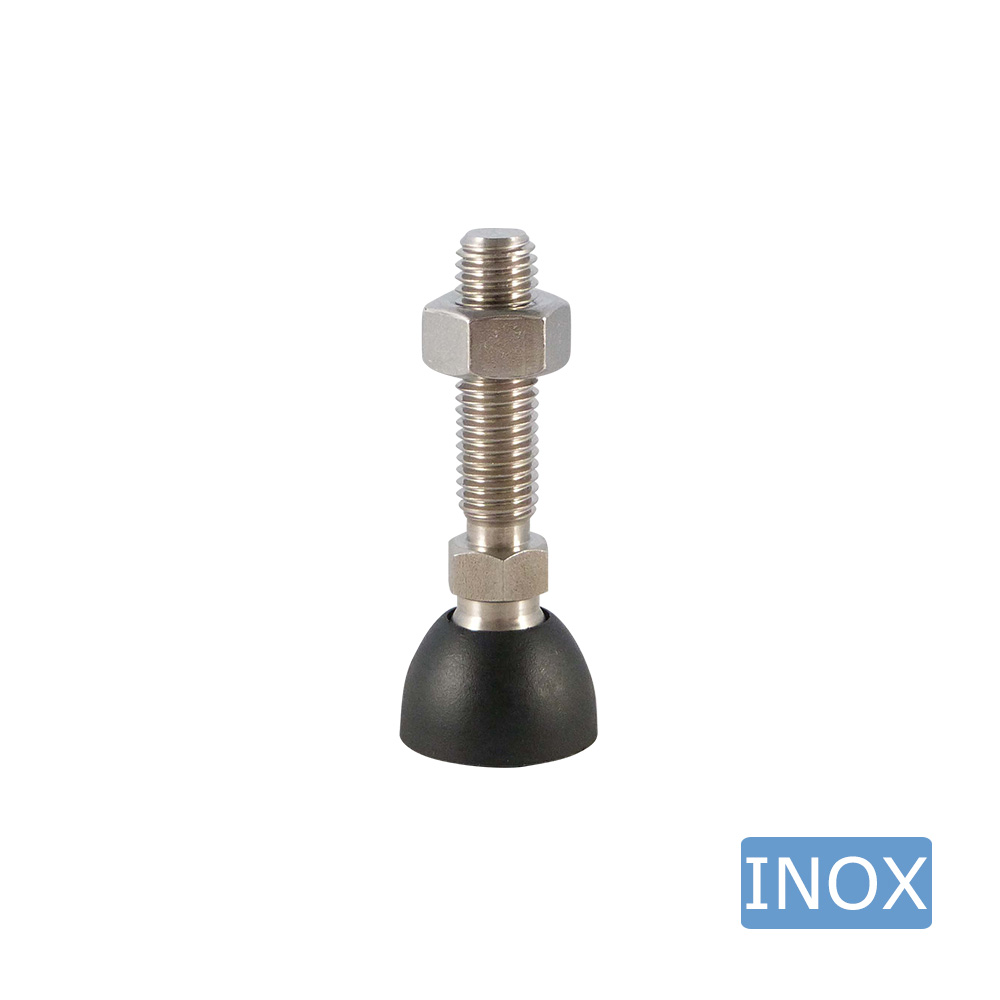

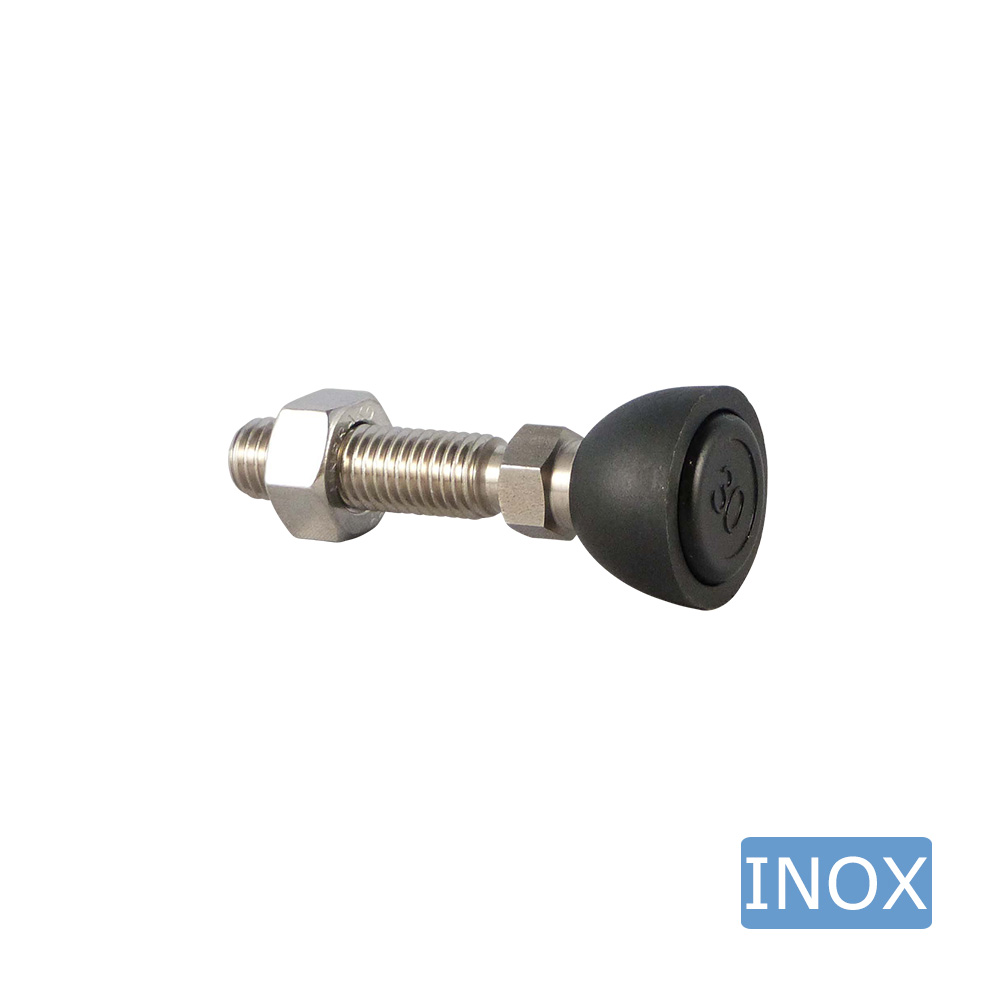

• Heavy duty levelling feet with a swivelling plastic base on a ball joint are available with stainless steel threaded stems, thread size M8 to M24 inclusive, and thread lengths from 40 mm to 200 mm inclusive
• Plastic base measuring from Ø 30 mm to Ø 120 mm inclusive
• Maximum static and vertical load capacity up to 3500 kg
• The threaded stem features a hexagon, spanner size 14 to 24 mm, to allow adjustment with an open-ended spanner

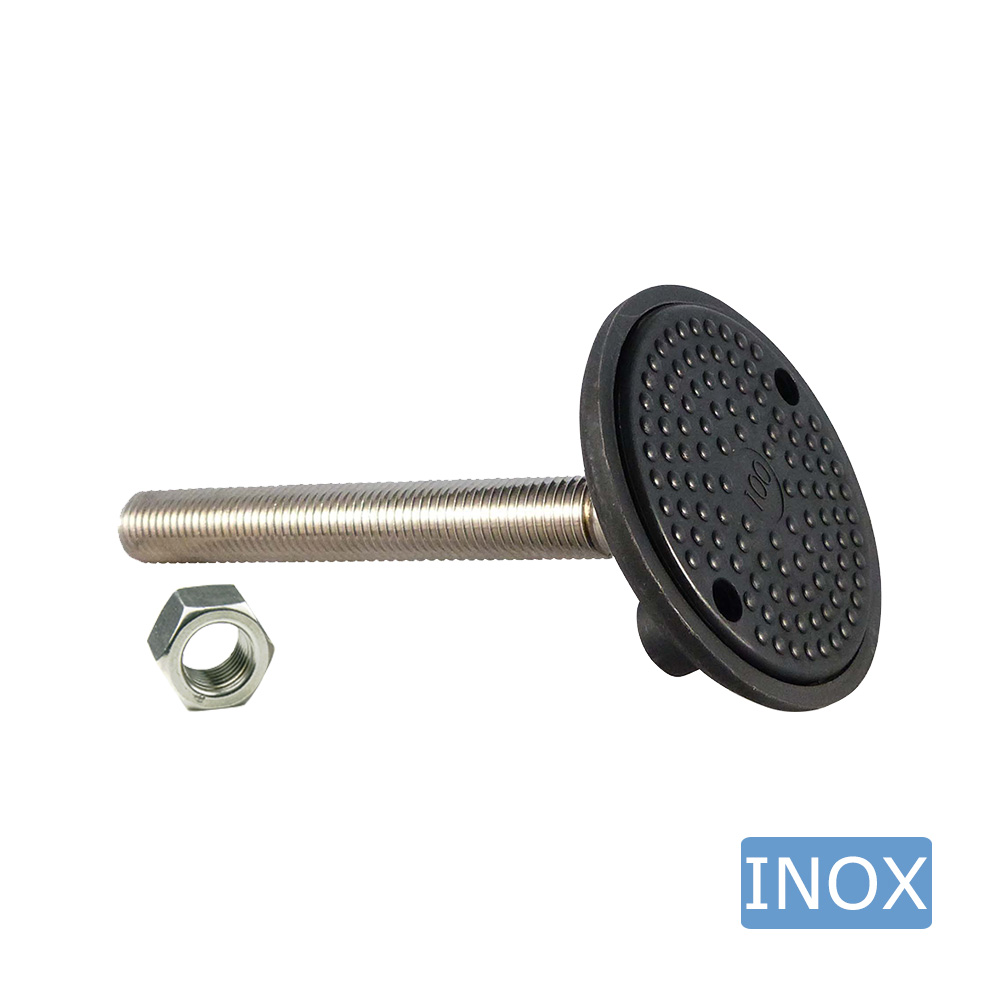

• The base is supplied with a (removable) anti-slip sole as standard
• Maximum angle of inclination 20°
• These heavy duty levelling feet are suitable for use under machines, frames, conveyors, heavy shelving racks and podiums where demanding requirements apply relative to stability, load-bearing capacity and floor loading.

Material: Base – PA (polyamide), Anti-slip sole - TPE – thermoplastic elastomer, Threaded stem – stainless steel AISI 304
Colour: Base + anti-slip sole – black, Threaded stem - stainless steel -coloured

Variants

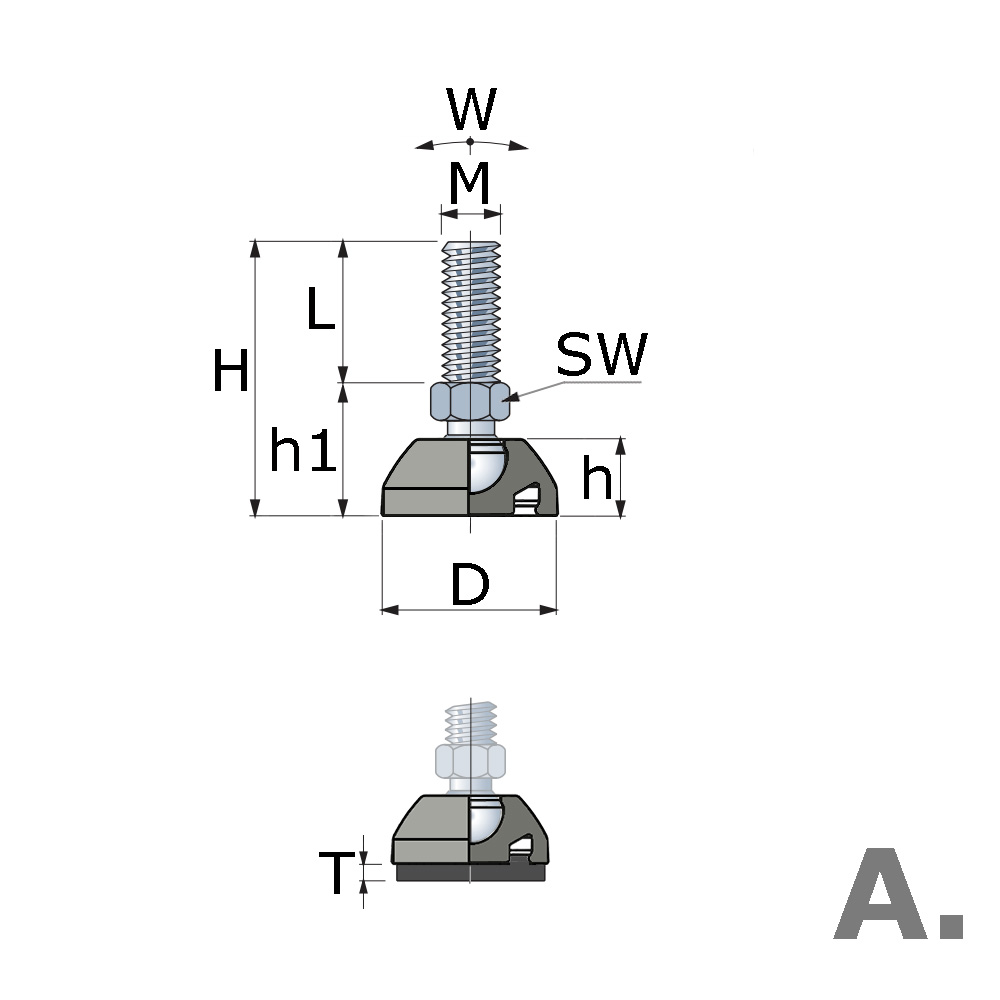

Type A: Base without mounting holes

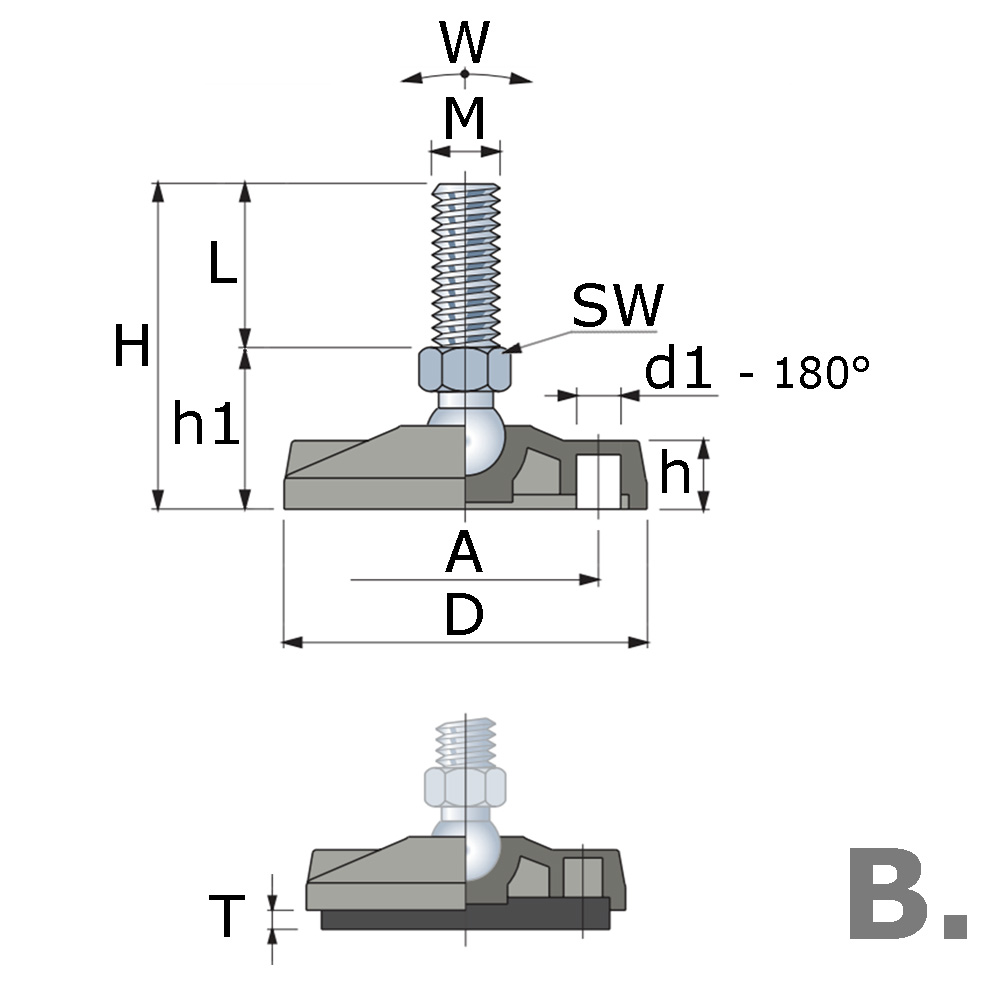

Type B: Base with mounting holes for attachment to the supporting surface (closed at the top - to be drilled out if used)
