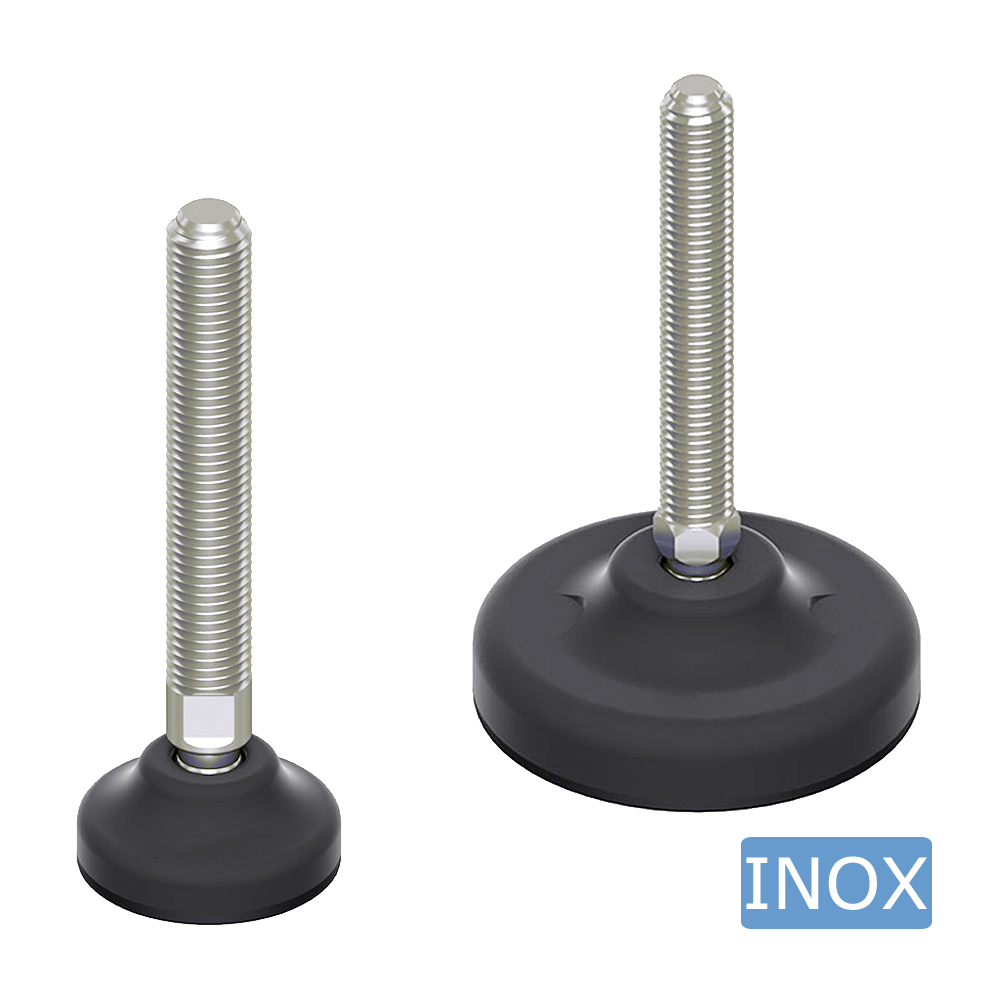

Levelling foot with ball joint - heavy duty – stainless steel

Levelling foot with ball joint - heavy duty – stainless steeldrawing_1

Levelling foot with ball joint - heavy duty – stainless steeldrawing_2

Product information

Heavy duty levelling feet with a swivelling plastic base on a ball joint are available with stainless steel threaded stems, thread size M6 to M24 inclusive, and thread lengths from 47 mm to 209 mm inclusive
Plastic base measuring from Ø 20 mm to Ø 110 mm inclusive
Maximum static and vertical load capacity of 362 kg to 1500 kg inclusive
The threaded stem features two flats or a hexagon to allow adjustment with an open-ended spanner
The base is supplied with a (removable) NBR anti-slip sole as standard
Maximum angle of inclination 15°
These heavy duty levelling feet are suitable for use under machines, frames, conveyors, heavy shelving racks and podiums where demanding requirements apply relative to stability, load-bearing capacity and floor loading.

Material: Base - PA GF (glass fibre reinforced polyamide), Anti-slip sole – NBR (nitrile butadiene rubber) Shore A 70°, Threaded stem – stainless steel AISI 304
Colour: Base + sole - black , threaded stem - stainless steel-coloured

Variants:

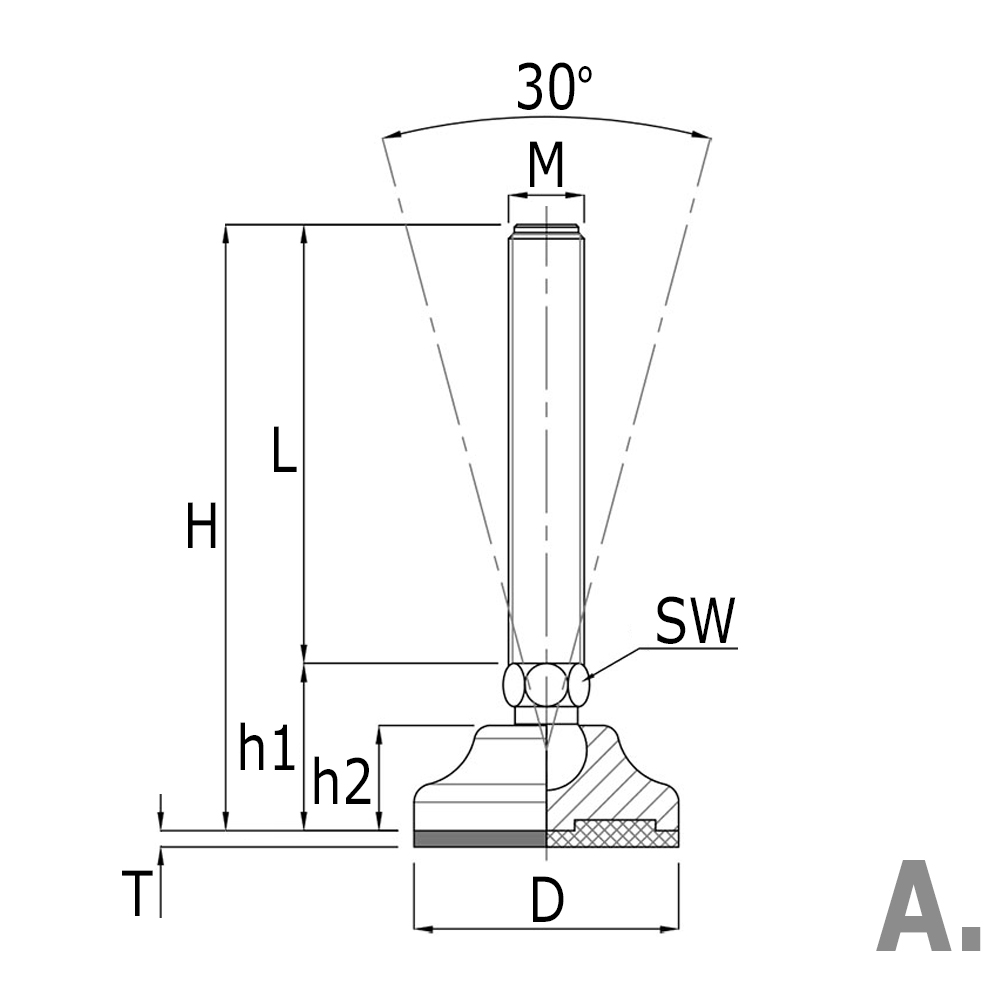

Type A: Base without mounting holes

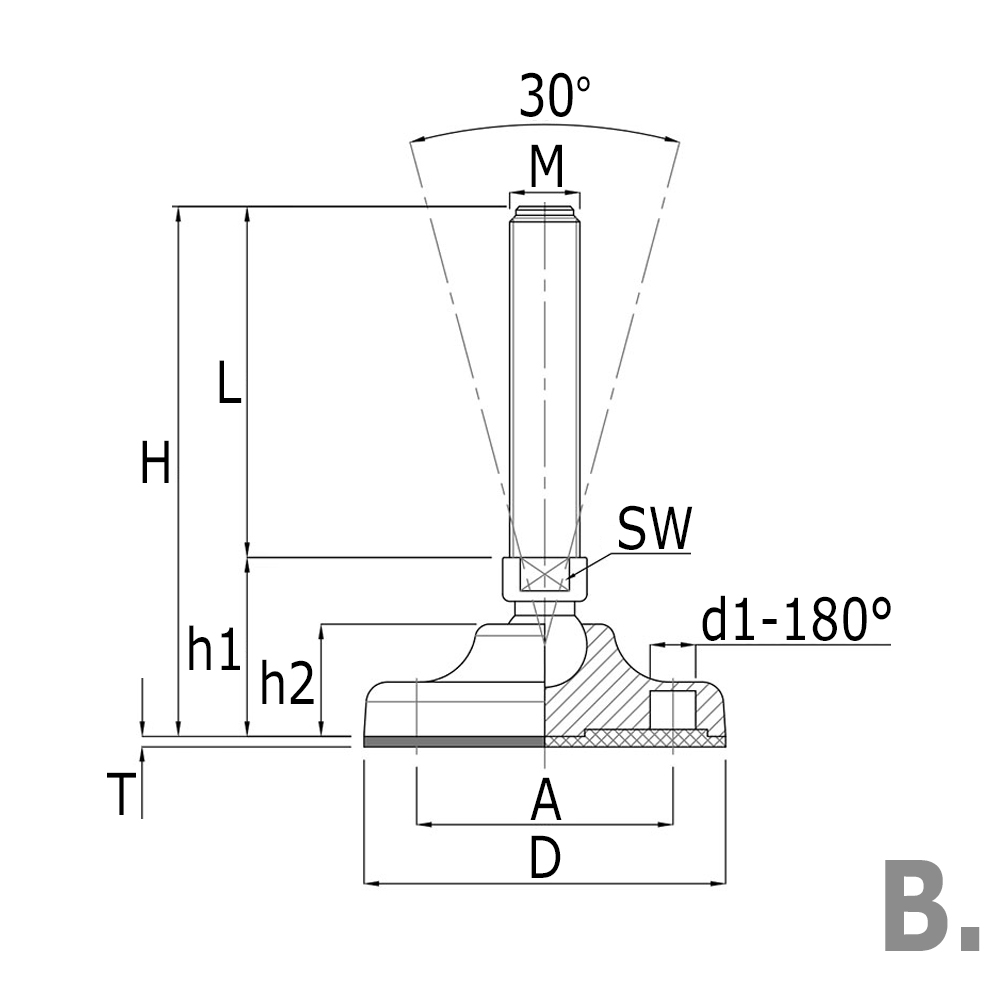

Type B: Base with mounting holes for attaching to the supporting surface

Legend
A=centre-to centre-dimension of the holes, D=base Ø, d1=bore Ø, H=total height, h=height, h1=height, h2=height, K= maximum static load in kg, L=thread length, M=thread size, SW=spanner size, Type=variant, W=angle in °

Filter by

Show all filters

Show less filters

Reset all filters

Articles

4 pages - « Previous 1 2 3 4 Next »

Article	Description	H	L	h1	M	D	SW	K	h2	A	d1	Type	T	Colour/RAL	W
76506512100	Tilt machine and levelling feet stainless-steel 65mm M12X100	133	100	33	M12	65	SW14	1100	23	0		A	3	Black	30°
76506512125	Tilt machine and levelling feet stainless-steel 65mm M12X125	158	125	33	M12	65	SW14	1100	23	0		A	3	Black	30°
76506514050	Tilt machine and levelling feet stainless-steel 65mm M14X50	83	50	33	M14	65	SW14	1500	23	0		A	3	Black	30°
76506514075	Tilt machine and levelling feet stainless-steel 65mm M14X75	108	75	33	M14	65	SW14	1500	23	0		A	3	Black	30°
76506514100	Tilt machine and levelling feet stainless-steel 65mm M14X100	133	100	33	M14	65	SW14	1500	23	0		A	3	Black	30°
76506514125	Tilt machine and levelling feet stainless-steel 65mm M14X125	158	125	33	M14	65	SW14	1500	23	0		A	3	Black	30°
76506514150	Tilt machine and levelling feet stainless-steel 65mm M14X150	183	150	33	M14	65	SW14	1500	23	0		A	3	Black	30°
76506514175	Tilt machine and levelling feet stainless-steel 65mm M14X175	208	175	33	M14	65	SW14	1500	23	0		A	3	Black	30°
76506516050	Tilt machine and levelling feet stainless-steel 65mm M16X50	88	50	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506516075	Tilt machine and levelling feet stainless-steel 65mm M16X75	113	75	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506516100	Tilt machine and levelling feet stainless-steel 65mm M16X100	138	100	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506516125	Tilt machine and levelling feet stainless-steel 65mm M16X125	163	125	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506516150	Tilt machine and levelling feet stainless-steel 65mm M16X150	188	150	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506516175	Tilt machine and levelling feet stainless-steel 65mm M16X175	213	175	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506516200	Tilt machine and levelling feet stainless-steel 65mm M16X200	238	200	38	M16	65	SW13	1500	23	0		A	3	Black	30°
76506520050	Tilt machine and levelling feet stainless-steel 65mm M20X50	88	50	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76506520075	Tilt machine and levelling feet stainless-steel 65mm M20X75	113	75	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76506520100	Tilt machine and levelling feet stainless-steel 65mm M20X100	138	100	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76506520125	Tilt machine and levelling feet stainless-steel 65mm M20X125	163	125	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76506520150	Tilt machine and levelling feet stainless-steel 65mm M20X150	188	150	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76506520175	Tilt machine and levelling feet stainless-steel 65mm M20X175	213	175	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76506520200	Tilt machine and levelling feet stainless-steel 65mm M20X200	238	200	38	M20	65	SW17	1500	23	0		A	3	Black	30°
76508010050	Tilt machine and levelling feet stainless-steel 83mm M10X50	88	50	38	M10	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508010075	Tilt machine and levelling feet stainless-steel 83mm M10X75	113	75	38	M10	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508010100	Tilt machine and levelling feet stainless-steel 83mm M10X100	138	100	38	M10	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508010125	Tilt machine and levelling feet stainless-steel 83mm M10X125	163	125	38	M10	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508012050	Tilt machine and levelling feet stainless-steel 83mm M12X50	88	50	38	M12	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508012075	Tilt machine and levelling feet stainless-steel 83mm M12X75	113	75	38	M12	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508012100	Tilt machine and levelling feet stainless-steel 83mm M12X100	138	100	38	M12	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508012125	Tilt machine and levelling feet stainless-steel 83mm M12X125	163	125	38	M12	83	SW14	1500	27	54	8,5	B	3	Black	30°
76508014050	Tilt machine and levelling feet stainless-steel 83mm M14X50	88	50	38	M14	83	SW14	2000	27	54	8,5	B	3	Black	30°
76508014075	Tilt machine and levelling feet stainless-steel 83mm M14X75	113	75	38	M14	83	SW14	2000	27	54	8,5	B	3	Black	30°
76508014100	Tilt machine and levelling feet stainless-steel 83mm M14X100	138	100	38	M14	83	SW14	2000	27	54	8,5	B	3	Black	30°
76508014125	Tilt machine and levelling feet stainless-steel 83mm M14X125	163	125	38	M14	83	SW14	2000	27	54	8,5	B	3	Black	30°
76508014150	Tilt machine and levelling feet stainless-steel 83mm M14X150	188	150	38	M14	83	SW14	2000	27	54	8,5	B	3	Black	30°
76508014175	Tilt machine and levelling feet stainless-steel 83mm M14X175	213	175	38	M14	83	SW14	2000	27	54	8,5	B	3	Black	30°
76508016050	Tilt machine and levelling feet stainless-steel 83mm M16X50	92	50	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508016075	Tilt machine and levelling feet stainless-steel 83mm M16X75	117	75	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508016100	Tilt machine and levelling feet stainless-steel 83mm M16X100	142	100	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508016125	Tilt machine and levelling feet stainless-steel 83mm M16X125	167	125	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508016150	Tilt machine and levelling feet stainless-steel 83mm M16X150	192	150	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508016175	Tilt machine and levelling feet stainless-steel 83mm M16X175	217	175	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508016200	Tilt machine and levelling feet stainless-steel 83mm M16X200	242	200	42	M16	83	SW13	2000	27	54	8,5	B	3	Black	30°
76508020075	Tilt machine and levelling feet stainless-steel 83mm M20X75	117	75	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°
76508020100	Tilt machine and levelling feet stainless-steel 83mm M20X100	142	100	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°
76508020125	Tilt machine and levelling feet stainless-steel 83mm M20X125	167	125	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°
76508020150	Tilt machine and levelling feet stainless-steel 83mm M20X150	192	150	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°
76508020175	Tilt machine and levelling feet stainless-steel 83mm M20X175	217	175	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°
76508020200	Tilt machine and levelling feet stainless-steel 83mm M20X200	242	200	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°
76508020225	Tilt machine and levelling feet stainless-steel 83mm M20X225	267	225	42	M20	83	SW17	2000	27	54	8,5	B	3	Black	30°

4 pages - « Previous 1 2 3 4 Next »
