7.2.15

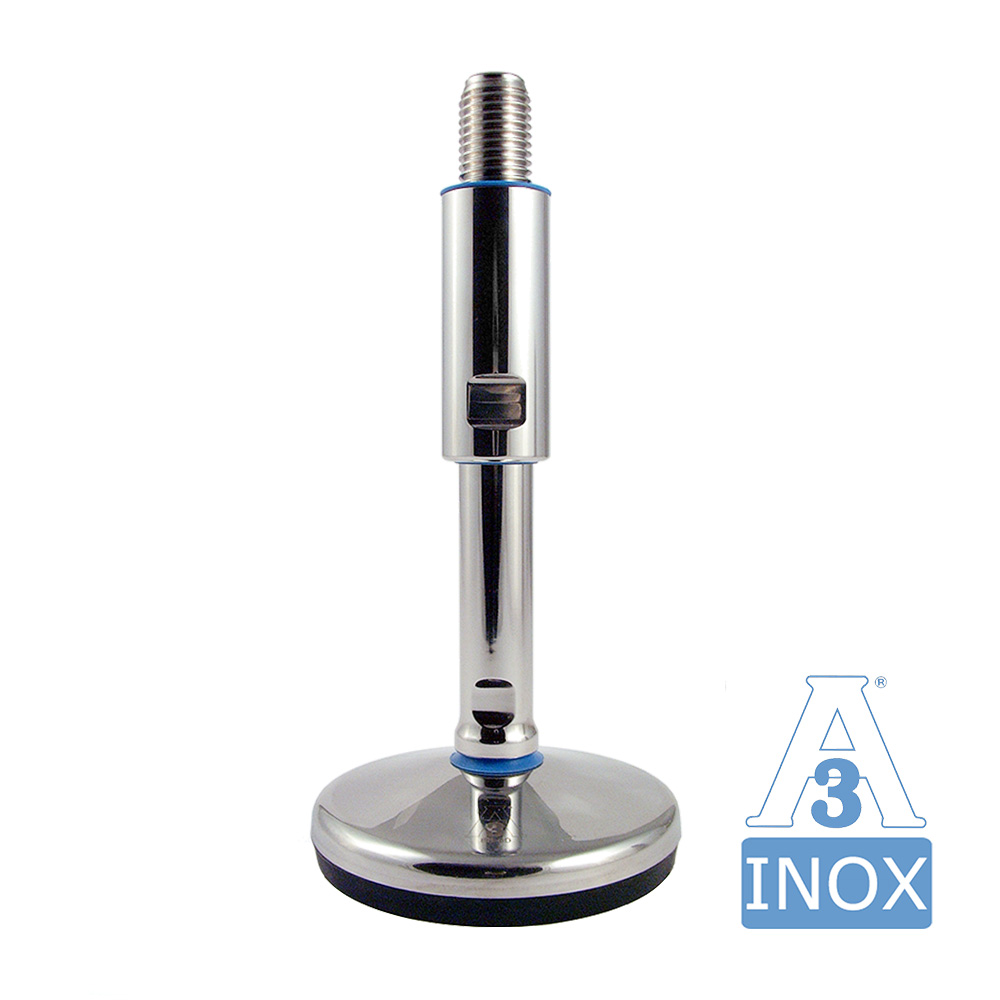

Solid stainless steel levelling feet with vulcanized rubber - 3A Hygiëne
Product information
- Extra-hygienic 3-A, stainless steel levelling feet with solid stainless steel base and vulcanized rubber anti-slip pad are available with threaded stem sizes M12 to M36 inclusive, and stem lengths from 135 mm to 235 mm inclusive
- Base size Ø 60, Ø 80, Ø 100, Ø 120 and Ø150mm
- Maximum static and vertical load capacity of 2500 kg to 8000 kg inclusive
- Compliant with strict 3-A hygiene standards
- Threaded stem equipped with a sealing sleeve (smooth stem)
- Blue silicone seals between the various components
- The vulcanised rubber base is available in FDA-approved NBR in hardness 80° Shore
- Easy to clean due to smooth shaped foot and by sleeve covered stem
- These extra hygiene 3-A levelling feet with solid stainless steel base and sealed stem are suitable for machines, frames, conveyors, etc. where high demands apply in respect of food safety, hygiene, stability and load-bearing capacity. Suitable for use in food, pharma, dairy and meat processing environments.
Material: Rubber base - NBR (nitrile butadiene rubber), Seals – silicone rubber, Metal parts - stainless steel AISI 304
Colour: Rubber base – black, Seals – blue, Metal parts - stainless steel-coloured
Note: For medium-duty applications with a lower load capacity, have a look at
3A levelling feet with vulcanized rubber anti-slip base and stainless steel cover

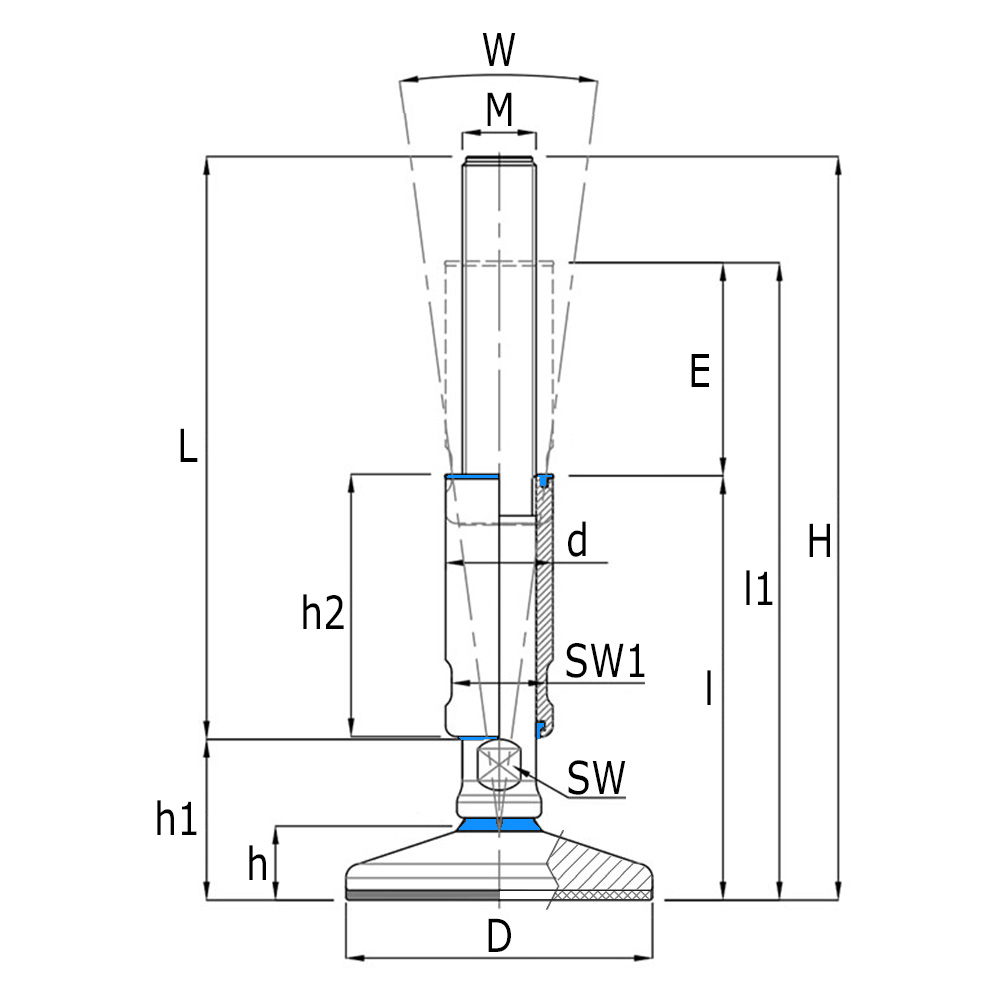

Legend
D=base Ø, E=adjustment range, H=total installation height, h=base height, h1=height, h2= sleeve height, K=maximum static load in kg, L=stem length, l=min. adjustment height, l1=max. adjustment height, M=thread size, SW=spanner size, SW1=spanner size 1, W=Angle in °
