7.2.12
Levelling feet steel – hygiëne - vulcanized anti-slip pad
Product information

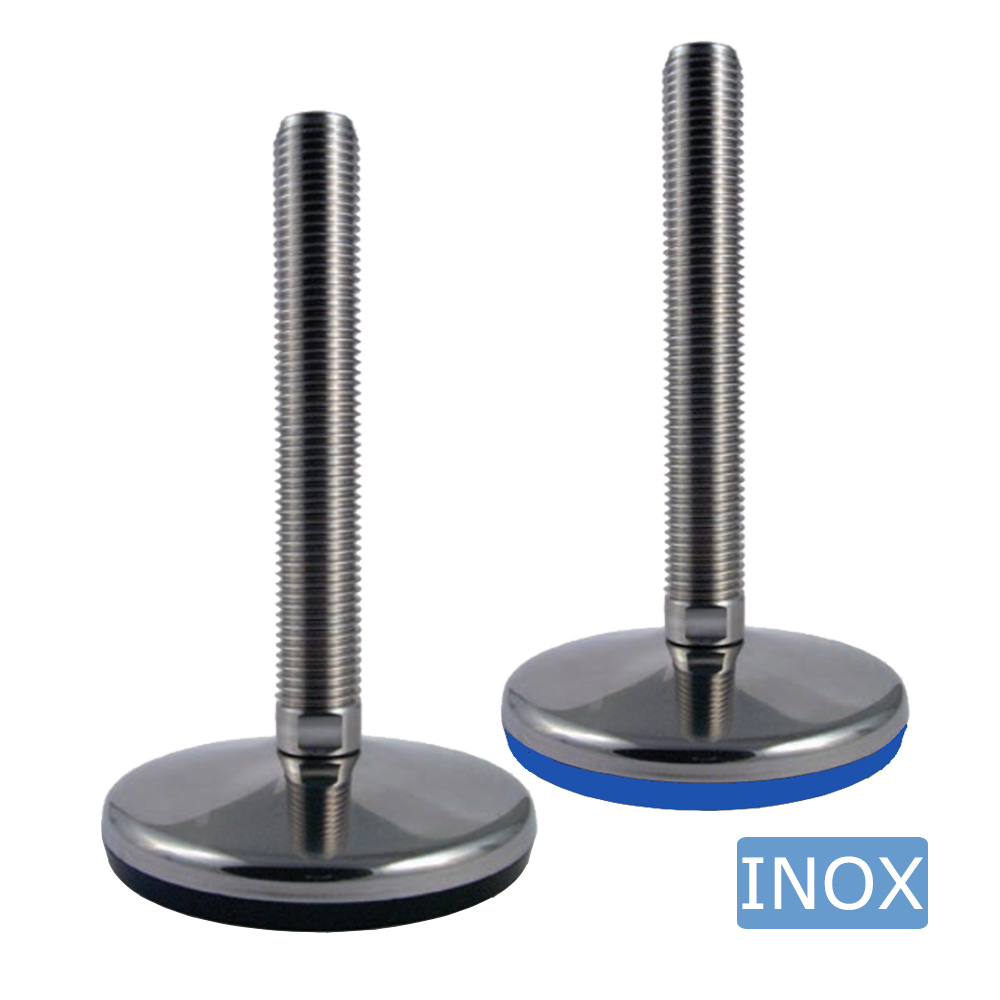

- Stainless steel hygiene levelling feet with vulcanized EPDM or NBR Rubber anti-slip pad are available with thread size M10 to M30 inclusive, and thread lengths from 50 mm to 250 mm inclusive
- Hygienic style
- Base size Ø50, Ø60, Ø80, Ø100 and Ø120mm
- Vulkanized rubber anti-slip base with vibration polished stainless steel cover

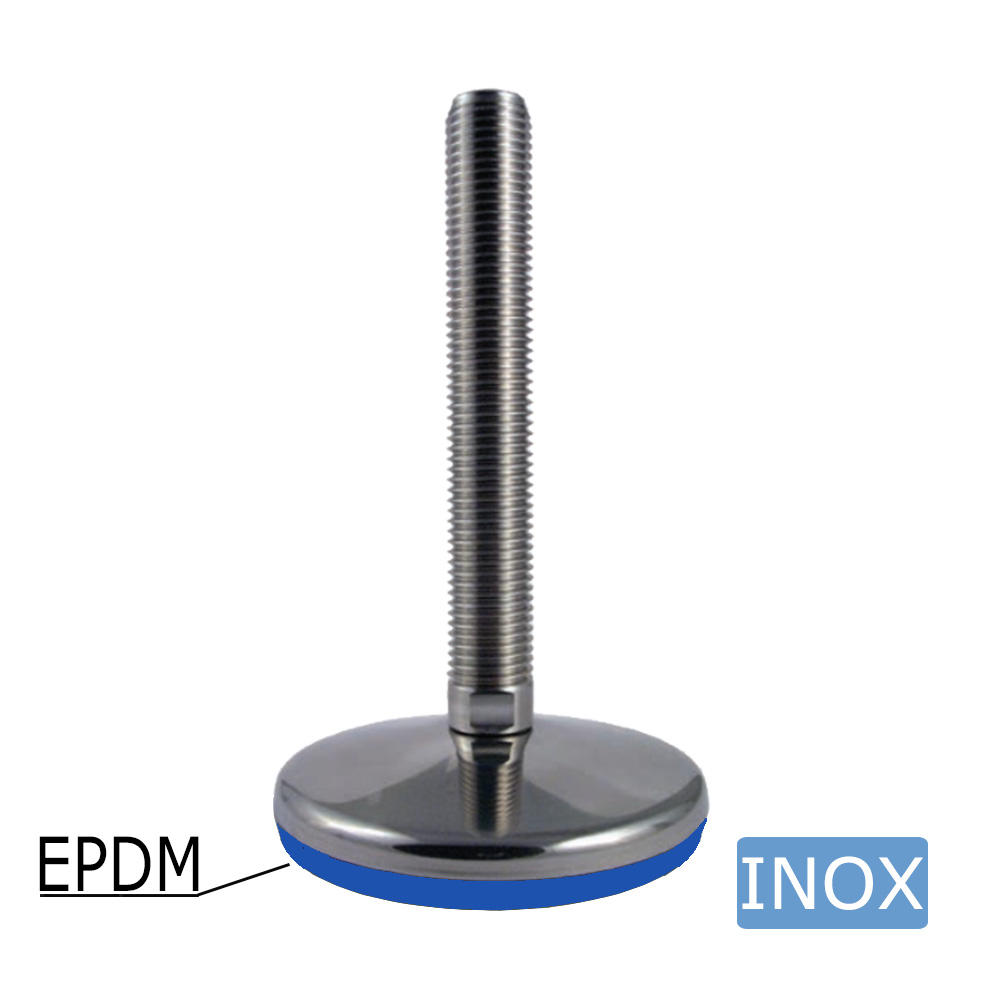

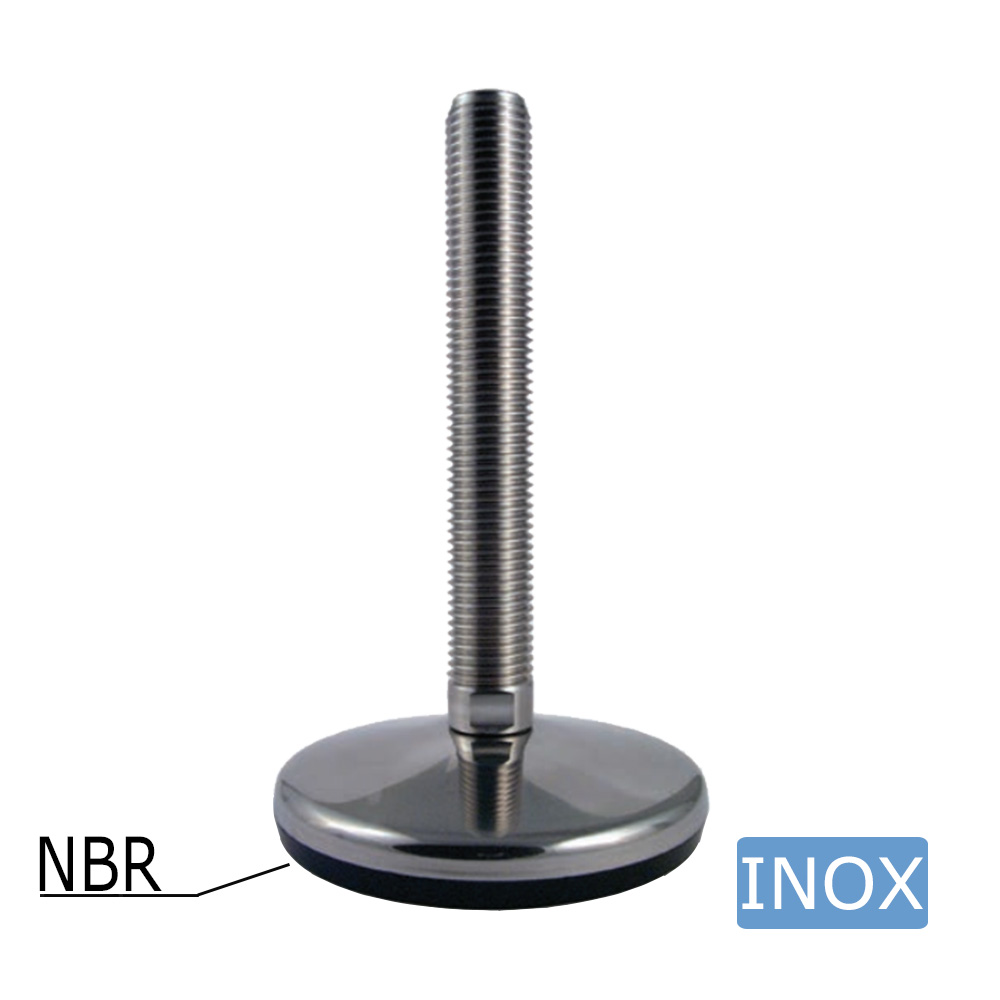

- Rubber available in either EPDM (blue) or NBR (black) with hardness 85° Shore A in FDA grade
- Maximum static and vertical load capacity of 400 kg to 3000 kg inclusive
- Maximum angle of inclination +/-5°
- The threaded stem has either two flats or an external hexagon to allow adjustment using an open-ended spanner
- These zinced steel levelling feet with vulcanized NBR base are suitable for machines, frames, conveyors, etc. where high demands apply in respect of stability, hygiene and load-bearing capacity. Like in food and pharmaceutical industry
Material: Rubber - NBR (nitrile butadiene rubber) or EPDM (ethylene polypropylene diene monomer) and stainless steel A2 (AISI 304), Threaded stem – stainless steel A2 (AISI 304)
Colour: Rubber EPDM – blue / NBR – black, Base – polished stainless steel, Threaded stem – stainless steel-coloured

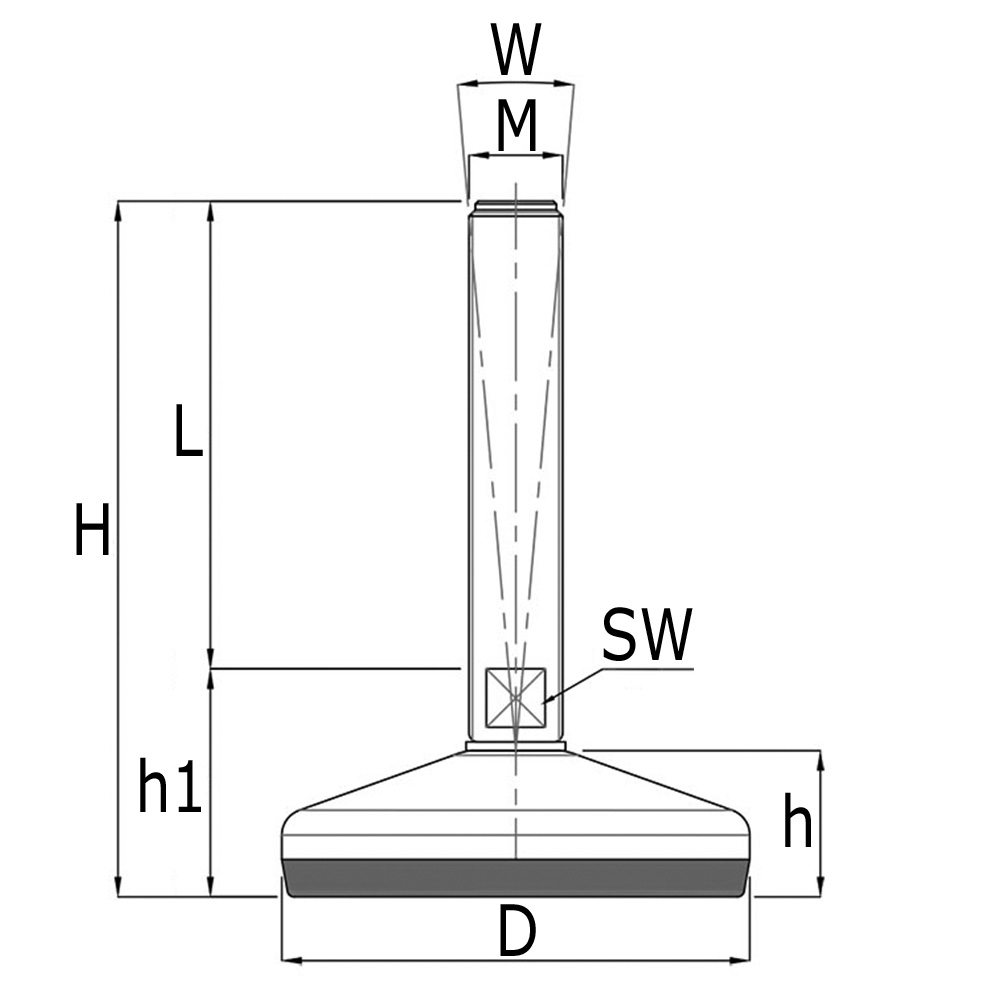

Legend
A=Distance to centre bore, D=base Ø, H=total installation height, h=base height, h1=height, K=maximum static load in kg, L=thread length on stem, M=thread size, SW=spanner size, W= angle in °
