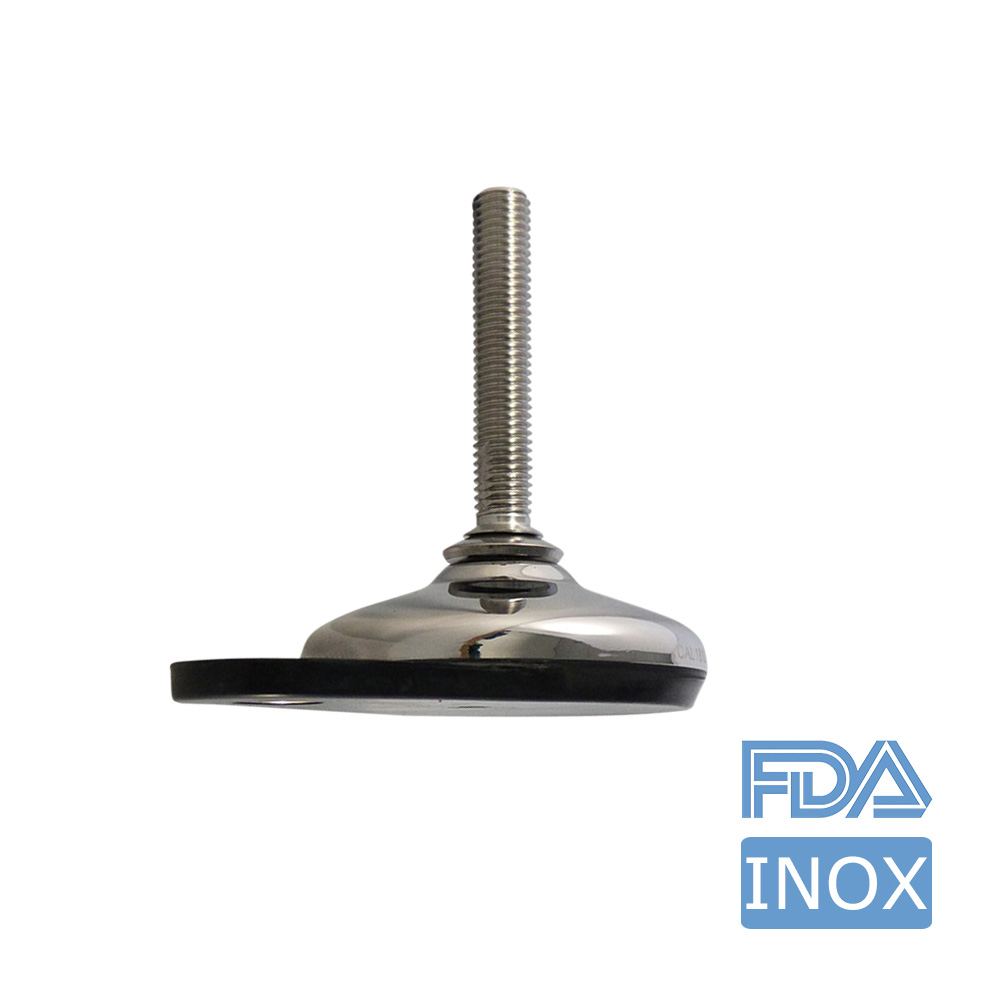

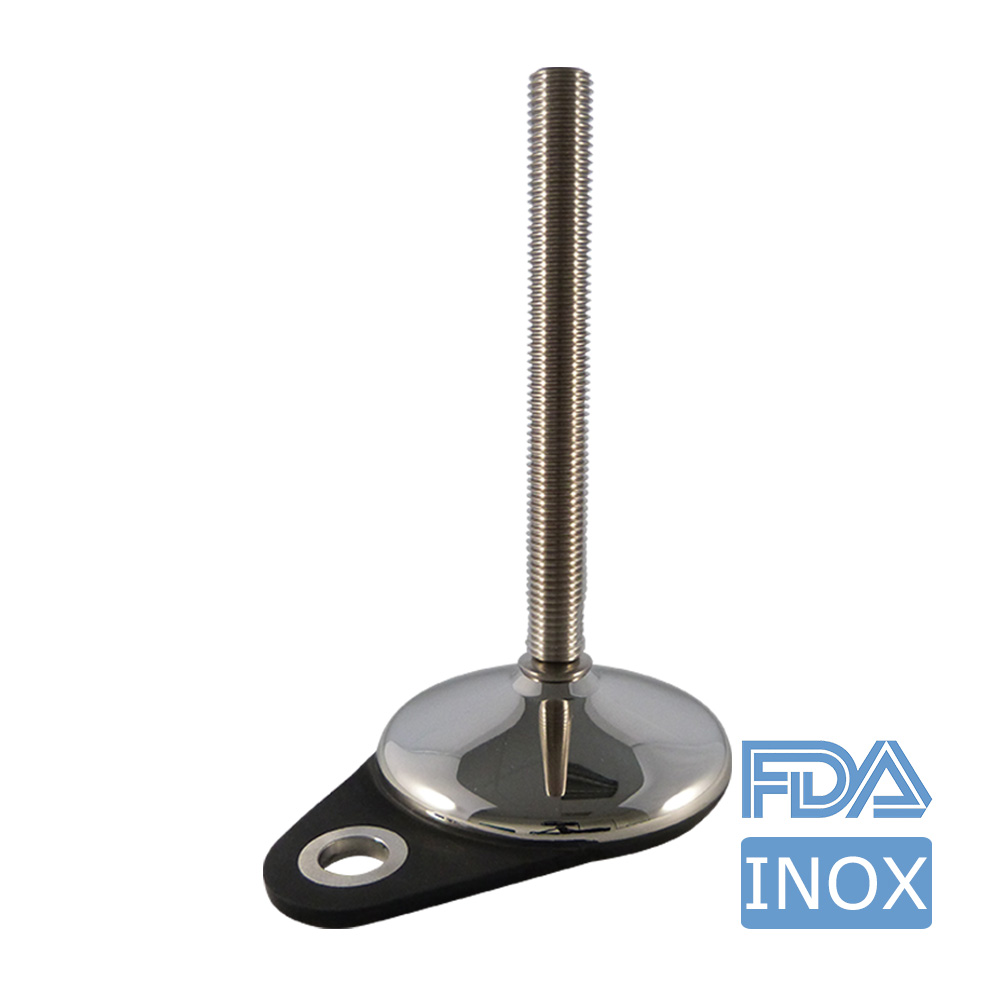

Stainless steel levelling foot - hygienic design - floor mount lug
Product information
- High-hygiene, stainless steel levelling feet are available with stainless steel threaded stems, thread size M12 to M30 inclusive, and thread lengths from 70 mm to 230 mm inclusive
- Base size Ø 60 mm, Ø 80 mm, Ø 100 mm and Ø 120 mm

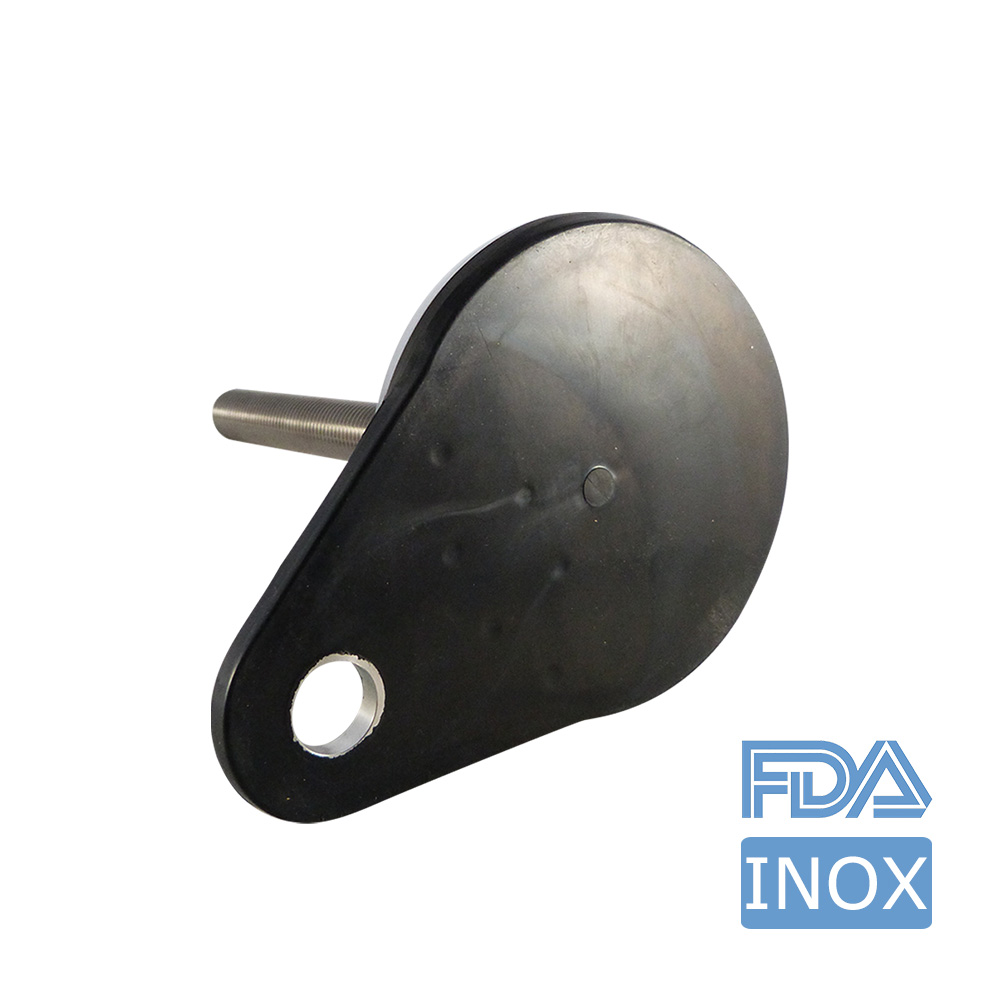

- Rubber anti-slip base with stainless steel cover
- FDA approved (Food and Drug Administration)
- Maximum static and vertical load capacity of 700 kg to 3000 kg inclusive
- Maximum angle of inclination +/-10°
- The threaded stem has two flats to allow adjustment using an open-ended spanner
- These high-hygiene levelling feet are suitable for machines, frames, conveyors, etc. where high demands apply in respect of food safety, hygiene, stability and load-bearing capacity.
Material: Base - NBR (nitrile butadiene rubber) and stainless steel AISI 304, Threaded stem – stainless steel AISI 304
Colour: Base - stainless steel-coloured/black, Threaded stem - stainless steel-coloured
Available on request:
- Extra hygienic model with smooth stem

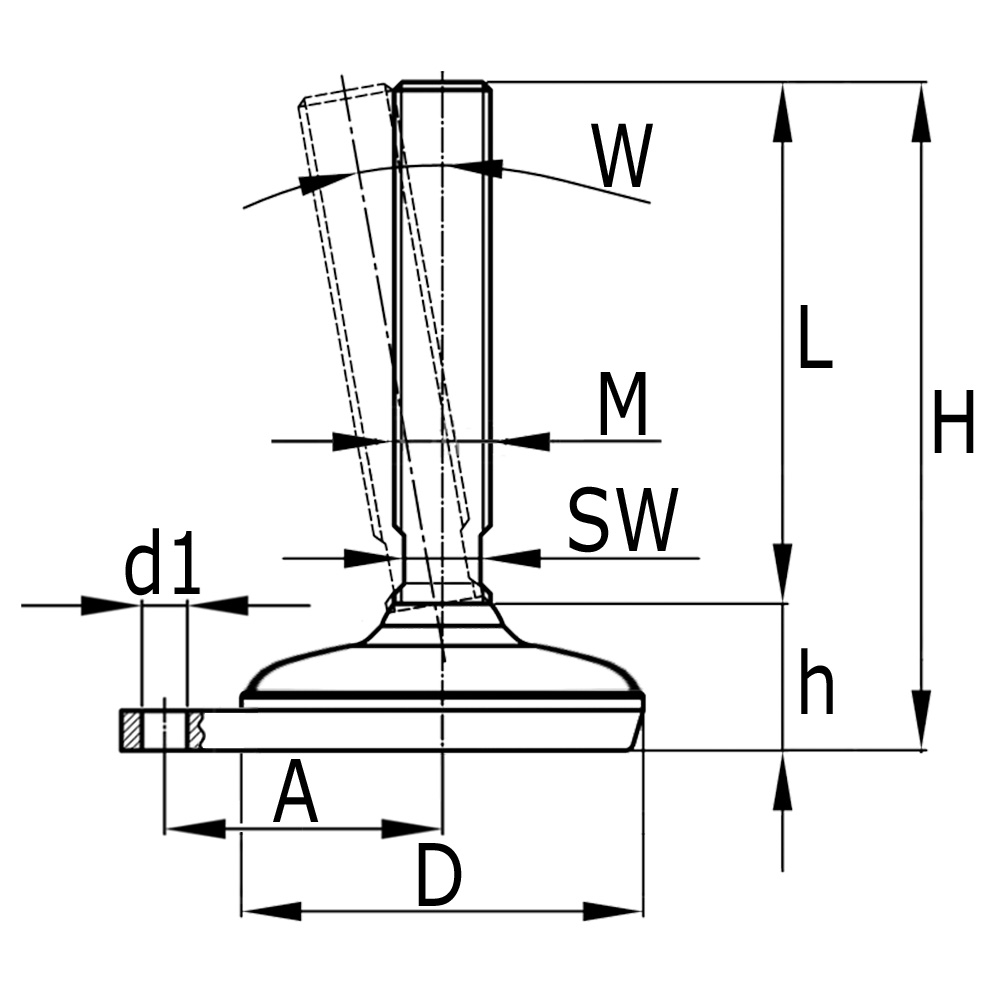

Legend
A=centre-to-centre dimension between mounting hole and base, D=base Ø, d1= mounting hole, H=total installation height, h=base height, K=maximum static load in kg, L=thread length on stem, M=thread size, SW=spanner size
