10.1.11
Tube connectors 3D4 - hinged
Product information
- Adjustable 3D4 connectors for square tube are available for tube size 25 x 25 mm, with a wall thickness of 1.5 mm
- Infinitely variable adjustment from 0° to a maximum of 190°
- The two perpendicular legs can be revolved around their own axis
- Suitable as a corner connection with a (lockable) variable angle for square tubes made from aluminium, steel or stainless steel
- Easy to install without mechanical modifications, welding, using screws or adhesive - the connectors simply push into the tube
- Often used for shop window construction, aviary construction, display construction, exhibition stand construction, commercial vehicle shelving, etc.
Material: Pivot piece - PA (polyamide), Screw and nut - galvanised steel
Colour: Pivot piece – black, screw and nut – zinc-coloured

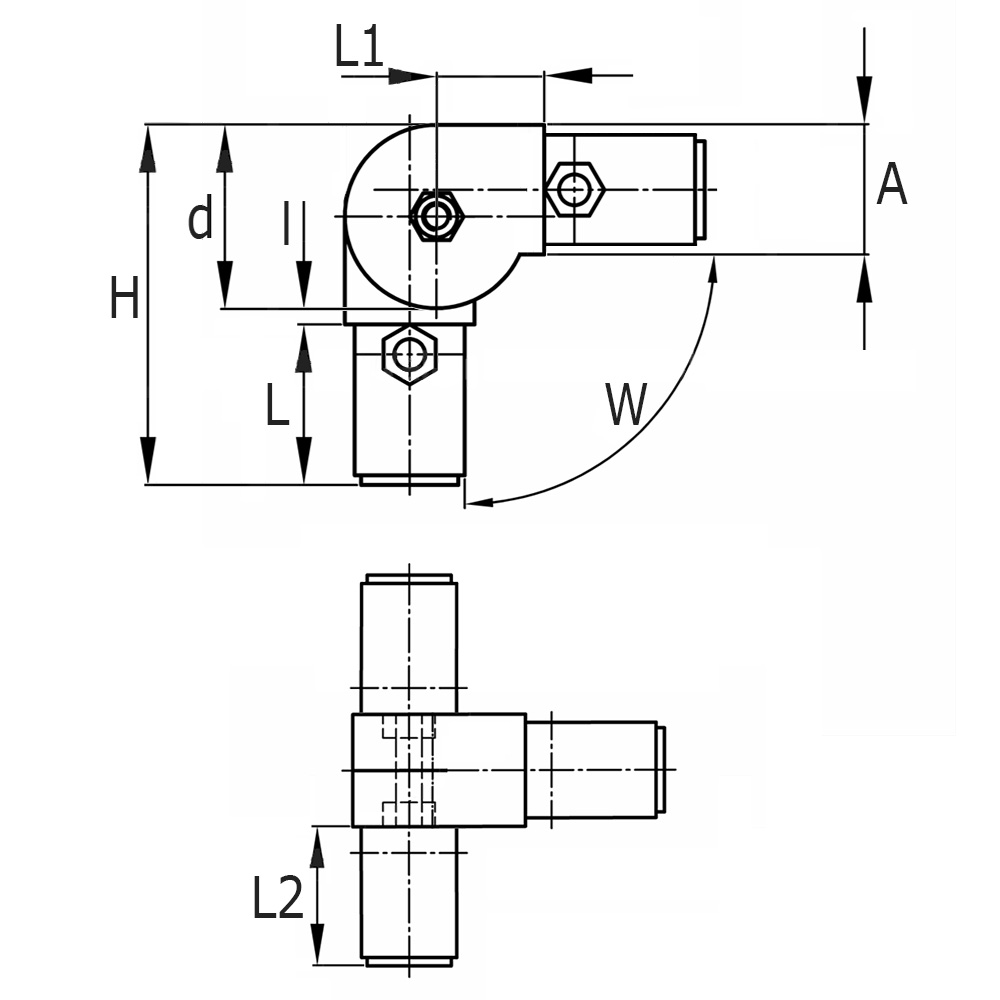

Legend
L=Lentgh to pivot point, L1=schaft/leg length, L2= schaft/leg length, W=adjustment angle in °, Tube size=external tube size and wall thickness
