ProductsTube connectorsTube connectors roundTube connectors, two-piece design 1D2 – round tube
10.3.1

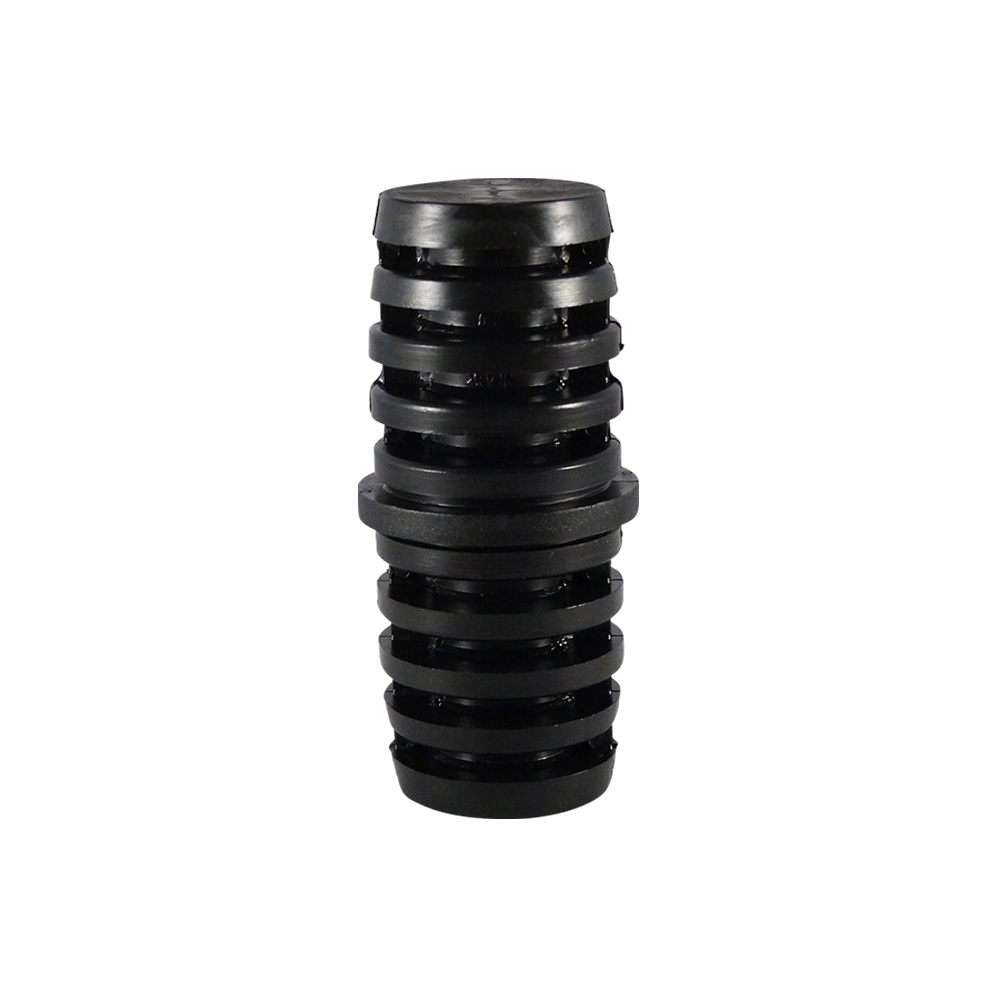

Tube connectors, two-piece design 1D2 – round tube

Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tube
Tube connectors, two-piece design 1D2 – round tubedrawing_1
Product information
  • Straight tube connectors for round tube are available for tube sizes from Ø 18 mm to Ø 60 mm inclusive, with wall thicknesses from 1.5 mm to 4.0 mm inclusive
  • Also available for various imperial tube sizes: ¾“ to 1 ½“ inclusive
  • Two-part design
  • Also available with a steel insert for extra strength and load-bearing capacity
  • Suitable for connecting or coupling round tubes made from aluminium, steel or stainless steel
  • Easy to install without mechanical modifications, welding, using screws or adhesive - the connectors simply push into the tube
  • Often used for shop window construction, aviary construction, display construction, exhibition stand construction, commercial vehicle shelving, etc.

Material: PA (polyamide), if applicable: Reinforcing Insert – steel
Colour: black



Models
Type A: Tube connector without steel insert

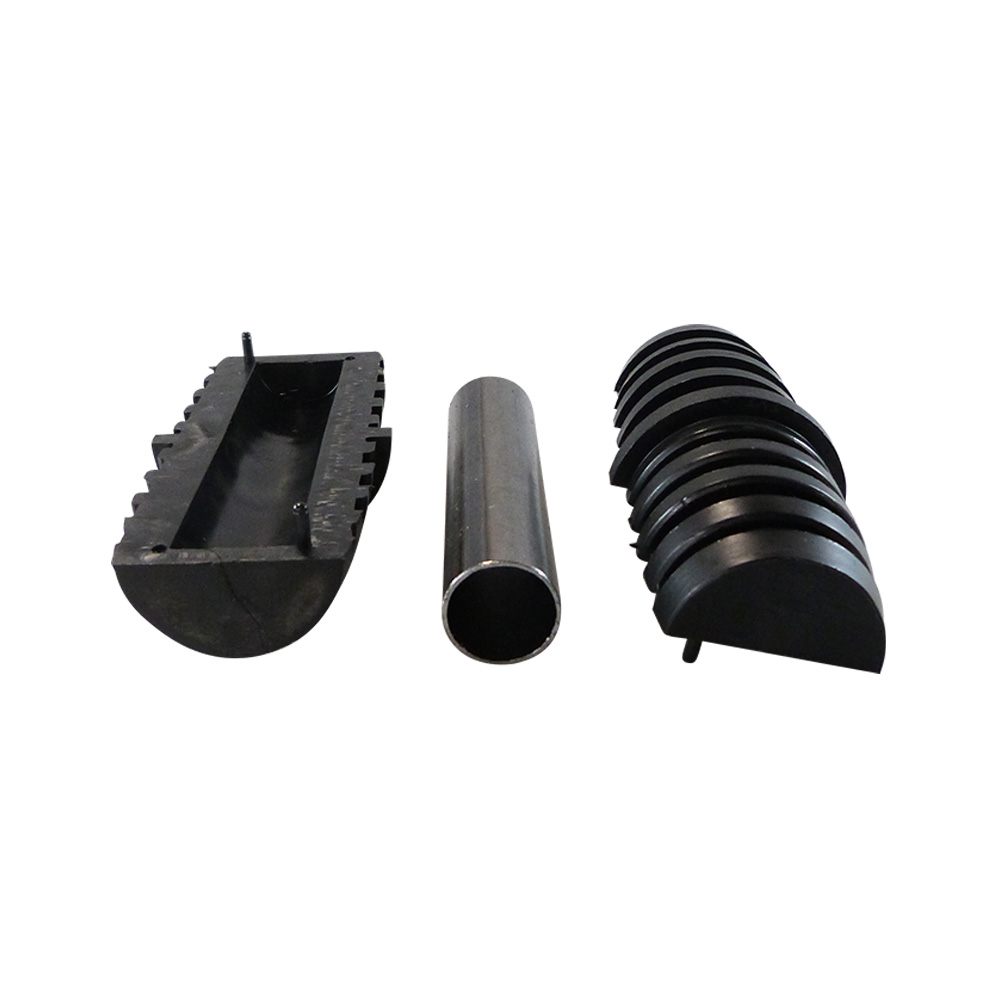

Type B: Tube connector with steel insert

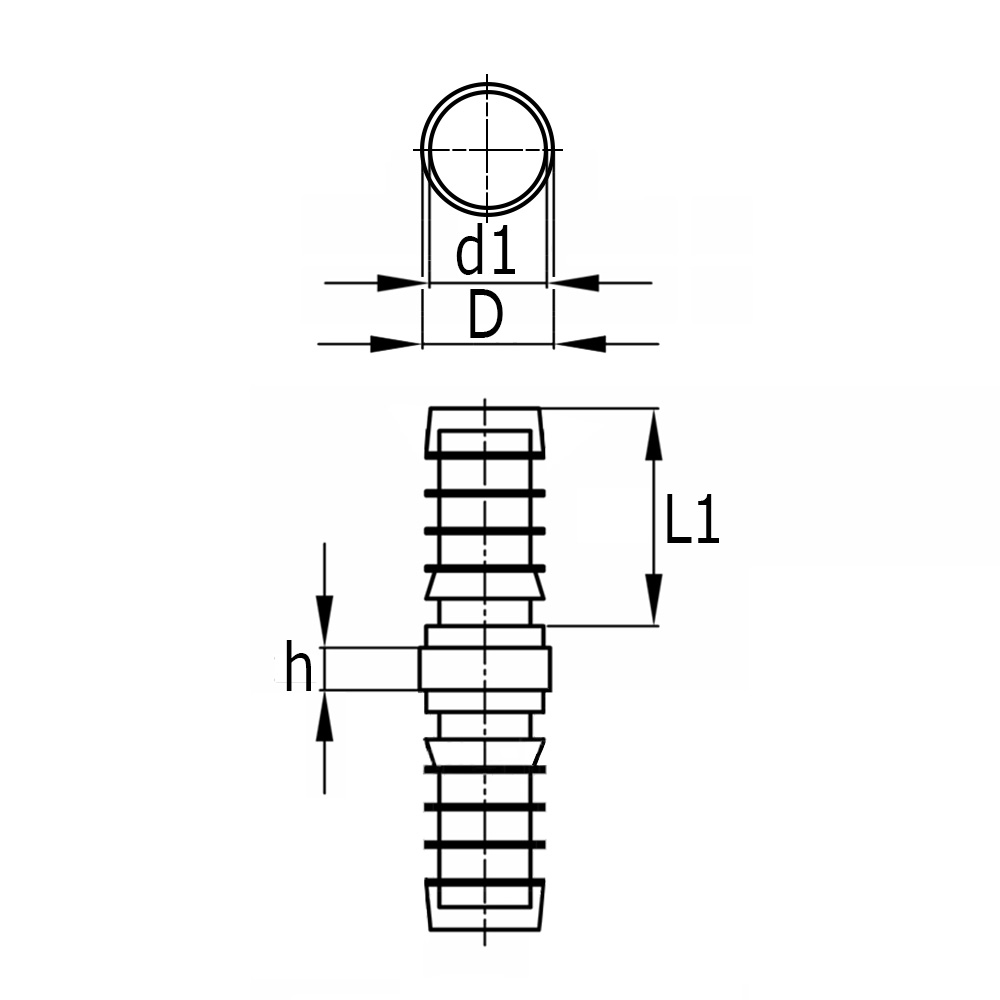

Legend
d=shoulder length, Imperial tube=size in inches, L1=shaft length, Tube size=outside Ø and wall thickness of the tube, Type=model with or without steel insert

Filter by
Reset all filters
1 pages -   1

Article Description Tube size d1 D L1 Inch tube Type
30110018080 plug-in connectors for round tubes PA 2-parts 18 x 0,8 1D2 18x0,8 16,4 18 34 A
30110018150 plug-in connectors for round tubes PA 2-parts 18 x 1,5 1D2 18x1,5 15 18 36 A
30110019100 plug-in connectors for round tubes PA 2-parts 19 x 1,0 1D2 19x1,0 17 19 43 A
30110019100 K plug-in connectors for round tubes PA 2-parts 19 x 1,0 1D2 with steel core 19x1,0 17 19 43 B
30110020110 plug-in connectors for round tubes PA 2-parts 20 x 1,1 1D2 20x1,1 17,8 20 36 A
30110020150 plug-in connectors for round tubes PA 2-parts 20 x 1,5 1D2 20x1,5 17 20 36 A
30110020150 K plug-in connectors for round tubes PA 2-parts 20 x 1,5 1D2 with steel core 20x1,5 17 20 38 B
30110022100 plug-in connectors for round tubes PA 2-parts 22 x 1,0 1D2 22x1,0 20 22 36 A
30110022120 plug-in connectors for round tubes PA 2-parts 22 x 1,2 1D2 22x1,2 19,6 22 36 A
30110022150 plug-in connectors for round tubes PA 2-parts 22 x 1,5 1D2 22x1,5 19 22 36 A
30110025150 plug-in connectors for round tubes PA 2-parts 25 x 1,5 1D2 25x1,5 22 25 38 A
30110025150 K plug-in connectors for round tubes PA 2-parts 25 x 1,5 1D2 with steel core 25x1,5 22 25 38 B
30110027260 plug-in connectors for round tubes PA 2-parts 26,9 x 2,6 1D2 26,9x2,6 21,7 26,9 49 3/4" A
30110027260 K plug-in connectors for round tubes PA 2-parts 26,9 x 2,6 1D2 with steel core 26,9x2,6 21,7 26,9 49 3/4" B
30110028150 plug-in connectors for round tubes PA 2-parts 28 x 1,5 1D2 28x1,5 25 28 49 A
30110028150 K plug-in connectors for round tubes PA 2-parts 28 x 1,5 1D2 with steel core 28x1,5 25 28 49 B
30110030150 plug-in connectors for round tubes PA 2-parts 30 x 1,5 1D2 30x1,5 27 30 48 A
30110030200 plug-in connectors for round tubes PA 2-parts 30 x 2,0 1D2 30x2,0 26 30 49 A
30110032150 plug-in connectors for round tubes PA 2-parts 32 x 1,5 1D2 32x1,5 29 32 50 A
30110032200 plug-in connectors for round tubes PA 2-parts 32 x 2,0 1D2 32x2,0 28 32 50 A
30110032200 K plug-in connectors for round tubes PA 2-parts 32 x 2,0 1D2 with steel core 32x2,0 28 32 50 B
30110032250 plug-in connectors for round tubes PA 2-parts 32 x 2,5 1D2 32x2,5 27 32 49 A
30110034325 plug-in connectors for round tubes PA 2-parts 33,7 x 3,25 1D2 33,7x3,25 27,2 33,7 36 1" A
30110034325 K plug-in connectors for round tubes PA 2-parts 33,7 x 3,25 1D2 with steel core 33,7x3,25 27,2 33,7 36 1" B
30110035120 plug-in connectors for round tubes PA 2-parts 35 x 1,2 1D2 35x1,2 32,6 35 50 A
30110036200 plug-in connectors for round tubes PA 2-parts 36 x 2,0 1D2 36x2,0 32 36 48 A
30110038200 plug-in connectors for round tubes PA 2-parts 38 x 2,0 1D2 38x2,0 34 38 48 A
30110038202 plug-in connectors for round tubes PA 2-parts 38 x 2,0 1D2 collar 2mm 38x2,0 34 38 49 A
30110040150 plug-in connectors for round tubes PA 2-parts 40 x 1,5 1D2 40x1,5 37 40 61 A
30110040150 K plug-in connectors for round tubes PA 2-parts 40 x 1,5 1D2 with steel core 40x1,5 37 40 61 B
30110040200 plug-in connectors for round tubes PA 2-parts 40 x 2,0 1D2 40x2,0 36 40 61 A
30110040200 K plug-in connectors for round tubes PA 2-parts 40 x 2,0 1D2 with steel core 40x2,0 36 40 61 B
30110042320 plug-in connectors for round tubes PA 2-parts 42,4 x 3,2 1D2 42,4x3,2 36 42,4 60 1 1/4" A
30110042320 K plug-in connectors for round tubes PA 2-parts 42,4 x 3,2 1D2 with steel core 42,4x3,2 36 42,4 60 1 1/4" B
30110048400 plug-in connectors for round tubes PA 2-parts 48 x 4,0 1D2 48x4,0 40 48 50 A
30110048320 plug-in connectors for round tubes PA 2-parts 48,3 x 3,2 1D2 48,3x3,2 41,9 48,3 50 1 1/2" A
30110048320 K plug-in connectors for round tubes PA 2-parts 48,3 x 3,2 1D2 with steel core 48,3x3,2 41,9 48,3 50 1 1/2" B
30110050150 plug-in connectors for round tubes PA 2-parts 50 x 1,5 1D2 50x1,5 47 50 38 A
30110050150 K plug-in connectors for round tubes PA 2-parts 50 x 1,5 1D2 with steel core 50x1,5 47 50 38 A
30110050200 plug-in connectors for round tubes PA 2-parts 50 x 2,0 1D2 50x2,0 46 50 38 A
30110060200 plug-in connectors for round tubes PA 2-parts 60 x 2,0 1D2 60x2,0 56 60 38 A
30110060400 plug-in connectors for round tubes PA 2-parts 60 x 4,0 1D2 60x4,0 52 60 38 A
