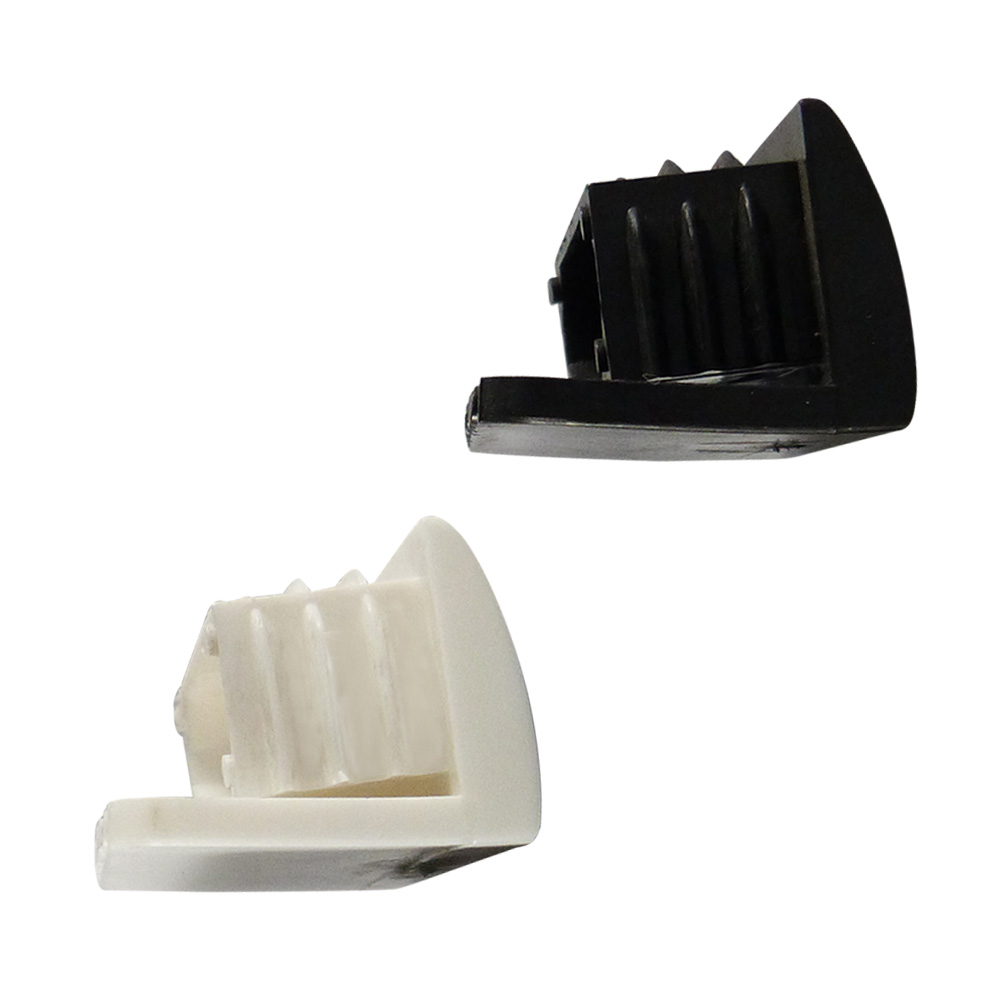

End cap inserts with lip on the long face for rectangular tube

Product information

End cap inserts with a lip on the long face (stand off feet) are available for rectangular tube sizes from 30 x 15 mm to 50 x 20 mm inclusive, with wall thicknesses from 1 mm to 2 mm inclusive
The end cap insert is designed as a self-retaining ribbed plug
Neat finish for exposed tube ends
The thick lip acts as a sliding pad/furniture glide
Ideal for use on swivel bases and multi-leg bases for office chairs and the legs of uprights on retail racks, desks, bookcases, etc.

Material: PE (polyethylene)
Colour: black or white

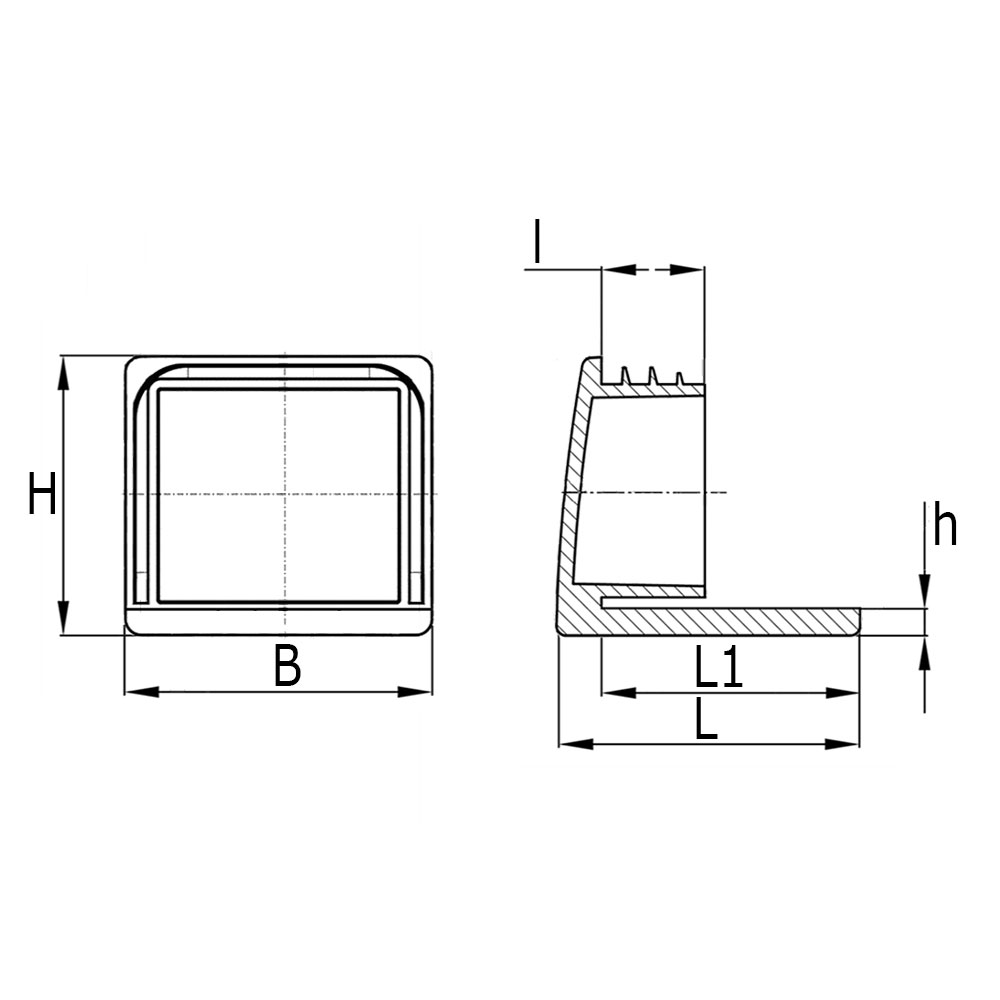

Legend
B=width, H=height, h=glide thickness, L=glide length, l=shaft length, Model=wall thickness, Tube size=external tube dimensions

Filter by

Show all filters

Articles

1 pages - 1

Article	Description	Tube size	B	H	L1	l	Colour/RAL	h	L	Version
8103015 W	Angle glides for end of traverses 30x15 white	30x15	30	18	27,5	27,5	White	3	32	1-2
8103015 Z	Angle glides for end of traverses 30x15 black	30x15	30	18	27,5	27,5	Black	3	32	1-2
8103020 Z	Angle glides for end of traverses 30x20 black	30x20	30,3	23	27	27	Black	3	32	1-2
8104020 Z	Angle glides for end of traverses 40x20 black	40x20	40,5	23	26	26	Black	3	33	1-2
8104520 W	Angle glides for end of traverses 45x20 white	45x20	45,5	24	27	26	White	3,4	32	1-2
8104520 Z	Angle glides for end of traverses 45x20 black	45x20	45,5	24	27	26	Black	3,4	32	1-2
8105020 W	Angle glides for end of traverses 50x20 white	50x20	51,5	25	27	27	White	3	33	1-2
8105020 Z	Angle glides for end of traverses 50x20 black	50x20	51,5	25	27	27	Black	3	33	1-2

1 pages - 1
