3.2.3
Saddle feet for flat steel sheet and flat bar
Product information
- Saddle feet for flat steel sheet or flat bar are available for thicknesses of 8 mm and 10 mm

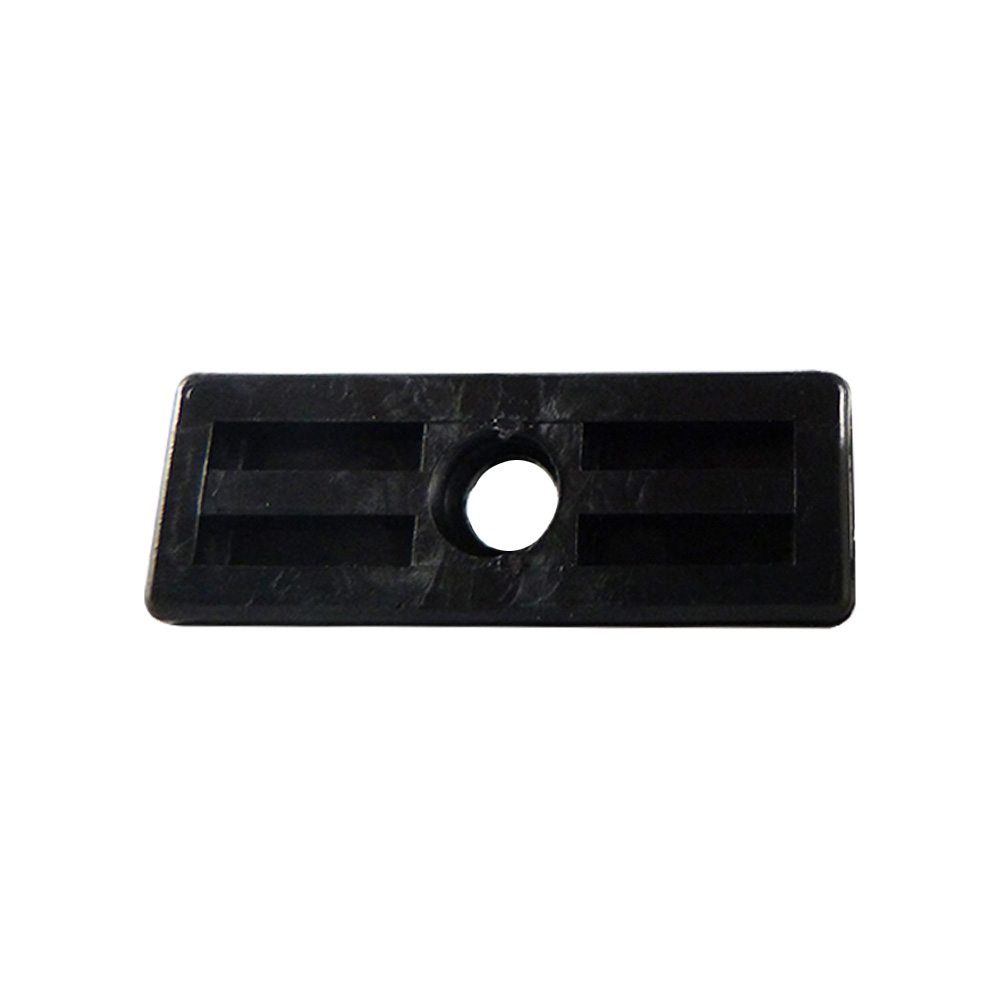

- Supplied with a counterbored hole in the glide face
- The downward sloping model (type B) is closed at one end
- Easy to attach using a screw, bolt or rivet
- These saddle feet are ideal as a foot or furniture glide for furniture with legs made from flat bar or steel sheet, such as (designer) chairs and tables.
Material: PE (polyethylene)
Colour: black
Models:

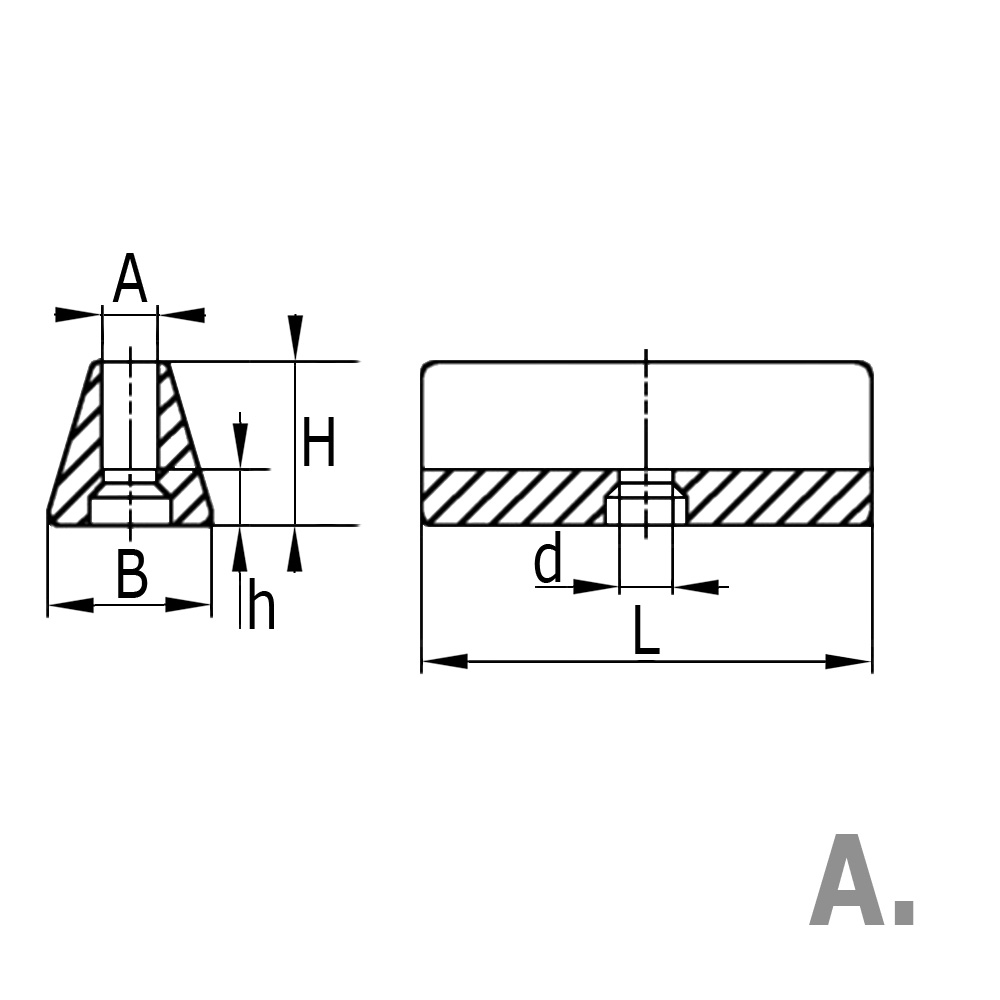

Type A: Straight-sided model

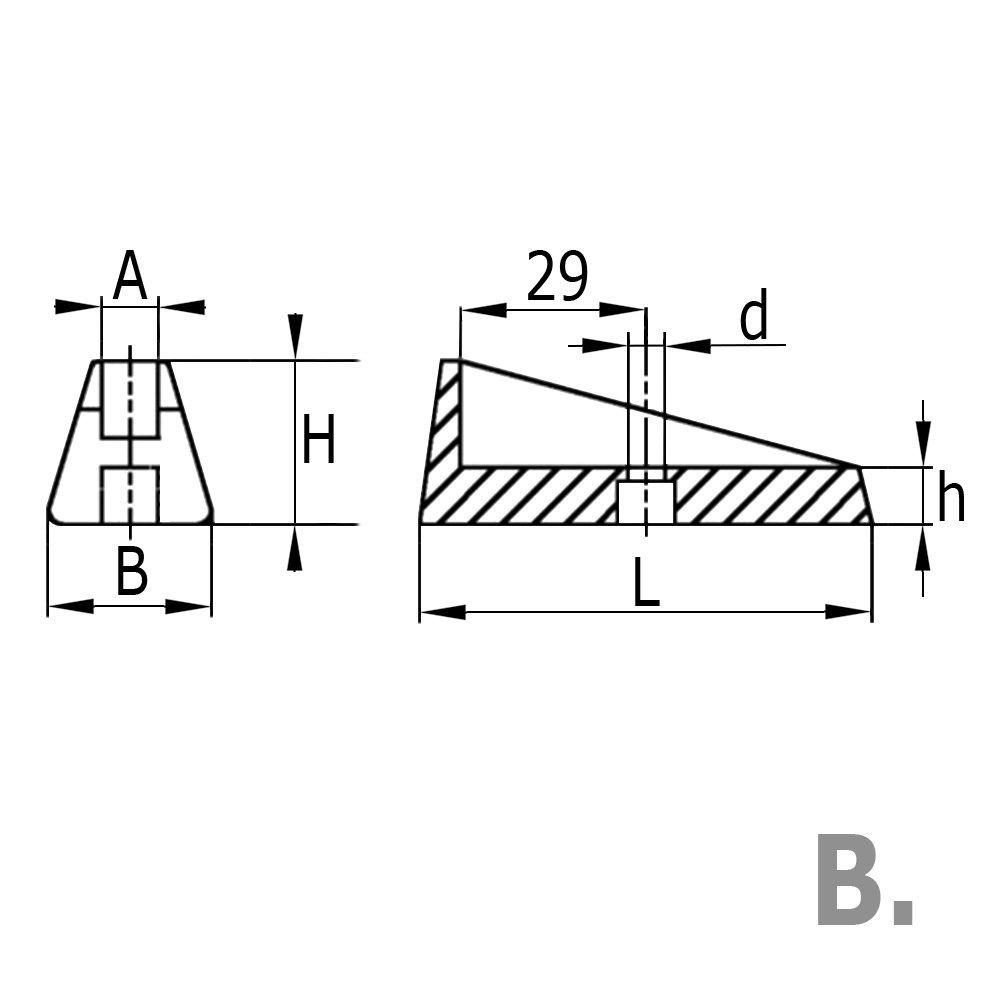

Type B: Downward sloping model – closed at one end
Legend
A=sheet or material thickness, width, B=width of the base, d=hole Ø, H=total height, h=glide pad thickness, L=length of the base, Thickness=sheet or material thickness, Type=Model
