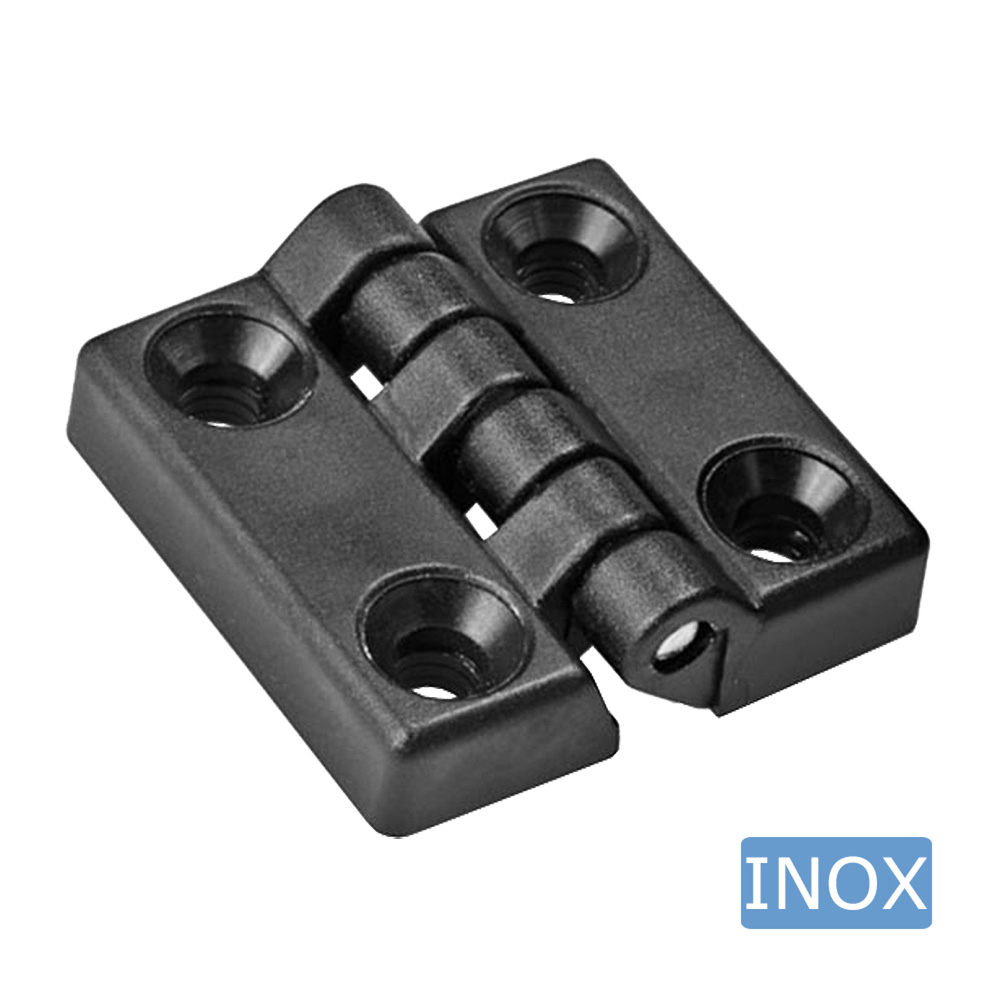

Screw on hinge PA 48x48 mm, bore Ø6,5 mm - stainless steel pivot pin

Save

D :	13
A :	30
H :	15.5
B :	48
L :	48
M :	M 6
h :	10.5
d1 :	6.5
d2 :	5
A1 :	30
d3 :	10
Colour/RAL :	Black

Legend

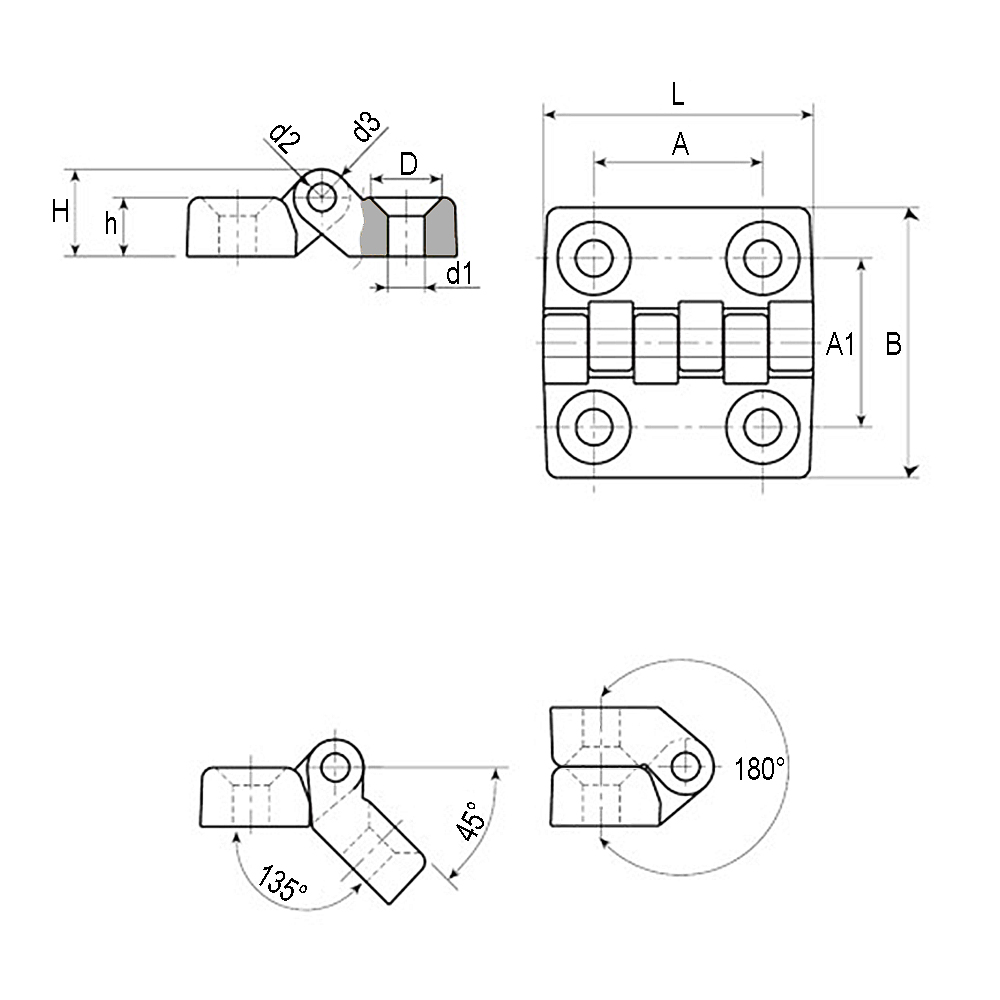

A=length, B=width, C=centre to centre bore distance, D=Ø-major hole countersink, d1=Ø-bore, d2=Ø-pivot pin, d3=Ø-hinge, H=height, h=height, l=centre to centre bore distance, M=Bore suitable for bolt size

Item-nr. : 87.B048048.065
In stock :Yes
€ 2,6371 per piece € 3,1645 incl. VAT
Quantity

Screw on hinge PA 48x48 mm, bore Ø6,5 mm - stainless steel pivot pin
