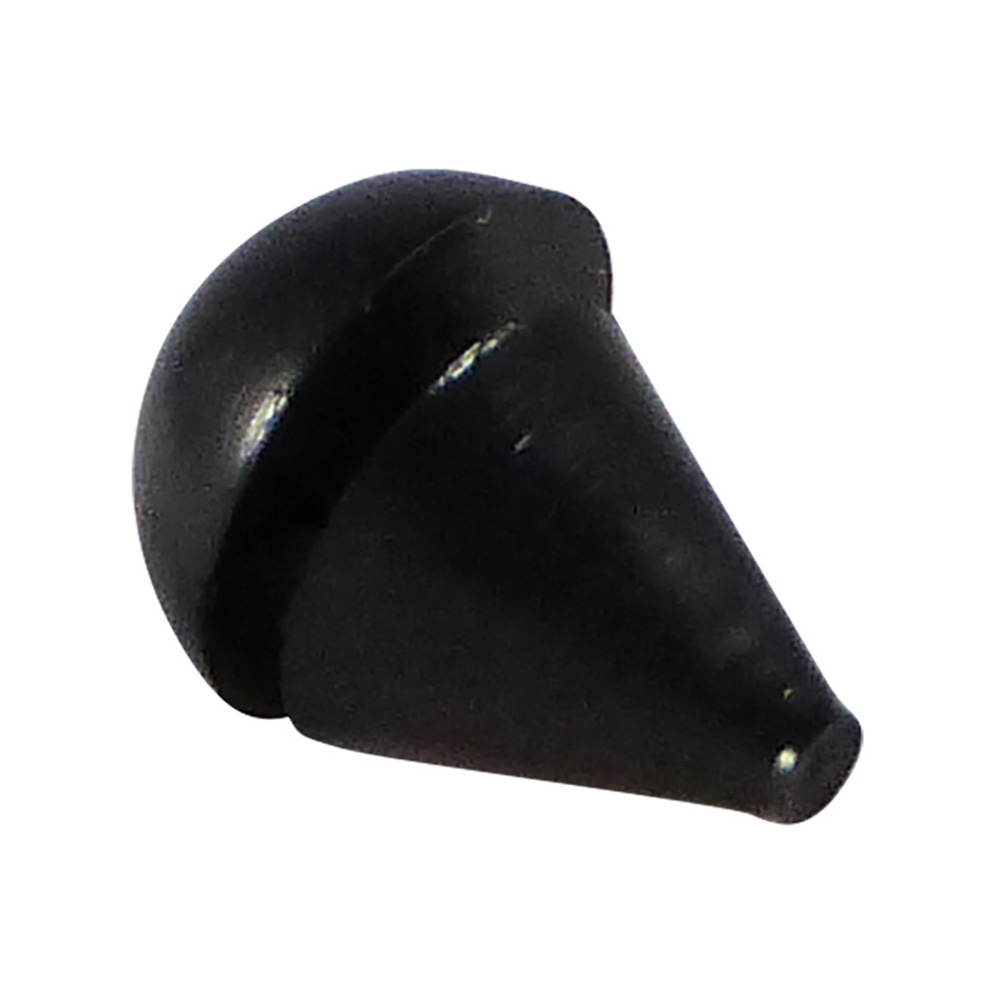

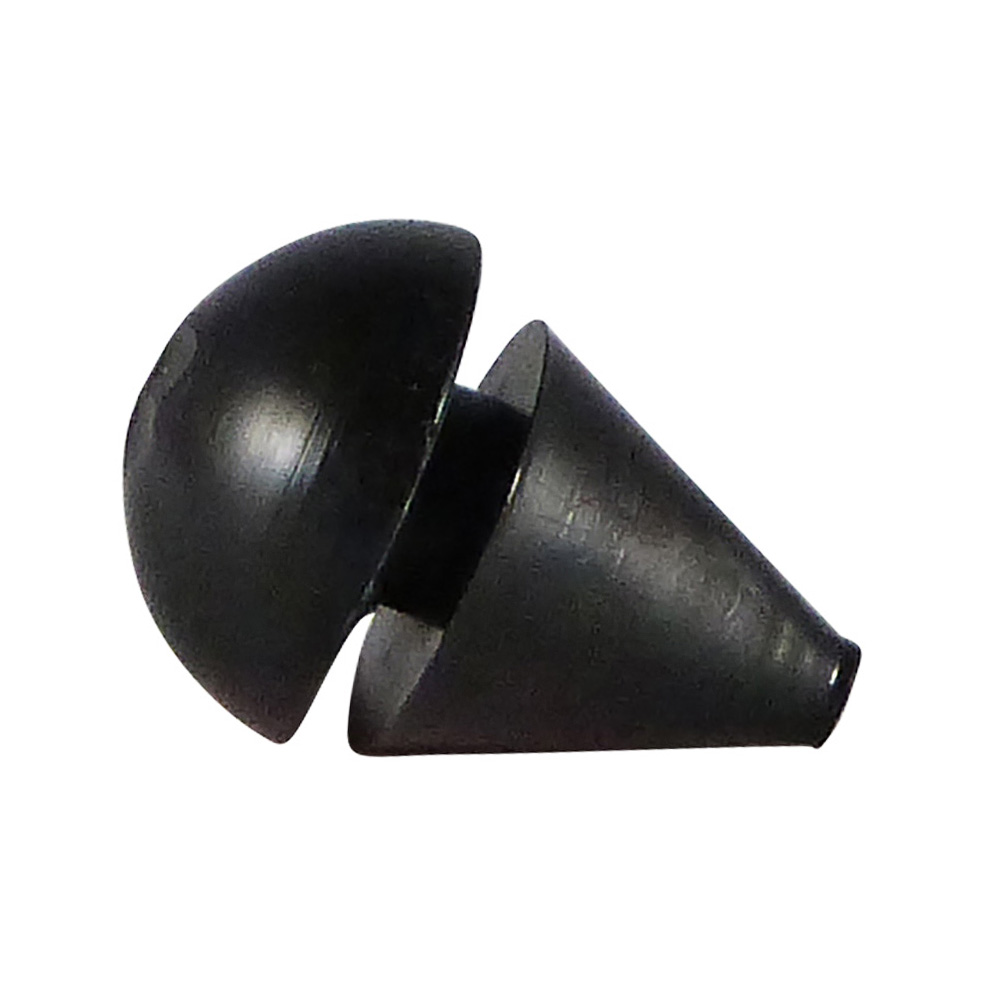

Stacking buffers & grommet feet - model 2

Stacking buffers & grommet feet - model 2drawing_1

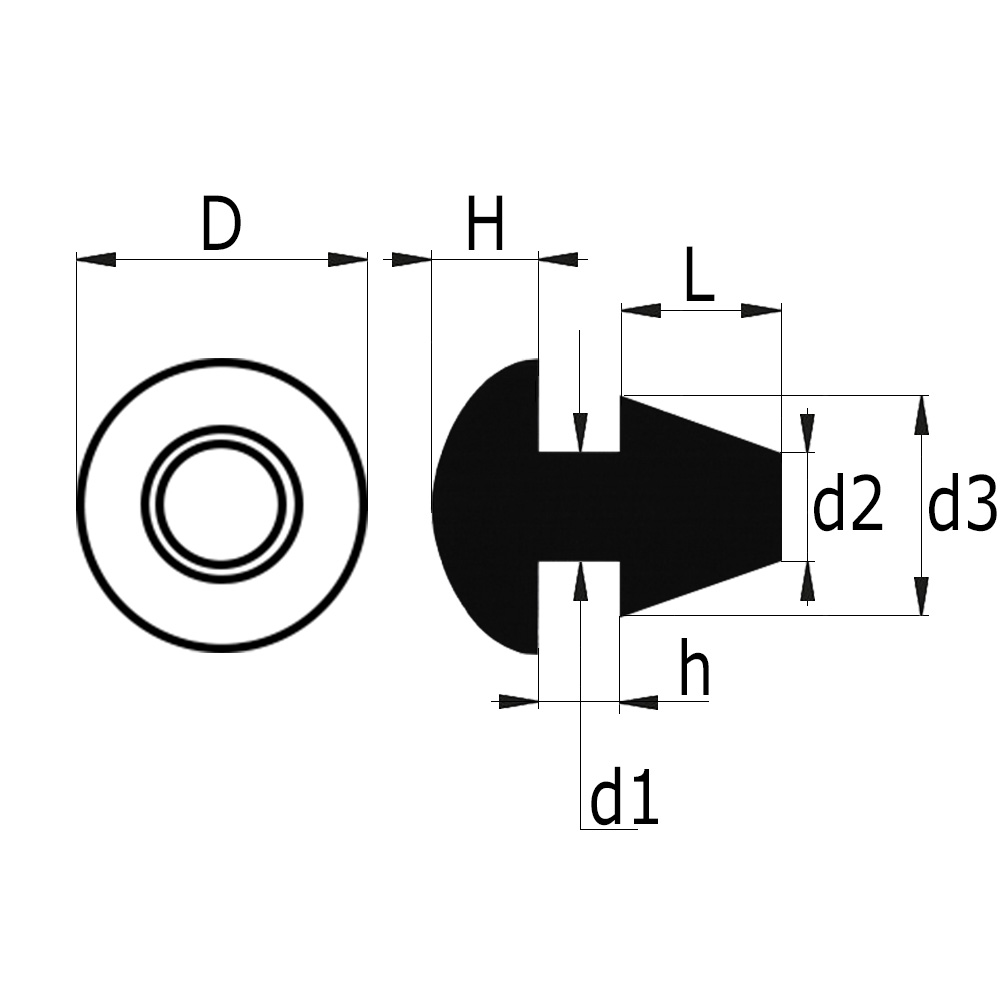

Legend
D=head, d1=peg-Ø, d2=peg-Ø, d3=peg-Ø, h=retaining groove and also plate thickness, L=peg length, L1=head thickness, Mat.=material, Version=Model

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	d3	d2	d1	H	L	D	Material A	h	Version	Colour/RAL
2605002 Z	Grommet feet PVC 12 x 6,0 x 2,0	6	6	6	2	8	12	PVC-P	1	2	Black
2605003 Z	Grommet feet PVC 12 x 6,0 x 4,5	6,6	5,9	6	4,5	8	12	PVC-P	1	2	Black
2605004 Z	Grommet feet PVC 12 x 10,5 x 3,0	10,5	10,5	10,5	3	5,5	12	PVC-P	1	2	Black
411082.048103160.000	Grommet feet PVC 10,3 x 4,8 x 2,0	4,5	4,8	4,8	2	5	10,3	PVC	1,6	2	Black

1 pages - 1
