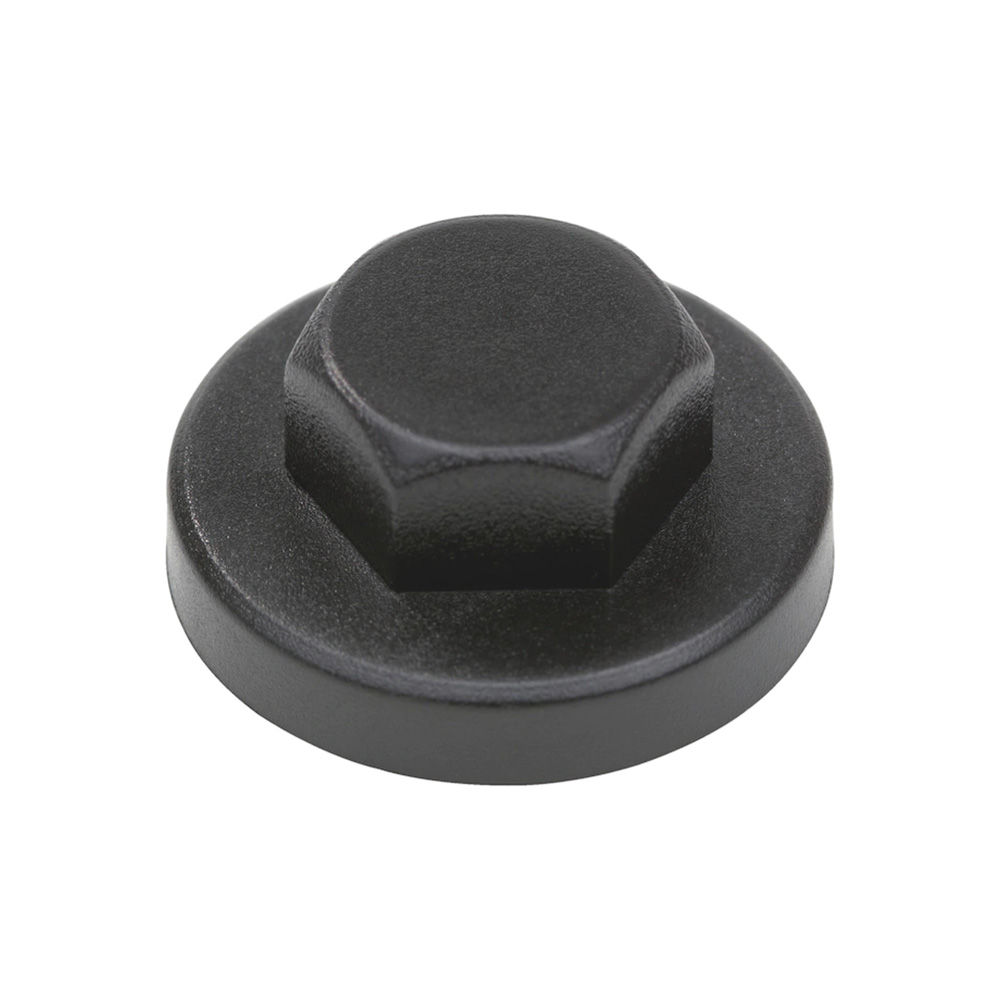

Tek screw facade cover caps

Product information

Tek screw cover caps are available for hex heads with spanner size AF 3/8” or metric spanner sizes of either 8, 10 or 17mm
The ring cover can house either Ø18, 25,5 ord 26mm washers
Covers the hex screw head, the metal washer and the EPDM or Neoprene rubber washer
Easy application: simply press on the hex head of the Tek screw
These cover caps are ideal for covering and optically camouflaging roof and facade Tek screws with washer in roofs and facades of wall cladding sheet, corrugated sheet and sandwich panels.

Material: PE (Polyethylene)
Colour: black, white

Available on request:

Legend

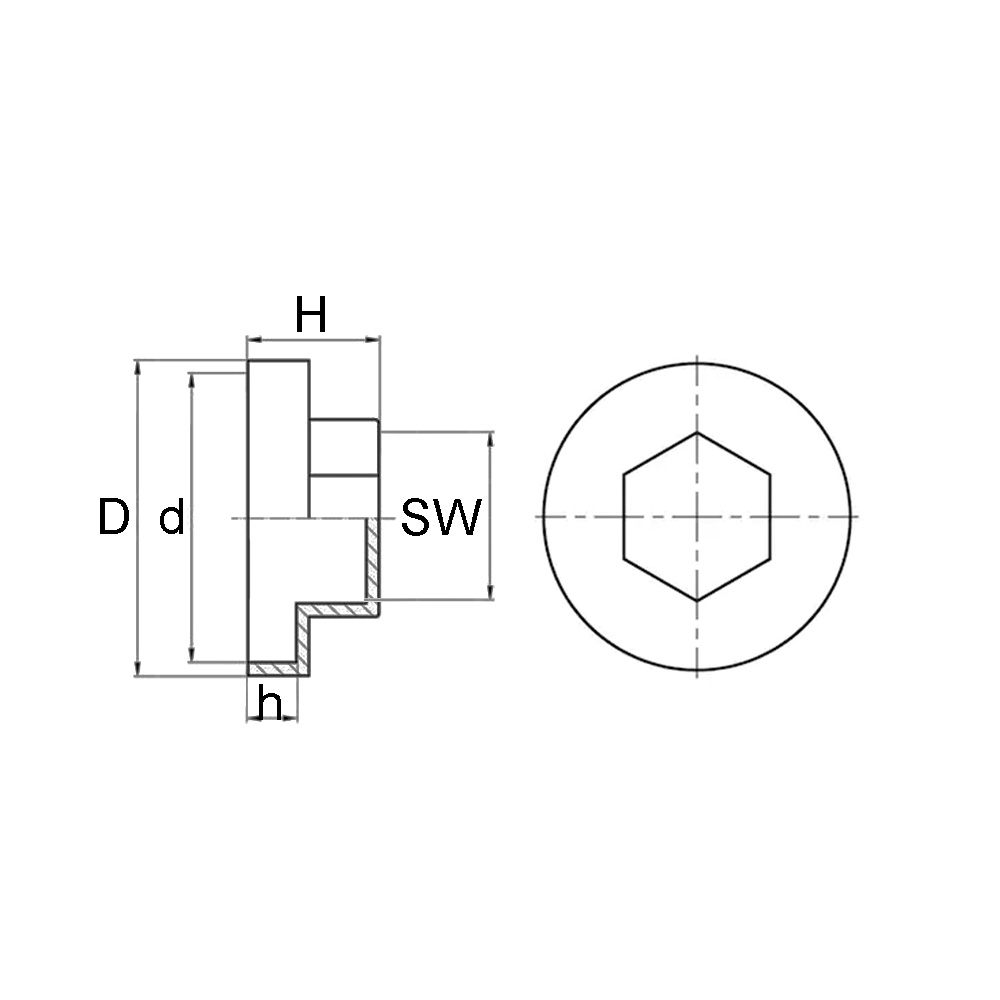

d=Inner-Ø (maximal washer size), SW=Internal spanner size to fit screw head

Filter by

Show all filters

Articles

1 pages - 1

Article	Description	SW	Colour/RAL	d	H	D
549916105 G 7016	Tek screw cover cap PE, SW8 - Ø18mm - grey	SW 8	RAL 7016 - Anthracite grey	18	9	20
549916105 W 9010	Tek screw cover cap PE, SW8 - Ø18mm - white	SW 8	White	18	9	20
549916105 Z	Tek screw cover cap PE, SW8 - Ø18mm - black	SW 8	Black	18	9	20
549916110 W 9010	Tek screw cover cap PE, SW10 - Ø18mm - white	SW 10	White	18	9	20
549916110 Z	Tek screw cover cap PE, SW10 - Ø18mm - black	SW 10	Black	18	9	20
549916100 W 9010	Tek screw cover cap PE, SW3/8" - Ø18mm - white	3/8"	White	18	9	20
549916100 Z	Tek screw cover cap PE, SW3/8" - Ø18mm - black	3/8"	Black	18	9	20
549916106 W 9001	Tek screw cover cap PE, SW8 - Ø25,5mm - cream white	SW 8	RAL 9001 - Cream	25,5	11	28
549916106 W 9010	Tek screw cover cap PE, SW8 - Ø25,5mm - white	SW 8	White	25,5	11	28
549916106 Z	Tek screw cover cap PE, SW8 - Ø25,5mm - black	SW 8	Black	25,5	11	28
549916115 W 9010	Tek screw cover cap PE, SW10 - Ø25,5mm - white	SW 10	White	25,5	11	28
549916115 Z	Tek screw cover cap PE, SW10 - Ø25,5mm - black	SW 10	Black	25,5	11	28
549916101 W 9010	Tek screw cover cap PE, SW3/8" - Ø25,5mm - white	3/8"	White	25,5	9	28
549916101 Z	Tek screw cover cap PE, SW3/8" - Ø25,5mm - black	3/8"	Black	25,5	9	28
549916125 W 9010	Tek screw cover cap PE, SW17 - Ø26mm - white	SW 17	White	26	15	28
549916125 Z	Tek screw cover cap PE, SW17 - Ø26mm - black	SW 17	Black	26	15	28

1 pages - 1
