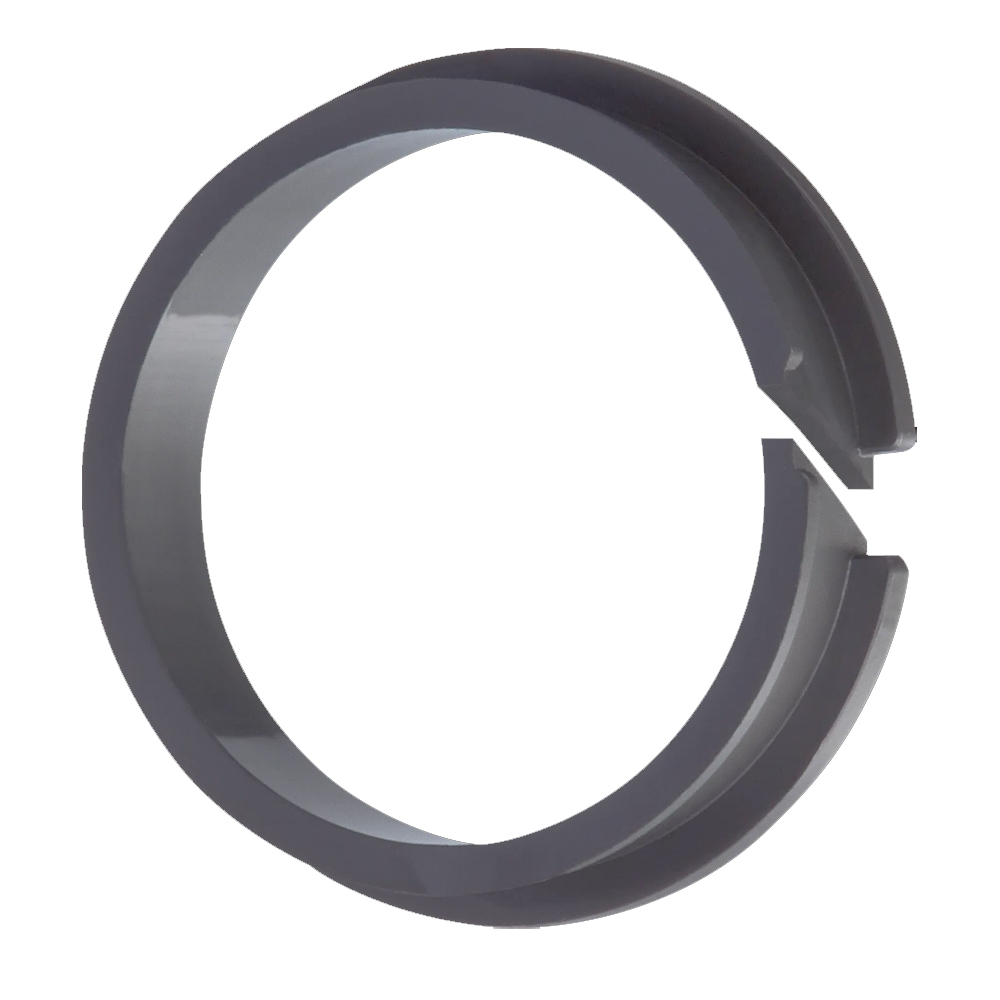

Plastic clip bearing with double flange for sheet metal

Plastic clip bearing with double flange for sheet metaldrawing_1

Product information

Plastic plain bearings with double flange (clip bearing) for sheet metal applications, available for shafts from Ø3 mm up to Ø25 mm
Suitable for sheet thicknesses from 1.5 mm to 8 mm

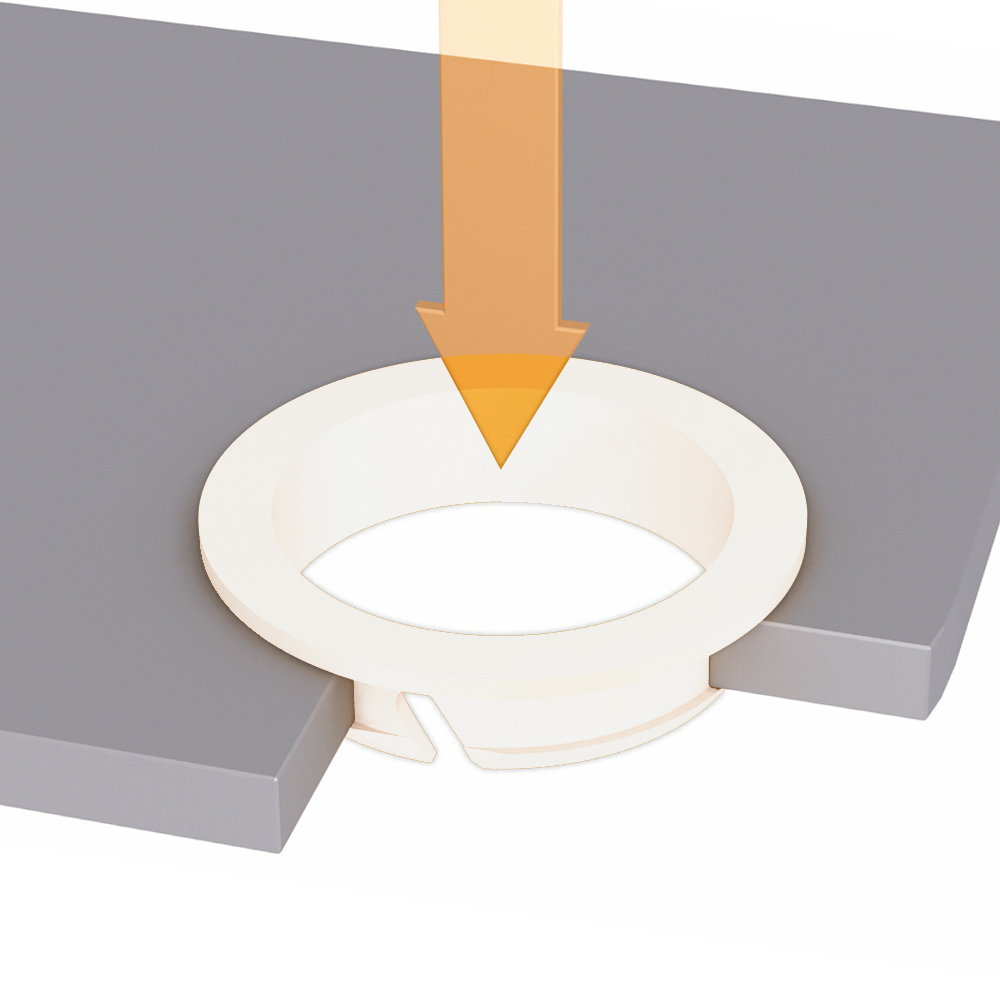

The double flange secures the bearing firmly in the sheet after installation
Easy clip installation – no additional fastening materials required
Suitable for rotary, linear and oscillating movements
Maintenance-free and wear-resistant for a long service life
Can be used as a bearing and/or shaft bushing in sheet metal or lightweight constructions
Applications include machinery, equipment construction, hinge systems and the automotive industry

Material: Compound – see article
Colour: Natural

Read more about this topic

Legend

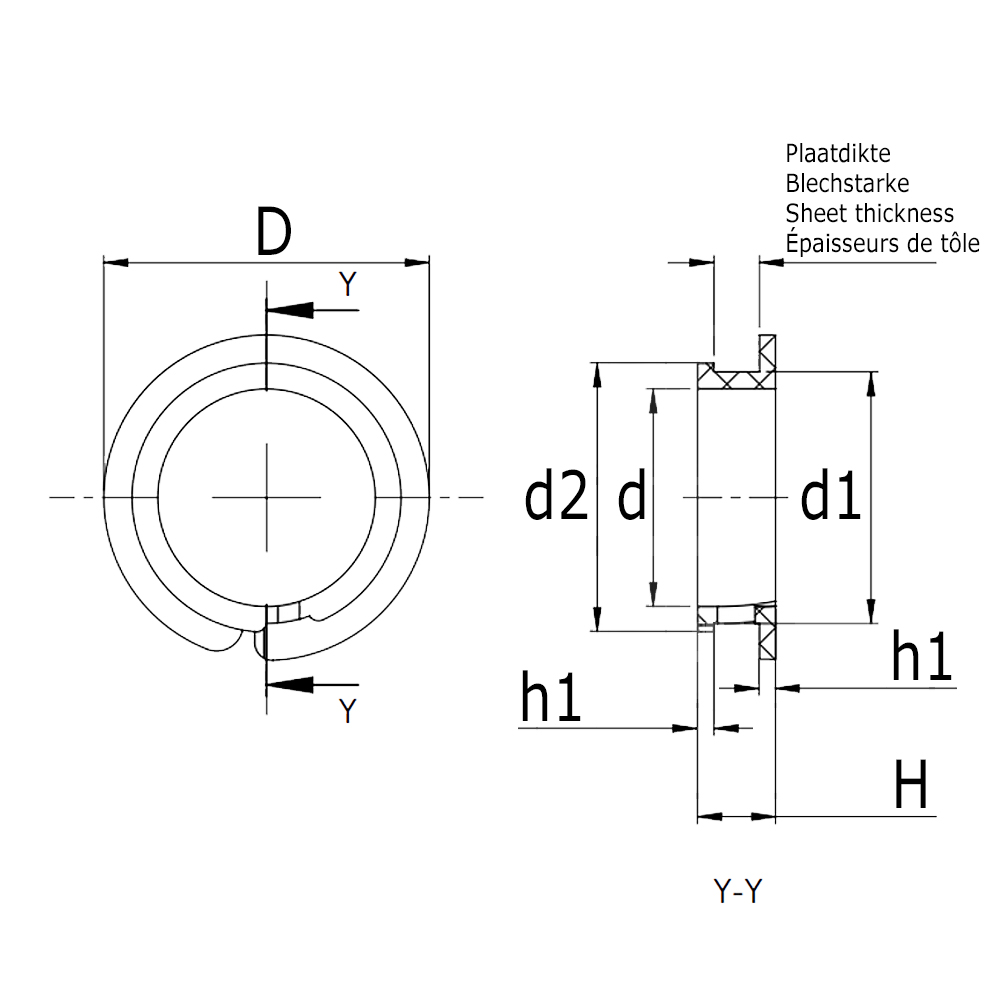

Bore=Bore bearing housing/mounting hole, D=flange-Ø-large, d=bore-Ø, d1=shaft-Ø, d2=flange-Ø-small, H=total height, h1=flange thickness

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	d2	Bore	d	d1	D	H	Sheet thickness	h1	Colour/RAL	Material A
8806255042020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø3.0 x 4.2mm - for 2mm sheet metal - Anthracite	4,8	4,2	3	4,2	6	3,2	2	0,6	Anthracite	M250
8806255042030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø3.0 x 4.2mm - for 3mm sheet metal - Anthracite	4,8	4,2	3	4,2	6	4,2	3	0,6	Anthracite	M250
8806255052020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø4.0 x 5.2mm - for 2mm sheet metal - Anthracite	5,9	5,2	4	5,2	7	3,2	2	0,6	Anthracite	M250
8806255052030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø4.0 x 5.2mm - for 3mm sheet metal - Anthracite	5,9	5,2	4	5,2	7	4,2	3	0,6	Anthracite	M250
8806255062020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø5.0 x 6.2mm - for 2mm sheet metal - Anthracite	6,8	6,2	5	6,2	8	3,2	2	0,6	Anthracite	M250
8806255062030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø5.0 x 6.2mm - for 3mm sheet metal - Anthracite	6,8	6,2	5	6,2	8	4,2	3	0,6	Anthracite	M250
8806255072015 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø6.0 x 7.2mm - for 1.5mm sheet metal - Anthracite	7,8	7,2	6	7,2	11	2,7	1,5	0,6	Anthracite	M250
8806255072020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø6.0 x 7.2mm - for 2mm sheet metal - Anthracite	7,8	7,2	6	7,2	11	3,2	2	0,6	Anthracite	M250
8806255072030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø6.0 x 7.2mm - for 3mm sheet metal - Anthracite	7,8	7,2	6	7,2	11	4,2	3	0,6	Anthracite	M250
8806255072040 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø6.0 x 7.2mm - for 4mm sheet metal - Anthracite	7,8	7,2	6	7,2	11	5,2	4	0,6	Anthracite	M250
8806255090030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø7.0 x 9.0mm - for 3mm sheet metal - Anthracite	9,8	9	7	9	13	4,2	3	0,6	Anthracite	M250
8806255096020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø8.0 x 9.6mm - for 2mm sheet metal - Anthracite	10,4	9,6	8	9,6	13	3,6	2	0,8	Anthracite	M250
8806255096030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø8.0 x 9.6mm - for 3mm sheet metal - Anthracite	10,4	9,6	8	9,6	13	4,6	3	0,8	Anthracite	M250
8806255106020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø9.0 x 10.6mm - for 2mm sheet metal - Anthracite	11,4	10,6	9	10,6	14	3,6	2	0,8	Anthracite	M250
8806255116020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø10.0 x 11.6mm - for 2mm sheet metal - Anthracite	12,4	11,6	10	11,6	15	3,6	2	0,8	Anthracite	M250
8806255116025 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø10.0 x 11.6mm - for 2.5mm sheet metal - Anthracite	12,4	11,6	10	11,6	15	4,1	2,5	0,8	Anthracite	M250
8806255116030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø10.0 x 11.6mm - for 3mm sheet metal - Anthracite	12,4	11,6	10	11,6	15	4,6	3	0,8	Anthracite	M250
8806255116080 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø10.0 x 11.6mm - for 8mm sheet metal - Anthracite	12,4	11,6	10	11,6	15	9,6	8	0,8	Anthracite	M250
8806255136020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø12.0 x 13.6mm - for 2mm sheet metal - Anthracite	14,4	13,6	12	13,6	17	3,6	2	0,8	Anthracite	M250
8806255136030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø12.0 x 13.6mm - for 3mm sheet metal - Anthracite	14,4	13,6	12	13,6	17	4,6	3	0,8	Anthracite	M250
8806255136035 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø12.0 x 13.6mm - for 3.5mm sheet metal - Anthracite	14,4	13,6	12	13,6	17	5,1	3,5	0,8	Anthracite	M250
8806255136040 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø12.0 x 13.6mm - for 4mm sheet metal - Anthracite	14,4	13,6	12	13,6	17	5,6	4	0,8	Anthracite	M250
8806255156030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø14.0 x 15.6mm - for 3mm sheet metal - Anthracite	16,4	15,6	14	15,6	19	4,6	3	0,8	Anthracite	M250
8806255176020 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø16.0 x 17.6mm - for 2mm sheet metal - Anthracite	18,4	17,6	16	17,6	21	3,6	2	0,8	Anthracite	M250
8806255176030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø16.0 x 17.6mm - for 3mm sheet metal - Anthracite	18,4	17,6	16	17,6	21	4,6	3	0,8	Anthracite	M250
8806255176040 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø16.0 x 17.6mm - for 4mm sheet metal - Anthracite	18,4	17,6	16	17,6	21	5,6	4	0,8	Anthracite	M250
8806255200030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø18.0 x 20.0mm - for 3mm sheet metal - Anthracite	21	20	18	20	23	5	3	1	Anthracite	M250
8806255220030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø20.0 x 22.0mm - for 3mm sheet metal - Anthracite	23	22	20	22	25	5	3	1	Anthracite	M250
8806255270030 G	Plain bearing - double flange clip-in - side-split - M250 polymer - Ø25.0 x 27.0mm - for 3mm sheet metal - Anthracite	28	27	25	27	30	5	3	1	Anthracite	M250
88062596 N	Plain bearing - double flange clip-in - side-split - PA6.6 polymer - Ø10.0 x 11.6mm - for 1.5-2.0mm sheet metal - Natural	0	11,6	10	11,6	15	3,6	1,5-2,0	0,8	Natural	PA6,6

1 pages - 1

Plastic clip bearing with double flange for shafts through sheet metal

These plastic clip bearings with a double flange are specially designed for shafts that pass through sheet material. Thanks to the smart clip installation, they snap easily into the sheet hole and are immediately held securely in place. The double flange locks the bearing on both sides of the sheet, ensuring reliable and durable operation. Ideal for rotary, oscillating and linear movements in applications where compact design and maintenance-free performance are important – such as in machinery, equipment construction and the automotive sector.
