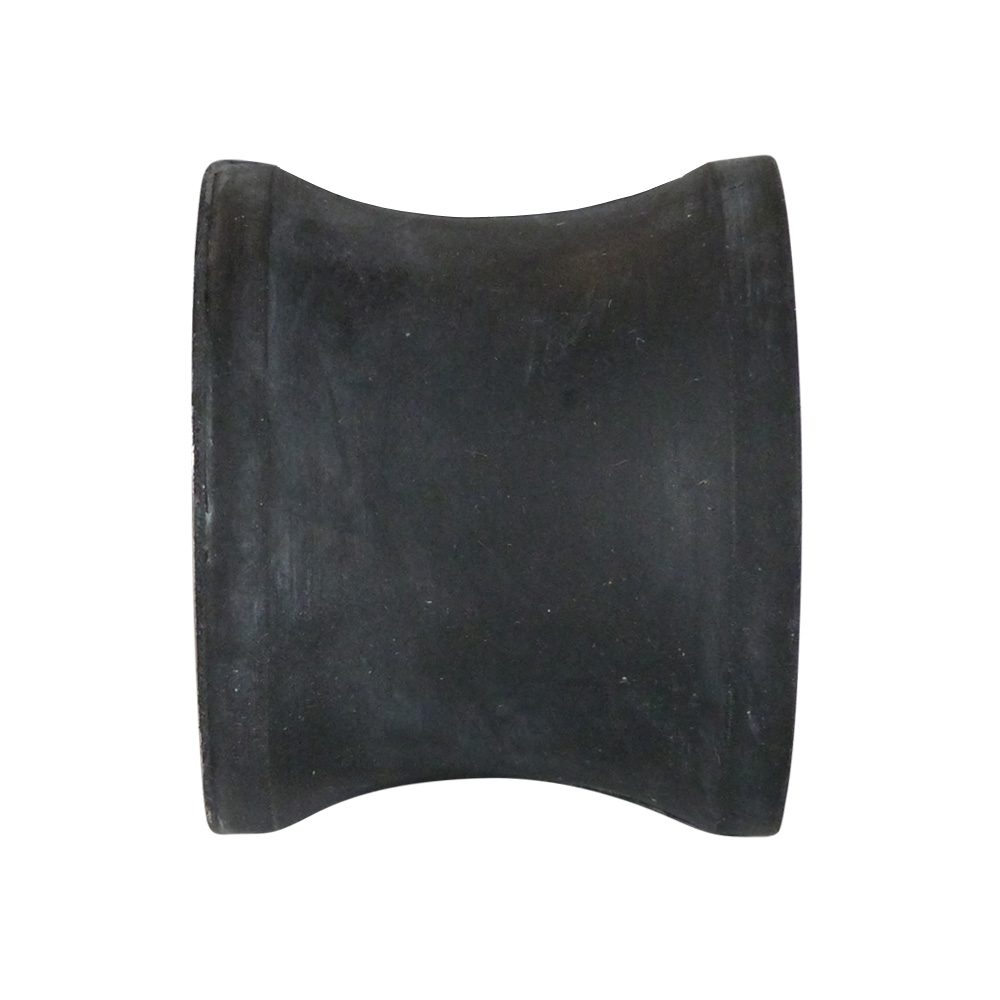

Anti-vibration bobbin mount type TP-C - waisted

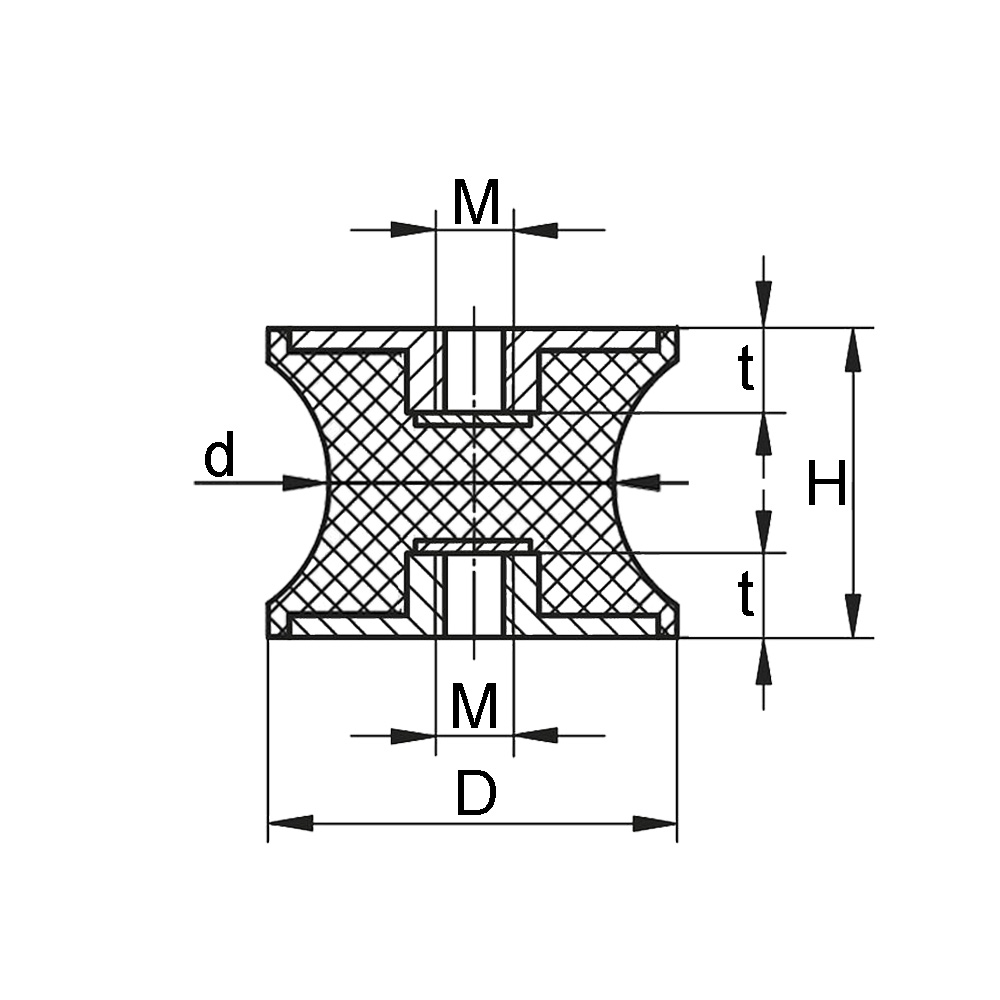

Anti-vibration bobbin mount type TP-C - waisteddrawing_1

Product information

Waisted rubber-metal ant-vibration bobbin mounts type TP-C are available in diameters from Ø 10/8mm to Ø 95/80 mm, and in heights from 8 mm to 75 mm inclusive
Threaded bush on both sides (female thread)
Thread sizes (metric) from M3 to M16 inclusive
Suitable for temperatures from -30 °C to +80 °C
Both axial and radial damping
The waisted shape reduces high shear loads on the rubber when subjected to radial movement, thereby extending component life.

Material: Rubber parts - NR (natural rubber) Shore A 55° ± 5% (medium hard) Metal parts - galvanized steel (St37) or stainless steel AISI 304 (A2)

Available on request:

Different Shore hardness
Rubber parts in SBR, NBR, CR, SI or EPDM
Different thread lengths
Metal parts in stainless steel

Legend
D=large Ø, d=waist Ø, H=height, M=thread size, Mat. A=type of rubber, Mat. B=Material metal components, N=Maximum static load in Newton, Shore A °=Shore-A hardness of the rubber, t=length of threaded bush

Filter by

Show all filters

Show less filters

Reset all filters

Articles

1 pages - 1

Article	Description	M	d	D	H	Stiffness in N/mm	N	Max. deflection in mm	Shore A °	Material A	Material B	t
22.TP-C025X18-20M8	Vibration damper type TP-C D25-18 H20 M8	M 8	18	25	20				55 ±5	NR	St37	8
22.TP-C030X22-20M8	Vibration damper type TP-C D30-22 H20 M8	M 8	22	30	20	549	2745	5	55 ±5	NR	St37	8
22.TP-C040X20-48M8	Vibration damper type TP-C D40-20 H48 M8	M 8	20	40	48	151	1808	12	55 ±5	NR	St37	8
22.TP-C040X25-30M8	Vibration damper type TP-C D40-25 H30 M8	M 8	25	40	30	410	3075	7,5	55 ±5	NR	St37	8
22.TP-C040X33-30M8	Vibration damper type TP-C D40-33 H30 M8	M 8	33	40	30	442	3317	7,5	55 ±5	NR	St37	8
22.TP-C055X44-45M8	Vibration damper type TP-C D55-44 H45 M8	M 8	44	55	45				55 ±5	NR	St37	8
22.TP-C057X25-45M8	Vibration damper type TP-C D57-25 H45 M8	M 8	25	57	45				55 ±5	NR	St37	8
