7.1.43
Adjustable ceiling fixing with retaining pin
Product information

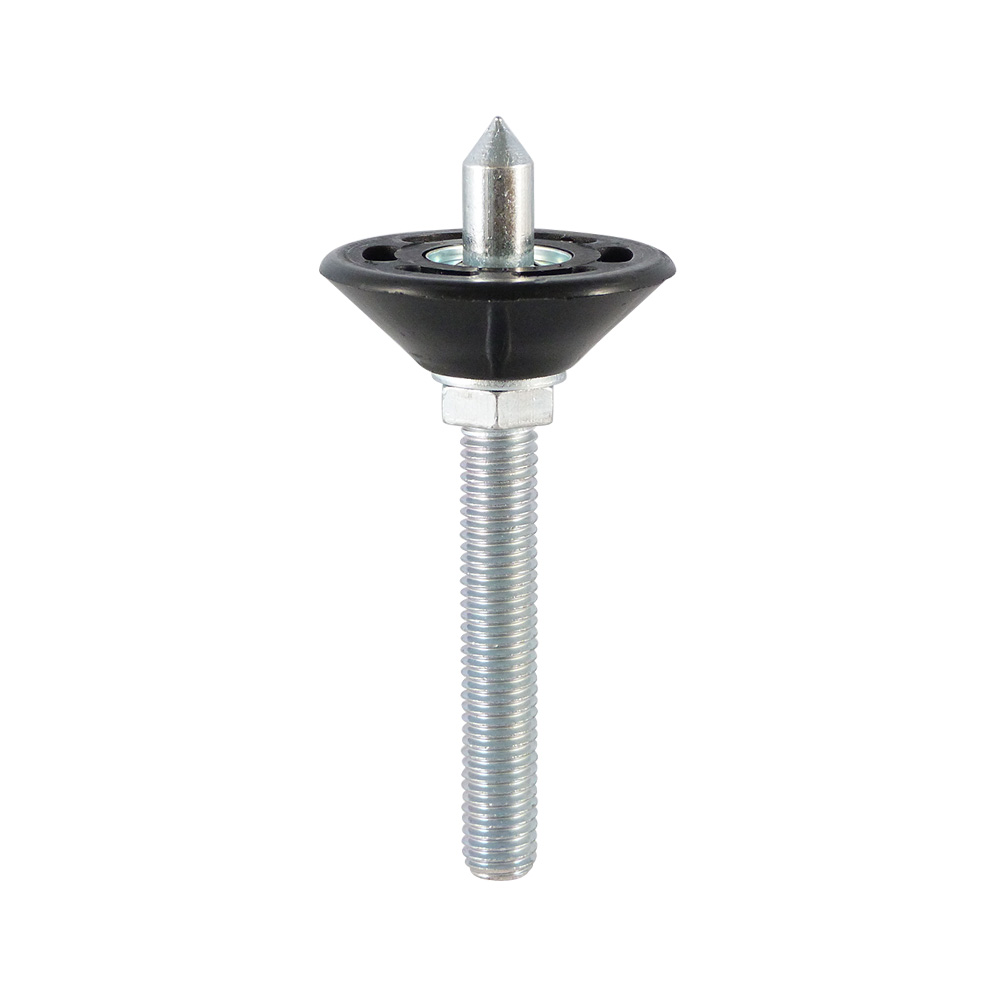

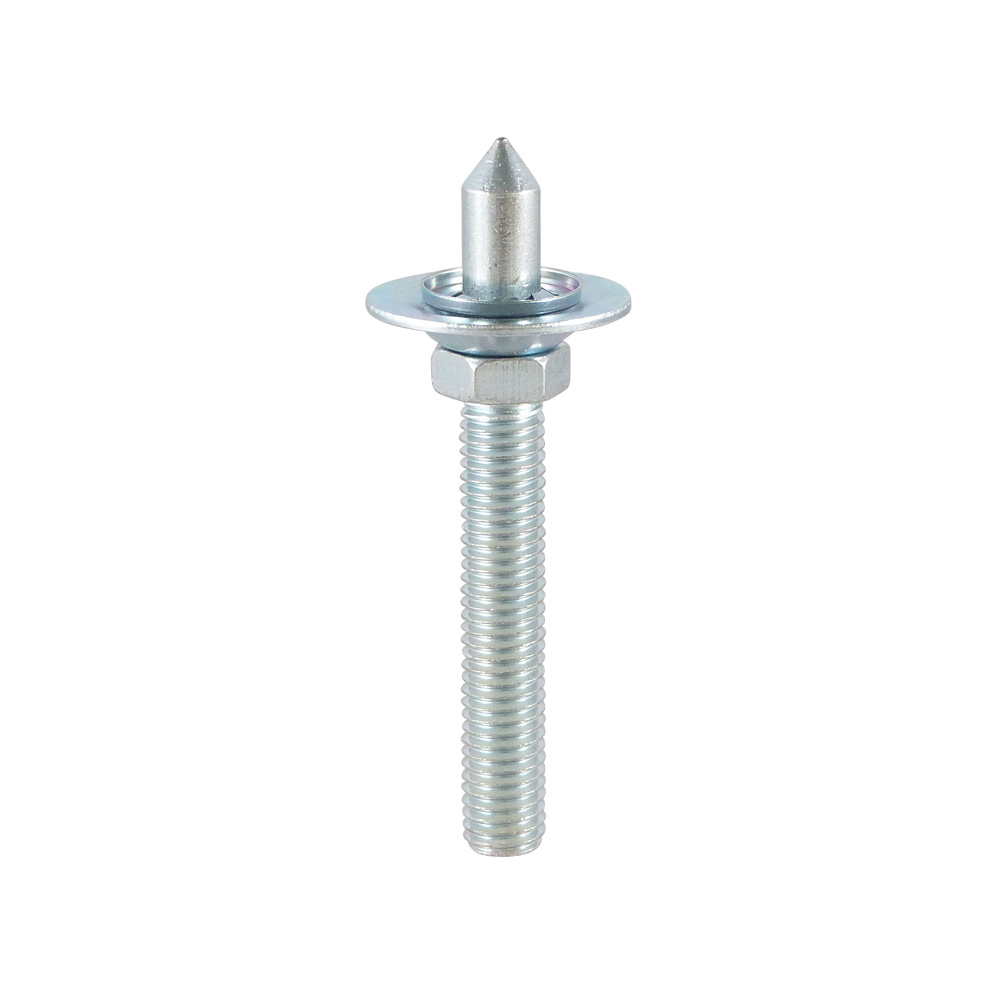

- Adjustable ceiling fixing with a Ø 45 mm plastic load plate and M10 x 60 mm threaded stem
- Retaining pin, Ø 9 mm with pointed tip
- Threaded stem with adjustment hexagon, spanner size 14 mm
- This adjustable ceiling fixing is used to clamp shelving, racks and cabinets between the floor and ceiling. The steel retaining pin penetrates into the ceiling and prevents sideways movement.
Material: Base - PP (polypropylene), threaded stem - galvanised steel
Colour: black load plate, zinc-coloured threaded stem

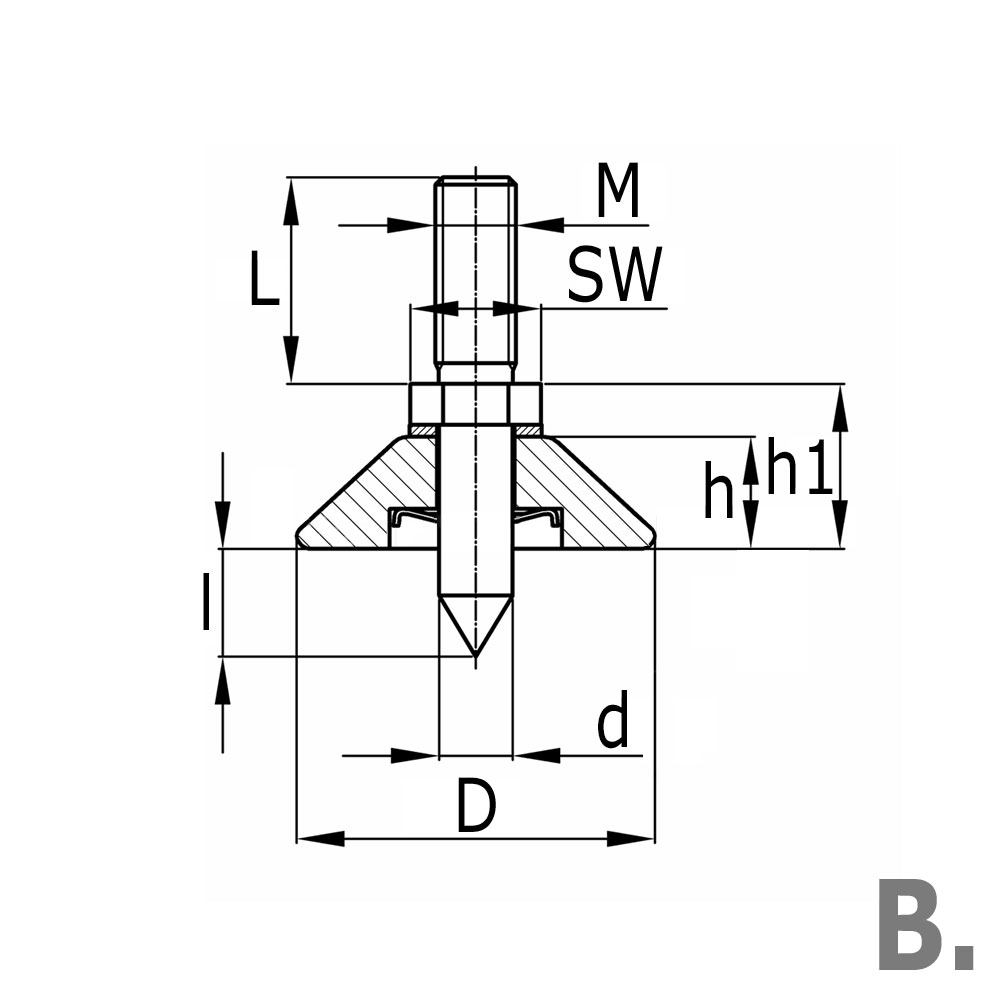

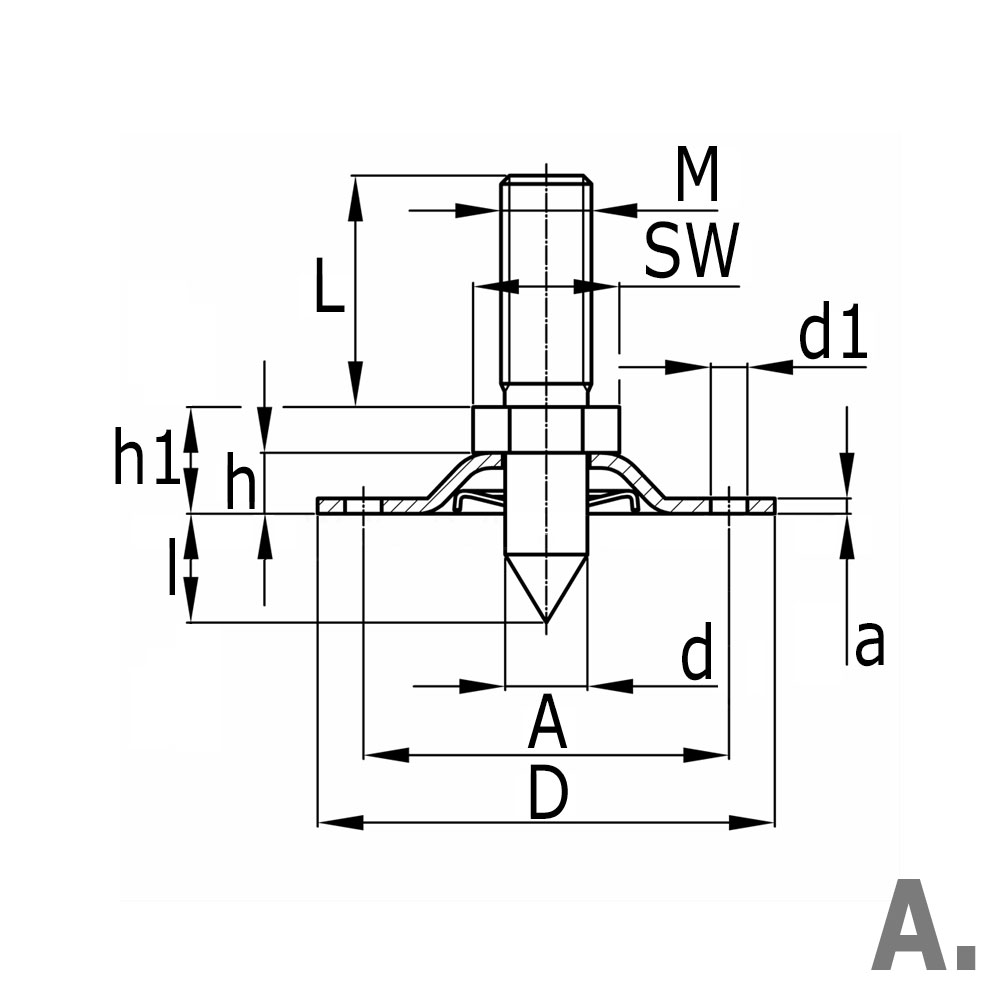

Legend
D=base Ø, d=pin Ø, H=base height, h1=pin height, L=length of threaded stem, M=thread size, SW=spanner size
