7.1.11

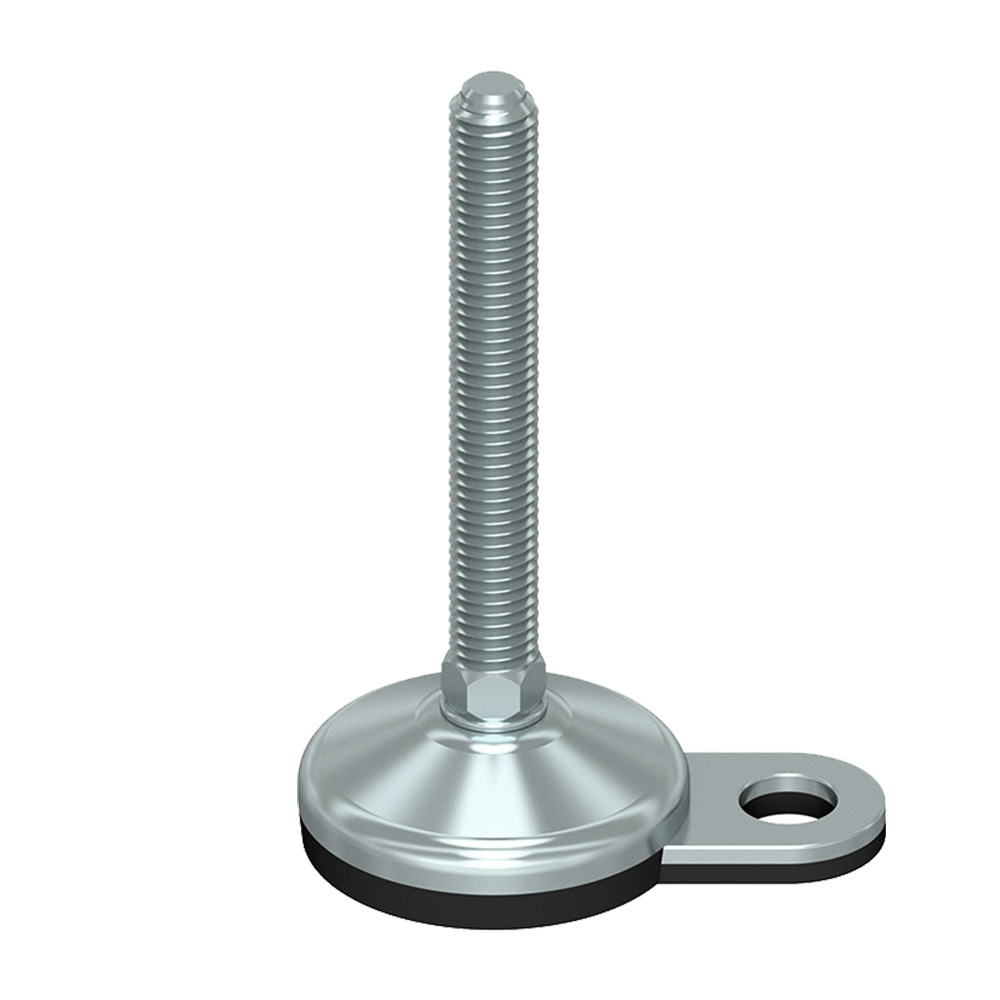

Levelling feet steel - vulcanized NBR anti-slip pad - floor mount lug
Product information
- Steel levelling feet with vulcanized NBR Rubber anti-slip pad with floor mount lug are available with thread size M10 to M30 inclusive, and thread lengths from 50 mm to 250 mm inclusive
- Base size Ø60, 80 and Ø100mm
- Base/foot equipped with floor mount lug
- Vulcanized NBR rubber anti-slip base with steel cover
- Maximum static and vertical load capacity of 700 kg to 1500 kg inclusive
- Maximum angle of inclination +/-10°
- The threaded stem has either two flats or an external hexagon to allow adjustment using an open-ended spanner
- These zinced steel levelling feet with vulcanized NBR base are suitable for machines, frames, conveyors, etc. where high demands apply in respect of stability and load-bearing capacity.
Material: Base - NBR (nitrile butadiene rubber) and zinced steel C40, Threaded stem – zinced steel
Colour: Base - zinc-coloured/black, Threaded stem - zinc-coloured

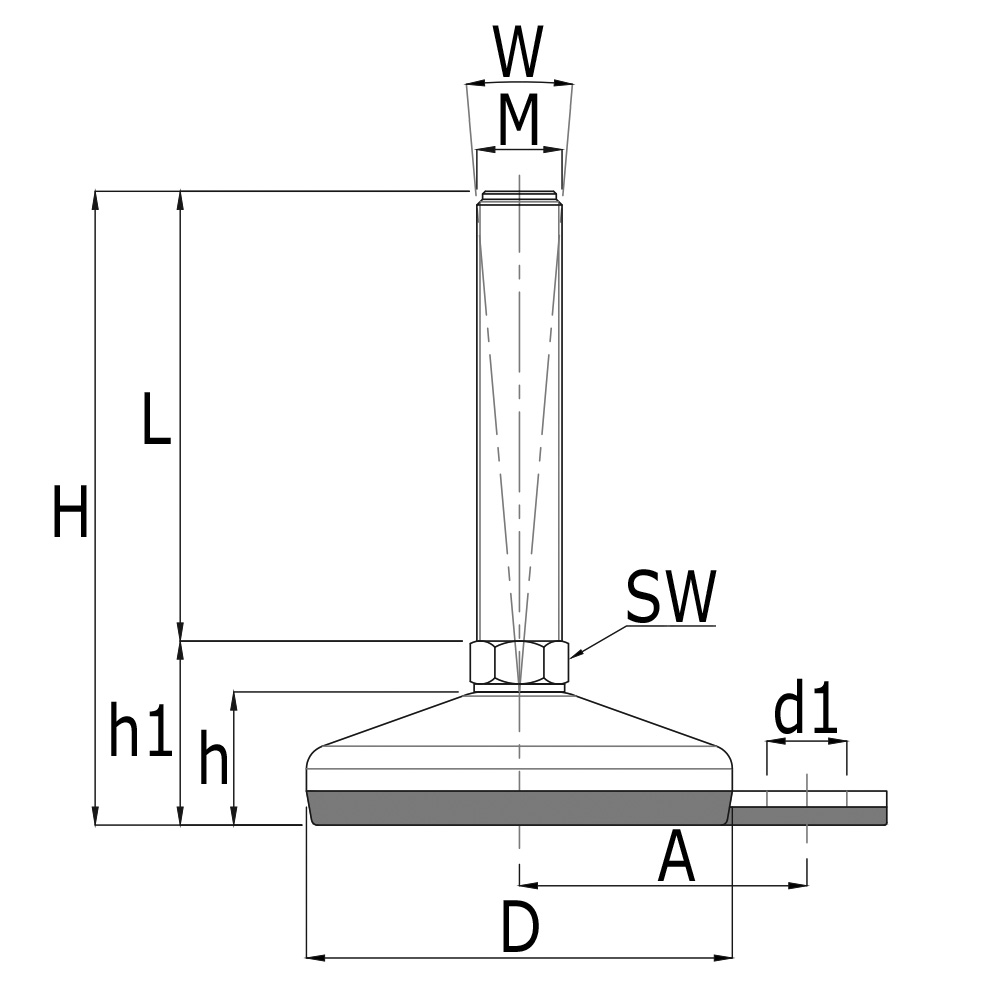

Legend
A=Distance to centre bore, D=base Ø, d1=bore-Ø, H=total installation height, h=base height, h1=height, K=maximum static load in kg, L=thread length on stem, M=thread size, SW=spanner size, W= maximum angle of inclination in °
