7.1.15

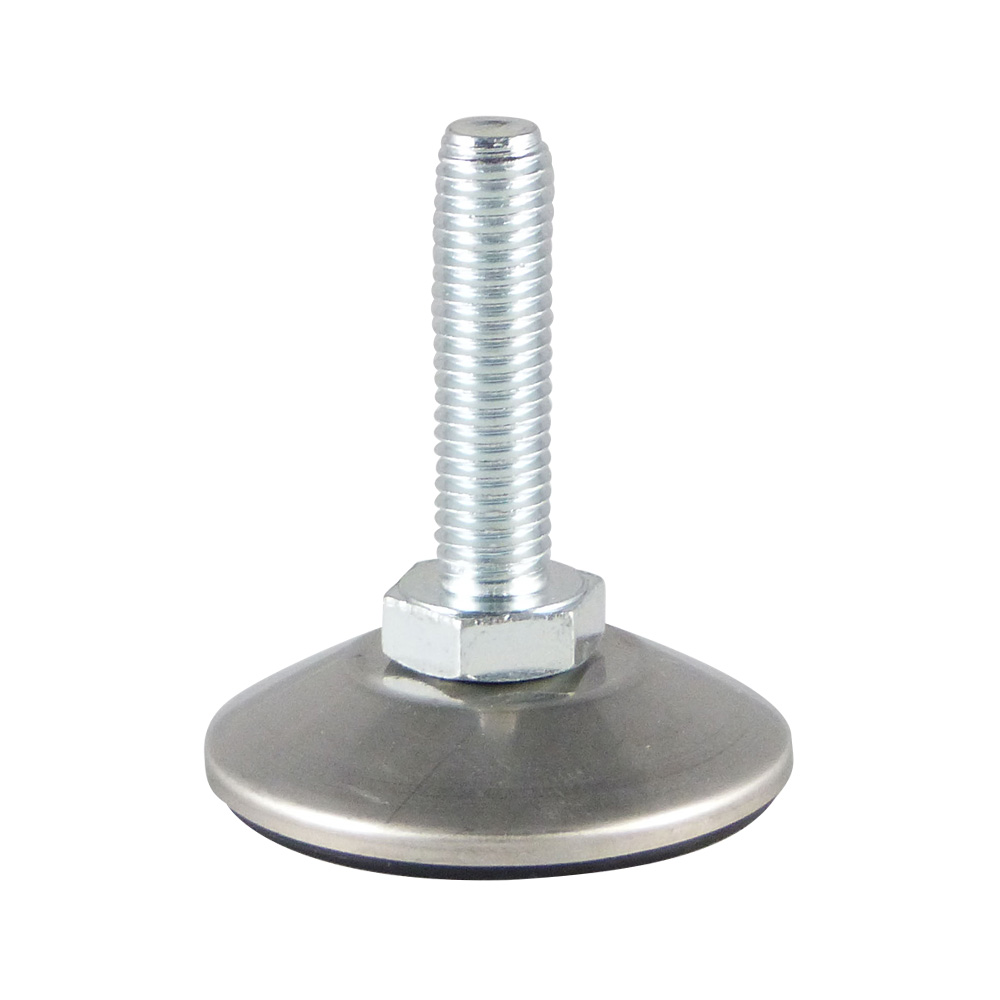

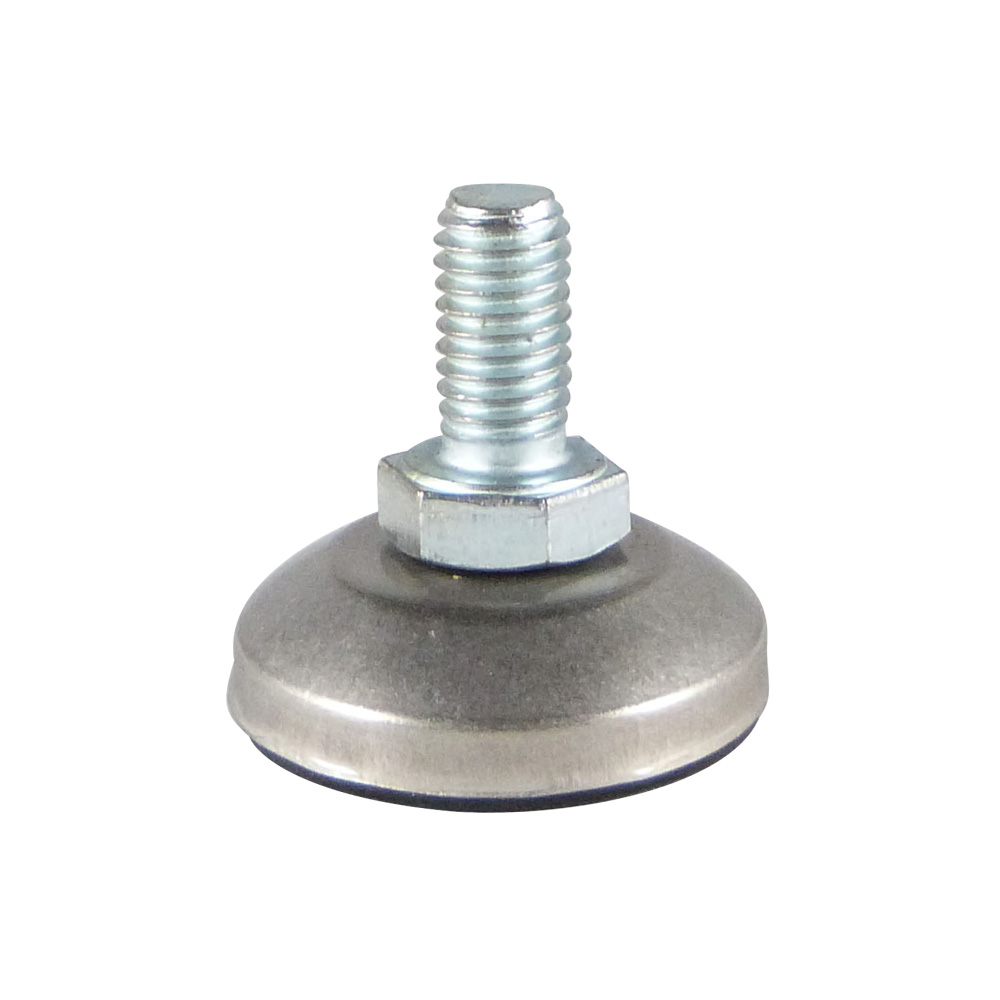

Levelling foot with swivelling stem and conical stainless steel trim cover
Product information
- Levelling feet with a swivelling stem and conical stainless steel trim cover are available with threaded stems, thread size M8 to M10 inclusive, with thread lengths of 16 mm to 70 mm inclusive
- Base with cover from Ø 30 mm to Ø 58 mm inclusive
- The threaded stem, with a hexagonal shoulder, swivels relative to the base

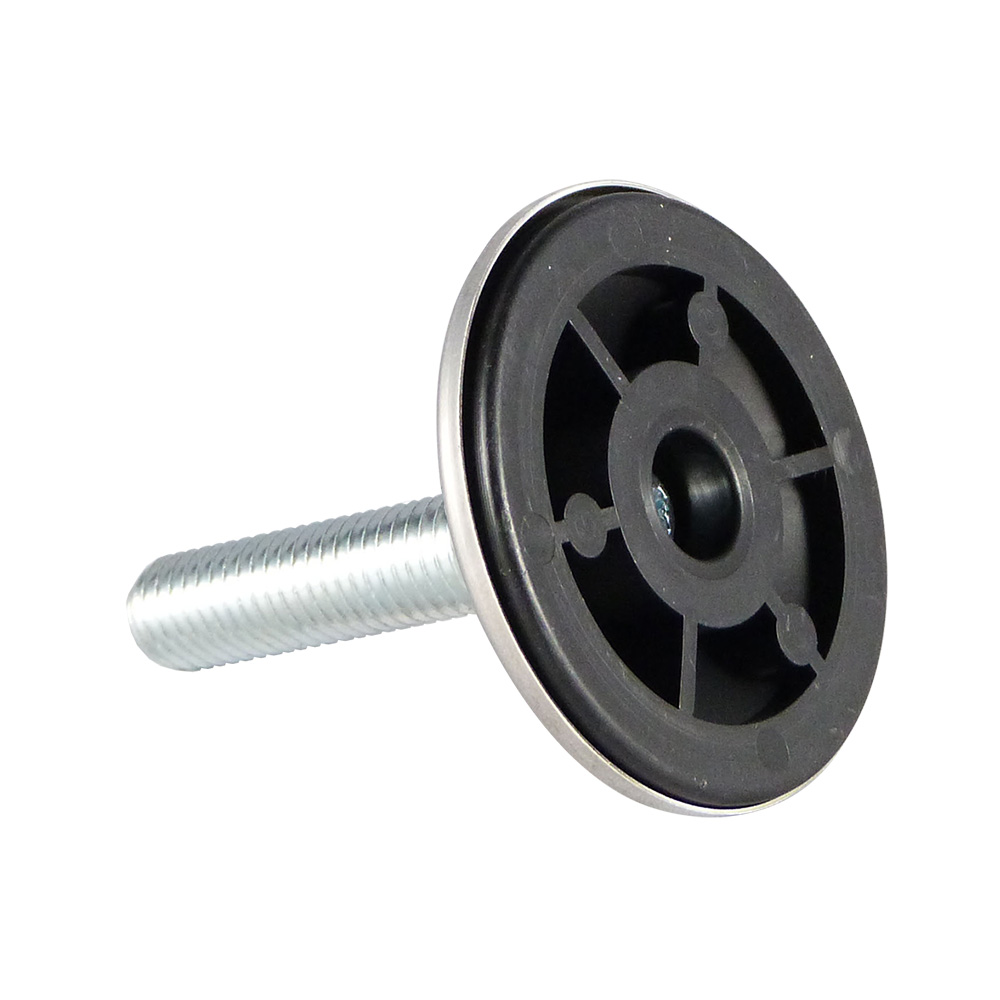

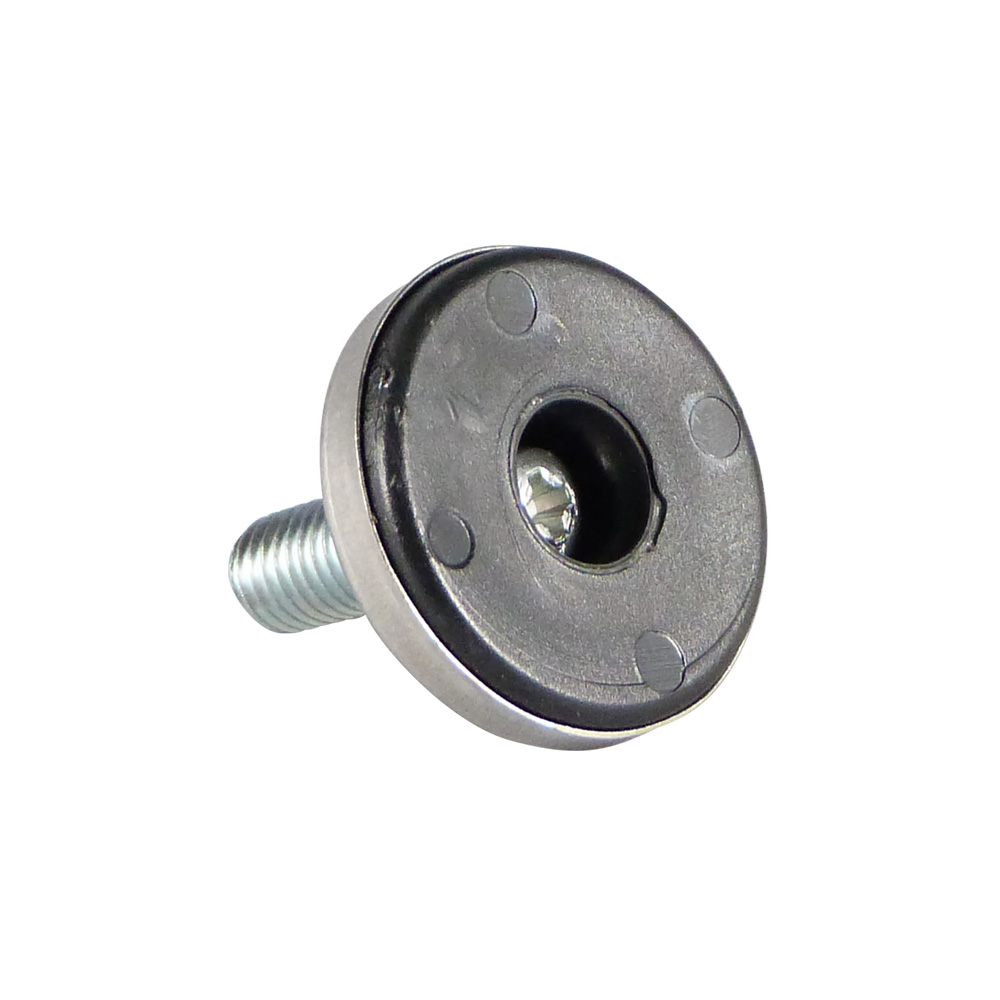

- Crosshead drive in the base (Pozidrive 2) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
- Maximum static load capacity of 400 kg to 550 kg inclusive
- The conical stainless steel trim cover gives the levelling foot a neat appearance
- Levelling feet with a trim cover are generally used for furniture such as cabinets, dressing tables, desks, tables and chairs where the feet are visible features
Material: Base - PP (polypropylene), Threaded stem - (DIN 558-4.6-A2F) galvanised steel, Trim cover - stainless steel
Colour: black foot, stainless steel-coloured cover and zinc-coloured stem
On request:
- Threaded stem with hexagonal shoulder
Legend
D=diameter, H=base height, H1=height of base and hexagonal shoulder, K=maximum static load in kg, L=thread length, M=thread size, SW=spanner size for hexagonal shoulder
