ProductsAdjustable feet and machine feetAdjustable feet - steelLevelling foot with fixed plastic base
7.1.19

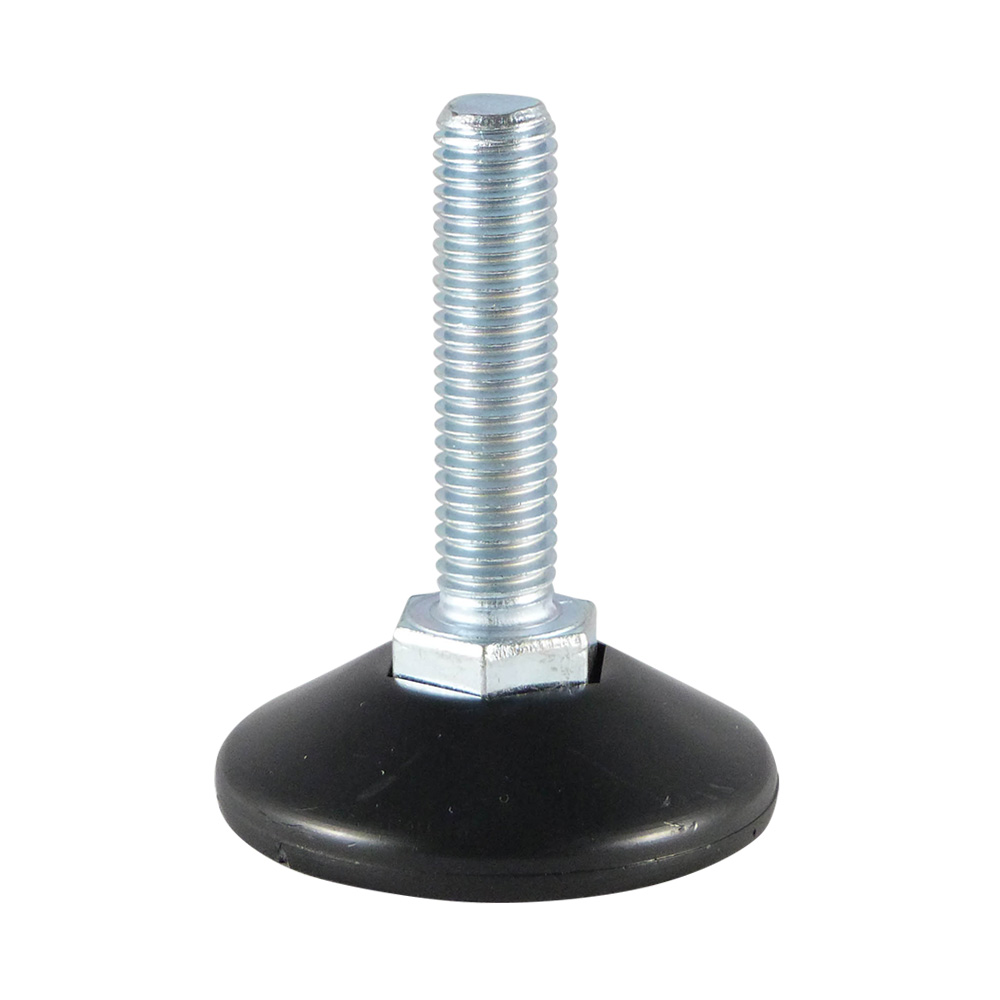

Levelling foot with fixed plastic base

Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base
Levelling foot with fixed plastic base

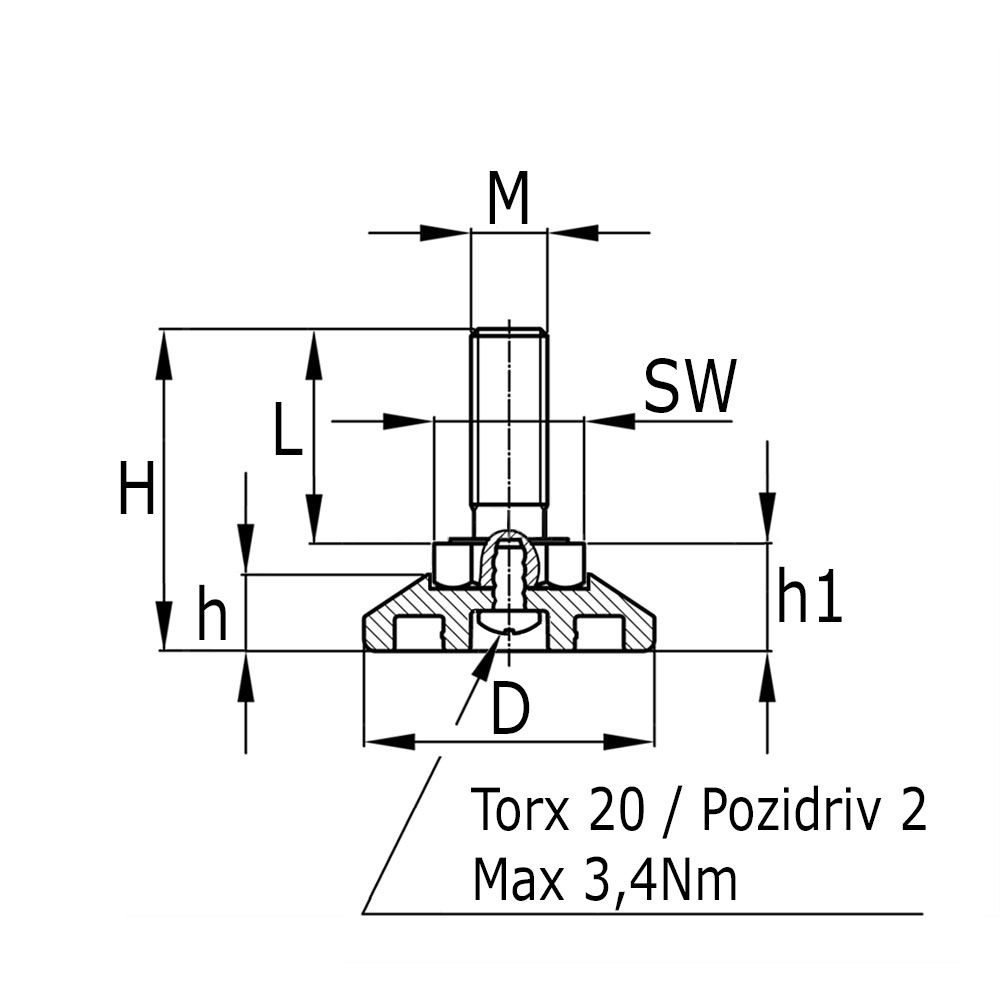

Levelling foot with fixed plastic basedrawing_1
Product information
  • Levelling feet with a fixed conical plastic base are available with threaded stems, thread size M8 to M12 inclusive, and thread heights from 16 mm to 120 mm inclusive
  • Base from Ø 30 mm to Ø 55 mm inclusive
  • The threaded stem, with a hexagonal shoulder, is fixed relative to the base
  • Crosshead drive in the base (Pozidrive 2 / Torx T20) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
  • Maximum static load capacity of 400 kg to 650 kg inclusive
  • Levelling feet with a fixed conical plastic base are often used for furniture, such as shelving, cabinets, dressing tables, desks, tables

Material: Base - PP (polypropylene), Threaded stem - (DIN 558-4.6-A2F) galvanised steel
Colour: Base – black, Stem - zinc-coloured
Make your selection below

Legend
D=base Ø, H=base height + hexagonal shoulder, K=maximum static load in kg, L=thread length, M=thread size, SW=spanner size for hexagonal shoulder

Filter by
Reset all filters
1 pages -   1

Article Description H L D h1 M h
76023821 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x16 black 31 16 38 15 M10 10
76023822 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x20 black 35 20 38 15 M10 10
76023823 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x30 black 45 30 38 15 M10 10
76023824 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x40 black 55 40 38 15 M10 10
76023810050 Non-tilting adjusting feet with zinc-plated screw Ø38mm M10 X 50 black 64 50 38 14 M10 10
76023825 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x50 black 65 50 38 15 M10 10
76023810060 Non-tilting adjusting feet with zinc-plated screw Ø38mm M10 X 60 black 74 60 38 14 M10 10
76023826 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x60 black 75 60 38 15 M10 10
76023810070 Non-tilting adjusting feet with zinc-plated screw Ø38mm M10 X 70 black 84 70 38 14 M10 10
76023827 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x70 black 85 70 38 15 M10 10
76023810080 Non-tilting adjusting feet with zinc-plated screw Ø38mm M10 X 80 black 94 80 38 14 M10 10
76023828 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x80 black 95 80 38 15 M10 10
76023810090 Non-tilting adjusting feet with zinc-plated screw Ø38mm M10 X 90 black 104 90 38 14 M10 10
76023830 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x100 black 115 100 38 15 M10 10
76023810120 Non-tilting adjusting feet with zinc-plated screw Ø38mm M10 X 120 black 134 120 38 14 M10 10
76023831 Z Non-tilting adjusting feet with zinc-plated screw Ø38mm 10x120 black 135 120 38 15 M10 10
76024821 Z Non-tilting adjusting feet with zinc-plated screw Ø48MM 10x16 black 31 16 48 15 M10 10
76024810020 Non-tilting adjusting feet with zinc-plated screw Ø48mm M10 X 20 black 34 20 48 14 M10 10
76024823 Z Non-tilting adjusting feet with zinc-plated screw Ø48MM 10x30 black 45 30 48 15 M10 10
76024810040 Non-tilting adjusting feet with zinc-plated screw Ø48mm M10 X 40 black 54 40 48 14 M10 10
76024810050 Non-tilting adjusting feet with zinc-plated screw Ø48mm M10 X 50 black 64 50 48 14 M10 10
76024826 Z Non-tilting adjusting feet with zinc-plated screw Ø48MM 10x60 black 75 60 48 15 M10 10
76024810070 Non-tilting adjusting feet with zinc-plated screw Ø48mm M10 X 70 black 84 70 48 14 M10 10
76024828 Z Non-tilting adjusting feet with zinc-plated screw Ø48MM 10x80 black 95 80 48 15 M10 10
76024810090 Non-tilting adjusting feet with zinc-plated screw Ø48mm M10 X 90 black 104 90 48 14 M10 10
76024810100 Non-tilting adjusting feet with zinc-plated screw Ø48mm M10 X 100 black 114 100 48 14 M10 10
76024831 Z Non-tilting adjusting feet with zinc-plated screw Ø48MM 10x120 black 135 120 48 15 M10 10
76025521 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x16 black 35 16 55 19 M10 10
76025522 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x20 black 39 20 55 19 M10 10
76025523 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM M10x30 black 49 30 55 19 M10 10
76025524 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x40 black 59 40 55 19 M10 10
76025525 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x50 black 69 50 55 19 M10 10
76025526 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x60 black 79 60 55 19 M10 10
76025527 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x70 black 89 70 55 19 M10 10
76025528 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x80 black 99 80 55 19 M10 10
76025529 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x90 black 109 90 55 19 M10 10
76025530 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x100 black 119 100 55 19 M10 10
76025531 Z Non-tilting adjusting feet with zinc-plated screw Ø55MM 10x120 black 139 120 55 19 M10 10
404281.401002501.000 Non-tilting adjusting feet with zinc-plated screw Ø40mm M10x25 black 0 25 40 0 M10 12
404281.501003001.000 Non-tilting adjusting feet with zinc-plated screw Ø50mm M10x30 black 0 30 50 0 M10 13
