7.1.20
Levelling foot with fixed plastic base - hexagonal socket
Product information

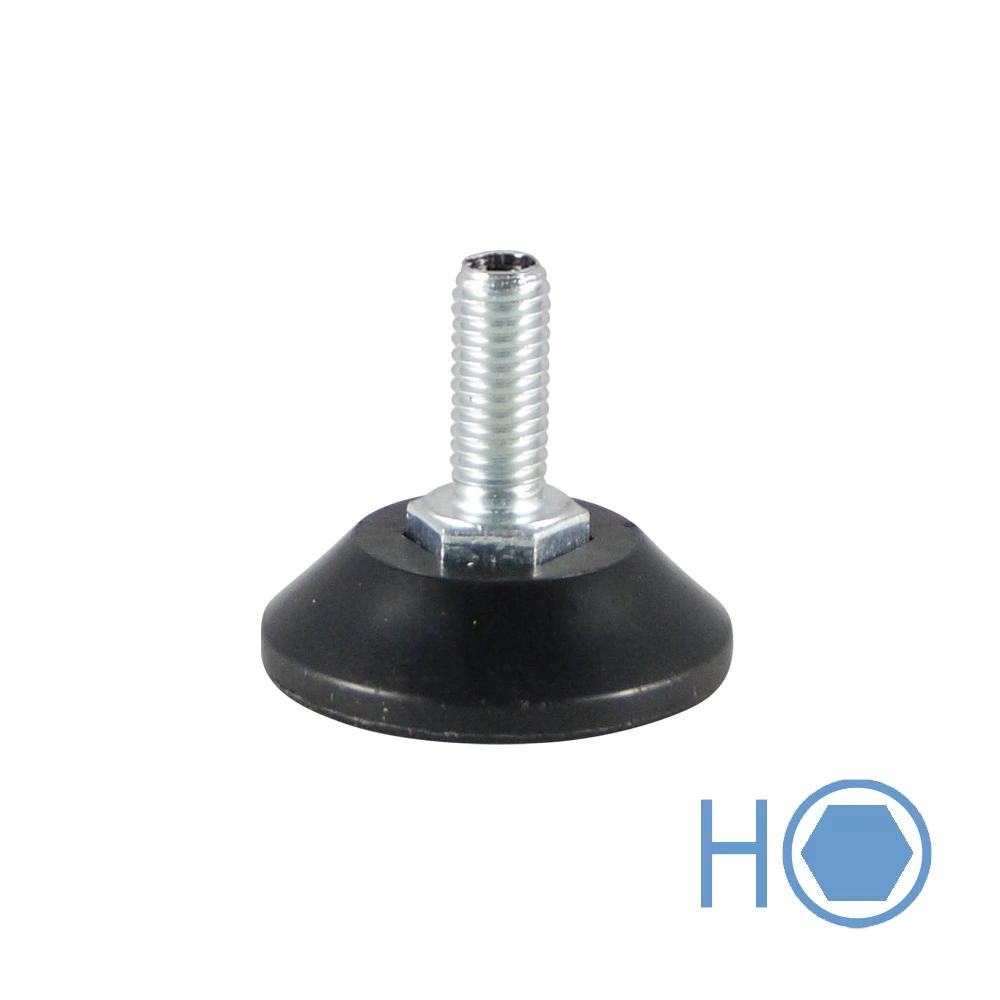

- Levelling feet with a fixed conical plastic base are available with threaded stems with a hexagonal socket on the top end
- Thread size M8 to M12 inclusive
- Stem lengths of 20 mm to 100 mm inclusive
- Base from Ø 30 mm to Ø 48 mm inclusive

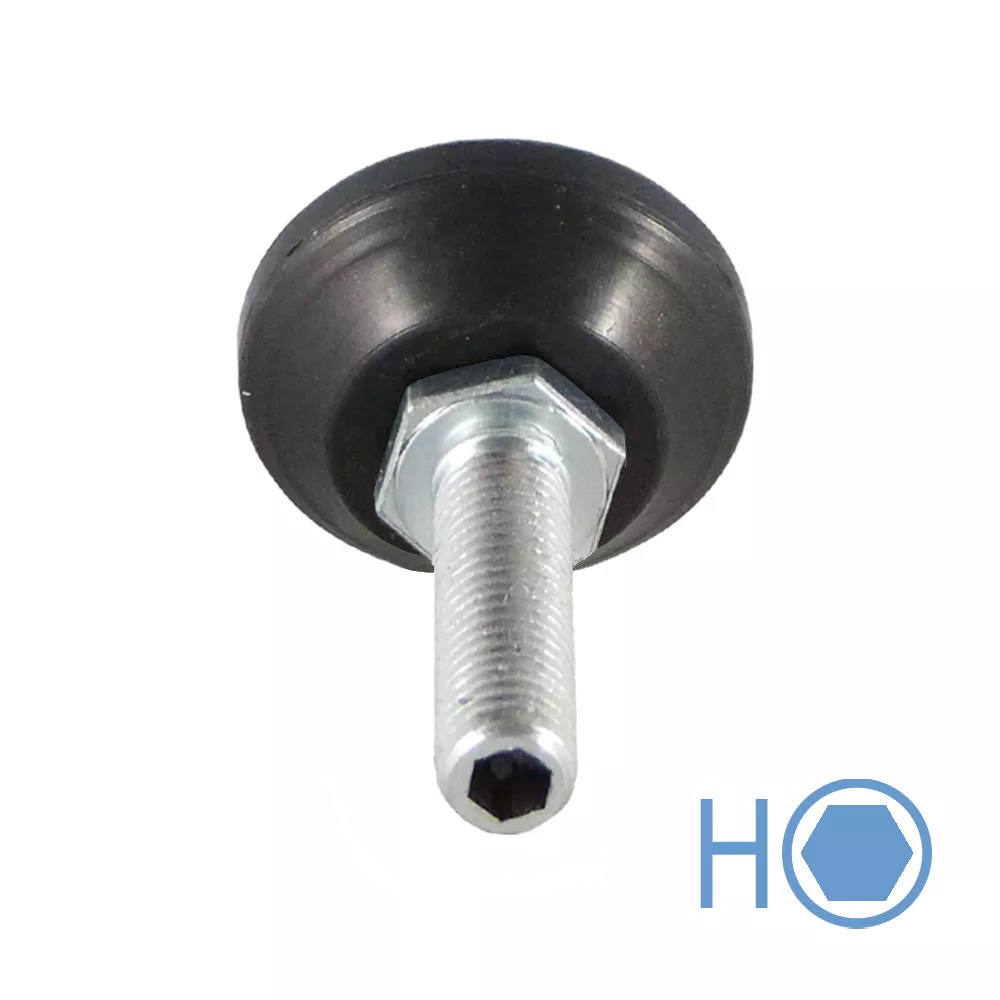

- Hexagonal socket (Allen key) at the top of the threaded stem to allow height adjustment from the top
- The threaded stem, with a hexagonal shoulder, swivels relative to the base
- Crosshead drive in the base (Pozidrive 2 / Torx T20) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
- Maximum static load capacity of 400 kg to 550kg inclusive
- Levelling feet with a swivelling plastic base are often used for equipment or furniture, such as shelving, cabinets, dressing tables, desks, tables
Material: Base - PP (polypropylene), Threaded stem - (DIN 558-4.6-A2F) galvanised steel
Colour: Base – black, Stem - zinc-coloured

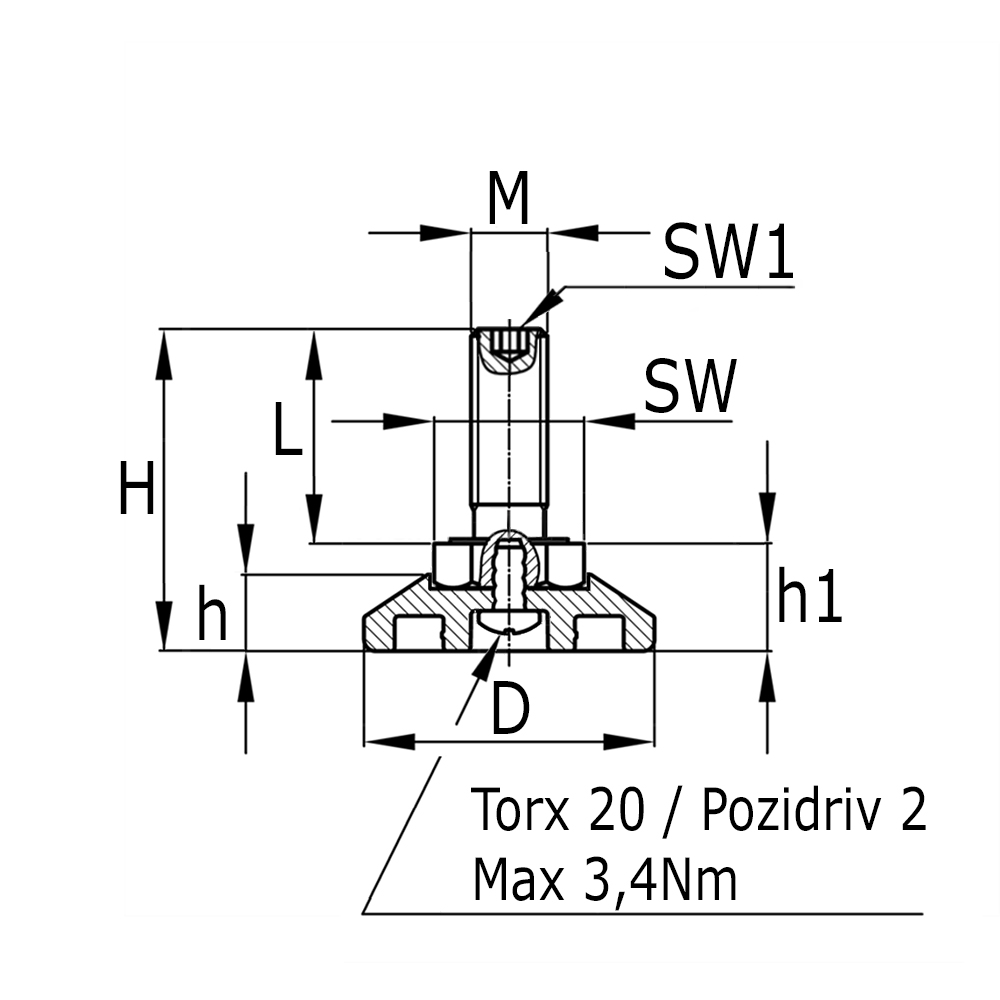

Legend
D=base Ø, H=base height + hexagonal shoulder, K=maximum static load capacity in kg, L=length of threaded stem, M=thread size, SW=spanner size for hexagonal shoulder/hexagonal socket
