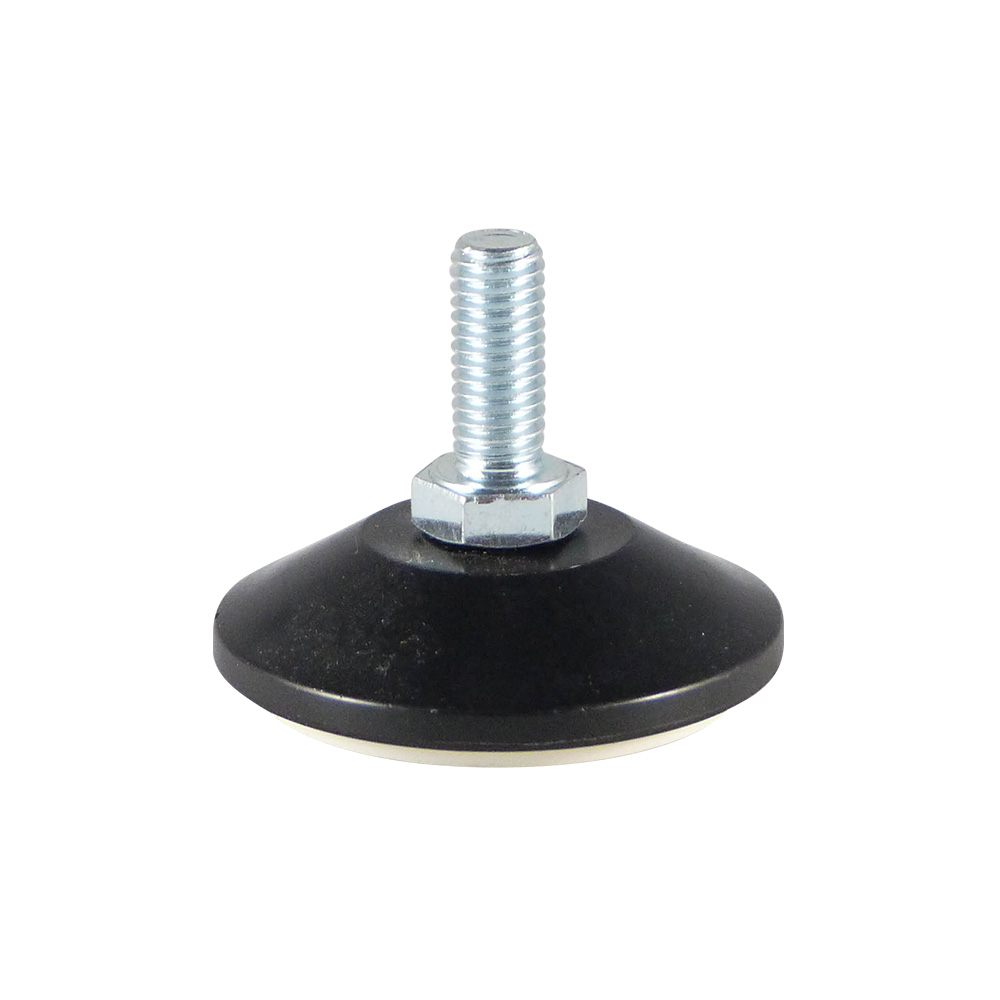

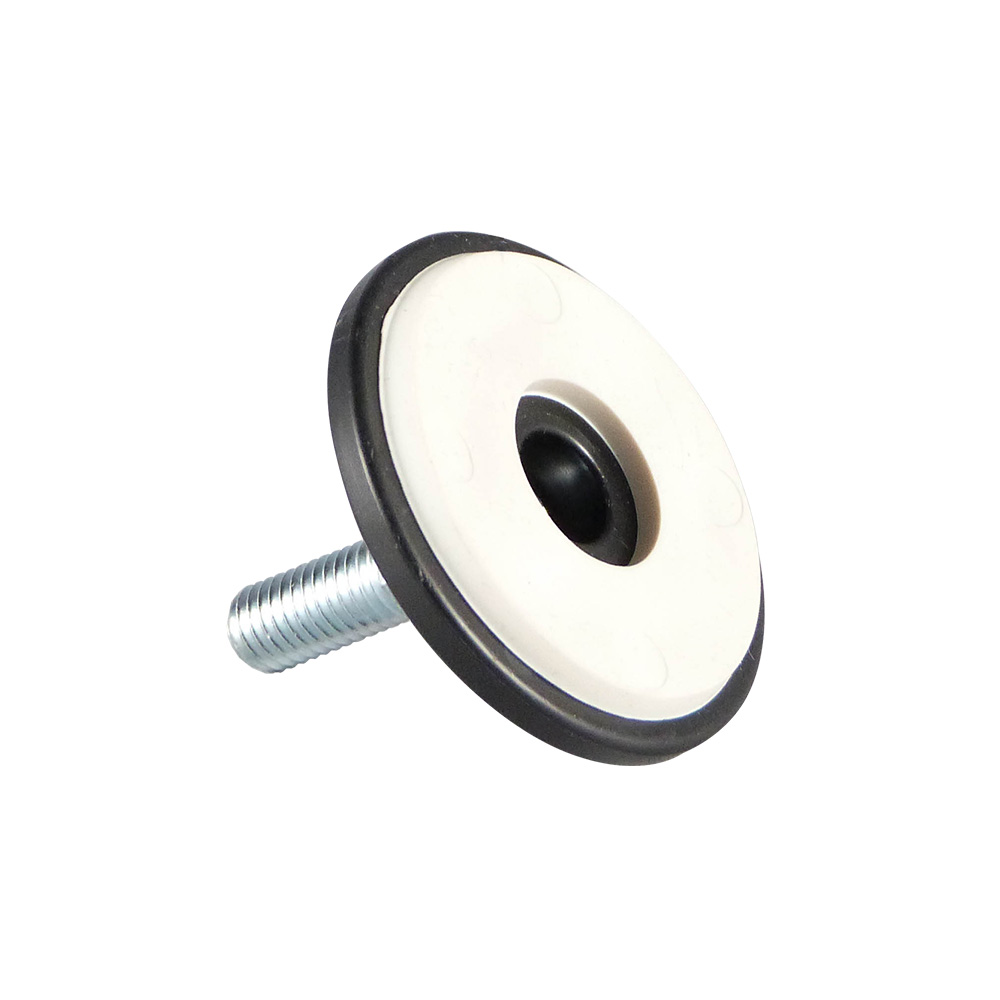

Anti-slip levelling foot with fixed or swivelling base

Product information

• Levelling feet with a conical plastic base and moulded EPDM anti-slip sole are available with threaded stems, thread size M8 or M10, with thread lengths from 16 mm to 120 mm inclusive
• Base diameter of Ø 48 mm
• The threaded stem, with a hexagonal shoulder, is fixed/swivels relative to the base
• Crosshead drive in the base (Pozidrive 2 / Torx T20) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
• Maximum static load capacity of 400 kg to 650 kg inclusive
• Levelling feet with a fixed or swivelling conical plastic base and anti-slip sole are often used for furniture such as shelving, cabinets, dressing tables, desks and tables where an anti-slip feature is required

Material: Base - PE (polyethylene) + EPDM (ethylene polypropylene diene monomer) Shore A 55°, Threaded stem – (DIN 558-4.6-A2F) galvanised steel
Colour: Base – black, + white anti-slip pad, stem - zinc-coloured

Variants

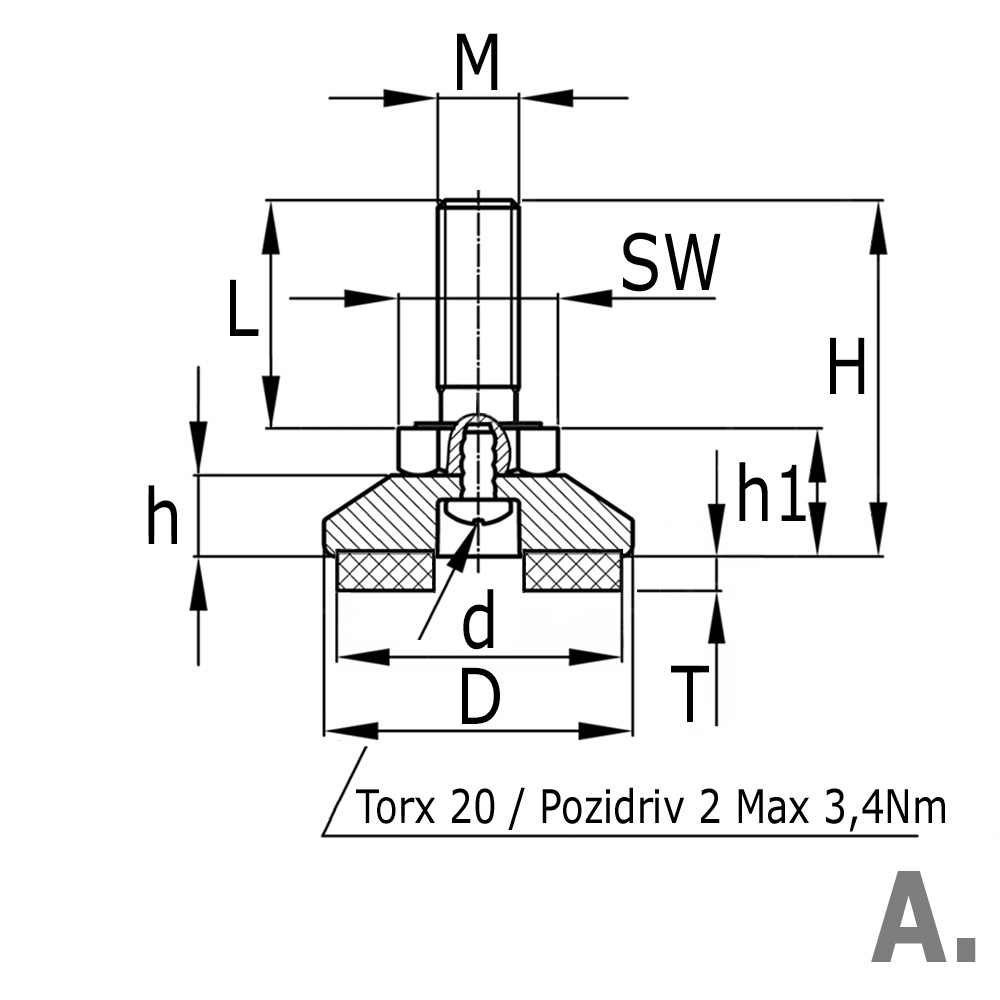

Type A: Stems swivels relative to base

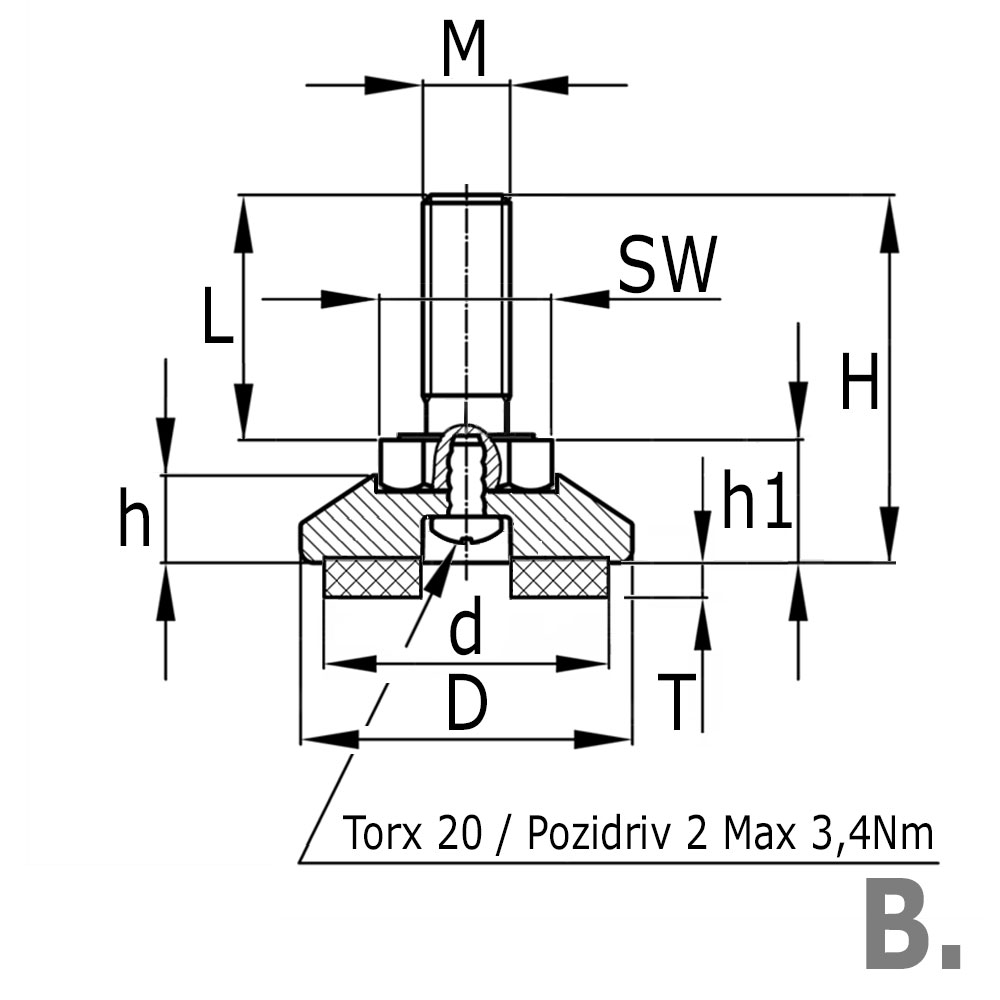

Type B: Stem is fixed relative to base
