7.1.33

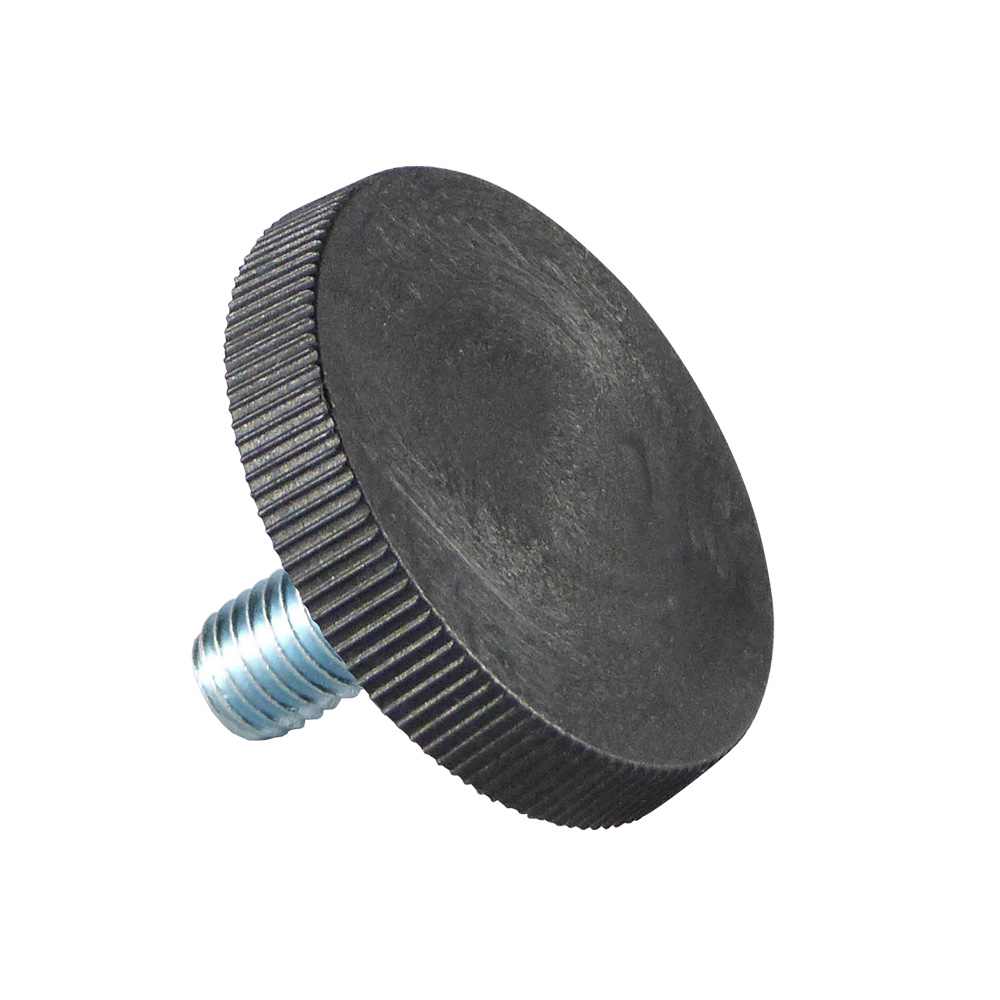

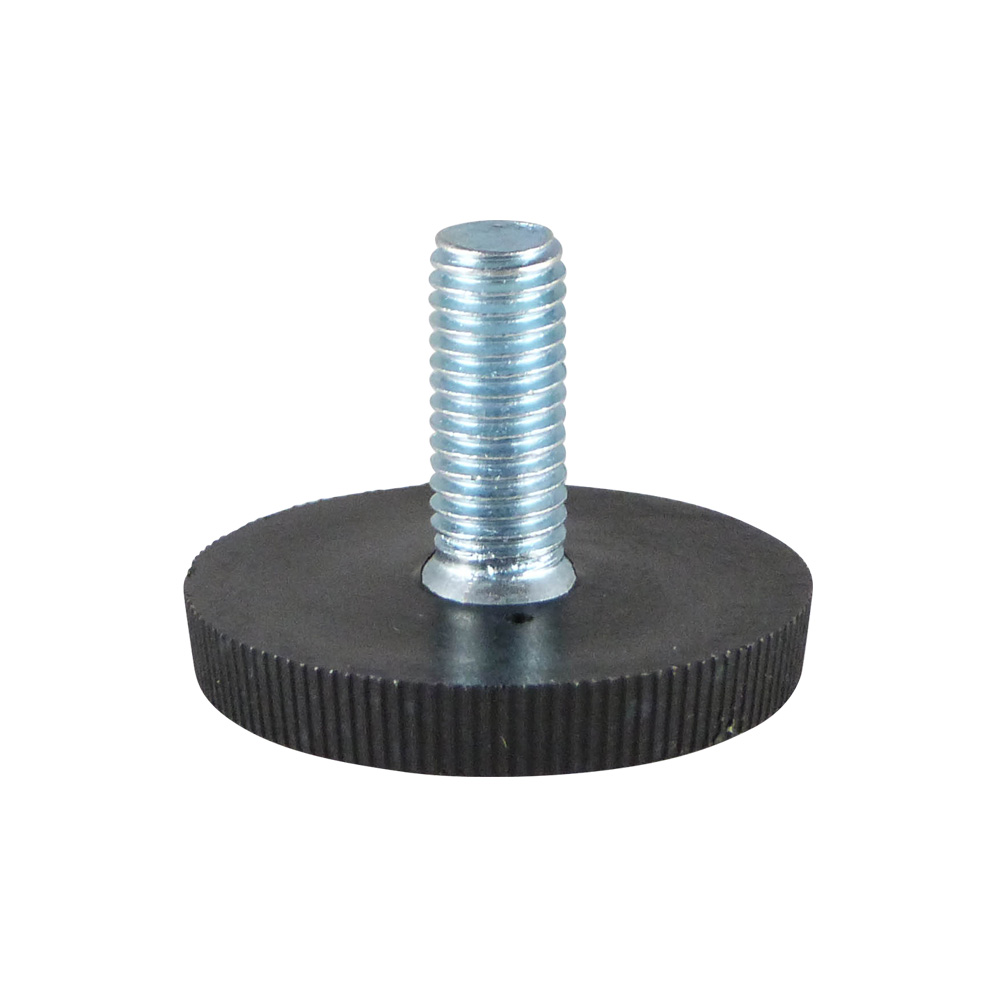

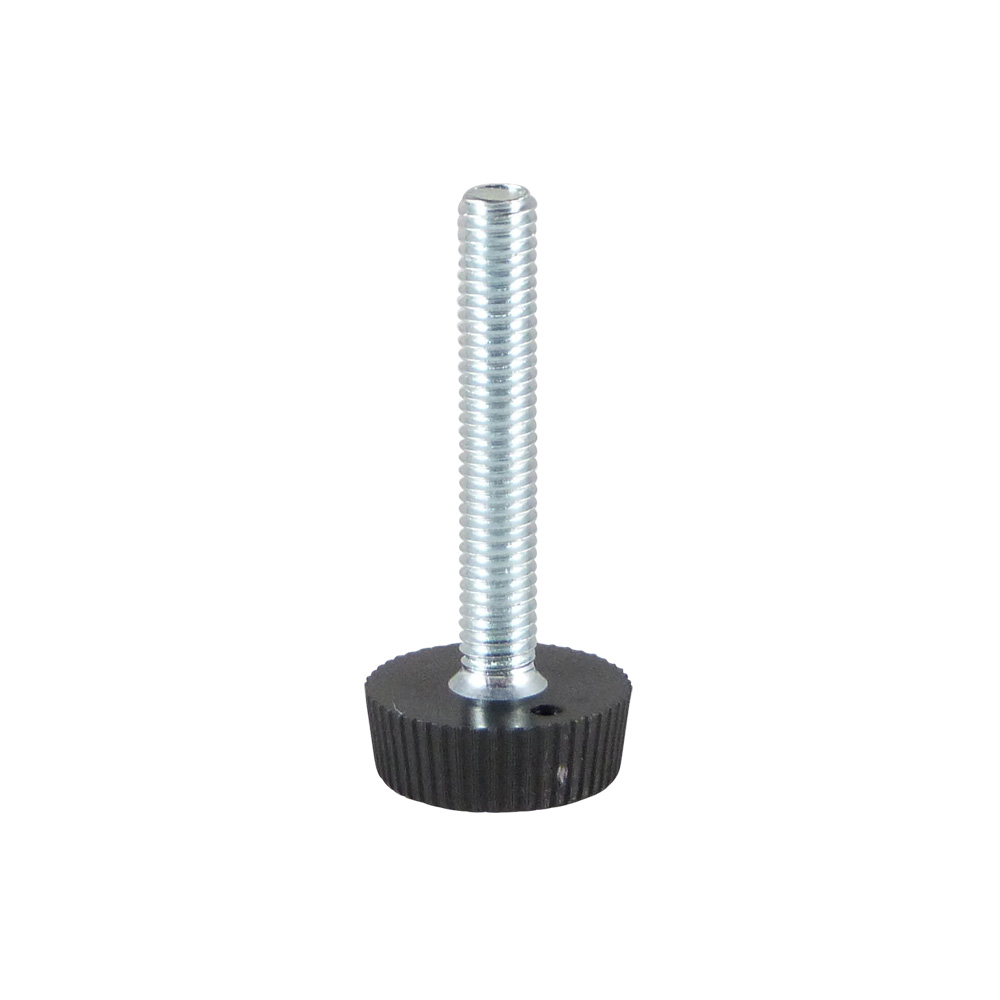

Levelling foot with knurled edge (fine) Ø 15 mm - Ø 45 mm
Product information
- Levelling feet with a fixed, finely knurled round base are available with threaded stems, thread size M4 to M10 inclusive, and thread lengths from 10 mm to 60 mm inclusive
- Solid moulded base measuring from Ø 15 mm to Ø 45 mm inclusive
- The finely knurled edge makes the base easier to grip when making manual adjustments
- Levelling feet with a knurled edge, also known as knurled screws, can be used as a height adjuster but also as an adjustment knob or adjuster screw. Mainly used for furniture such as tables and shelf racks, but also for equipment, tents, frames etc.
Material: Base - PA (polyamide), threaded stem - galvanised steel
Colour: Base – black, stem - zinc-coloured

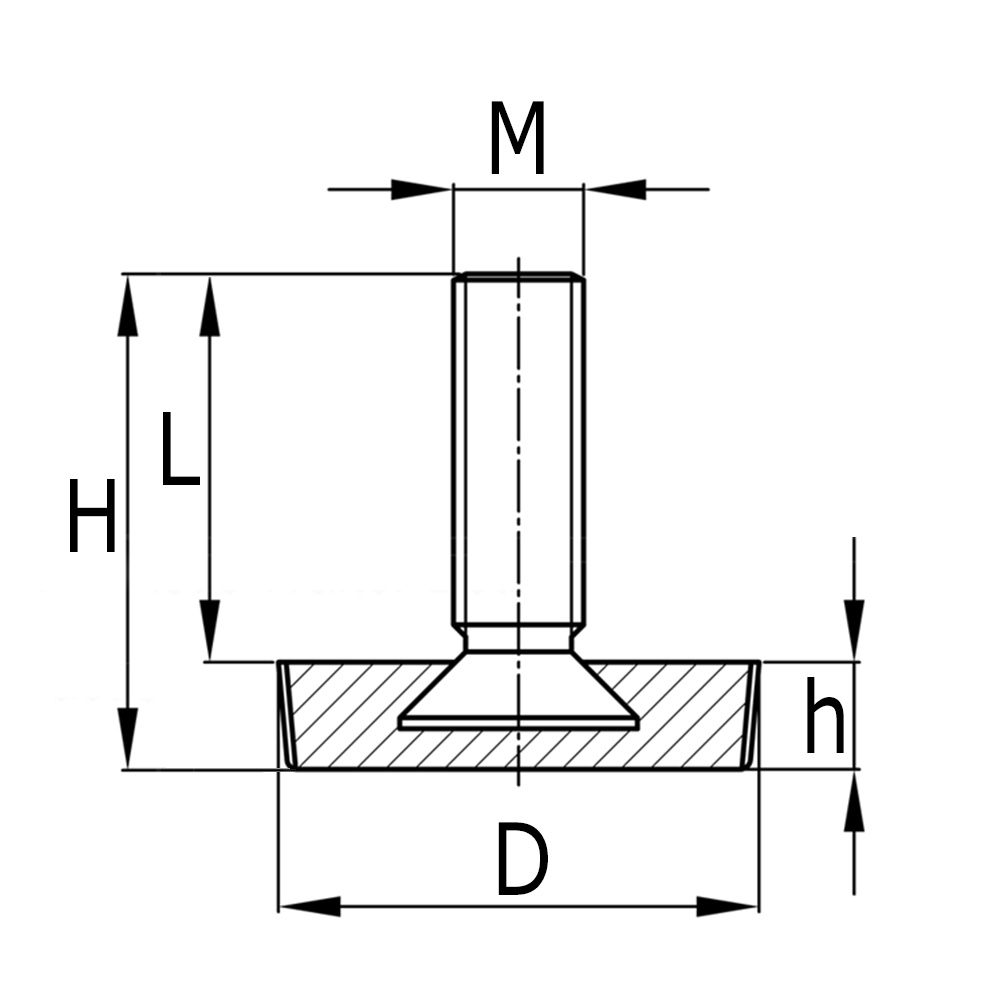

Legend
D=base Ø, H=base height, L=effective usable thread length, M=thread size
