ProductsAdjustable feet and machine feetAdjustable feet - steelLevelling foot with knurled edge (coarse) Ø55mm - Ø60mm
7.1.35

Levelling foot with knurled edge (coarse) Ø55mm - Ø60mm

Levelling foot with knurled edge (coarse) Ø55mm - Ø60mm
Levelling foot with knurled edge (coarse) Ø55mm - Ø60mm
Levelling foot with knurled edge (coarse) Ø55mm - Ø60mm
Levelling foot with knurled edge (coarse) Ø55mm - Ø60mm
Levelling foot with knurled edge (coarse) Ø55mm - Ø60mm
Levelling foot with knurled edge (coarse) Ø55mm - Ø60mmdrawing_1
Product information

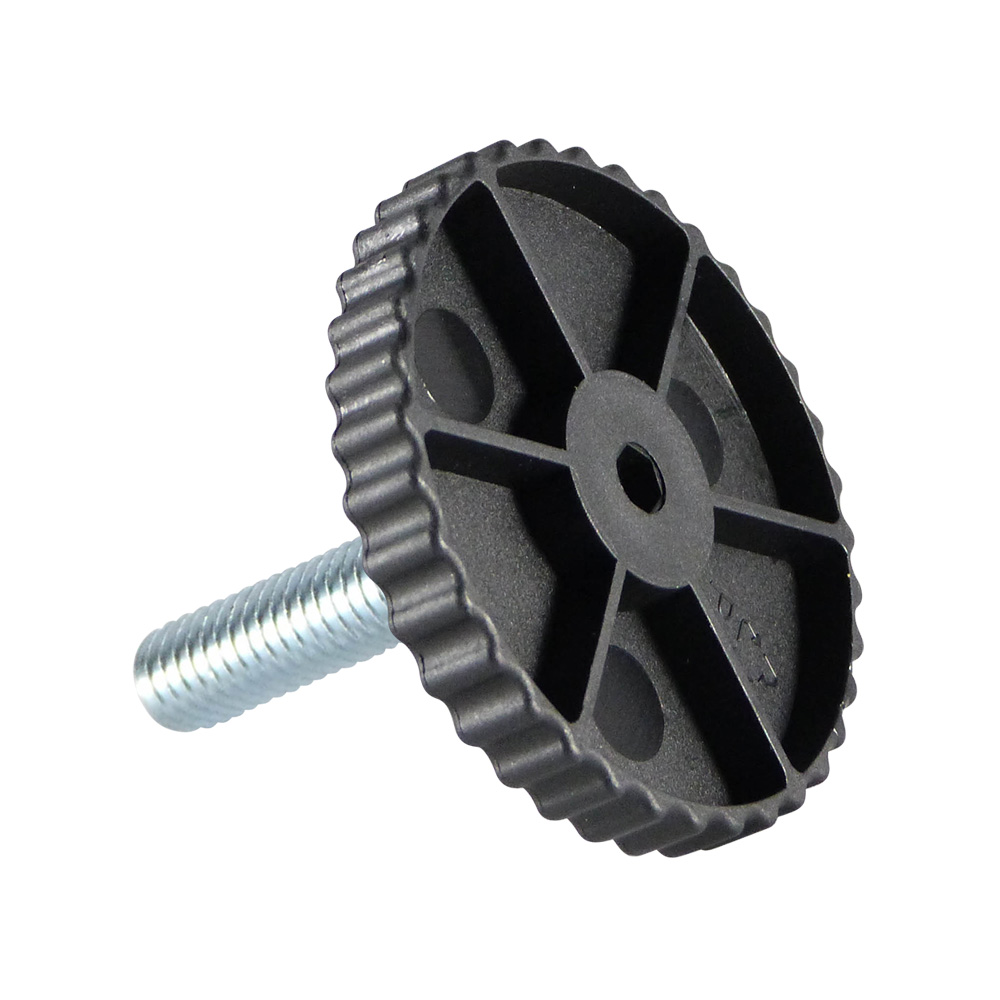

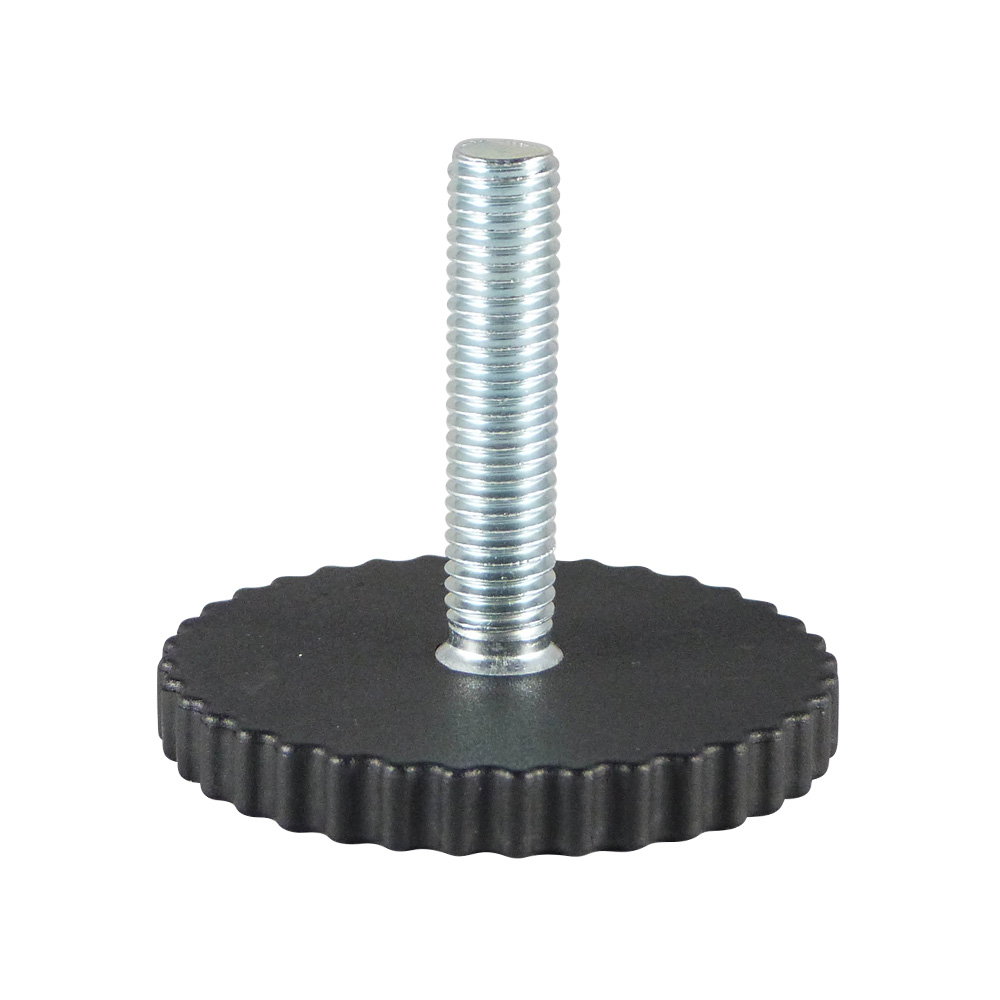

  • Levelling feet with a fixed, coarsely knurled round base are available with threaded stems, thread size M8 to M10 inclusive, and thread lengths from 20 mm to 60 mm inclusive
  • Moulded base measuring from Ø 55 mm to Ø 60 mm inclusive, concave but with added strengthening ribs
  • The coarsely knurled edge makes the base easier to grip when making manual adjustments
  • Levelling feet with a knurled edge, also known as knurled screws, can be used as a height adjuster. Mainly used for furniture such as tables and cabinets, but also for equipment, tents, frames etc.

Material: Base - PA 6 (polyamide 6), threaded stem - galvanised steel
Colour: Base – black, stem - zinc-coloured

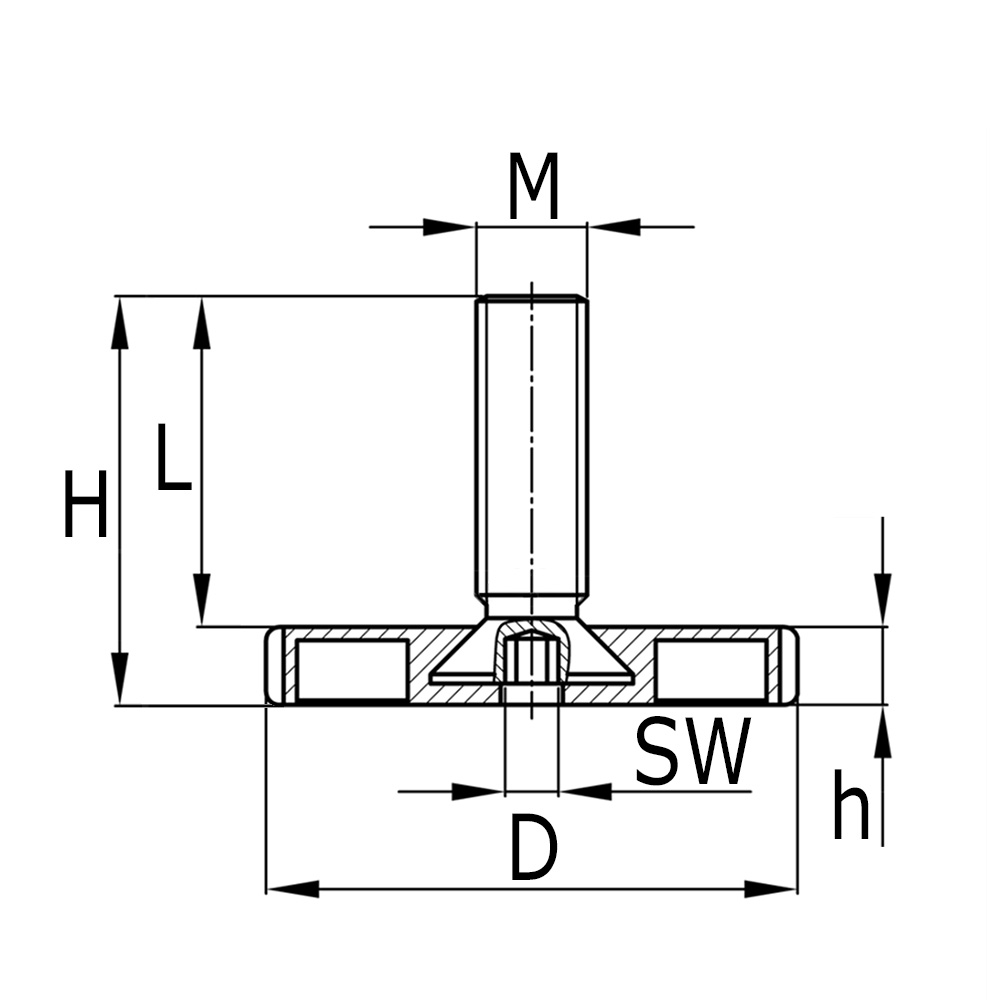

Legend
D=base Ø, H=base height, L=effective usable thread length, M=thread size

Filter by
Reset all filters
1 pages -   1

Article Description L MOQ M D Colour/RAL h
7695500 Z Adjusting screws with knurled plastic base 55mm M8 x 20/17 black 17 M 8 55 Black 8
7695501 Z Adjusting screws with knurled plastic base 55mm M8 x 25/22 black 22 M 8 55 Black 8
7695502 Z Adjusting screws with knurled plastic base 55mm M8 x 30/27 black 27 M 8 55 Black 8
7695503 Z Adjusting screws with knurled plastic base 55mm M8 x 40/37 black 37 2000 M 8 55 Black 8
7695504 Z Adjusting screws with knurled plastic base 55mm M8 x 50/47 black 47 M 8 55 Black 8
7695505 Z Adjusting screws with knurled plastic base 55mm M8 x 60/57 black 57 M 8 55 Black 8
7695506 Z Adjusting screws with knurled plastic base 55mm M10 x 20/15,5 black 16 M10 55 Black 8
7695507 Z Adjusting screws with knurled plastic base 55mm M10 x 30/25,5 black 26 M10 55 Black 8
7695508 Z Adjusting screws with knurled plastic base 55mm M10 x 40/35,5 black 36 3000 M10 55 Black 8
7695509 Z Adjusting screws with knurled plastic base 55mm M10 x 50/45,5 black 46 M10 55 Black 8
7695510 Z Adjusting screws with knurled plastic base 55mm M10 x 60/55,5 black 56 2000 M10 55 Black 8
7696001 Z Adjusting screws with knurled plastic base 60mm M8 x 20/17 black 17 M 8 60 Black 8
7696002 Z Adjusting screws with knurled plastic base 60mm M8 x 30/27 black 27 M 8 60 Black 8
7696003 Z Adjusting screws with knurled plastic base 60mm M8 x 40/37 black 37 M 8 60 Black 8
7696004 Z Adjusting screws with knurled plastic base 60mm M8 x 50/47 black 47 M 8 60 Black 8
7696005 Z Adjusting screws with knurled plastic base 60mm M8 x 60/57 black 57 2500 M 8 60 Black 8
7696006 Z Adjusting screws with knurled plastic base 60mm M10 x 20/15,5 black 16 M10 60 Black 8
7696007 Z Adjusting screws with knurled plastic base 60mm M10 x 30/25,5 black 26 M10 60 Black 8
7696008 Z Adjusting screws with knurled plastic base 60mm M10 x 40/35,5 black 36 M10 60 Black 8
7696009 Z Adjusting screws with knurled plastic base 60mm M10 x 50/45,5 black 46 M10 60 Black 8
7696010 Z Adjusting screws with knurled plastic base 60mm M10 x 60/55,5 black 56 0 M10 60 Black 8
