7.1.6

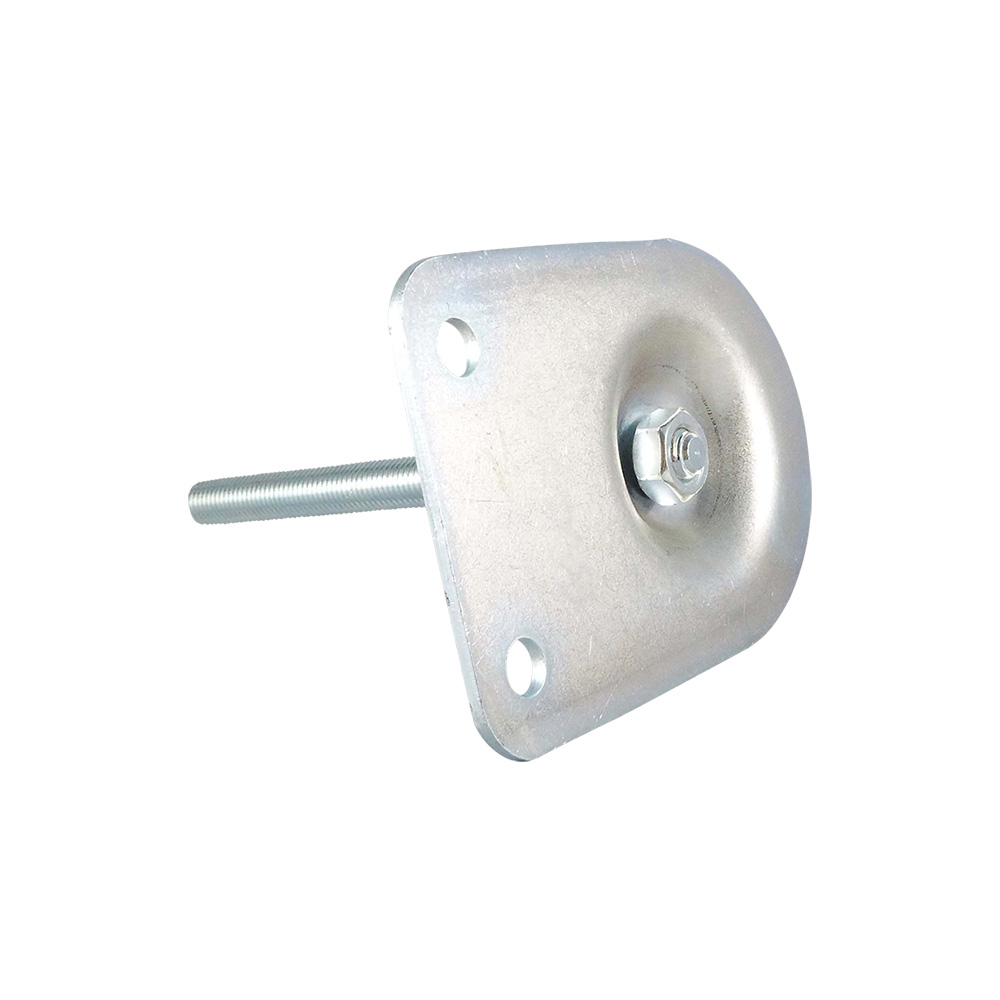

Levelling foot with half-round galvanised steel base - with fixing holes
Product information
- Levelling feet with a half-round galvanised steel base and mounting holes are available with threaded stems, thread size M16 to M24 inclusive, and thread lengths of either 150 mm or 200 mm inclusive
- Half-round pressed steel base of 100 x 100 mm
- The base has four mounting holes of Ø12,5mm for fixing it to a support surface or floor
- The threaded stem, with two flats, swivels relative to the base, but can also be fixed by tightening the bottom locking nut
- Static load capacity of 2000 kg
- 100% steel levelling feet with a square base are suitable for use as height adjusters for constructions, frames, equipment, machines, etc.
Material: base - galvanised steel, stem and locking nuts - galvanised steel
Colour: Zinc coloured

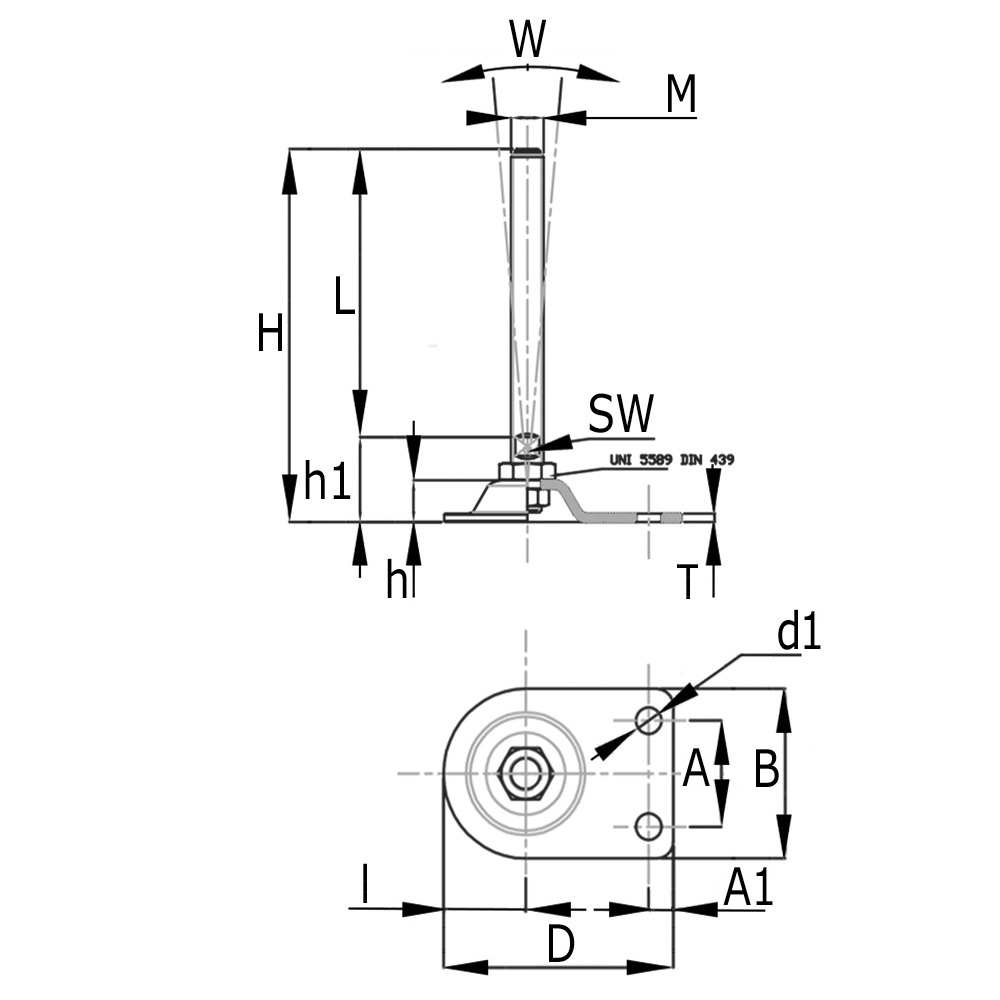

Legend
H=Totalhöhe, h=Höhe, h1=Höhe Fußteller, K=Maximale statische Belastung in kg, L=Gewindelänge, M=Gewindemaß, S=Plattenstärke, SW=Schlüsselweite
