7.2.11
Stainless steel levelling foot – fixed plastic base - hexagonal socket
Product information
- Levelling feet with a swivelling plastic base without a ball joint are available with stainless steel threaded stems, thread size M16 to M30 inclusive, and thread heights from 81 mm to 207 mm inclusive
- Plastic base Ø 102 mm, Ø 123 mm and Ø 124 mm
- Maximum static and vertical load capacity of 2000 kg to 4500 kg inclusive
- The threaded stem features two flats or a hexagon to allow adjustment with an open-ended spanner
- The base is supplied with a (removable) NBR anti-slip sole as standard
- Maximum angle of inclination 8°
- Base with mounting holes for attachment to the supporting surface (closed at the top - to be drilled out if used)
- These heavy duty levelling feet are suitable for use under machines, frames, conveyors, heavy shelving racks and podiums where demanding requirements apply relative to stability, load-bearing capacity and floor loading.
Material: Base - PA GF (glass fibre reinforced polyamide), Anti-slip sole – NBR (nitrile butadiene rubber) Shore A 70°, Threaded stem – stainless steel AISI 304
Colour: Base + sole - black , Threaded stem - stainless steel-coloured

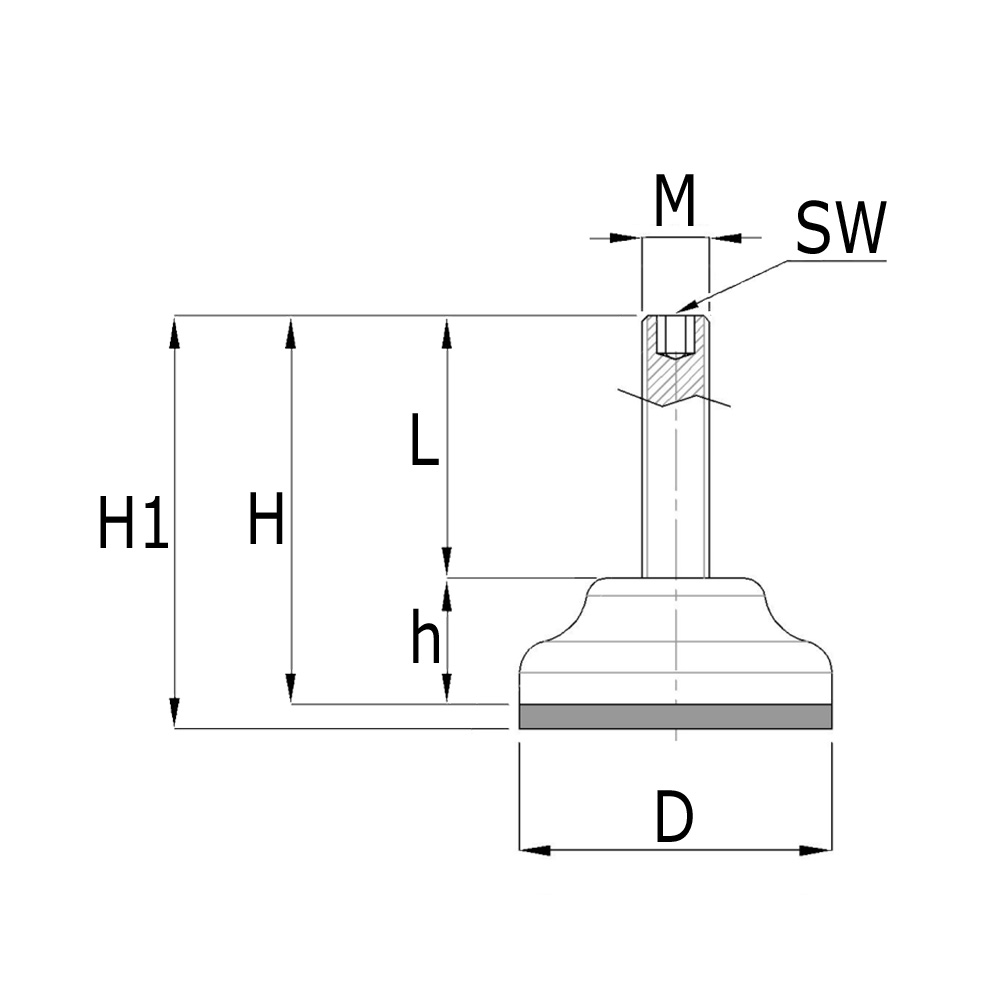

Legend
A=total installation height, D=base Ø, d=centre-to-centre dimension between mounting holes, H=thread length, h=height, K= maximum static load in kg, M=thread size, SW=spanner size, W=maximum angle of inclination in °
