Stainless steel levelling foot with ball joint - hygienic design

Product information

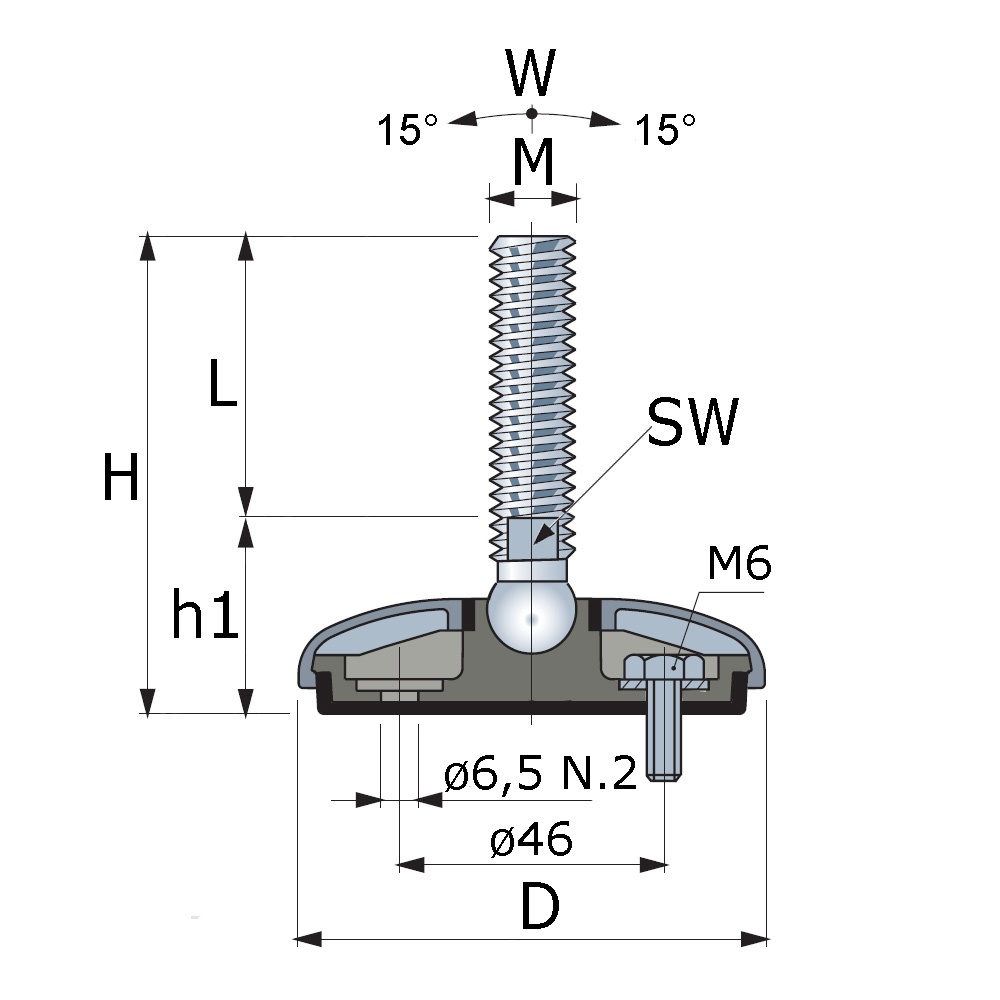

• Heavy duty levelling feet with a plastic anti-slip base, stainless steel cover and ball joint are available with stainless steel threaded stems, thread size M10 to M24 inclusive, and thread lengths from 14 mm to 151 mm inclusive
• Plastic base Ø 80 mm, Ø 102 mm and Ø 120 mm
• Maximum static and vertical load capacity of 1000 kg to 2200 kg inclusive
• The threaded stem features a hexagon to allow adjustment with an open-ended spanner
• Maximum angle of inclination 15°
• The plastic parts are treated with Microban© antibacterial protection. This inhibits growth of most common bacteria such as E. coli, Salmonella, Listeria, S. aureus, Campylobacter to prevent contamination and unpleasant odours
• Sealing the internal parts also contributes to achieving better hygiene
• The base is supplied with two mounting holes (to be drilled out if used), which are concealed by the stainless steel cover
• These heavy duty levelling feet are suitable for use under machines, frames, conveyors, etc. where demanding requirements apply relative to food safety, hygiene, stability and load-bearing capacity.

Material: Base - PP GF (glass fibre reinforced polypropylene) + TPE Shore A 80° (thermoplastic elastomer), Threaded stem + cover – stainless steel AISI 304
Colour: Base - black, Threaded stem + Cover – stainless steel-coloured

Variants:
Type A: Preassembled cover – floor mount not possible
Type B: seperately supplied cover – floor mount possible
