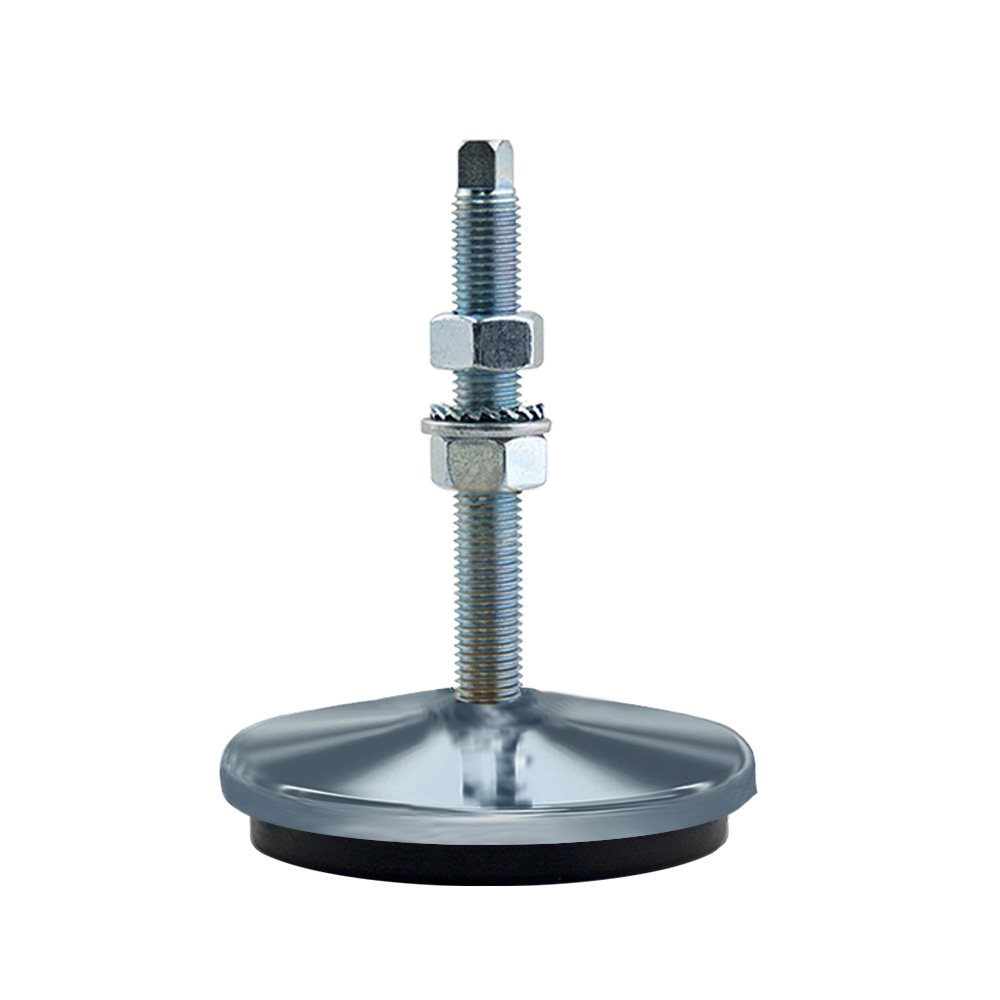

Adjustable machine foot - anti-vibration design - 1

Product information

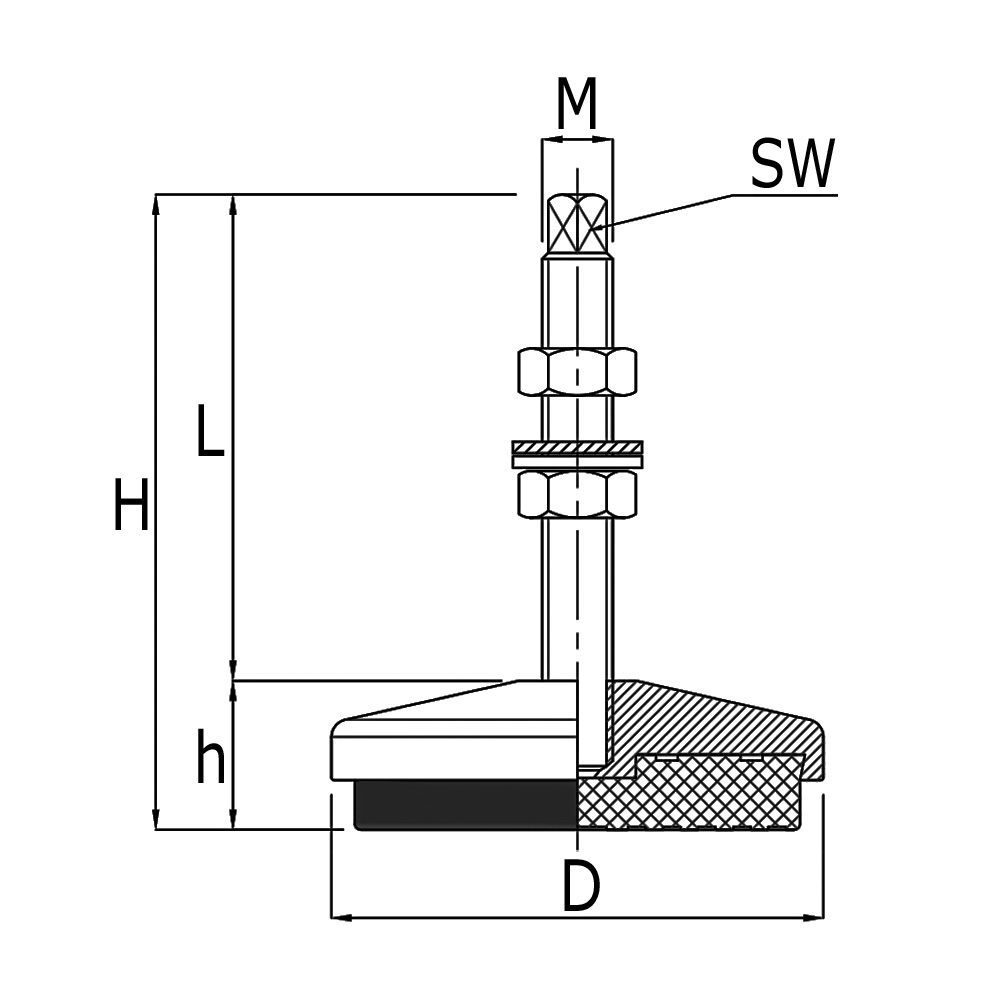

• Anti-vibration adjustable machine feet are available with a base from Ø 84 to Ø230 mm inclusive, with threaded stems, thread size respectively M12, M14, M16, M20, and M24 metric thread
• The threaded stem is fixed to the base, so non-rotatable
• The stem is squared at one end to allow height adjustment using an open-ended spanner
• Stable due to rubber anti-slip base
• This machine foot has been designed to absorb vibration and impacts in both the horizontal and vertical axis
• Used for cutting and bending machines for sheet metal, injection moulding machines, lathes, cutting and grinding machines and machines for the textile and printing industries.

Material: Threaded Stem - galvanised steel, Base cover - galvanised steel or painted yellow, Rubber base - NBR (nitrile butadiene rubber) 80° Shore
Colour: Stem and base cover - Galvanized steel or painted yellow, rubber base - black
