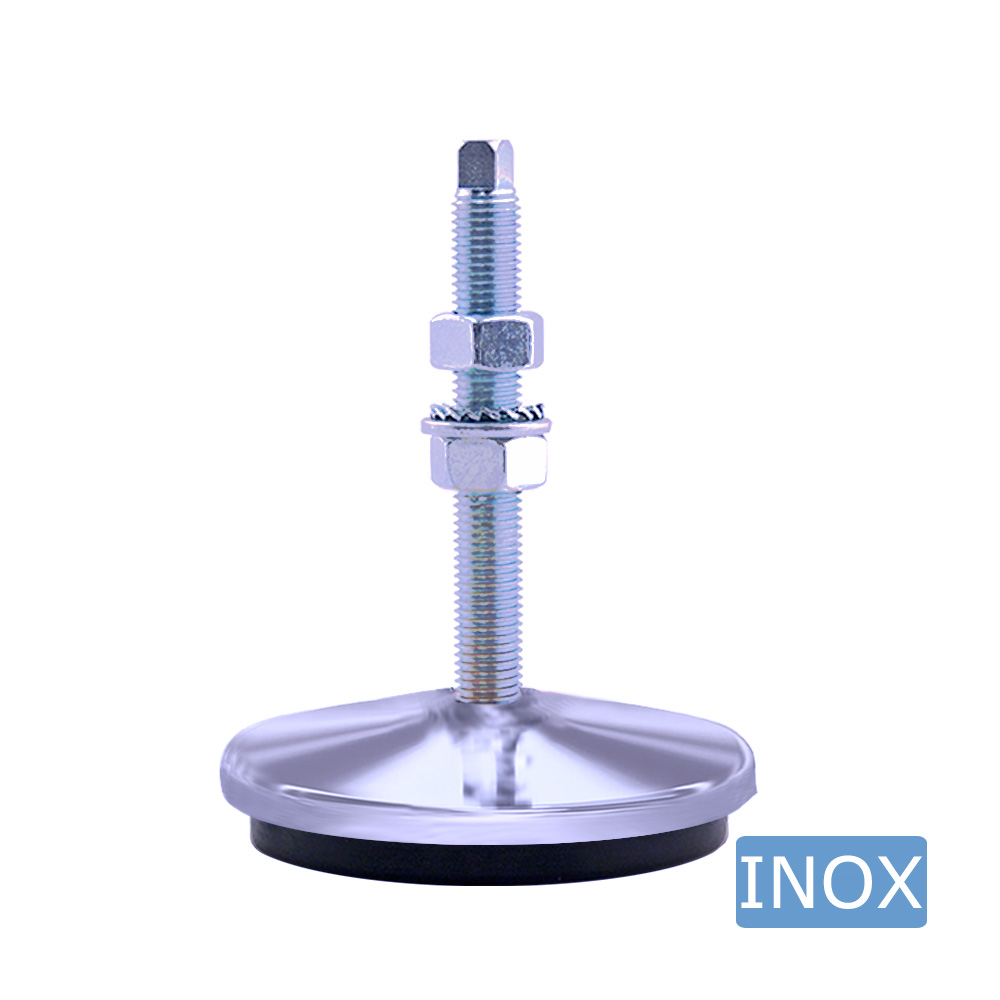

Adjustable machine foot - anti-vibration design 1 – Stainless steel

Product information

• Stainless steel anti-vibration adjustable machine feet are available with a base from Ø 84 to Ø180 mm inclusive, with threaded stems, thread size respectively M12, M14, M16 and M20 metric thread
• The threaded stem is fixed to the base, so non-rotatable
• The stem is squared at one end to allow height adjustment using an open-ended spanner
• Stable due to rubber anti-slip base
• This machine foot has been designed to absorb vibration and impacts in both the horizontal and vertical axis
• Used for cutting and bending machines for sheet metal, injection moulding machines, lathes, cutting and grinding machines and machines for the textile and printing industries.

Material: Threaded Stem – stainless steel A2 (AISI 304 / 1.4301), Base cover - stainless steel A2 (AISI 304 / 1.4301), Rubber base - NBR (nitrile butadiene rubber) 80° Shore
Colour: Stem and base cover - stainless steel, rubber base - black
