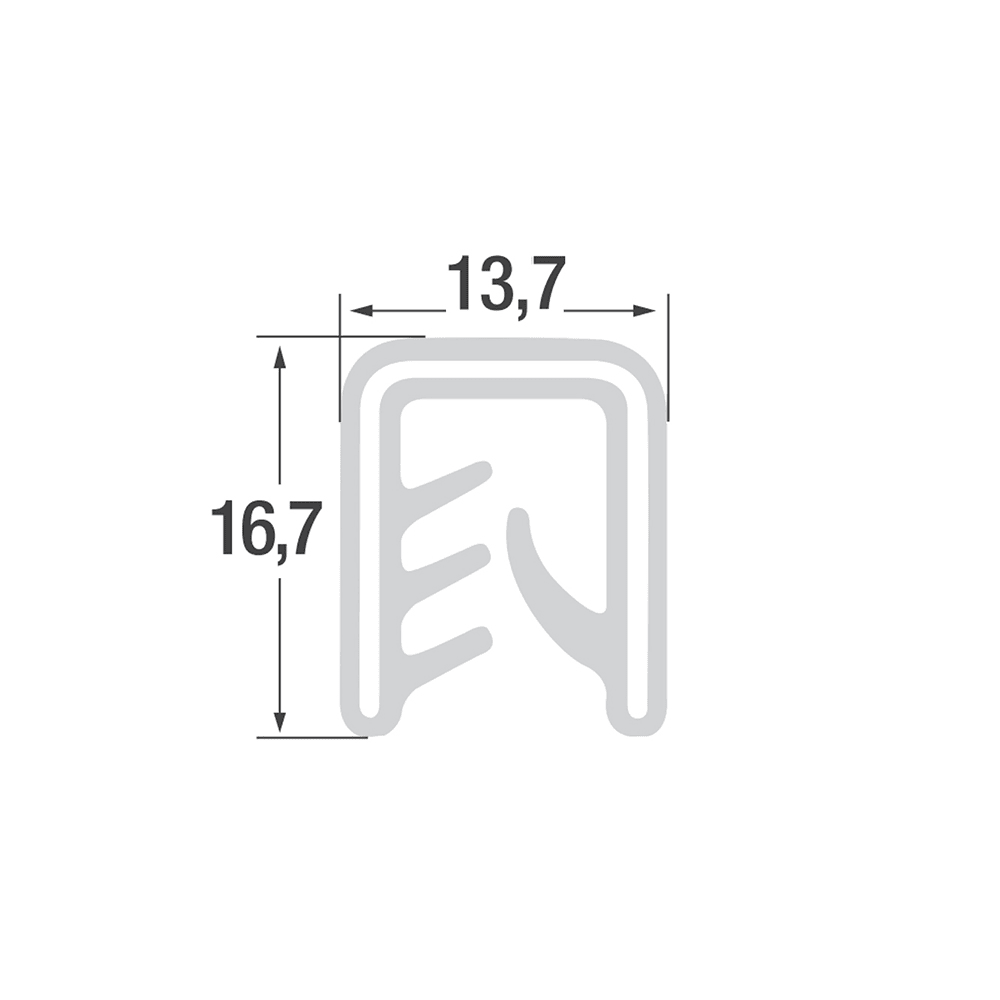

Flexible edge trim 16.7x13.7mm - Silicone with steel spine - clamping range 5-7mm

Flexible edge trim 16.7x13.7mm - Silicone with steel spine - clamping range 5-7mm
Flexible edge trim 16.7x13.7mm - Silicone with steel spine - clamping range 5-7mm
Flexible edge trim 16.7x13.7mm - Silicone with steel spine - clamping range 5-7mm
Flexible edge trim 16.7x13.7mm - Silicone with steel spine - clamping range 5-7mmdrawing_1
Product Information
  • Self-clamping PVC edge trim profile 16.7x13.7mm (HxW) available for clamping range 5-7mm sheet thickness
  • Hardness 60° Shore A
  • Wire spine insert - high flexibility
  • High temperature resistance -55°C to +200°C
  • Indoor and outdoor applications
  • Excellent resistance to extreme weather conditions, UV radiation and ozone
  • Extreme chemical resistance, including oils, dilute acids and alkalis

Material: VMQ (Silicone rubber)
Colours: in overview

1 pages -   1

Article Description Sheet thickness B H Colour/RAL Material A Material B
90.A0500701714.20 Edge protection trim SCR - 5,0-7,0mm - HxB 16,7x13,7mm - black - 50 meter 5,0-7,0 13,7 16,7 Black SCR Segmented steel spine

1 pages -   1

Download product information


Applications

Self-clamping edge trim profiles made of silicone rubber with wire insert are suitable as protection and optical finishing of sharp edges of metal, glass or plastic sheet metal and panels.

Silicone rubber edge trim profiles are used due to their high temperature resistance and chemical resistance in ovens, engine rooms, electronics, food processing, medical etc.
