Flexible edge trim 14.5x10mm - EPDM with steel spine - clamping range 1-4mm

Flexible edge trim 14.5x10mm - EPDM with steel spine - clamping range 1-4mm
Flexible edge trim 14.5x10mm - EPDM with steel spine - clamping range 1-4mm
Flexible edge trim 14.5x10mm - EPDM with steel spine - clamping range 1-4mm
Flexible edge trim 14.5x10mm - EPDM with steel spine - clamping range 1-4mmdrawing_1
Product Information

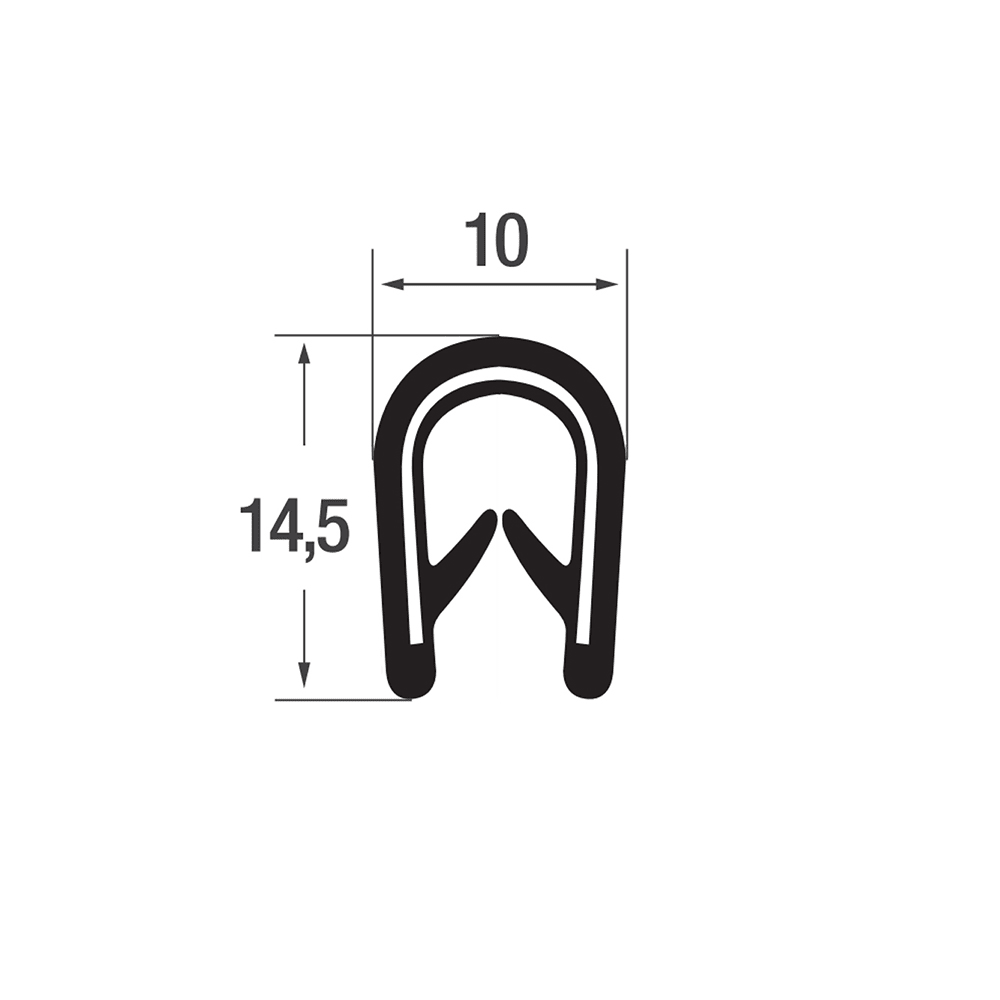

  • Self-clamping EPDM edge trim profile 14.5x10mm (HxW) available for clamping range 1-4mm sheet thickness
  • Steel segmented spine
  • Temperature resistance -40°C to +120°C
  • .
  • Indoor and outdoor applications
  • Long lasting material - hardly any ageing
  • Long-term retention of elastic properties and strength
  • Excellent resistance to extreme weather conditions, UV radiation and ozone
  • Good chemical resistance to acetone, alcohols, bases, acids, salts and phosphates, not resistant to chlorinated hydrocarbons, concentrated acids, aromatic hydrocarbons, oil and fuel

Material: EPDM (Ethylene Propylene Diene Monomer.)
Colours: see overview
1 pages -   1

Article Description Sheet thickness B H Colour/RAL Material A Material B
90.A0100401510.30 Edge protection trim EPDM - 1,0-4,0mm - HxB 14,5x10mm - black - 25 meter 1,0-4,0 10 14,5 Black EPDM Segmented steel spine

1 pages -   1

Applications

Self-clamping edge trim profiles made from EPDM are suitable for protecting and optically finishing sharp edges of metal, glass or plastic sheet metal and panels.

EPDM edge trim profiles are often used in vehicle and body construction, maritime and offshore applications, construction, machine and plant construction due to their low material ageing and good temperature, weather and chemical resistance.
