Flexible edge trim 9.5x6.5mm - PVC with POM spine - clamping range 1-2mm

Flexible edge trim 9.5x6.5mm - PVC with POM spine - clamping range 1-2mm
Flexible edge trim 9.5x6.5mm - PVC with POM spine - clamping range 1-2mm
Flexible edge trim 9.5x6.5mm - PVC with POM spine - clamping range 1-2mm
Flexible edge trim 9.5x6.5mm - PVC with POM spine - clamping range 1-2mmdrawing_1
Product Information

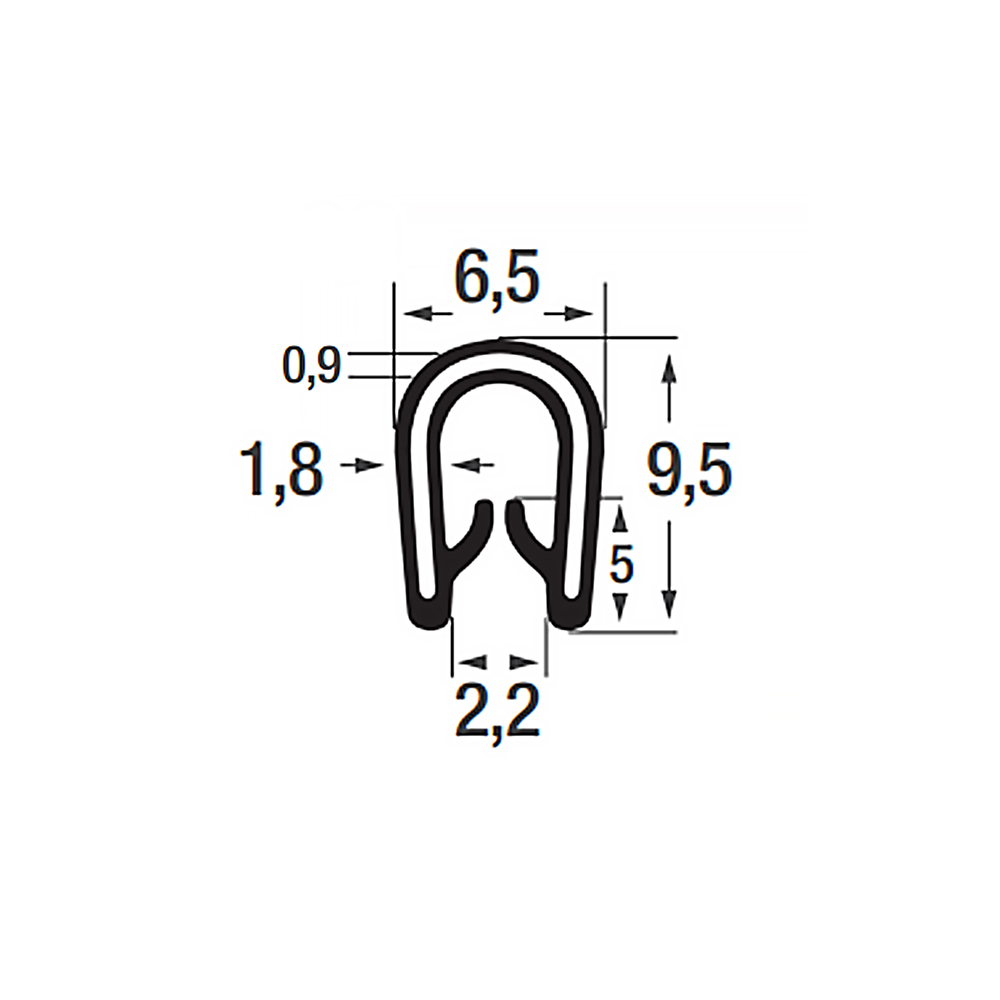

  • Self-clamping PVC edge profile 9.5x6.5mm (HxW) available for clamping range 1-2mm sheet thickness
  • POM segmented spine
    • Plastic POM spine does not rust or oxidise
    • Non-conductive (electrical)
    • Unlike metal, POM is without sharp elements
  • Temperature resistance -30°C to +70°C
  • High tensile strength and tear resistance
  • Suitable for both indoor and outdoor use
  • Good resistance to normal weather conditions, UV radiation, and ozone
  • Good chemical resistance to alcohols, alkalis, weak acids, and oil, not resistant to chlorinated hydrocarbons, concentrated acids, aromatic hydrocarbons or fuels

Material: PVC-P (soft polyvinyl chloride)
Colours: in overview

1 pages -   1

Article Description Sheet thickness B H Colour/RAL Material A Material B
90.A0100201007.50 Edge protection trim PVC - 1,0-2,0mm - HxB 9,5x6,5mm - POM spine - black - 100 meter 1,0-2,0 6,5 9,5 Black PVC POM segmented spine

1 pages -   1

Applications

Self-clamping PVC edge protection profiles with plastic POM spine are suitable for protecting and visually enhancing sharp edges of metal, glass or plastic sheets and panels. POM spines are electrically insulating, lighter and contains no sharp parts unlike metal inserts. PVC edge profiles are often used in automotive and bodywork, machinery, furniture, and construction industries due to their cost-effectiveness, chemical resistance, and temperature resistance.
