ProductsBars, profiles and edge trims in plastic and rubberEdge protection trims - self grippingFlexible edge trim 9x6mm - PVC with steel spine - clamping range 1-2mm
6.1.2

Flexible edge trim 9x6mm - PVC with steel spine - clamping range 1-2mm

Flexible edge trim 9x6mm - PVC with steel spine - clamping range 1-2mm
Flexible edge trim 9x6mm - PVC with steel spine - clamping range 1-2mm
Flexible edge trim 9x6mm - PVC with steel spine - clamping range 1-2mm
Flexible edge trim 9x6mm - PVC with steel spine - clamping range 1-2mmdrawing_1
Product Information

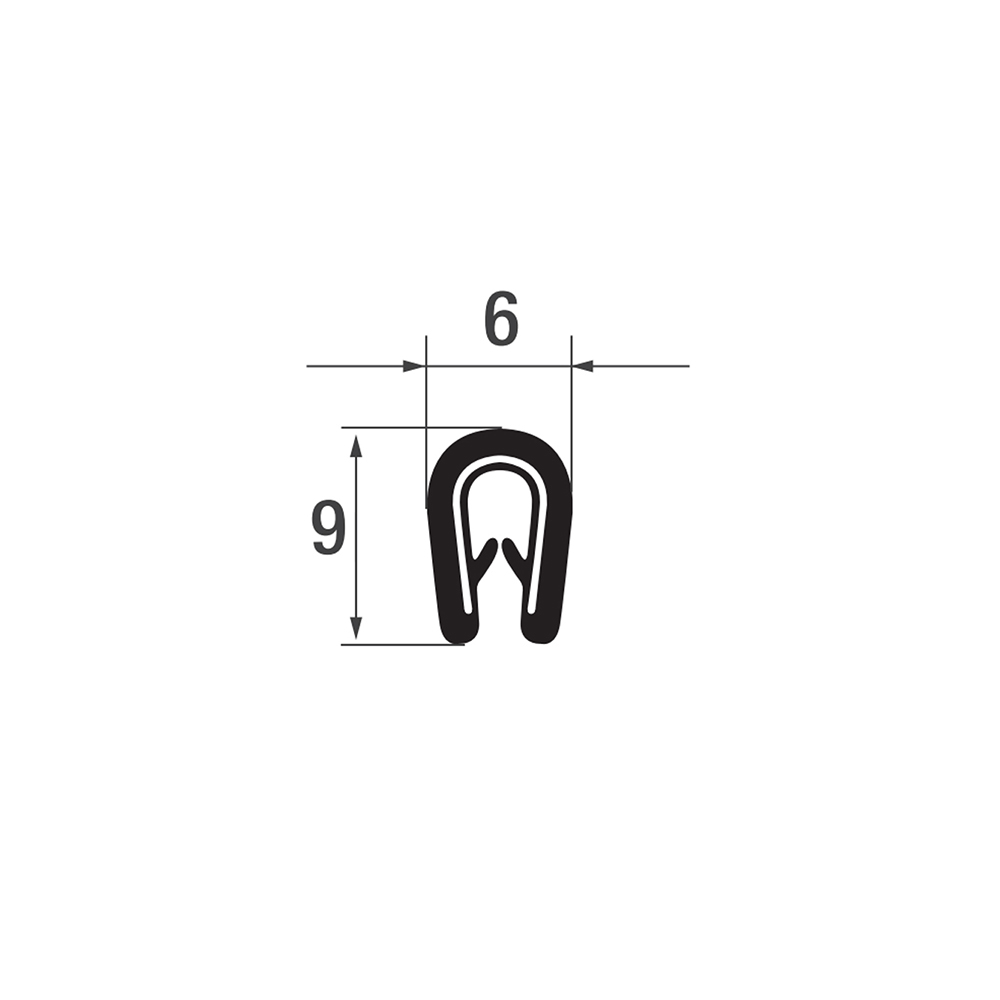

  • Self-clamping PVC edge profile 9x6mm (HxW) available for clamping range 1-2mm sheet thickness
  • Steel segmented spine
  • Cost-effective material
  • Temperature resistance -30°C to +70°C
  • High tensile strength and tear resistance
  • Suitable for both indoor and outdoor use
  • Good resistance to normal weather conditions, UV radiation, and ozone
  • Good chemical resistance to alcohols, alkalis, weak acids, and oil, not resistant to chlorinated hydrocarbons, concentrated acids, aromatic hydrocarbons or fuels

Material: PVC-P (soft polyvinyl chloride)
Colours: in overview

Read more about this topic
Filter by
Reset all filters
1 pages -   1

Article Description Amount Sheet thickness Colour/RAL B H Material A Material B
90.001030 100M LGR Edge protection profiles 1.0-3.0 mm, 100 meter/1 Box, Light Grey 100m 1,0-3,0 Light grey 6 9 PVC Segmented steel spine
90.001030 1M LGR Edge protection profiles 1.0-3.0 mm, 1 meter, Light Grey 1m 1,0-3,0 Light grey 6 9 PVC Segmented steel spine
90.A0100200906.00 Edge protection trim PVC - 1,0-2,0mm - HxB 9x6mm - black - 100 meter 100m 1,0-2,0 Black 6 9 PVC Segmented steel spine
90.A0100200906.00 LG Edge protection trim PVC - 1,0-2,0mm - HxB 9x6mm - light grey - 100 meter 100m 1,0-2,0 Light grey 6 9 PVC Segmented steel spine

1 pages -   1

Applications

Self-clamping PVC edge profiles are suitable for protection and aesthetic finishing of sharp edges on metal, glass, or plastic sheets and panels. PVC edge profiles are often used in automotive and bodywork, machinery, furniture, and construction industries due to their cost-effectiveness, chemical resistance, and temperature resistance.
