Flexible edge trim 13/19x7.5mm - PVC with steel spine - clamping range 1.5-2mm

Flexible edge trim 13/19x7.5mm - PVC with steel spine - clamping range 1.5-2mmdrawing_1

Product Information

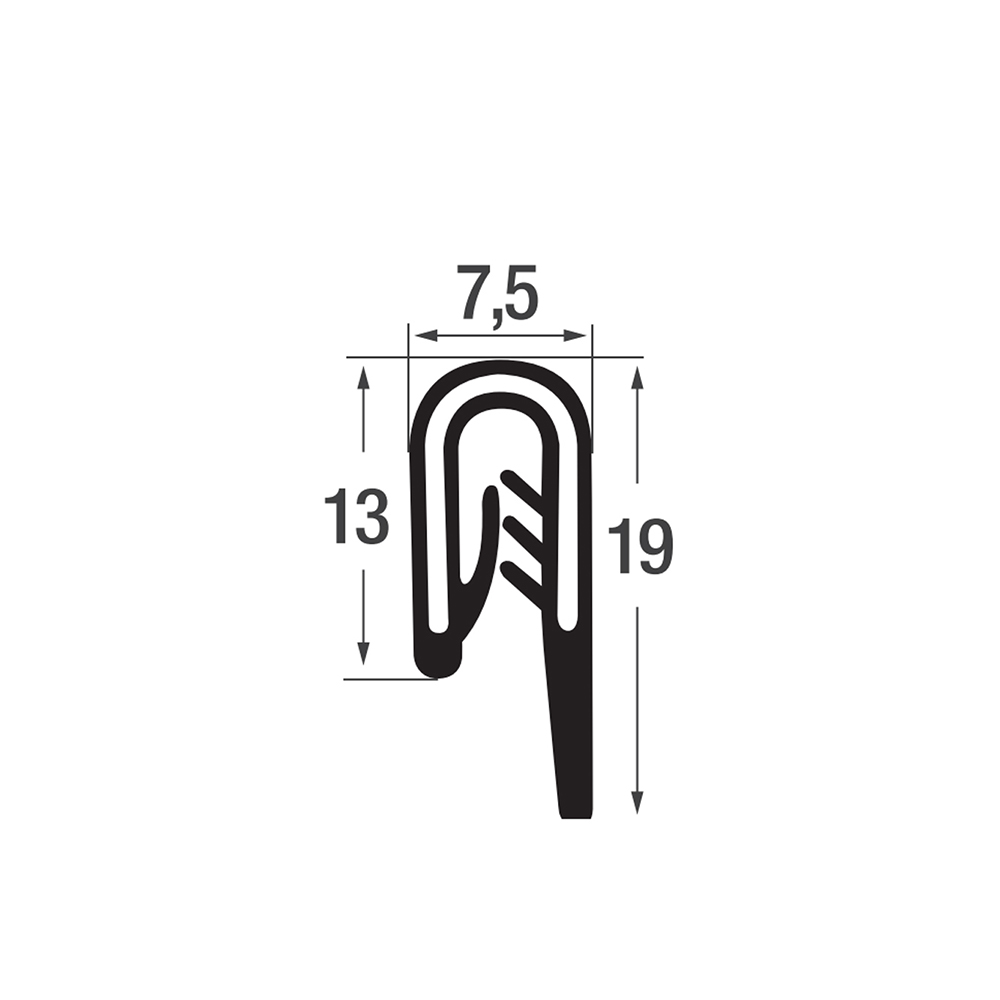

Self-clamping PVC edge profile 13x7.5mm (HxW) with 19mm lip/flap available for clamping range 1.5-2mm sheet thickness
Single-sided extended narrow PVC lip/flap, designed to stitch up upholstery and carpet to
Steel segmented spine
Cost-effective material
Temperature resistance -30°C to +70°C
High tensile strength and tear resistance
Suitable for both indoor and outdoor use
Good resistance to normal weather conditions, UV radiation, and ozone
Good chemical resistance to alcohols, alkalis, weak acids, and oil, not resistant to chlorinated hydrocarbons, concentrated acids, aromatic hydrocarbons or fuels

Material: PVC-P (soft polyvinyl chloride)
Colours: in overview

Article	Description	Sheet thickness	B	H	Colour/RAL	Material A	Material B	H1
90.A0150201308.00	Edge protection trim PVC - 1,5-2,0mm - HxB 13x7,5mm - black - 200 meter	1,5-2,0	7,5	13	Black	PVC	Segmented steel spine	19

Applications

Self-clamping PVC edge profiles are suitable for protection and aesthetic finishing of sharp edges on metal, glass, or plastic sheets and panels.

This specific PVC edge profile with a single-sided extended lip/flap is suitable, among other things, for sewing on upholstery and carpets. Often used in upholstery of vehicles, boats and interiors.
