7.1.1

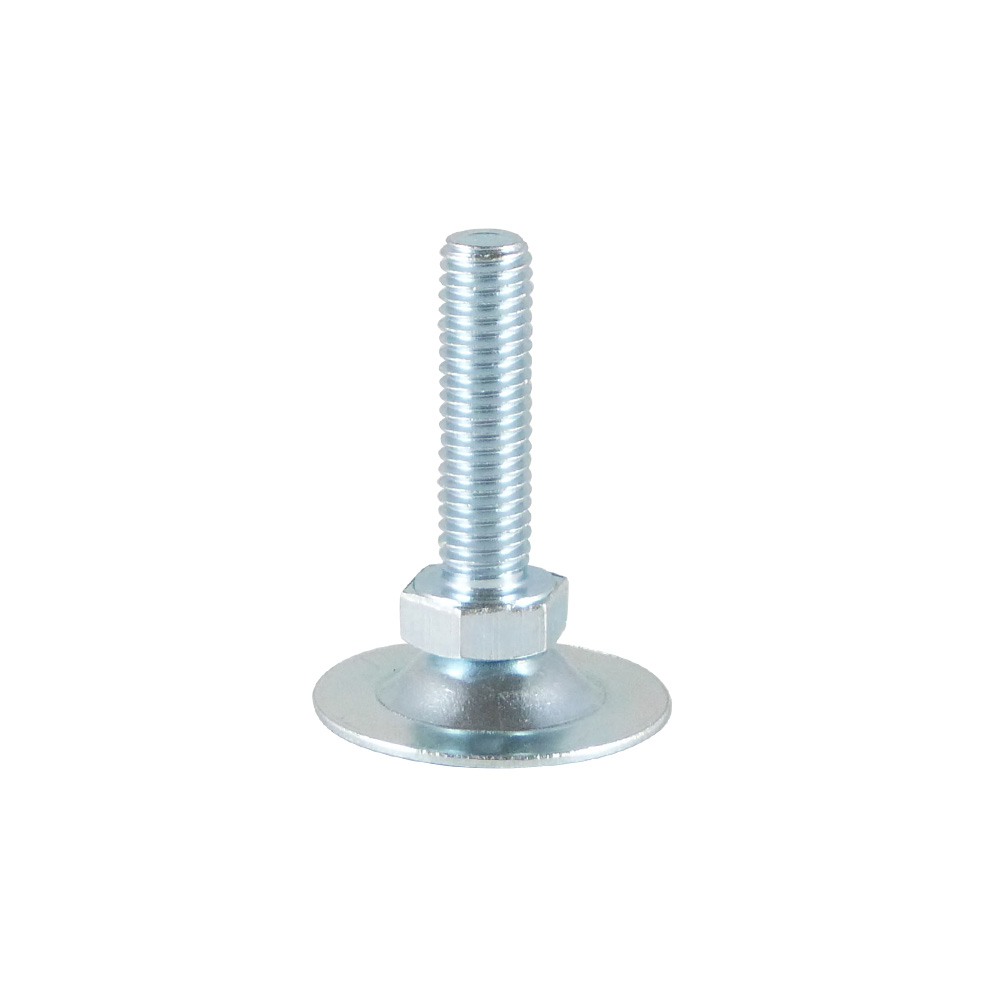

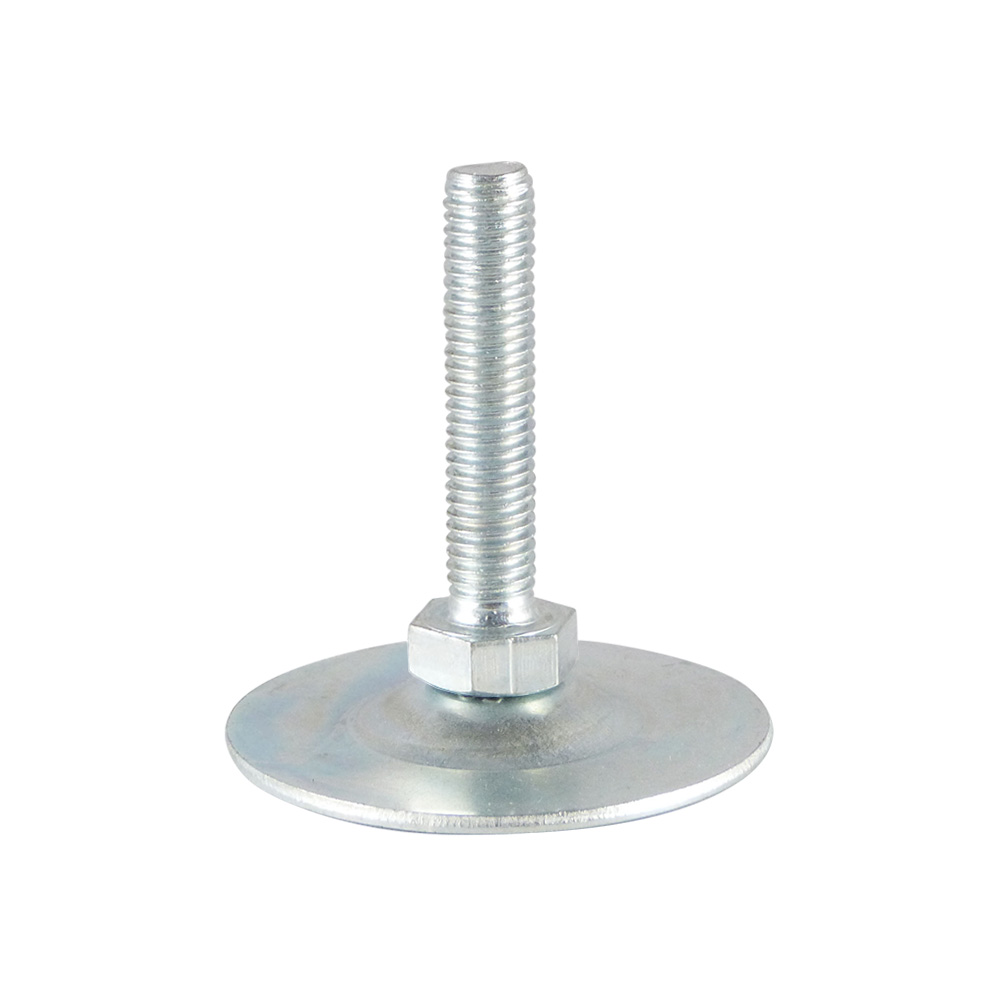

Levelling foot with swivelling galvanised steel base – without hole
Product information
- Levelling feet with a round swivelling galvanised steel base are available with threaded stems, thread size M8 to M10 inclusive, and thread lengths from 16 mm to 120 mm inclusive
- Base from Ø 30 mm to Ø 60 mm inclusive
- The threaded stem, with a hexagonal shoulder to allow adjustment, swivels relative to the base

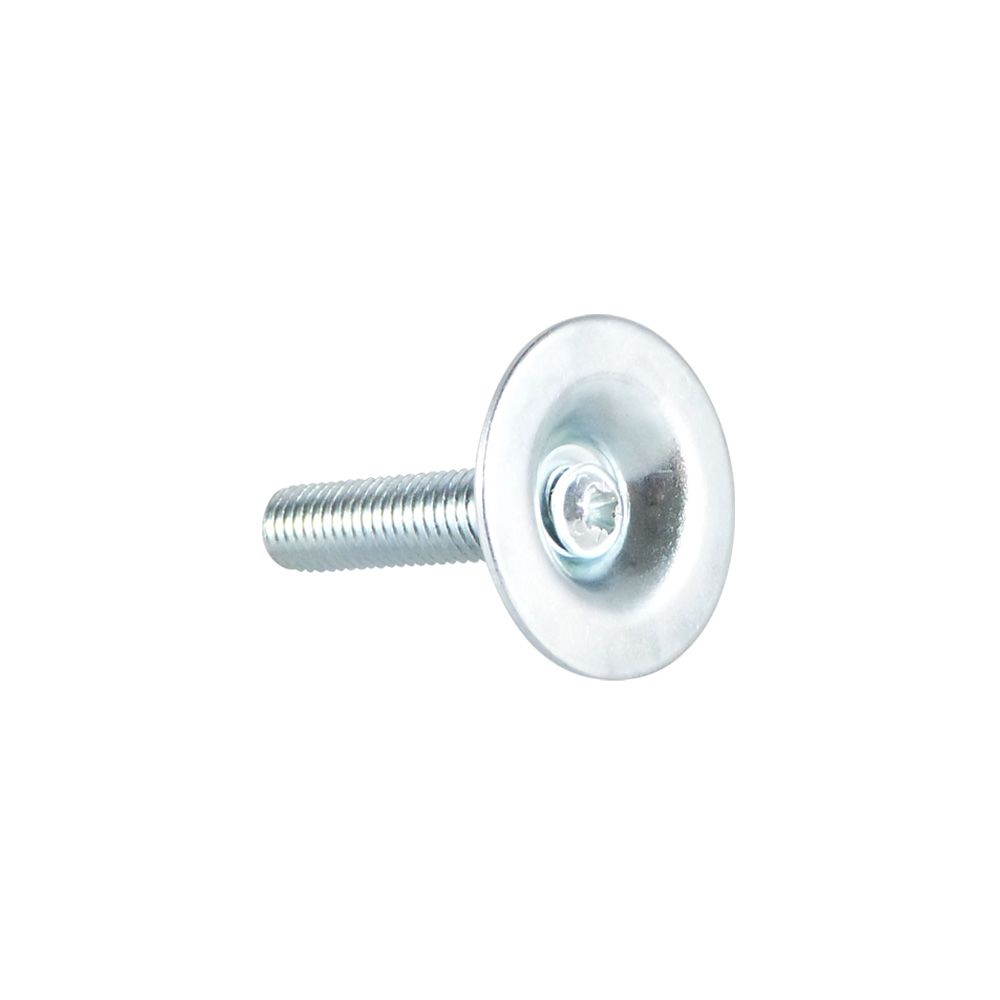

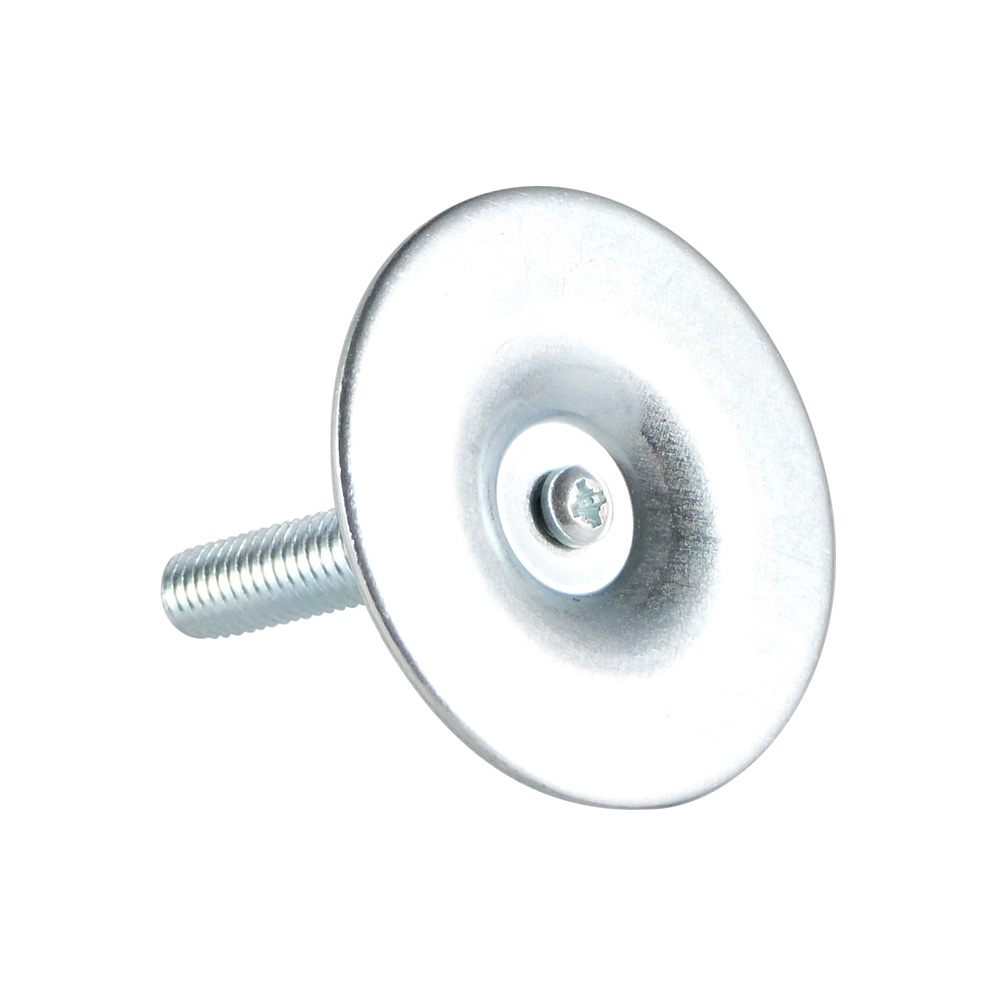

- Crosshead drive in the base (Pozidrive 2) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
- Static load capacity of 650 kg
- 100% steel levelling feet with a swivelling base are suitable for use as height adjusters for furniture such as shelf racks and workbenches, and for frames, equipment, machines, etc.
Material: base - galvanised steel, stem – (DIN 558-4.6-A2F) galvanised steel
Colour: Zinc coloured
Accessory:
- Matching plastic protective covers for galvanised steel base

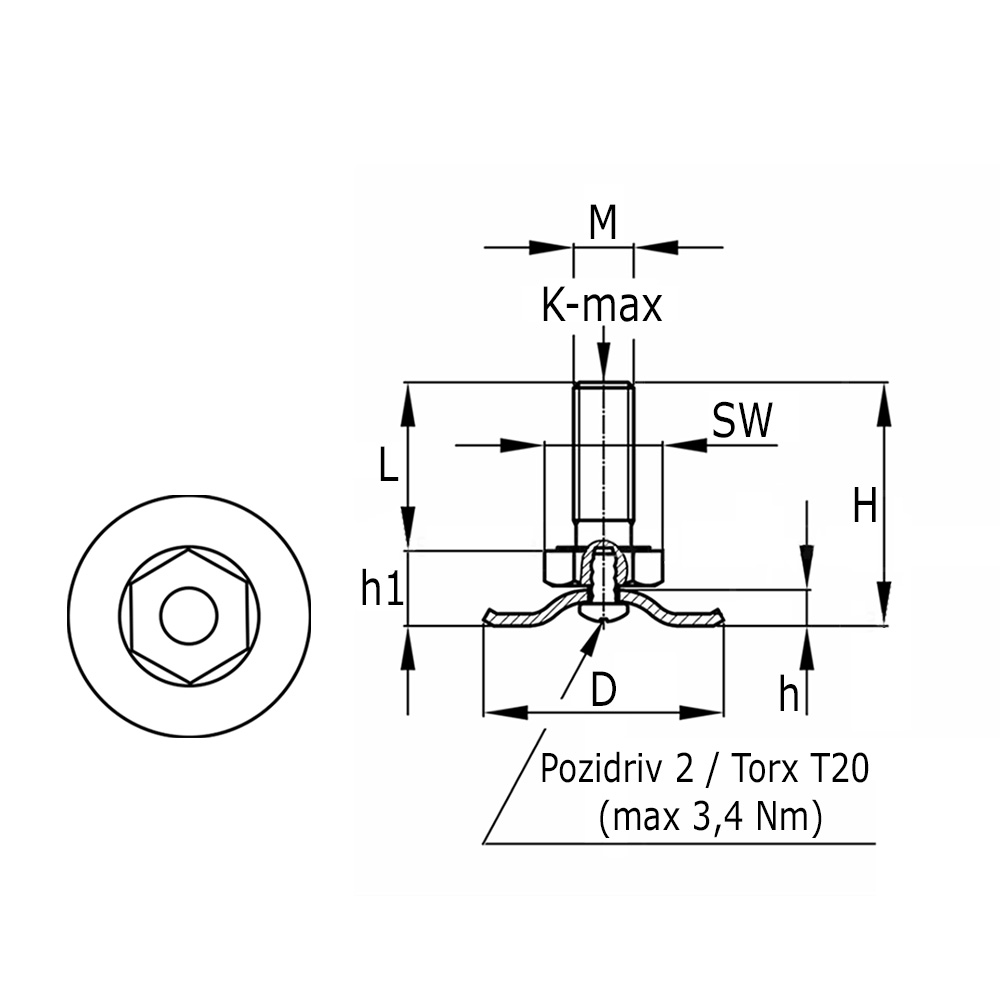

Legend
D=base Ø, H=Overall height, h=height, h1=height, K=maximum static load in kg, L=thread length, M=thread size, SW=spanner size
