Levelling foot with square base

Product information

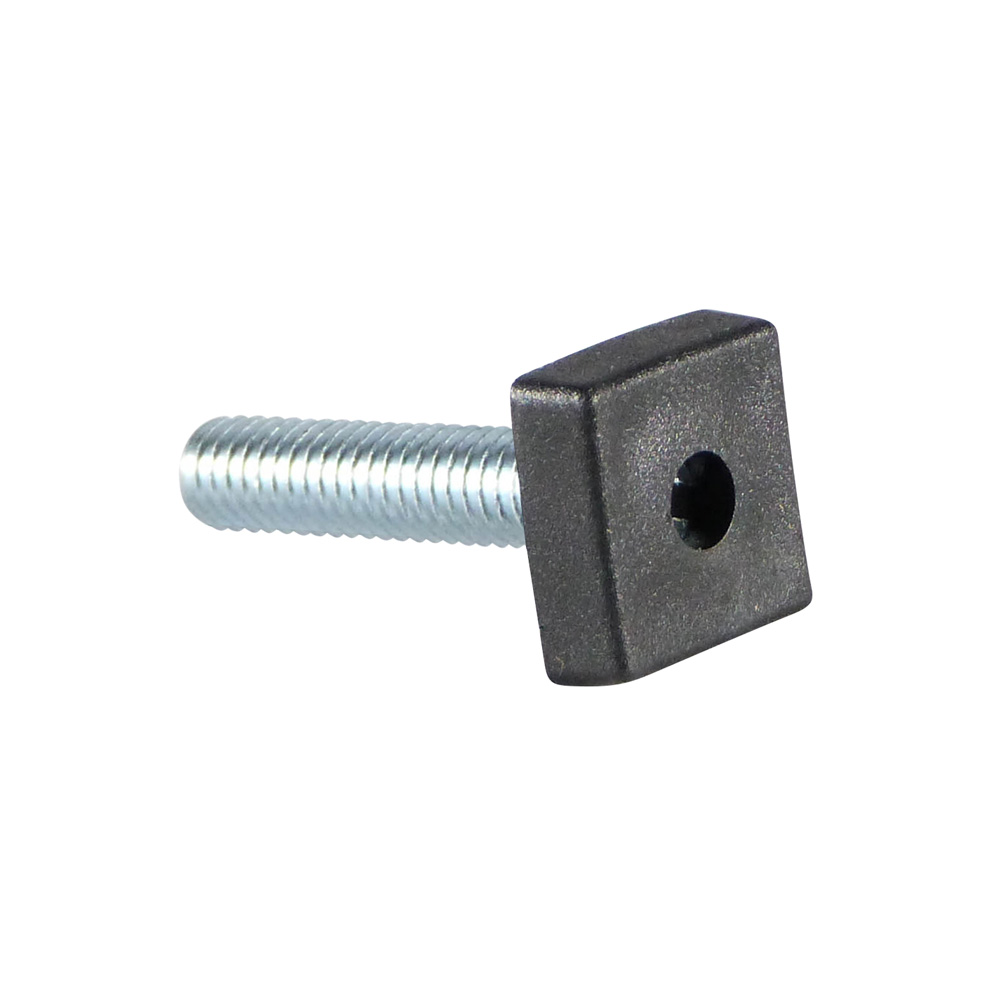

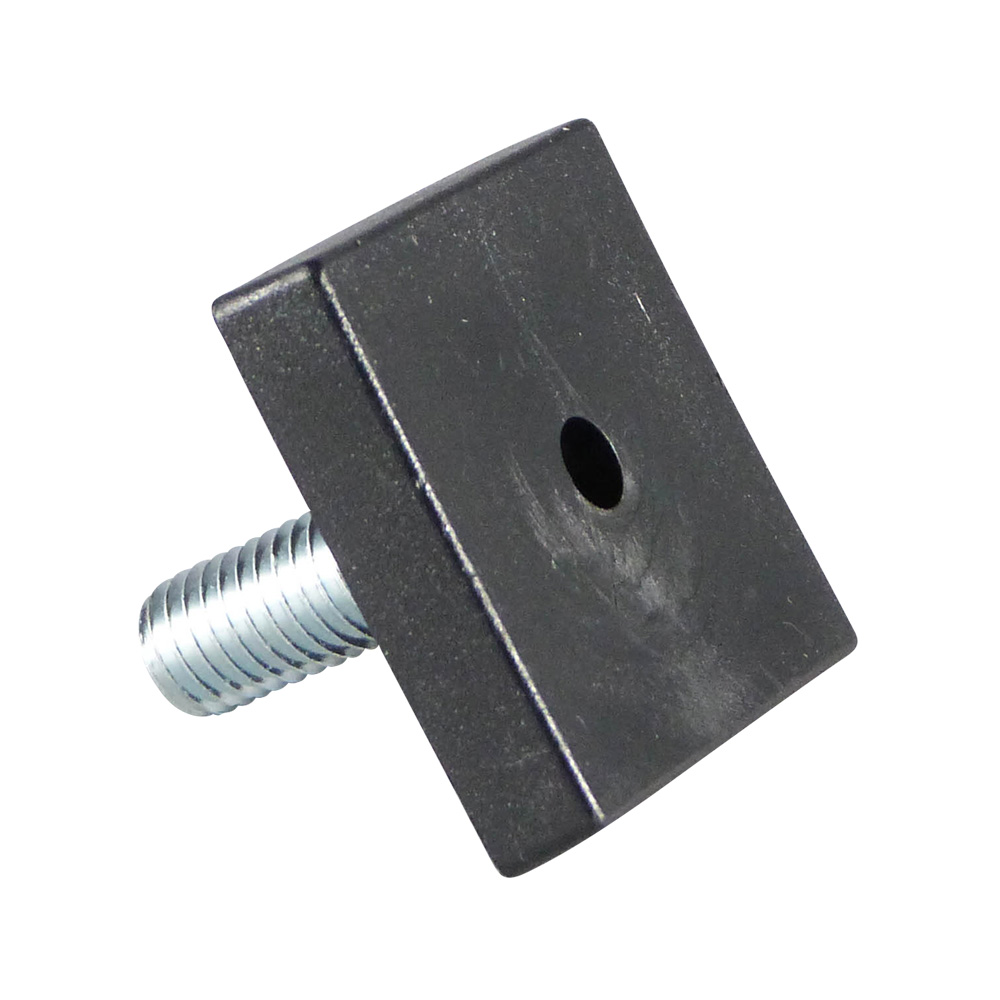

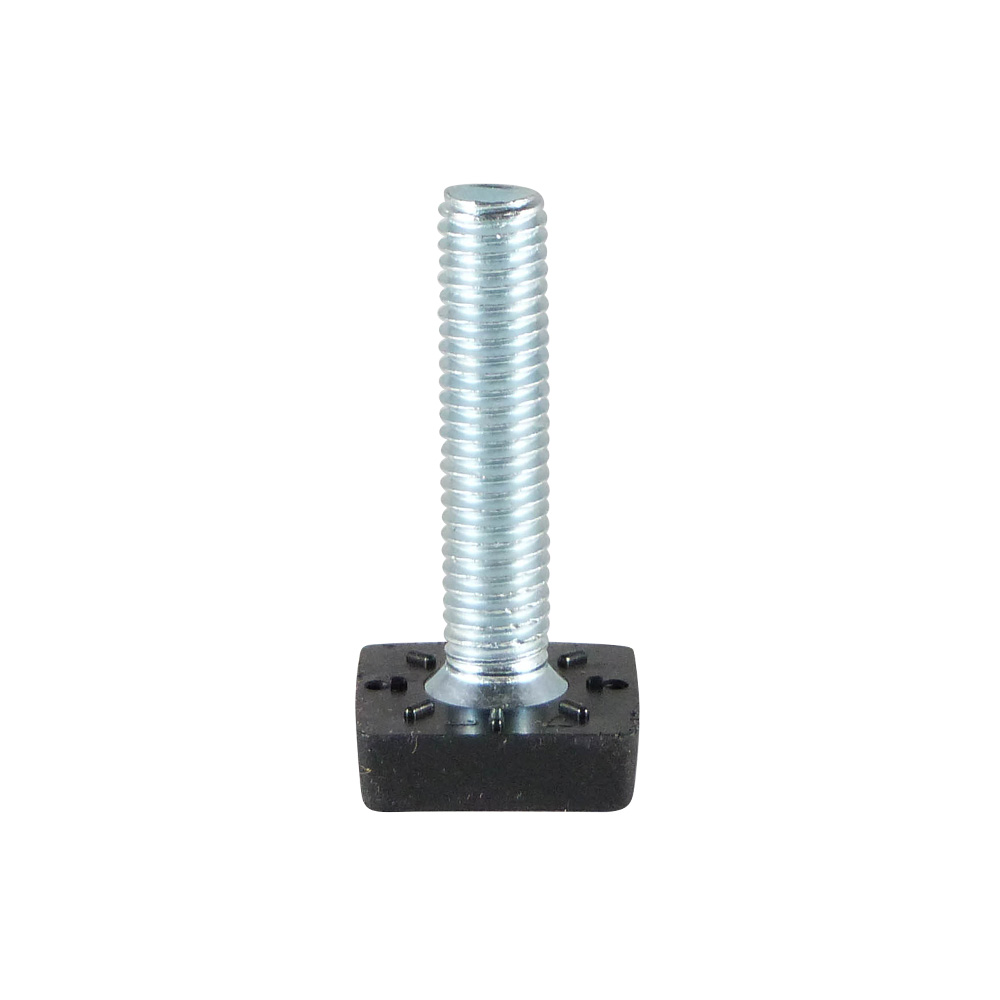

Levelling feet with a fixed square plastic base are available with threaded stems, thread size M8 or M10, and effective thread lengths from 15 mm to 46 mm inclusive
Moulded square foot, spanner sizes from 20 mm to 40 mm
The square base is easily adjusted by hand or with an open-ended spanner
This levelling foot is used as a height adjuster for furniture and equipment.

Material: Base - PE (polyethylene), threaded stem - galvanised steel
Colour: Base – black, stem - zinc-coloured

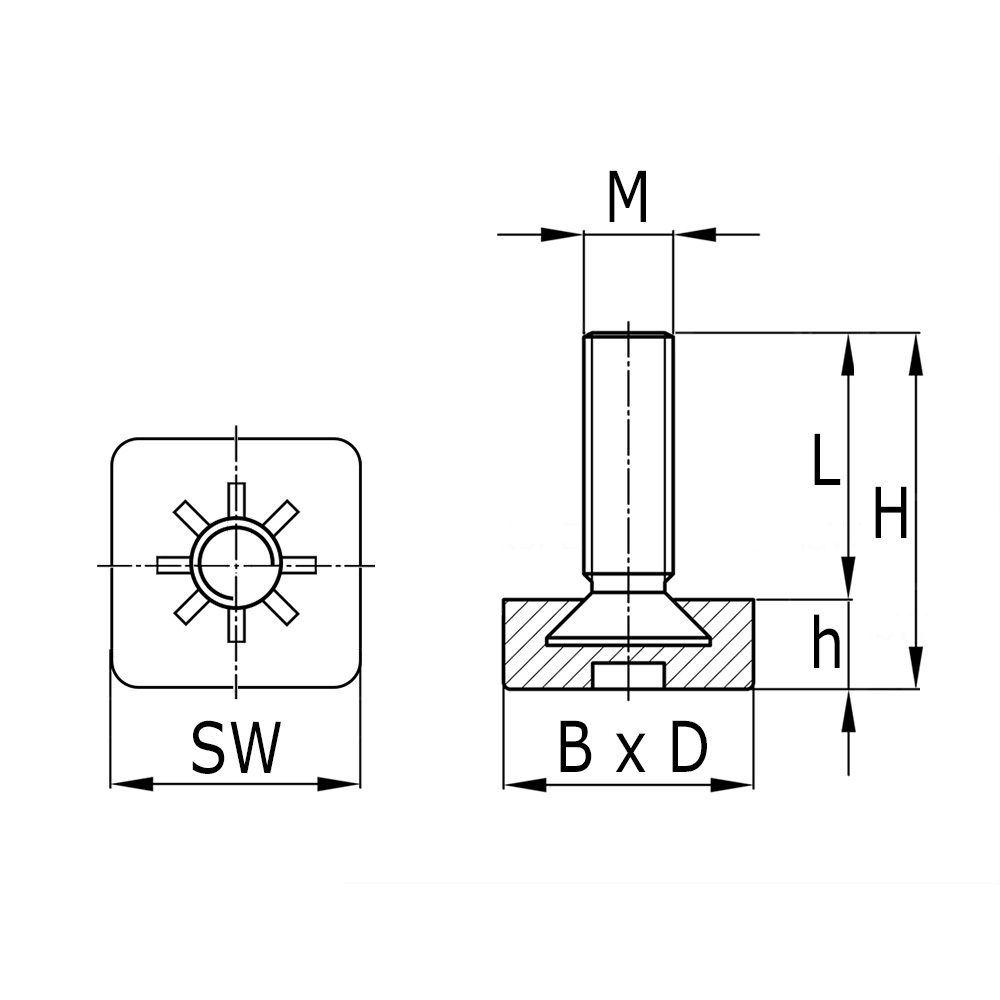

Legend
H=base height, L=effective usable thread length, M=thread size, SW=spanner size

Filter by

Show all filters

Articles

1 pages - 1

Article	Description	H	L	SW	B	D	M	MOQ	Colour/RAL	h
7902505 Z	Adjusting square feet 25 x 25 M10 x 20 black	28	20	SW 25	25	25	M10	0	Black	8
7902506 Z	Adjusting square feet 25 x 25 M10 x 30 black	38	30	SW 25	25	25	M10		Black	8
7902507 Z	Adjusting square feet 25 x 25 M10 x 40 black	48	40	SW 25	25	25	M10		Black	8
7902508 Z	Adjusting square feet 25 x 25 M10 x 50 black	58	50	SW 25	25	25	M10	4000	Black	8
7903002 Z	Adjusting square feet 30 x 30 M10 x 30 black	38	30	SW 30	30	30	M10		Black	8
7903003 Z	Adjusting square feet 30 x 30 M10 x 40 black	48	40	SW 30	30	30	M10		Black	8
7903004 Z	Adjusting square feet 30 x 30 M10 x 50 black	58	50	SW 30	30	30	M10		Black	8
7904005 Z	Adjusting square feet 40 x 40 M10 x 20 black	23	15	SW 40	40	40	M10	4000	Black	8
7904006 Z	Adjusting square feet 40 x 40 M10 x 30 black	33	25	SW 40	40	40	M10		Black	8
7904007 Z	Adjusting square feet 40 x 40 M10 x 40 black	43	35	SW 40	40	40	M10		Black	8
7904008 Z	Adjusting square feet 40 x 40 M10 x 50 black	53	45	SW 40	40	40	M10		Black	8
