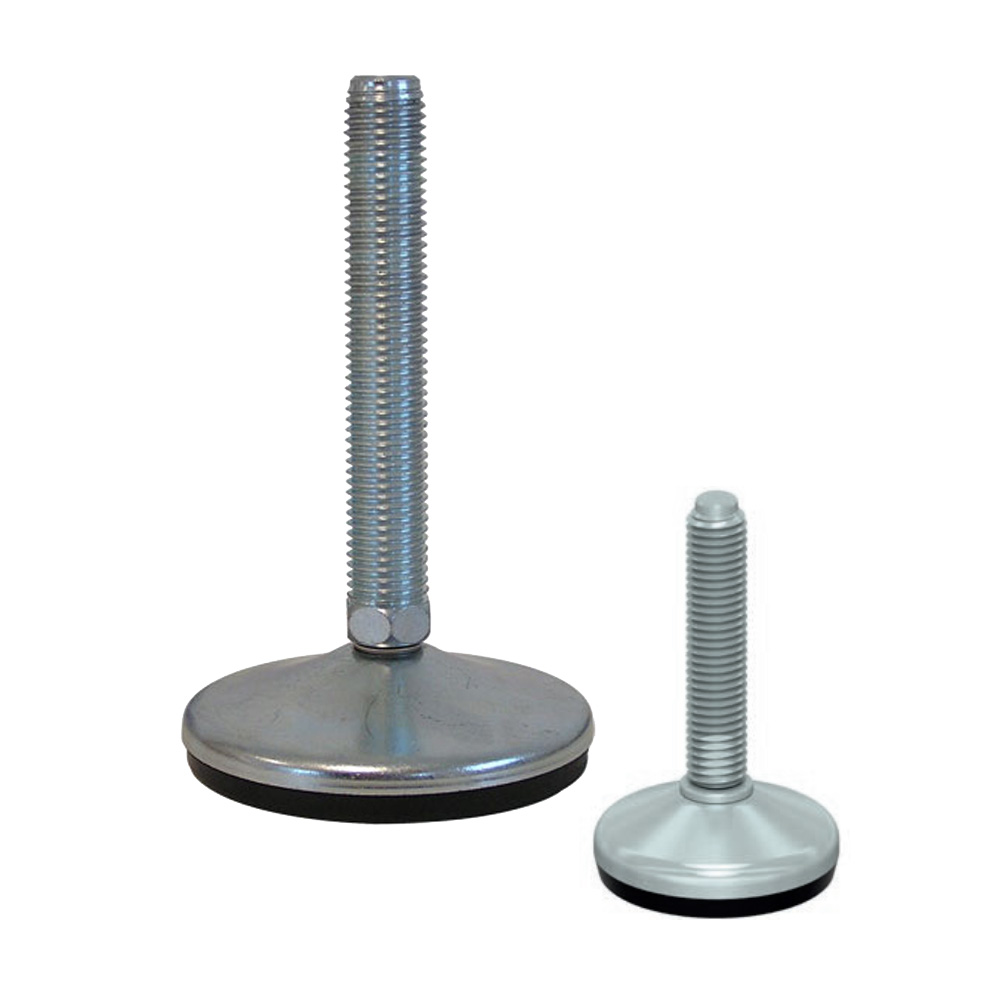

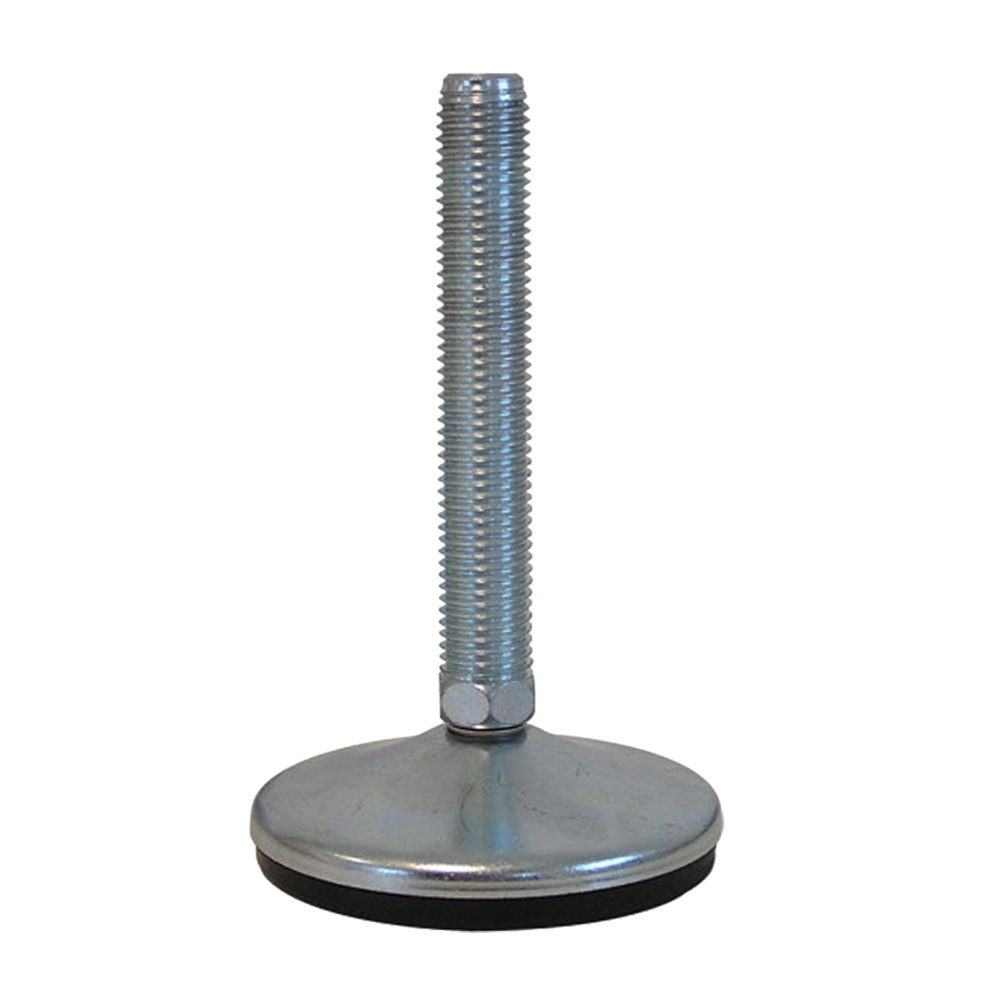

Levelling feet steel - vulcanized NBR anti-slip pad

Product information

• Steel levelling feet with vulcanized NBR Rubber anti-slip pad are available with thread size M8 to M30 inclusive, and thread lengths from 25 mm to 250 mm inclusive
• Base size Ø40, 50, 60, 80, 100, 120 and Ø150mm
• Vulcanized NBR rubber anti-slip base with steel cover
• Maximum static and vertical load capacity of 300 kg to 4000 kg inclusive
• Maximum angle of inclination +/-10°
• The threaded stem has either two flats or an external hexagon to allow adjustment using an open-ended spanner
• These zinced steel levelling feet with vulcanized NBR base are suitable for machines, frames, conveyors, etc. where high demands apply in respect of stability and load-bearing capacity.

Material: Base - NBR (nitrile butadiene rubber) and zinced steel C40, Threaded stem – zinced steel
Colour: Base - zinc-coloured/black, Threaded stem - zinc-coloured

Type:

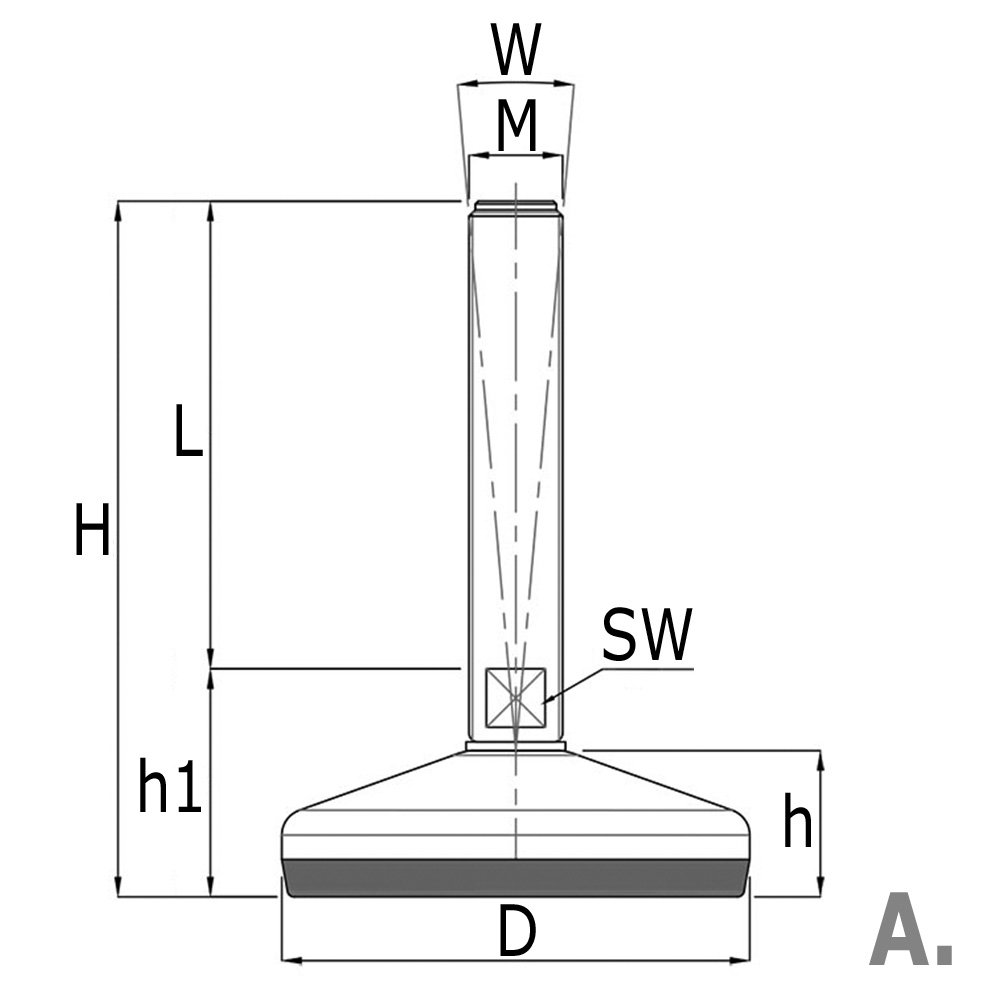

Type A: Threaded stem with two flats
Type B: Threaded stem with external hexagon
