7.1.21

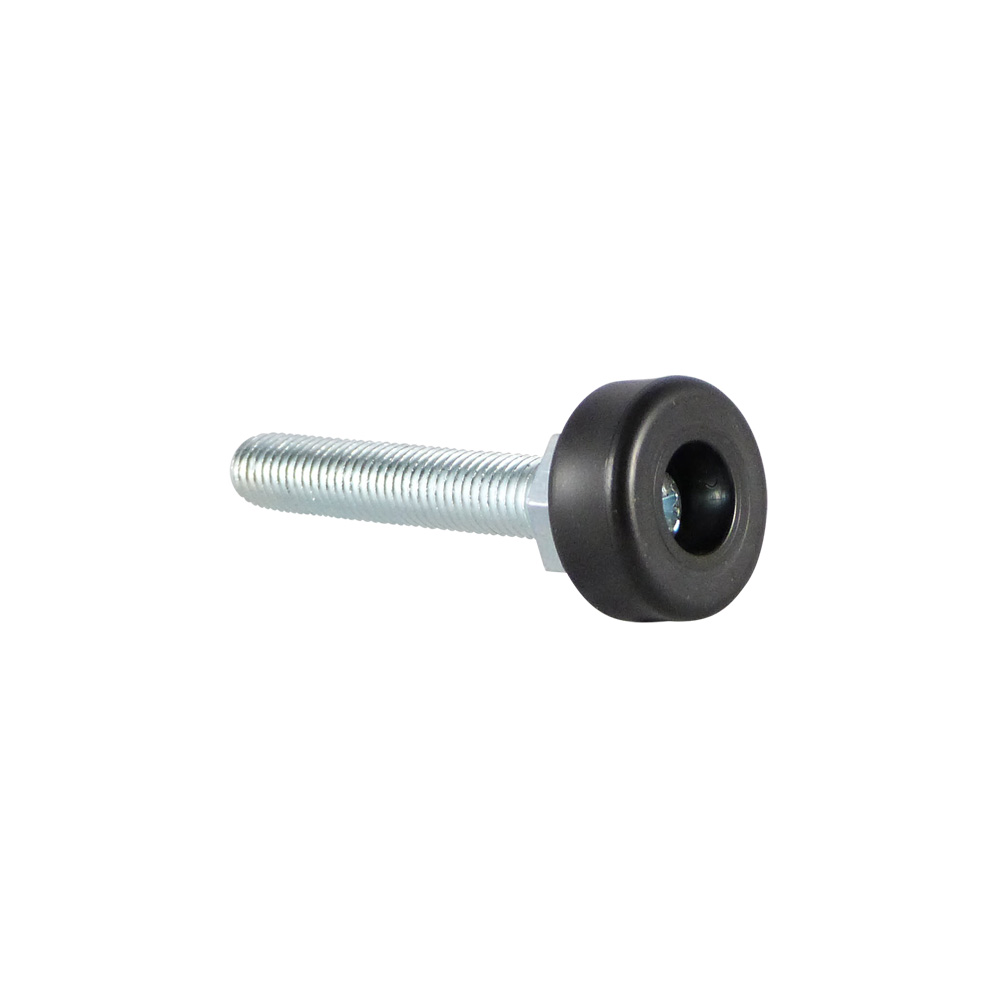

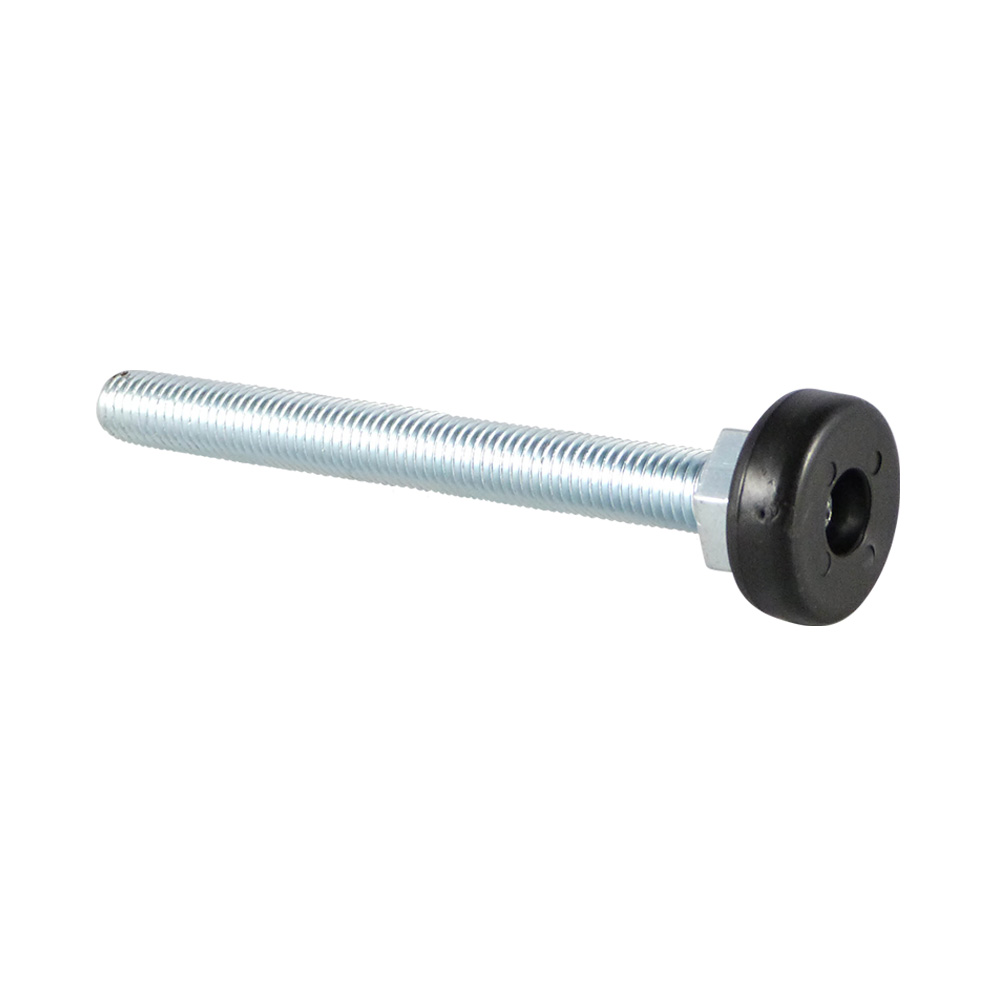

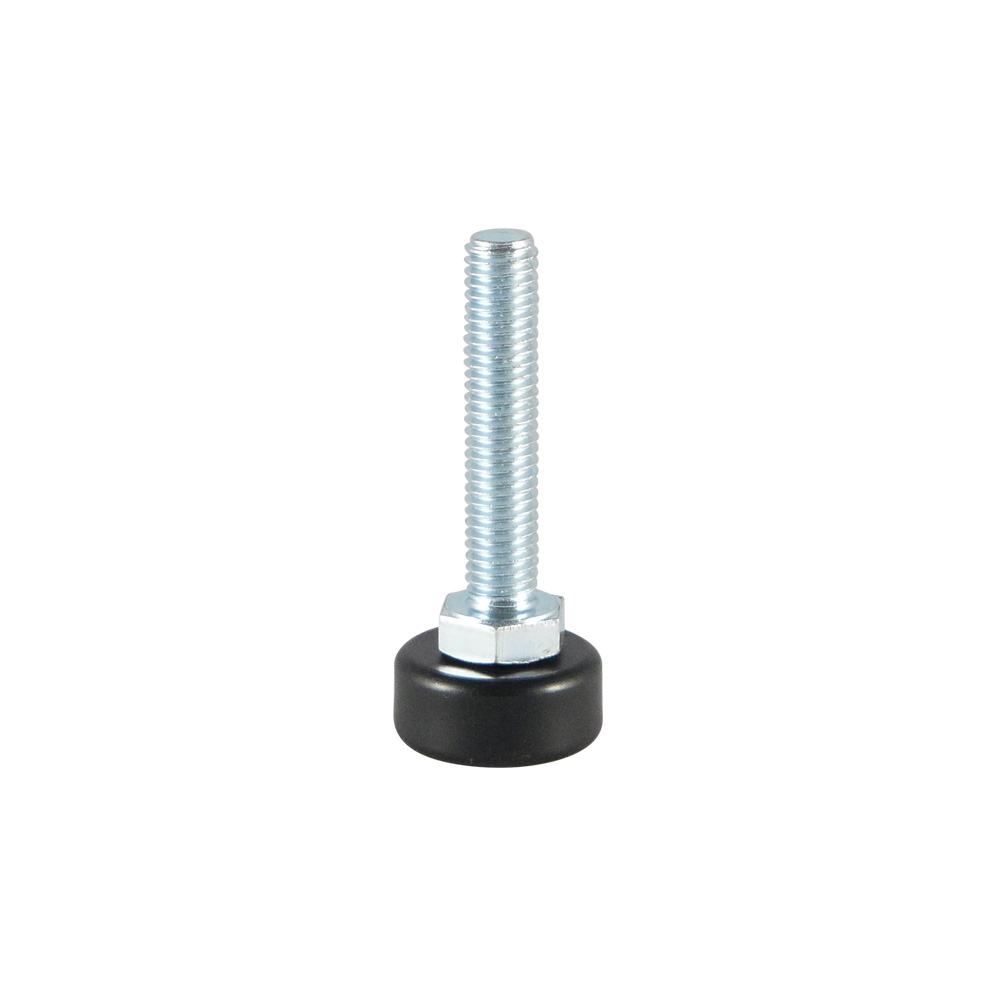

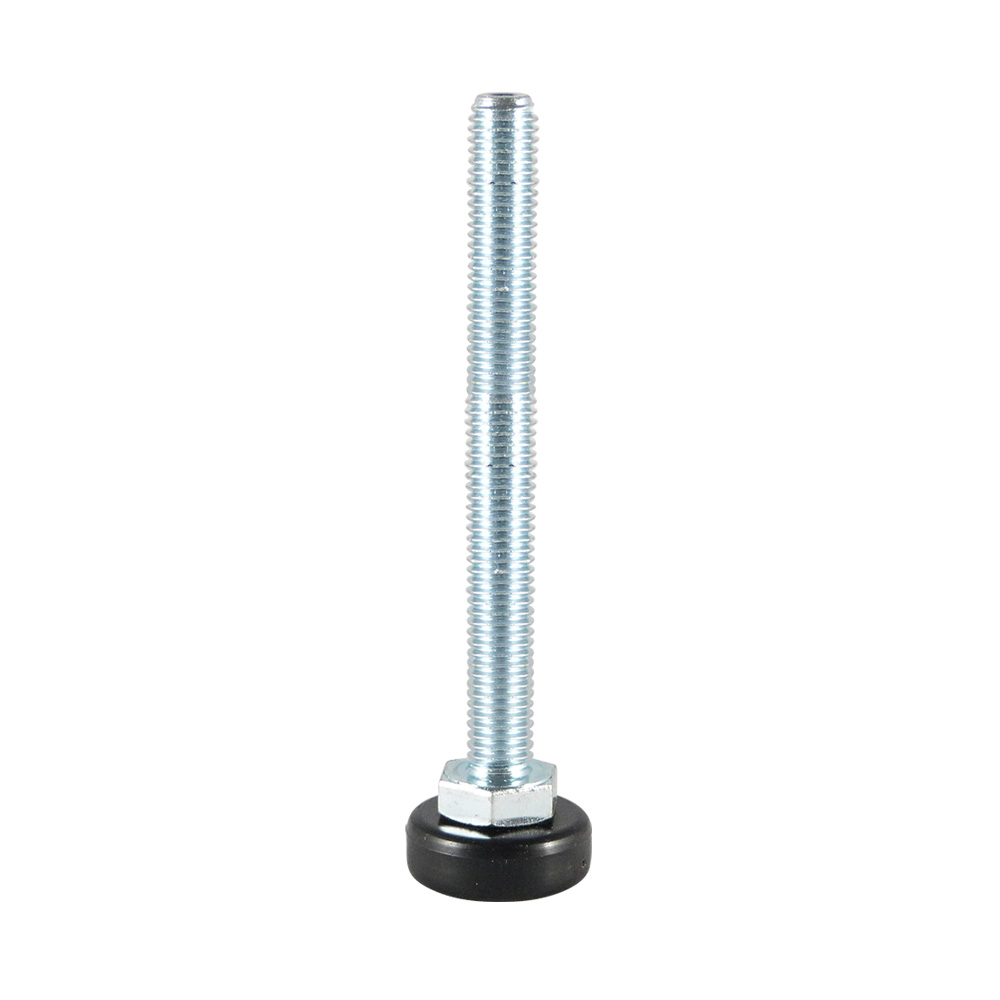

Levelling foot with swivelling cylindrical plastic base
Product information
- Levelling feet with a swivelling cylindrical plastic base are available with threaded stems, thread size M8 to M12 inclusive, and thread heights from 16 mm to 120 mm inclusive
- Base from Ø 30 mm to Ø 58 mm inclusive
- The threaded stem, with a hexagonal shoulder, swivels relative to the base
- Crosshead drive in the base (Pozidrive 2 / Torx T20) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
- Maximum static load capacity of 400 kg to 650kg inclusive
- Levelling feet with a swivelling cylindrical plastic base are often used for furniture, such as shelving, cabinets, dressing tables, desks, tables
Material: Base - PP (polypropylene), Threaded stem - (DIN 558-4.6-A2F) galvanised steel
Colour: Base – black, Stem - zinc-coloured

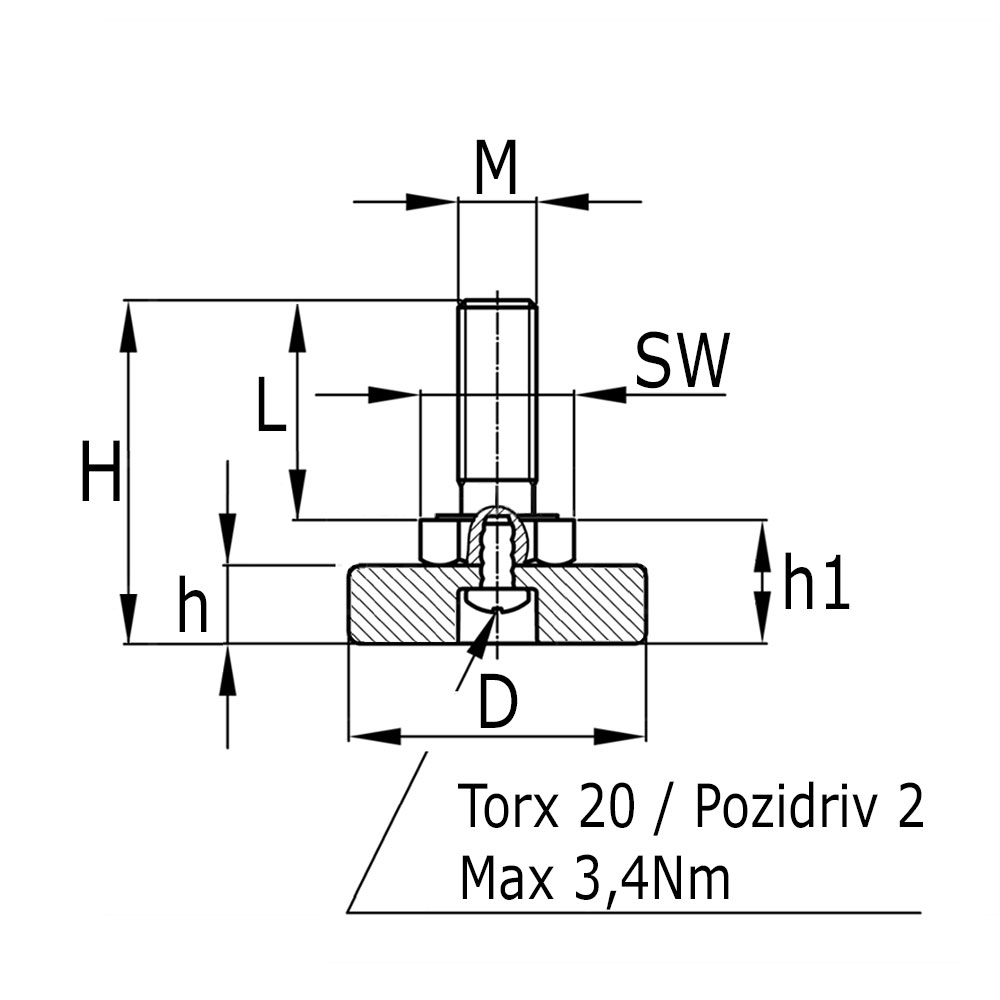

Legend
D=base Ø, H=base height, H1=height of base and hexagonal shoulder, K=maximum static load in kg, L=thread length, M=thread size, SW=spanner size for hexagonal shoulder
