7.1.18

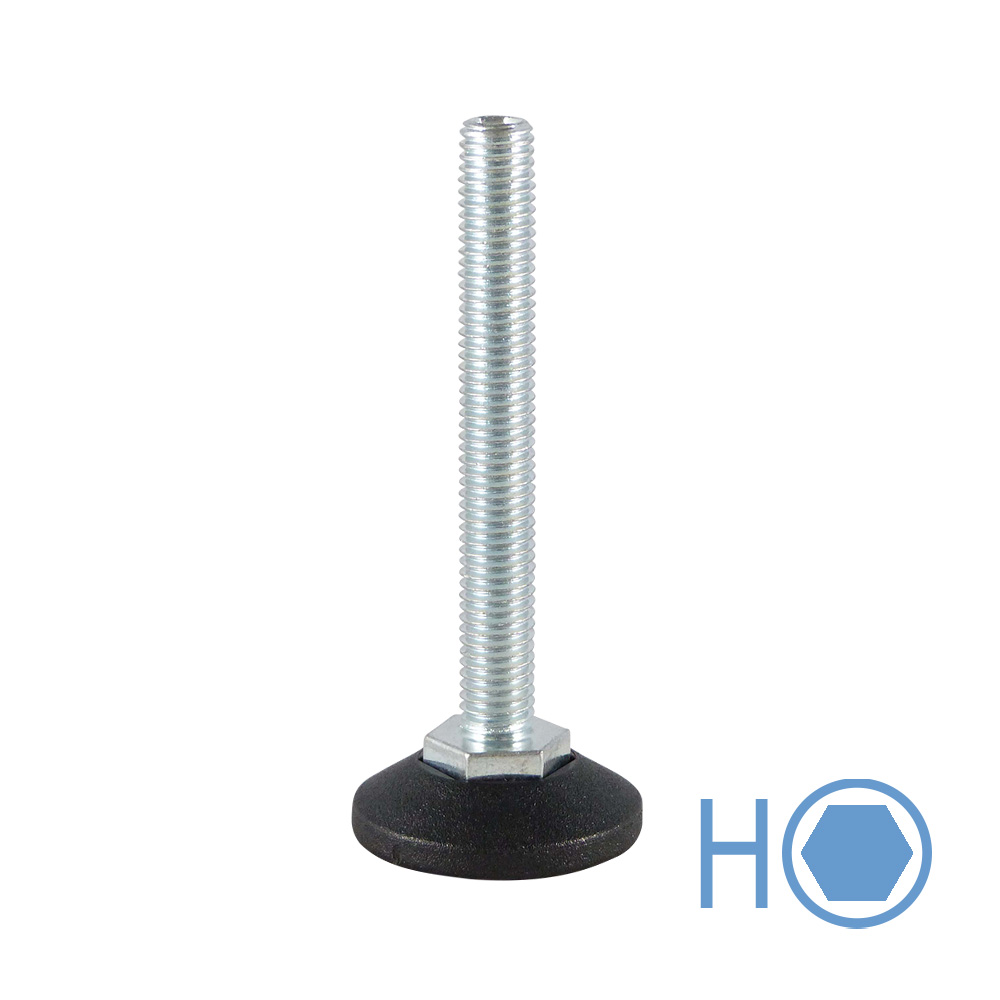

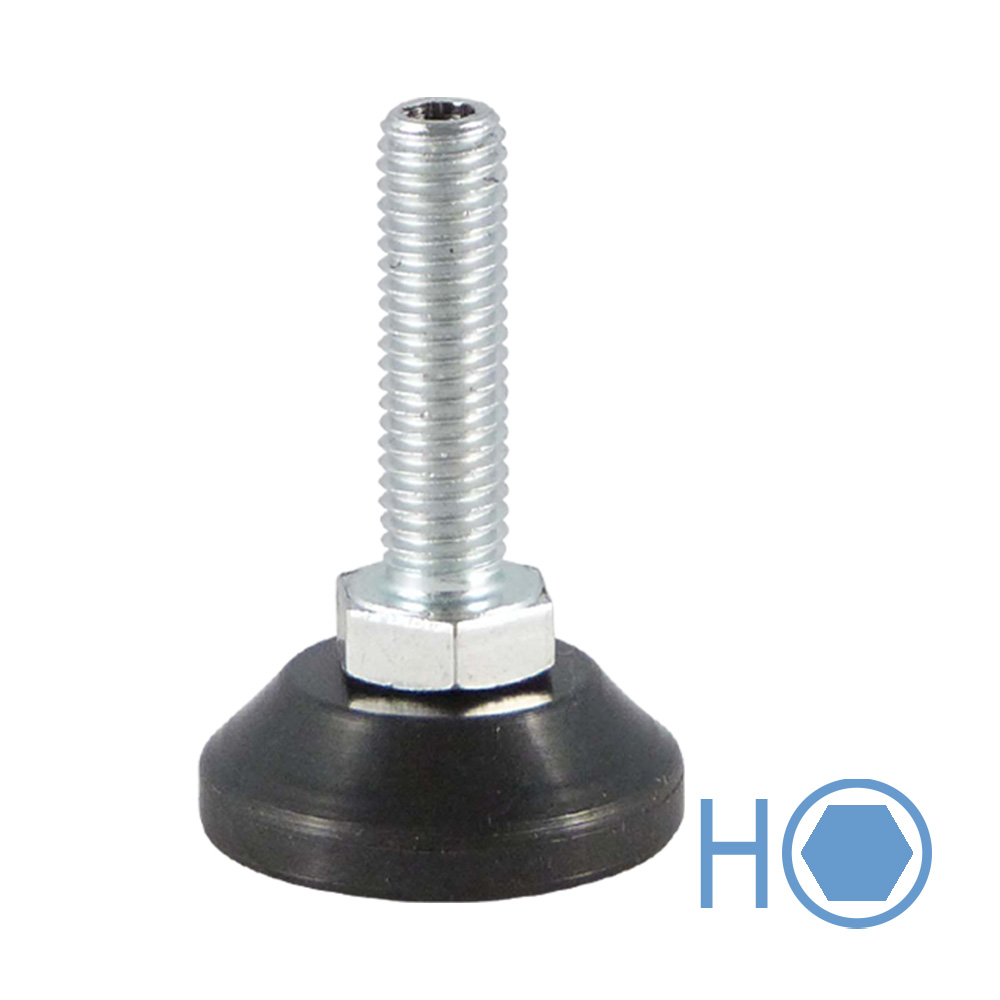

Levelling foot with swivelling plastic base - hexagonal socket
Product information
- Levelling feet with a swivelling conical plastic base are available with
threaded stems, thread size M8 to M12 inclusive, with thread lengths of 30 mm to 120 mm inclusive
- Base from Ø 30 mm to Ø 55 mm inclusive
- Hexagonal socket (Allen key) at the top of the threaded stem to allow height adjustment from the top
- The threaded stem, with a hexagonal shoulder, swivels relative to the base

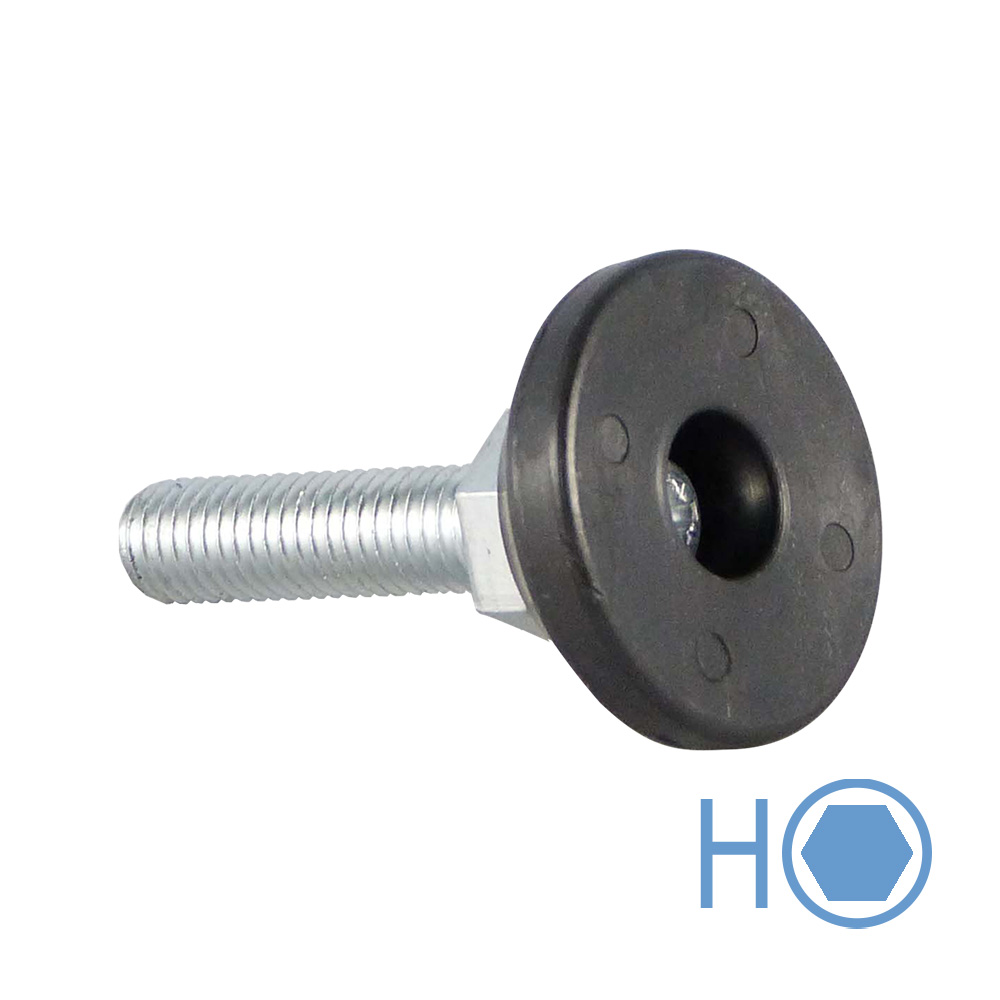

- Crosshead drive in the base (Pozidrive 2 / Torx T20) to allow easy adjustment using a power tool (maximum torque 3.4 Nm)
- Maximum static load capacity of 400 kg to 650kg inclusive
- Levelling feet with a swivelling plastic base are often used for equipment or furniture, such as shelving, cabinets, dressing tables, desks, tables
Material: Base - PP (polypropylene), Threaded stem - (DIN 558-4.6-A2F) galvanised steel
Colour: Base – black, Stem - zinc-coloured

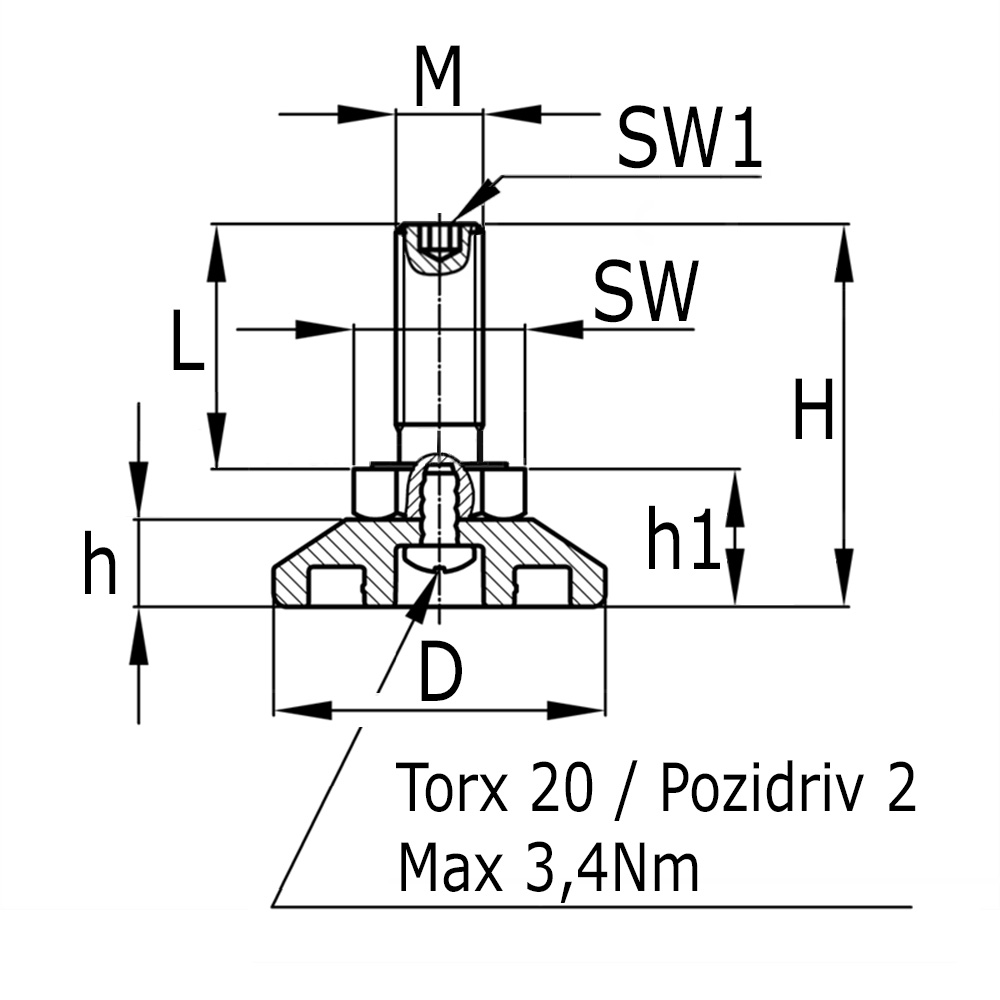

Legend
D=base Ø, H=base height + hexagonal shoulder, K=maximum static load capacity in kg, L=length of threaded stem, M=thread size, SW=spanner size for hexagonal shoulder/hexagonal socket
