7.1.7

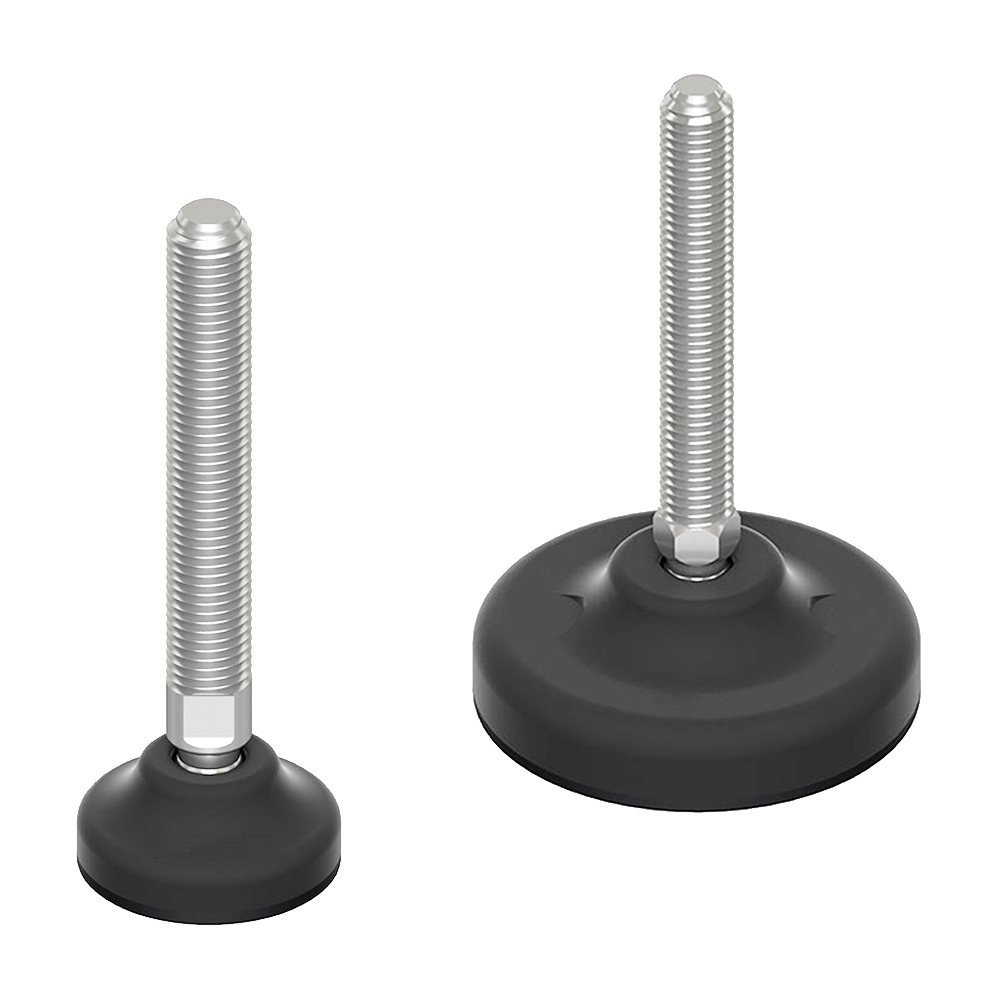

Levelling foot with ball joint - heavy duty – galvanised steel
Product information
- Heavy duty levelling feet with a swivelling plastic base on a ball joint are available with steel threaded stems, thread size M8 to M24 inclusive, and thread lengths from 40 mm to 288 mm inclusive
- Plastic base measuring from Ø 40 mm to Ø 110 mm inclusive
- Maximum static and vertical load capacity of 500 kg to 1500 kg inclusive
- The threaded stem features two flats or a hexagon to allow adjustment with an open-ended spanner
- The base is supplied with a (removable) NBR anti-slip sole as standard
- Maximum angle of inclination 15°
- These heavy duty levelling feet are suitable for use under machines, frames, conveyors, heavy shelving racks and podiums where demanding requirements apply relative to stability and load-bearing capacity.
Material: Base - PA GF (glass fibre reinforced polyamide), Anti-slip sole – NBR (nitrile butadiene rubber) Shore A 70°, Threaded stem – galvanised steel
Colour: Base + sole - black , threaded stem - zinc-coloured
Variants:

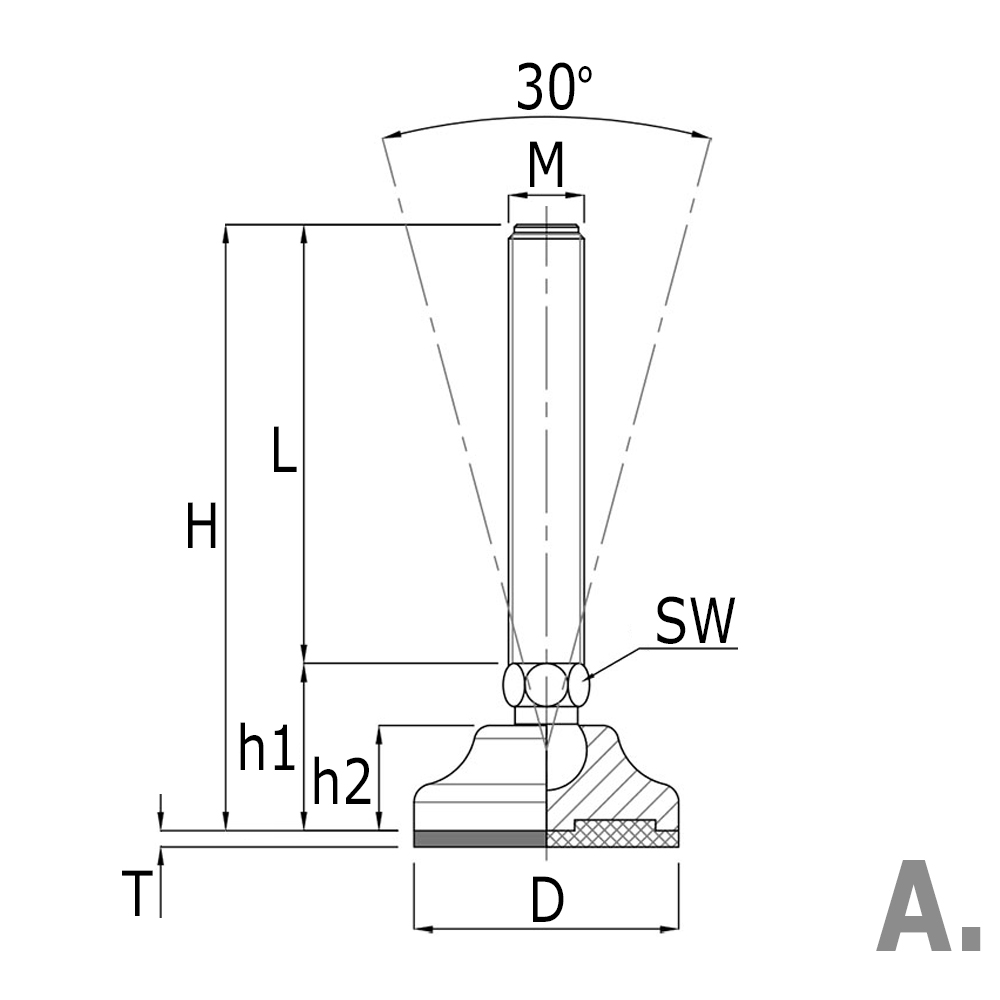

Type A: Base without mounting holes

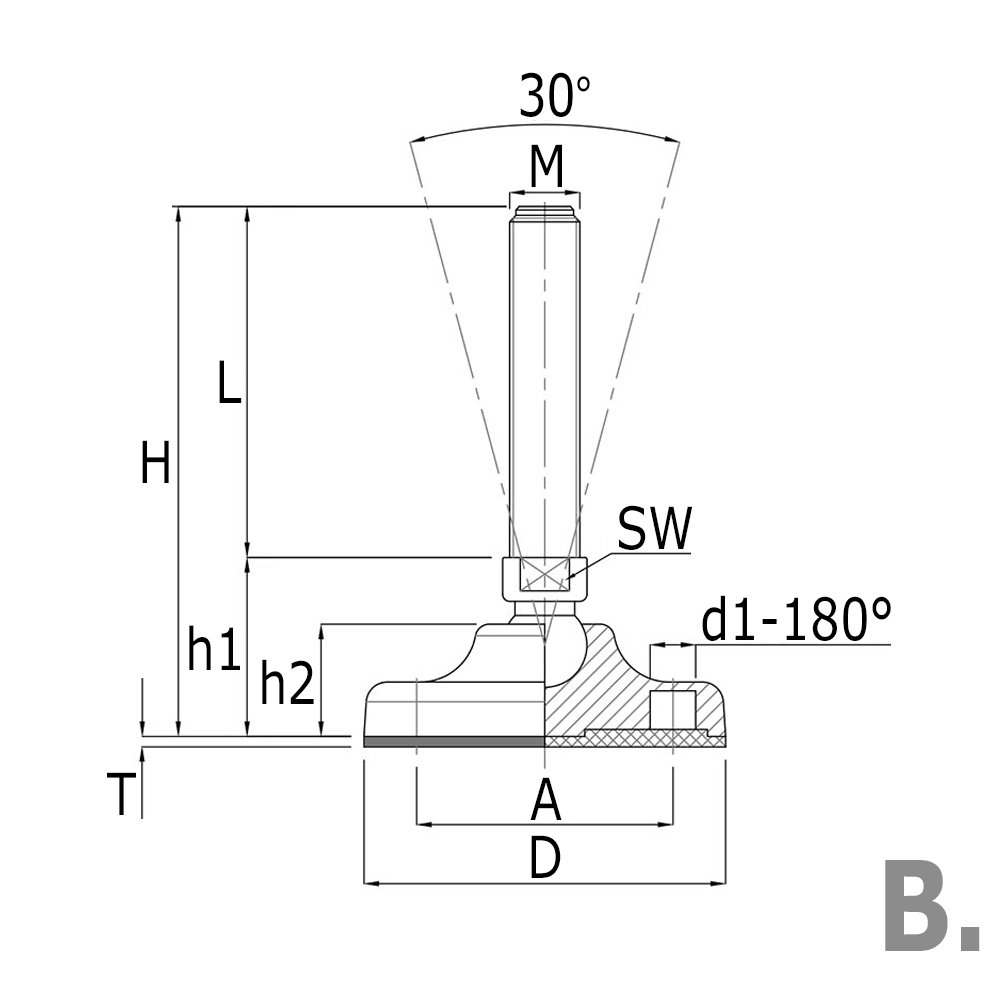

Type B: Base with mounting holes for attaching to the supporting surface
Legend
A=centre-to centre-dimension of the holes, D=base Ø, d1=bore Ø, H=total height, h=height, h1=height, h2=height, K= maximum static load in kg, L=thread length, M=thread size, SW=spanner size, Type=variant
