7.1.35

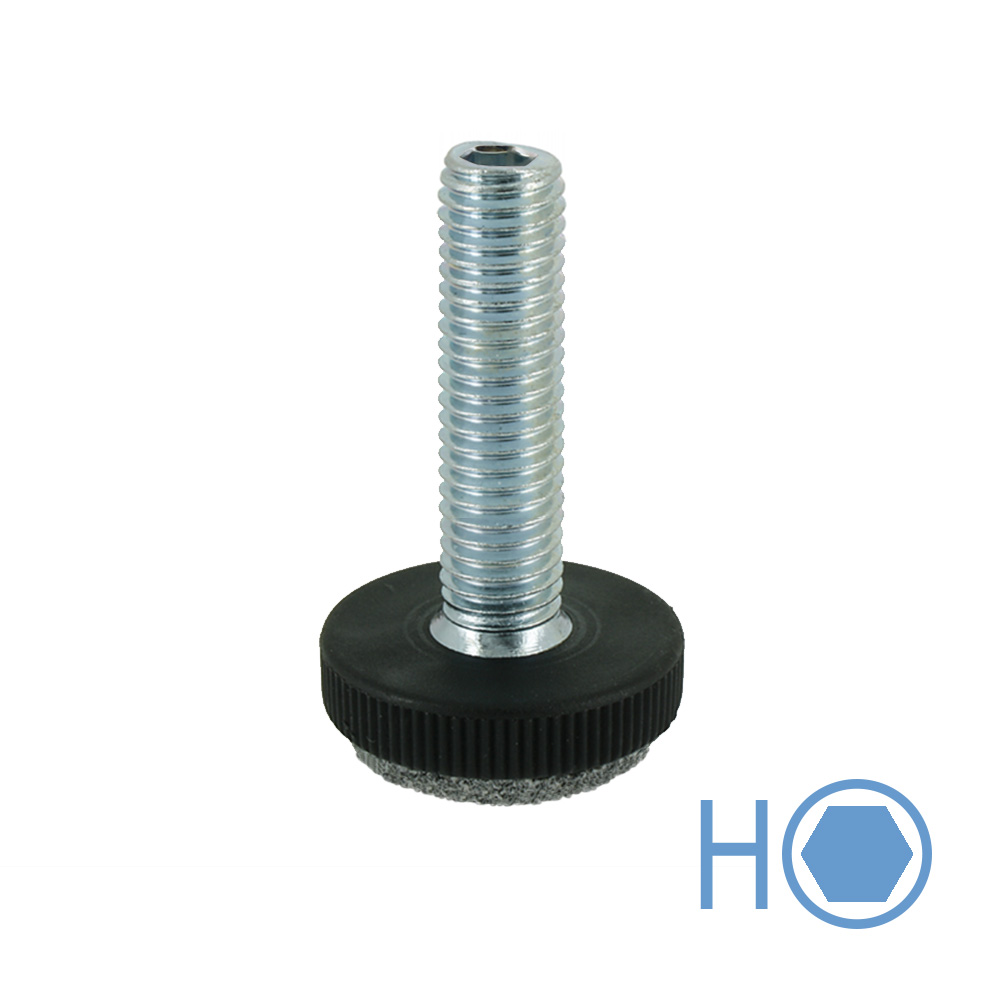

Levelling foot with knurled edge (fine) with feltpad - hexagonal socket
Product information
- Levelling feet with a fixed, finely knurled round base with welded on feltpad are available with threaded stems, thread size M5 to M10 inclusive, and thread lengths from 20 mm to 75 mm inclusive
- Hexagonal socket (Allen key) at the top of the threaded stem to allow height adjustment from the top
- Solid moulded base measuring from Ø 25 mm to Ø 44 mm inclusive
- The finely knurled edge makes the base easier to grip when making manual adjustments

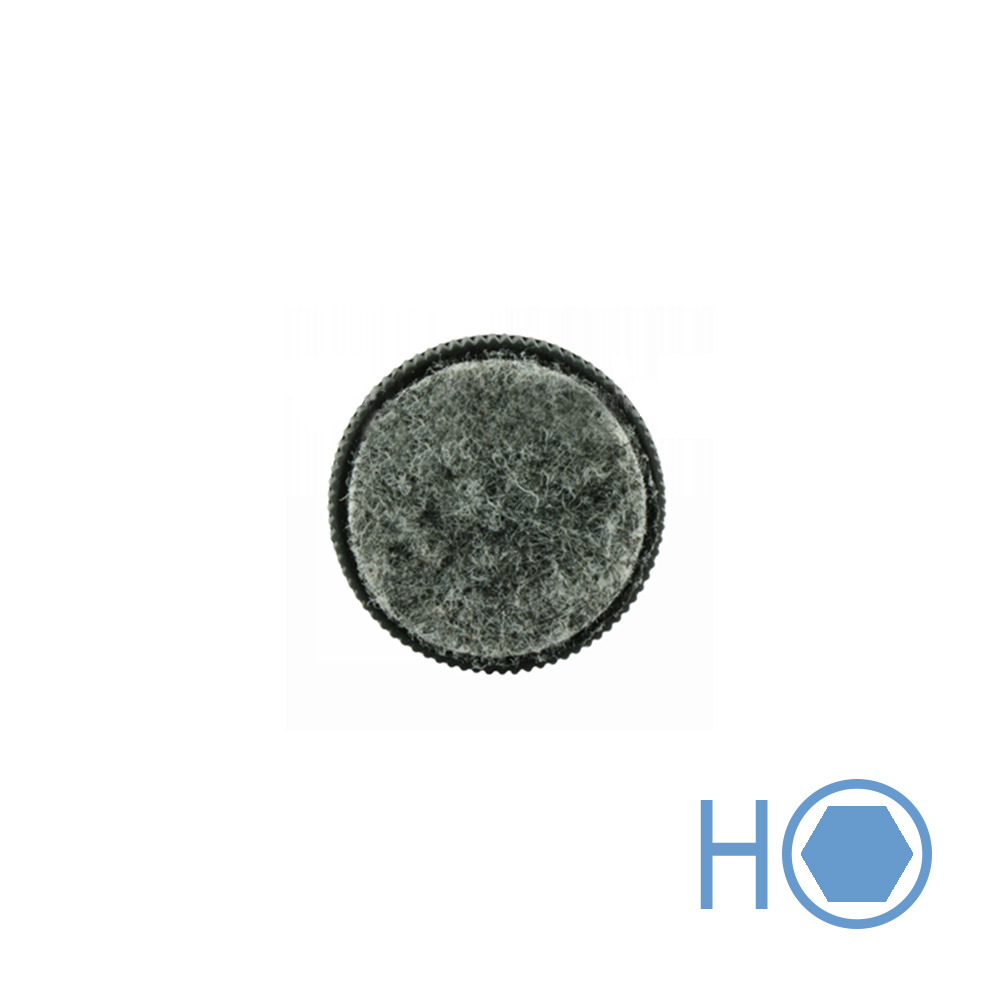

- Welded on felt pad made from needlefelt
- The integral felt pad prevents scratches on scratch-sensitive flooring such as parquet floors, laminate floors, natural stone floors, tiles or poured floors
- Levelling feet with a knurled edge and welded on felt pad, also known as knurled screws, can be used as a height adjuster. Mainly used for furniture such as tables and shelf racks etc.
Material: Base - PA (polyamide), felt – needlefelt, threaded stem - galvanised steel
Colour: Base – black, felt – grey, stem - zinc-coloured
Legend
D=base Ø, H=base height, L=effective usable thread length, M=thread size, SW1=Spanner width hex-socket, t=felt thickness
