7.1.37

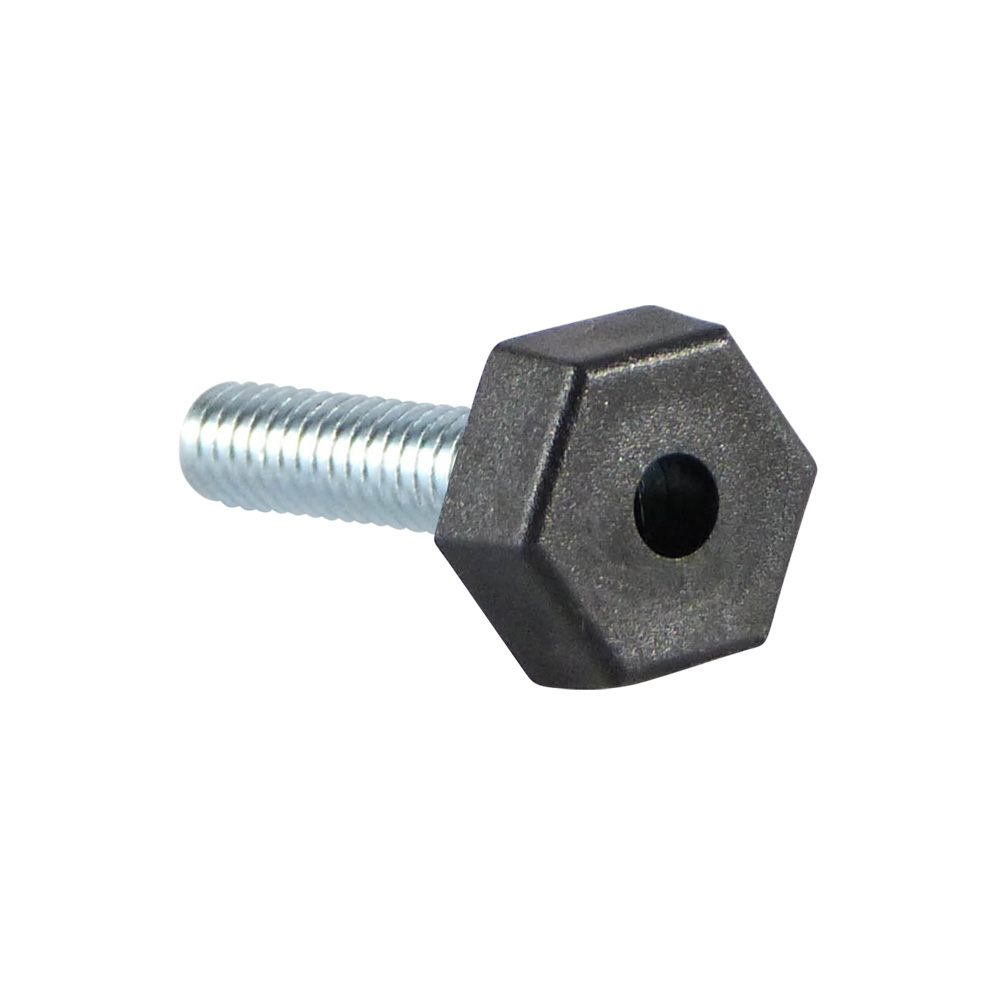

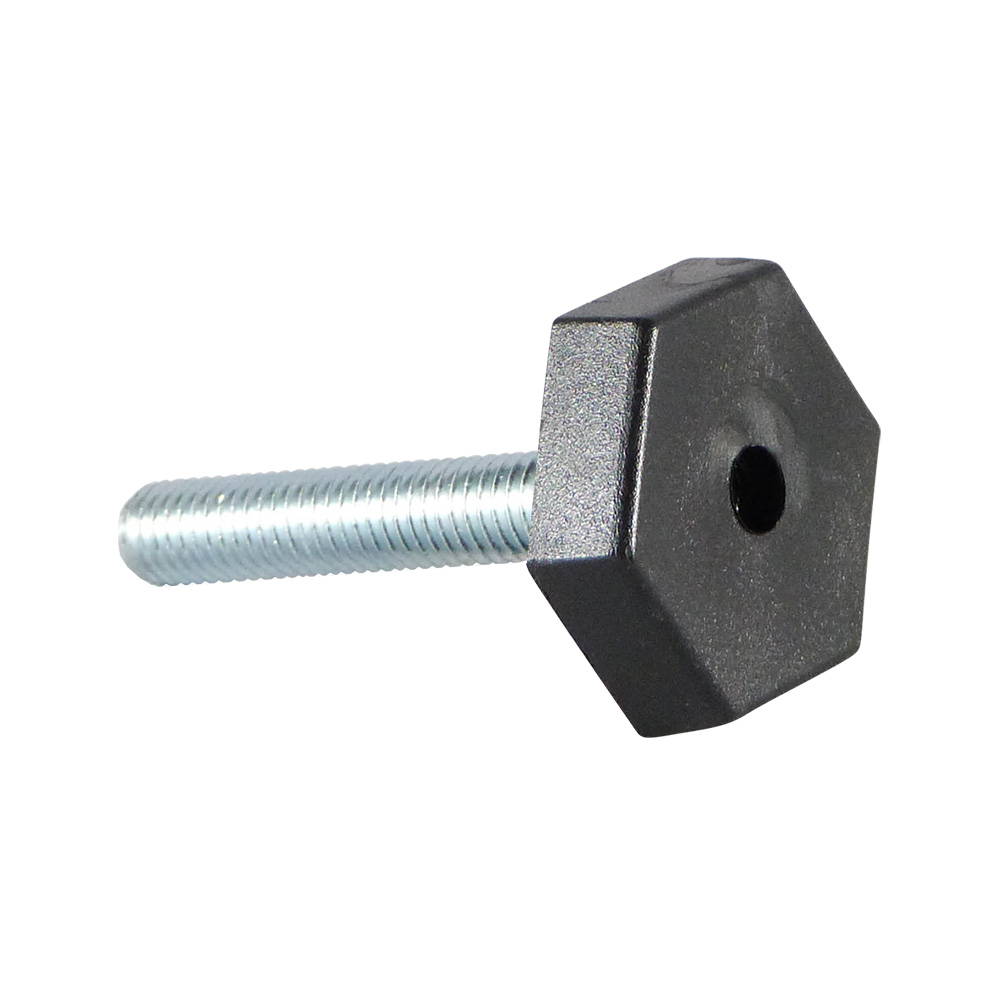

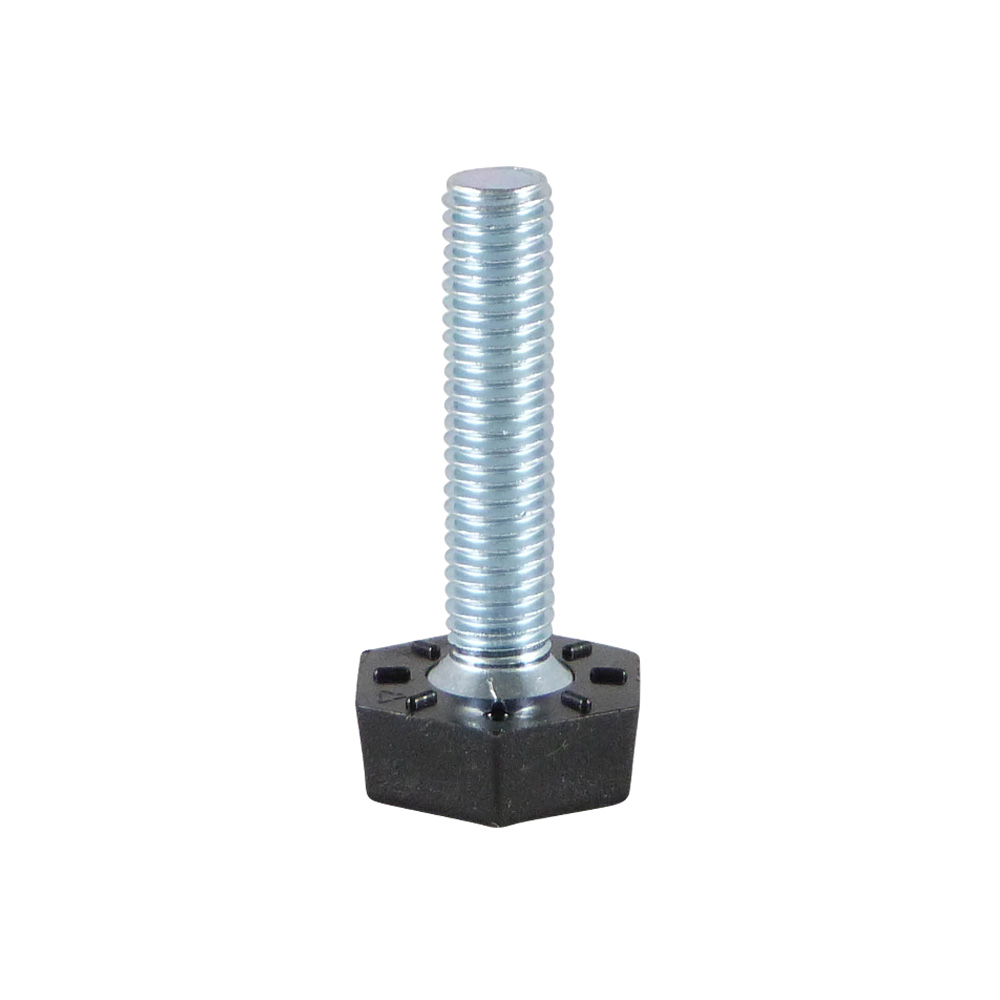

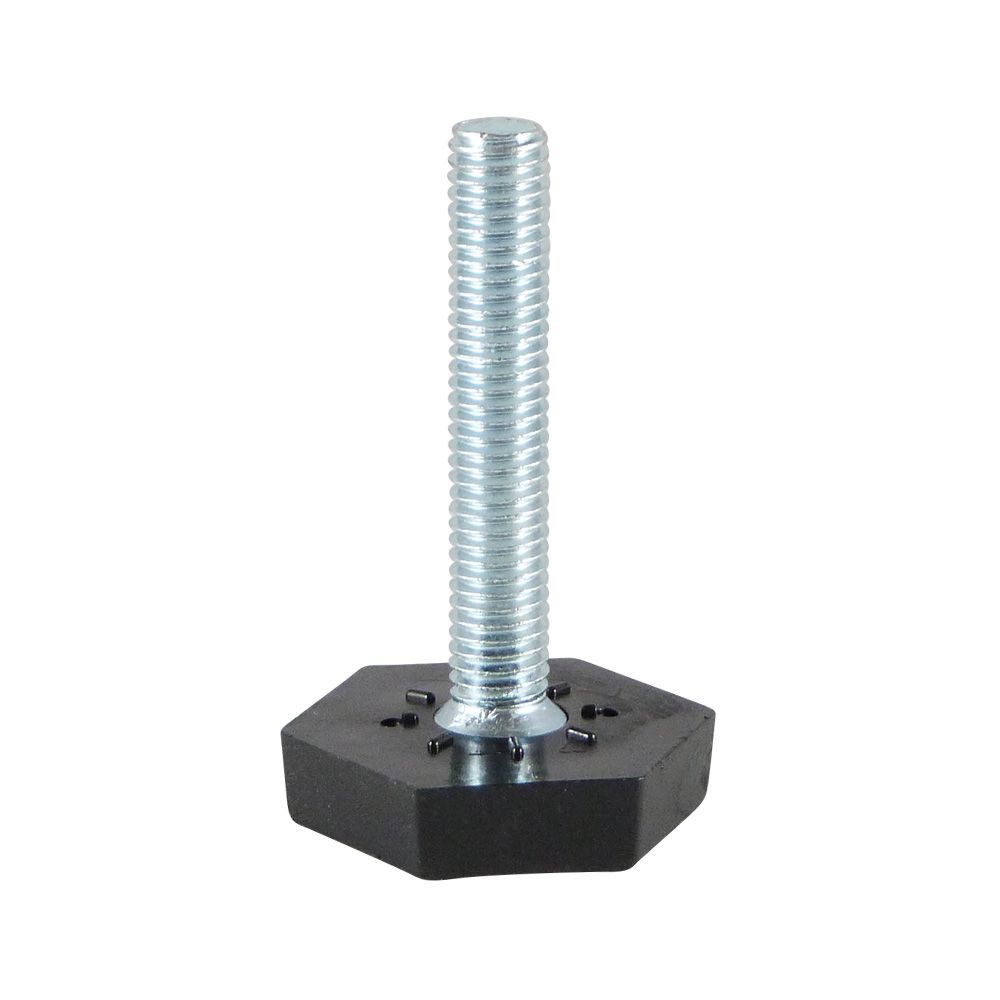

Levelling foot with hexagonal base
Product information
- Levelling feet with a fixed hexagonal plastic base are available with threaded stems, thread size M8 or M10, and thread lengths from 20 mm to 50 mm inclusive
- Moulded hexagonal foot, spanner sizes from 19 mm to 30 mm
- Easy to adjust by hand or with an open-ended spanner
- This hexagonal levelling foot is used as a height adjuster for furniture and equipment.
Material: Base - PE (polyethylene), threaded stem - galvanised steel
Colour: Base – black, stem - zinc-coloured
On request

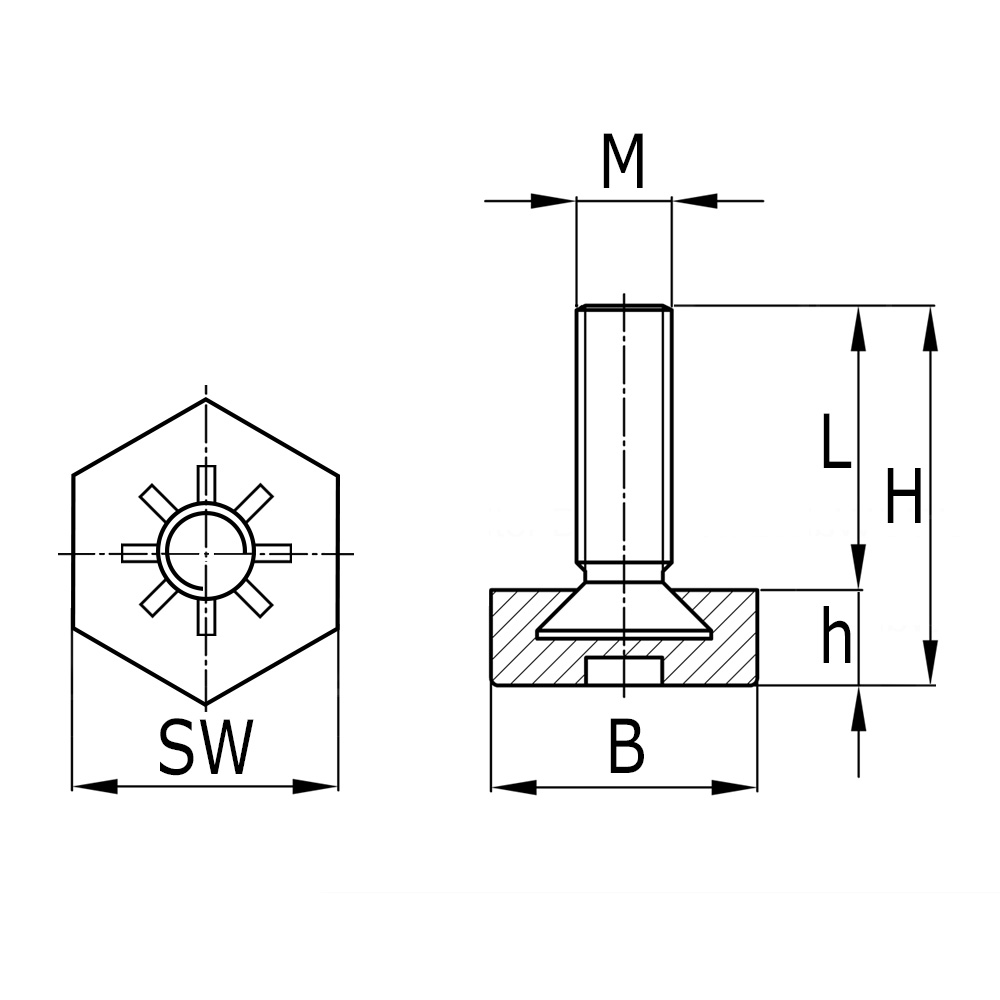

Legend
H=base height, L=effective usable thread length, M=thread size, SW=spanner size
