7.1.38

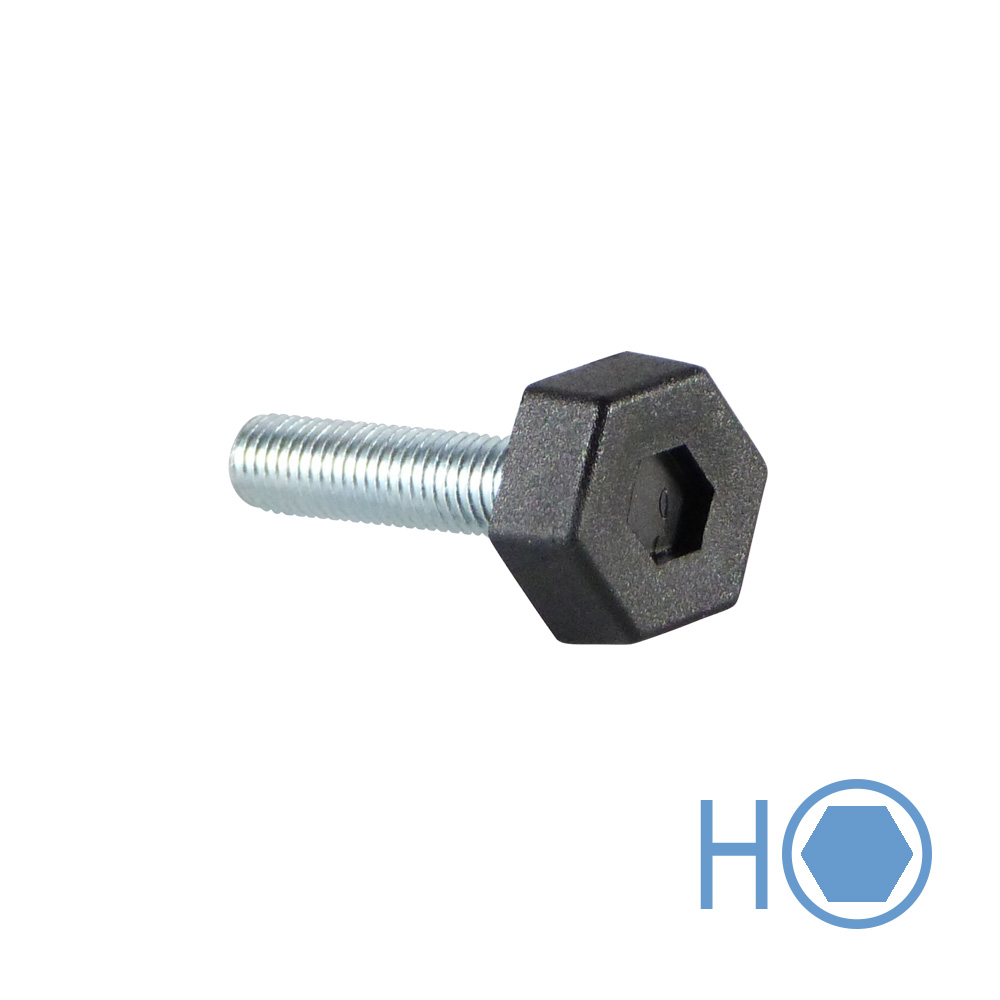

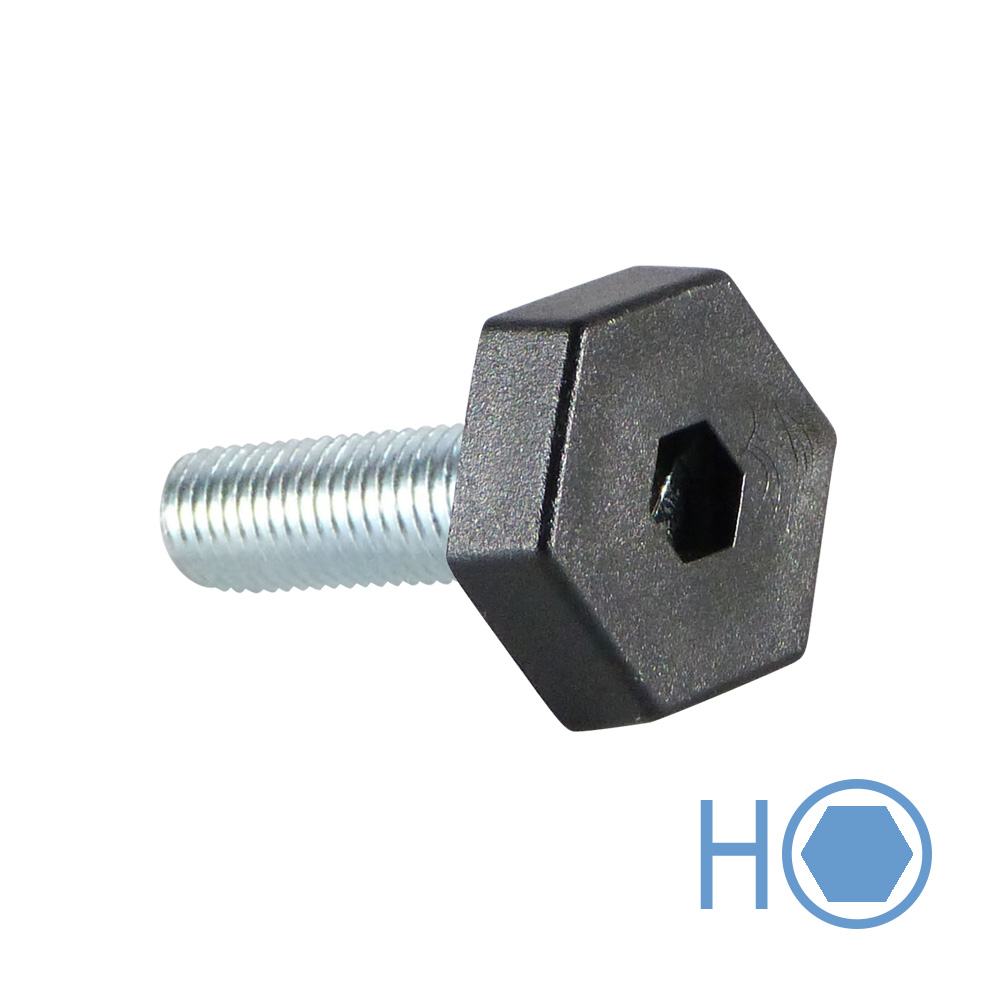

Levelling foot with fixed hexagonal base and hexagonal socket
Product information
- Levelling feet with a fixed hexagonal plastic base are available with threaded stems, thread size M8 or M10, and effective thread lengths from 16 mm to 44 mm inclusive
- Moulded hexagonal foot, spanner sizes from 19 mm to 27 mm
- The hexagonal socket is for an 8mm Allen key
- The levelling foot can be adjusted using the hexagonal socket (Allen key, possibly using a power tool) or by using the external hexagon (by hand or with an open-ended spanner)
- This hexagonal levelling foot is used as a height adjuster for furniture and equipment.
Material: Base - PA (polyamide), threaded stem - galvanised steel
Colour: Base – black, stem - zinc-coloured

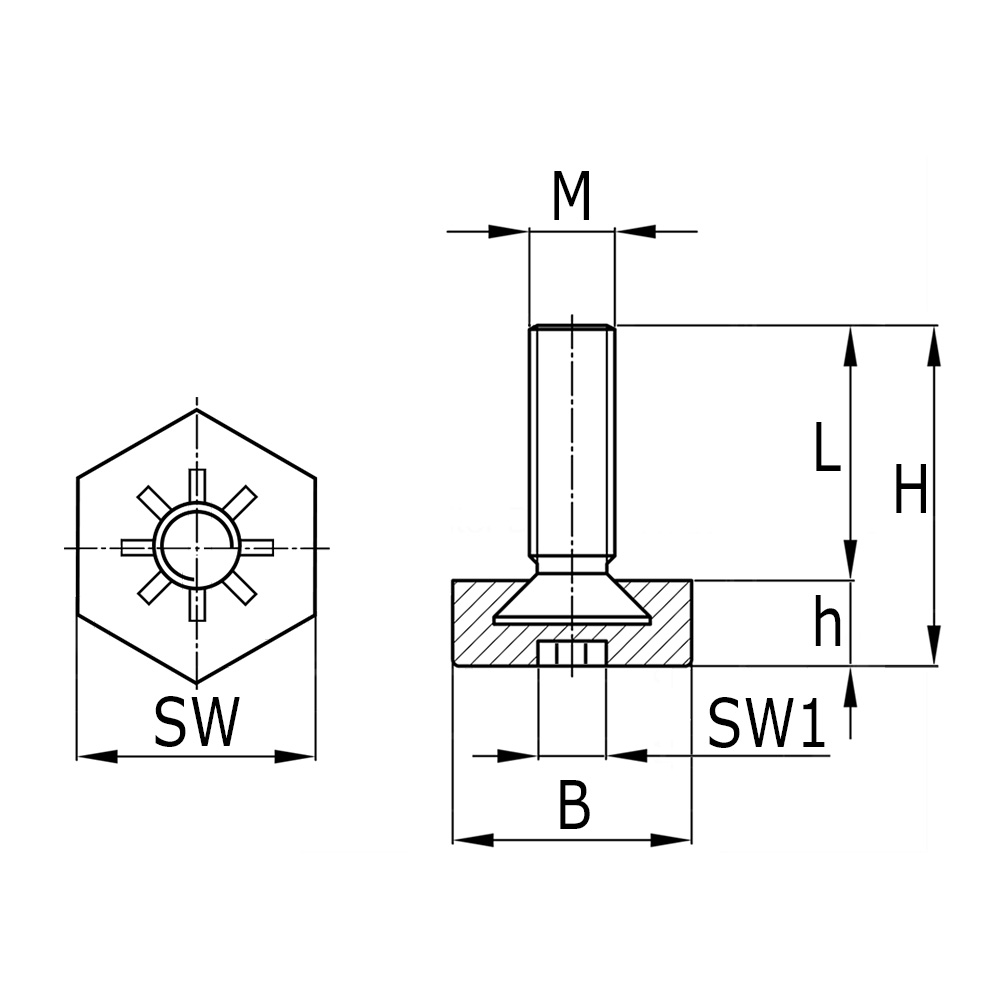

Legend
H=base height, L=effective usable thread length, M=thread size, SW=spanner size, SW1=Allen key size
