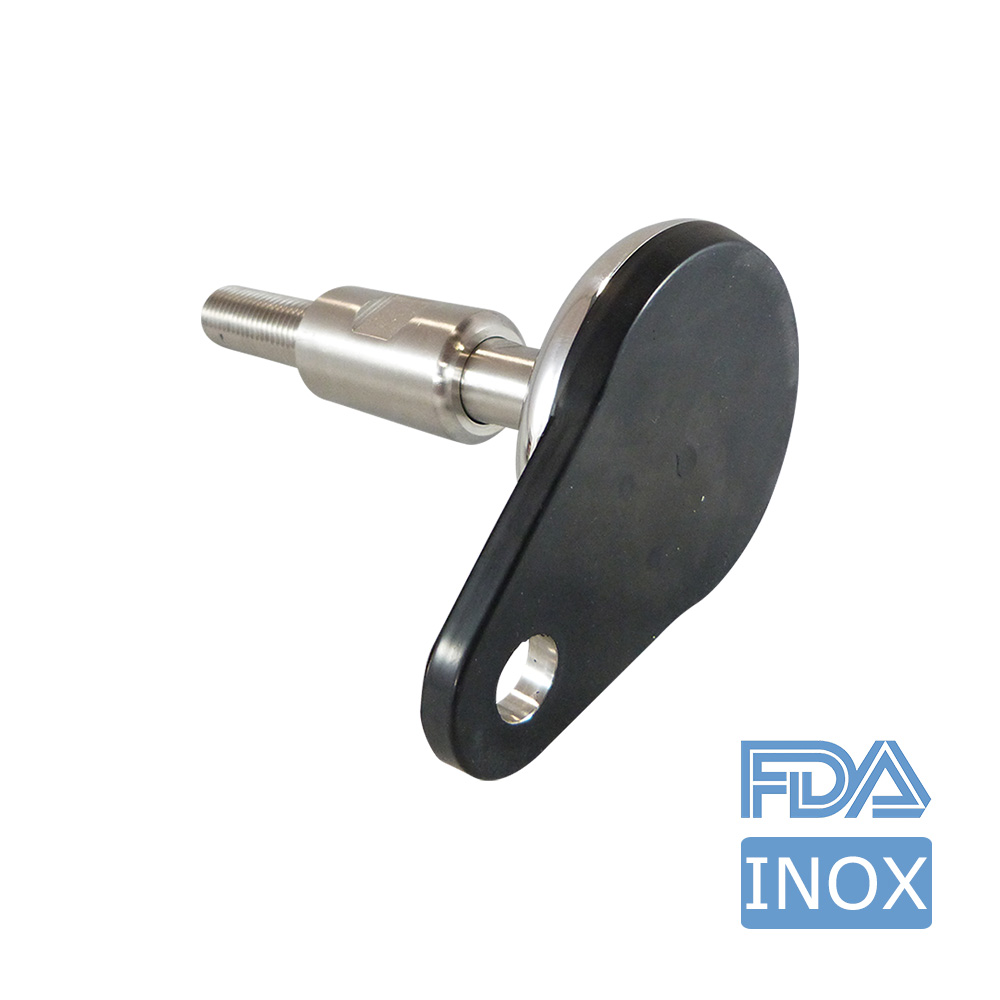

Stainless steel levelling foot – extra hygienic design – floor mount lug
Product information
- Extra-hygienic, stainless steel levelling feet are available with stainless steel threaded stems, thread size M16 to M24 inclusive, and thread lengths from 140 mm to 220 mm inclusive
- Extra hygienic: threaded stem equipped with a sealing sleeve (smooth stem), to seal within the adjustment range
- Base size Ø 60 mm, Ø 80 mm, Ø 100 mm and Ø 120 mm
- Base/foot equipped with floor mount lug
- Rubber anti-slip base with stainless steel cover
- FDA approved (Food and Drug Administration)
- Maximum static and vertical load capacity of 700 kg to 3000 kg inclusive
- Maximum angle of inclination +/-10°
- The sealing bush has two flats to allow adjustment using an open-ended spanner
- Easy to clean due to smooth shaped foot and by sleeve covered stem
- These extra hygiene levelling feet with sealed stem are suitable for machines, frames, conveyors, etc. where high demands apply in respect of food safety, hygiene, stability and load-bearing capacity.
Material: Base - NBR (nitrile butadiene rubber) and stainless steel AISI 304, Threaded stem – stainless steel AISI 304
Colour: Base - stainless steel-coloured/black, Threaded stem - stainless steel-coloured

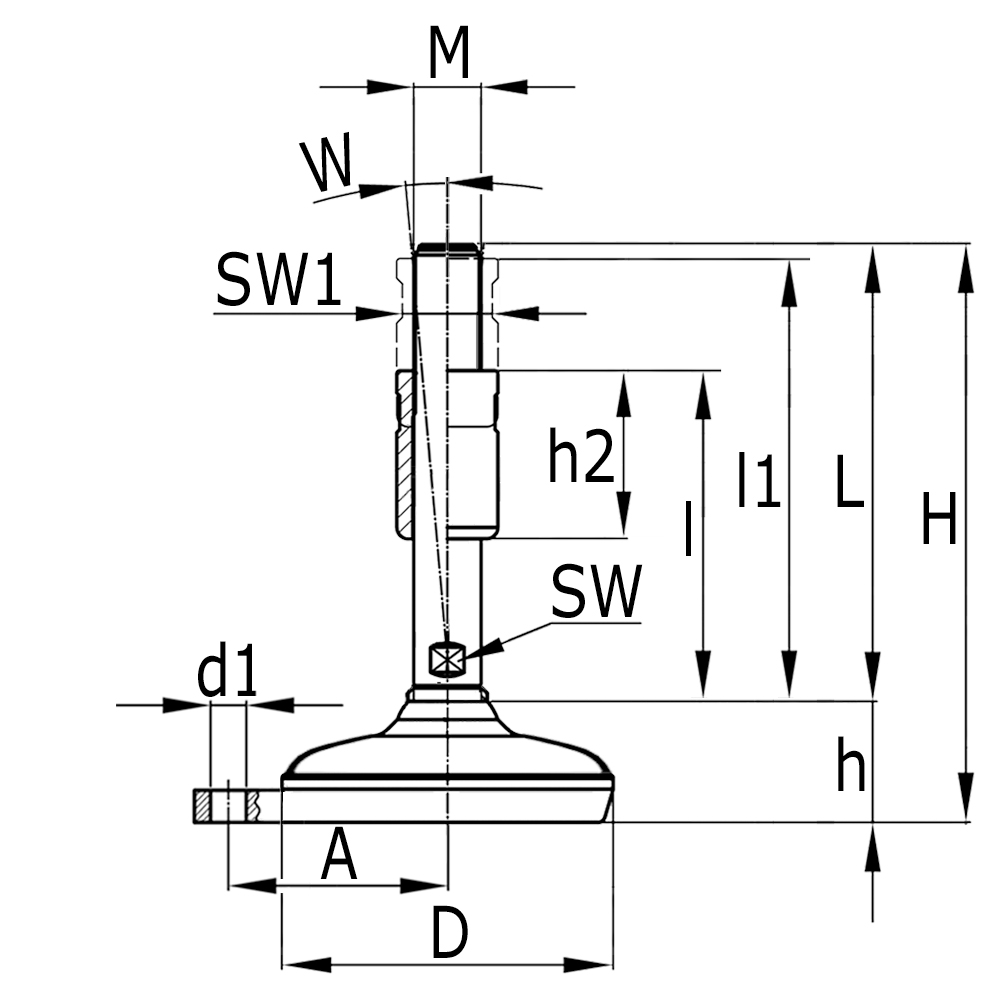

Legend
A=centre-to-centre dimension between mounting hole and base, D=base Ø, d1= mounting hole, H=total installation height, h=base height, h2=sleeve height, K=maximum static load in kg, L=thread length on stem, l=min. adjustment height, l1=max. adjustment height, M=thread size, SW=spanner size, SW1=spanner size 1
