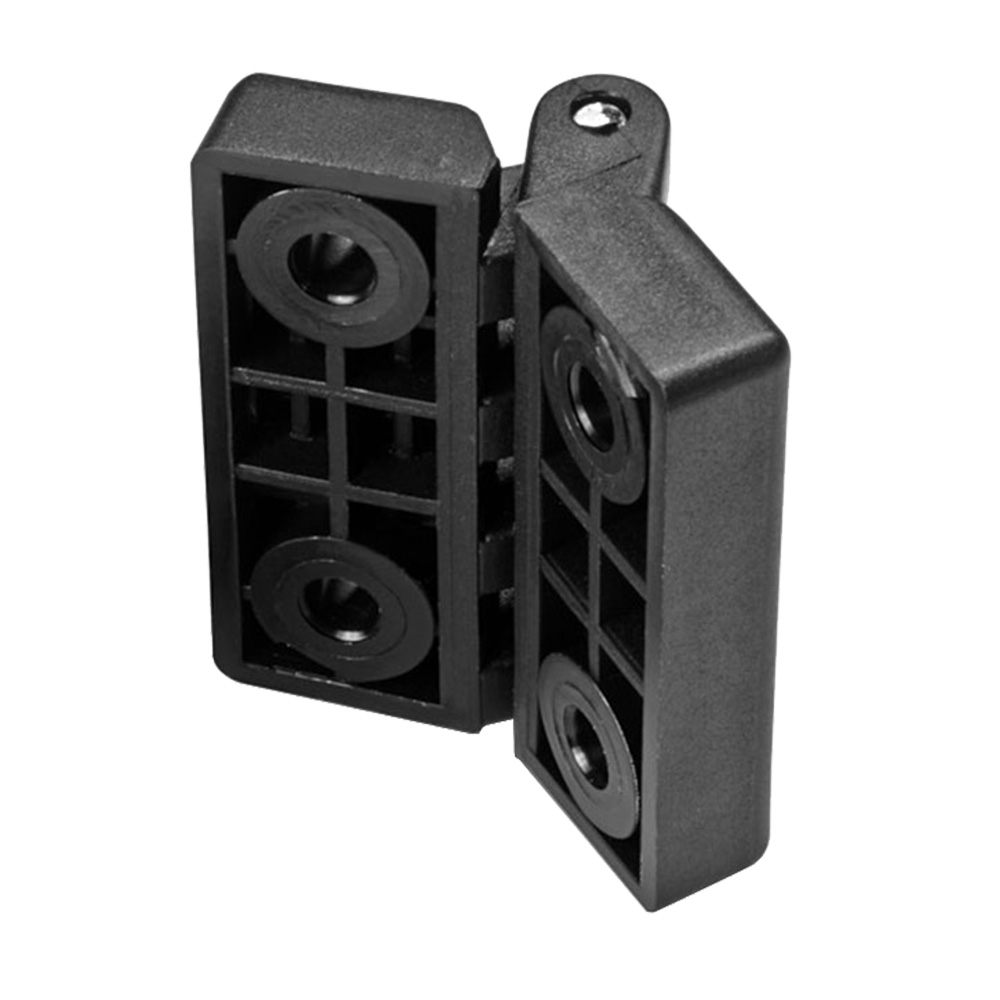

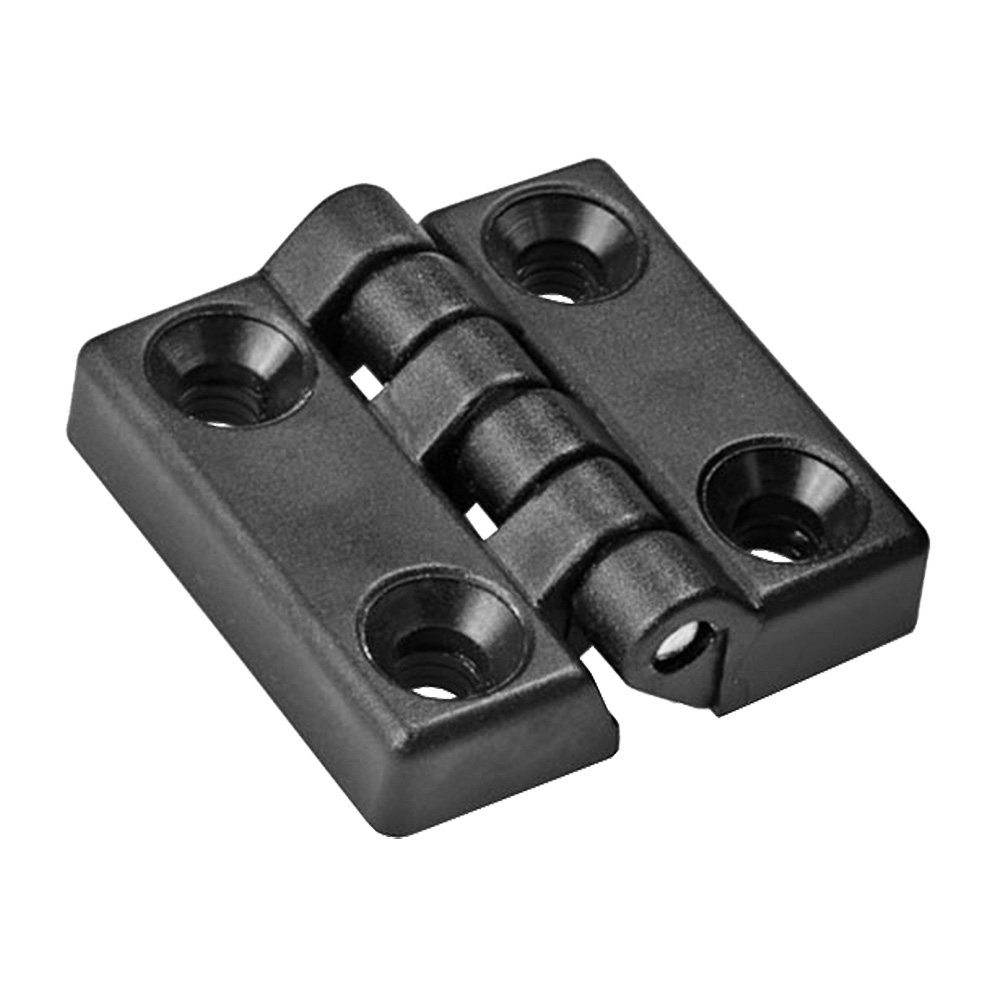

Screw on hinge PA 32x32 mm, bore Ø4,5 mm - galvanized steel pivot pin

Save

D :	8
A :	20
H :	10.5
B :	32
L :	32
M :	M 4
h :	7
d1 :	4.5
d2 :	3
A1 :	20
d3 :	7
Colour/RAL :	Black

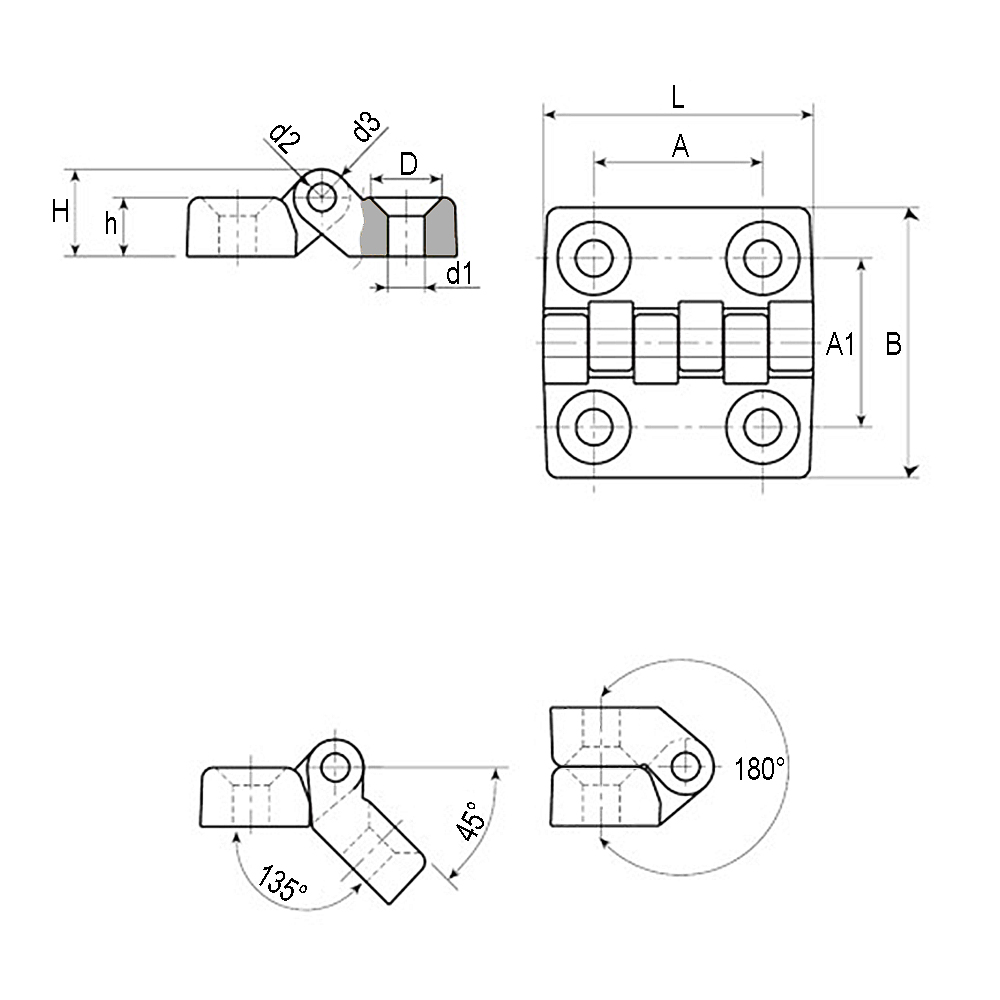

Legend
A=length, B=width, C=centre to centre bore distance, D=Ø-major hole countersink, d1=Ø-bore, d2=Ø-pivot pin, d3=Ø-hinge, H=height, h=height, l=centre to centre bore distance, M=Bore suitable for bolt size

Item-nr. : 87.A032032.045
In stock :Yes
€ 1,6761 per piece € 2,0113 incl. VAT
Quantity

Screw on hinge PA 32x32 mm, bore Ø4,5 mm - galvanized steel pivot pin
