14.2.5

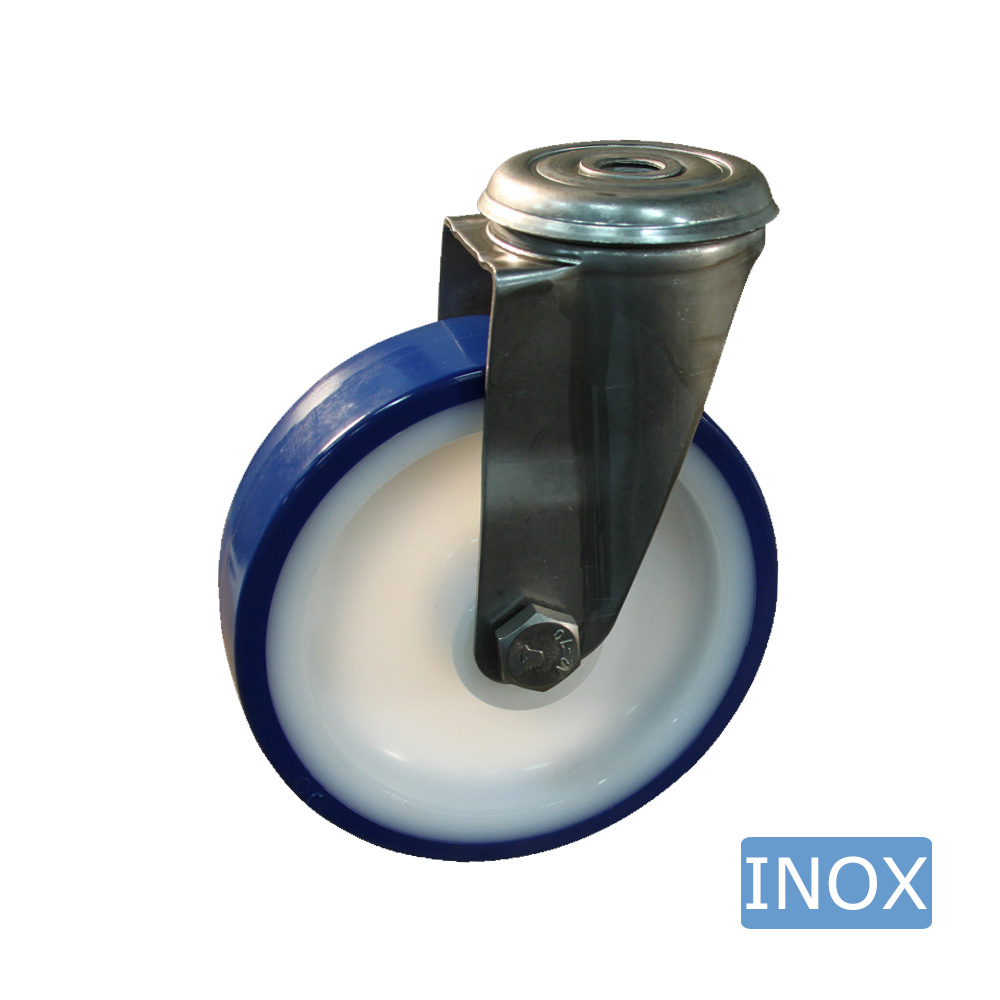

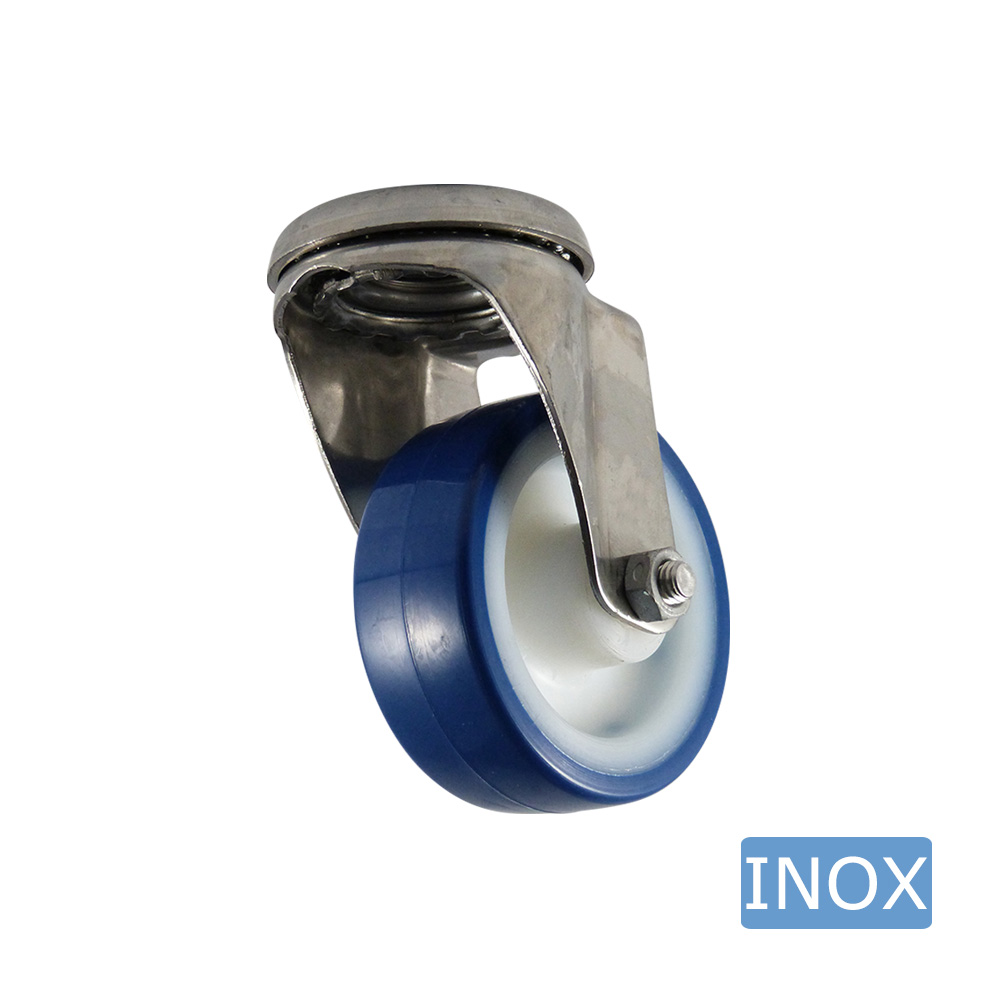

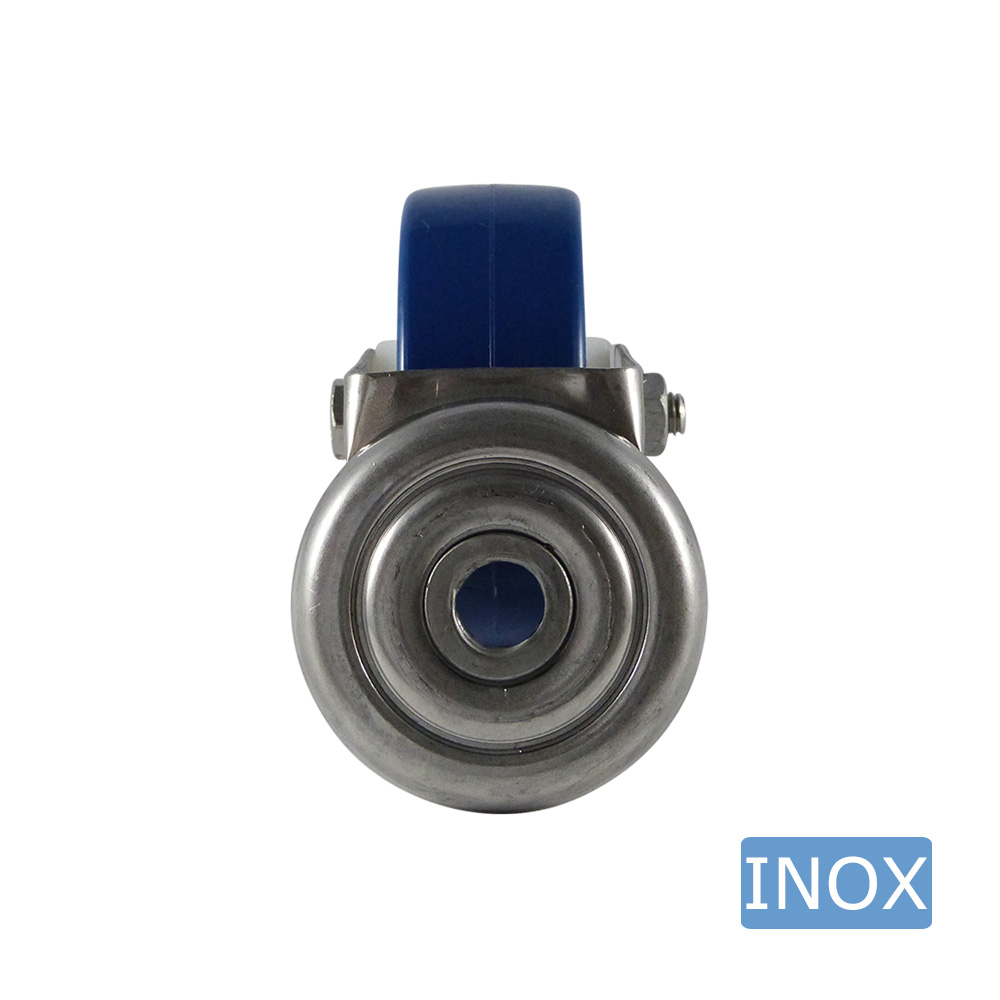

Hygienic, stainless steel swivel castor – centre mounting hole - TPU tyre
Product information
- Hygienic stainless steel swivel castors with a blue tyre are available in wheel sizes from Ø80mm to Ø150mm inclusive
- The moulded and vulcanised TPU tyre (+/-97 shore A ±3°) is shock-absorbent, impact-resistant and does not mark the floor (non-marking)
- Blue tyre for greater detectability in the food industry or hygienic production environments
- Pressed fork with a centre mounting hole, made from stainless steel
- Swivel arrangement with a sealed double thrust bearing
- Maximum static load capacity from 120kg to 300kg inclusive
- Temperature resistance: -20 °C to +40 °C
- Highly resistant to chemicals
- These castors are maintenance-free, durable and smooth-running
- As the wheel and fork are easy to clean, they are suitable for applications where demanding hygienic requirements apply
- Ideal for use in an environment where hygiene plays an important role, e.g. the food sector.
Material & colour
- Swivel body and swivel bearing arrangement: stainless steel (AISI304)
- Rim: PA (Polyamide) - black
- Tyre: TPU (thermoplastic polyurethane) – blue (RAL 5010)
Models
Type B: Wheel with plain bearing
Legend

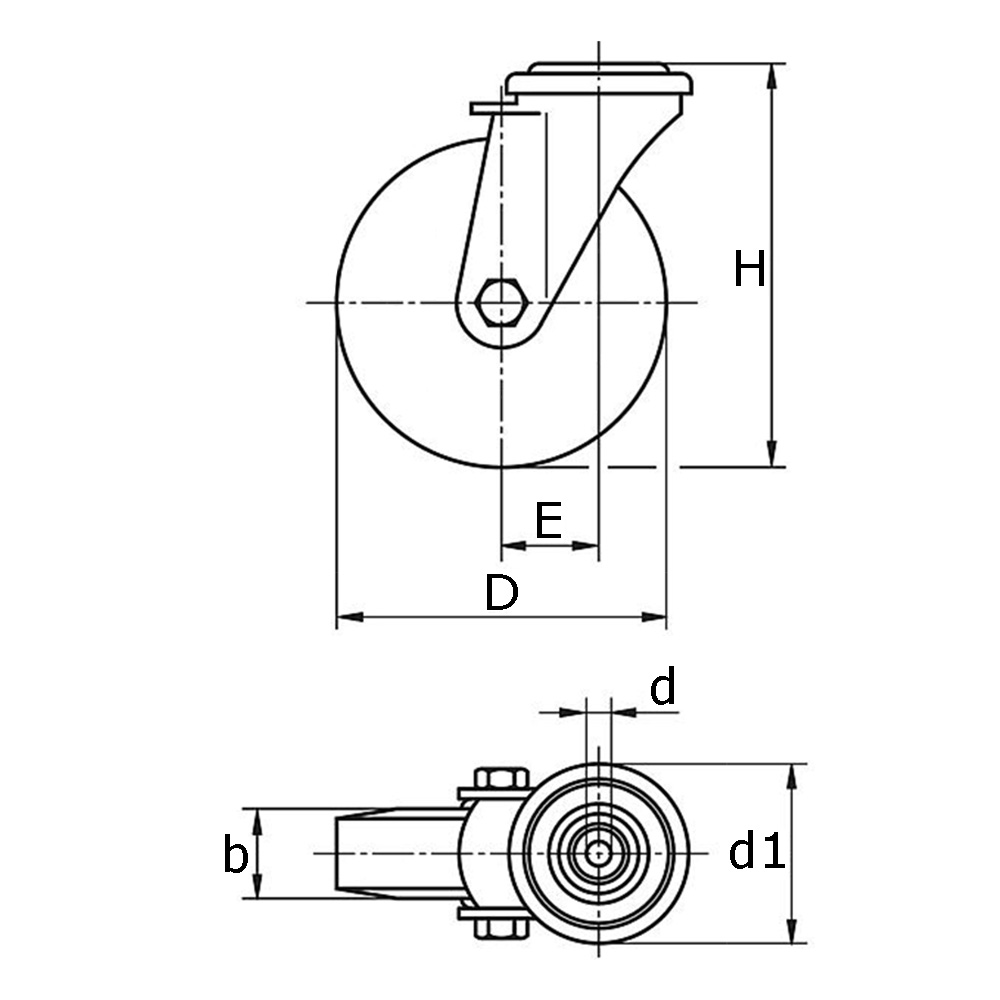

b=tread width, D=wheel Ø, d1=mounting hole size, E=offset, H=total height, K= maximum static load capacity in kg, Type=type of wheel bearing
