14.16

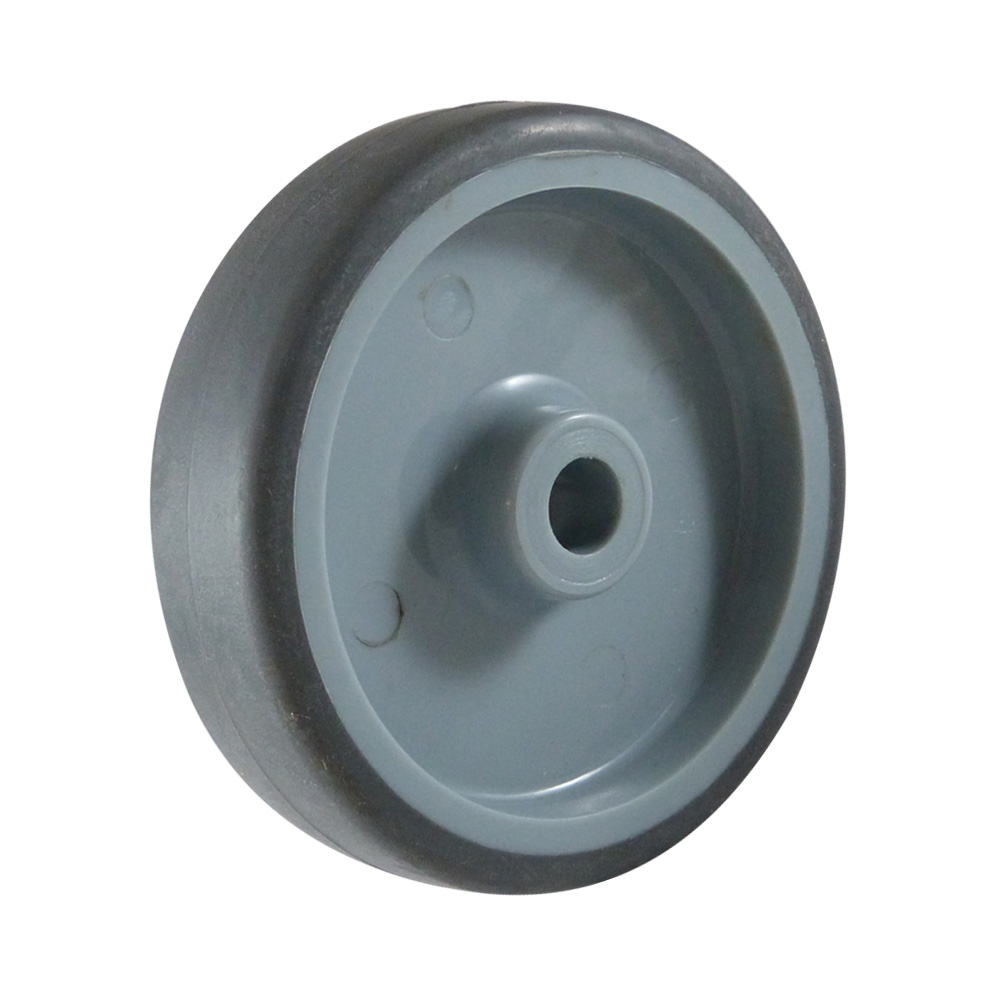

Apparatus wheels – plain bearing
Product information
- Apparatus wheels with a TPE tyre on a plastic rim are available in wheel sizes of Ø50mm or Ø100mm
- Hub with plain bearing, shaft holes from Ø6mm to Ø12mm inclusive
- Maximum static load capacity from 40kg to 80kg
- Temperature resistance from -20°C to +40°C inclusive
- Moulded vulcanised tyre, hardness 70° Shore A ±5° /li>
- Low-noise and smooth-running
- Non-marking
- Highly resistant to many aggressive chemicals
- Industrial wheels are mainly suitable for light use in indoor applications, e.g. items of equipment, mobile displays, furniture, etc.
Material & colour
- Rim: PP (polypropylene) – grey (RAL 7001)
- Tyre: TPE (thermoplastic elastomer) – grey (RAL 7024)
Models
Type A: Wheel with plain bearing

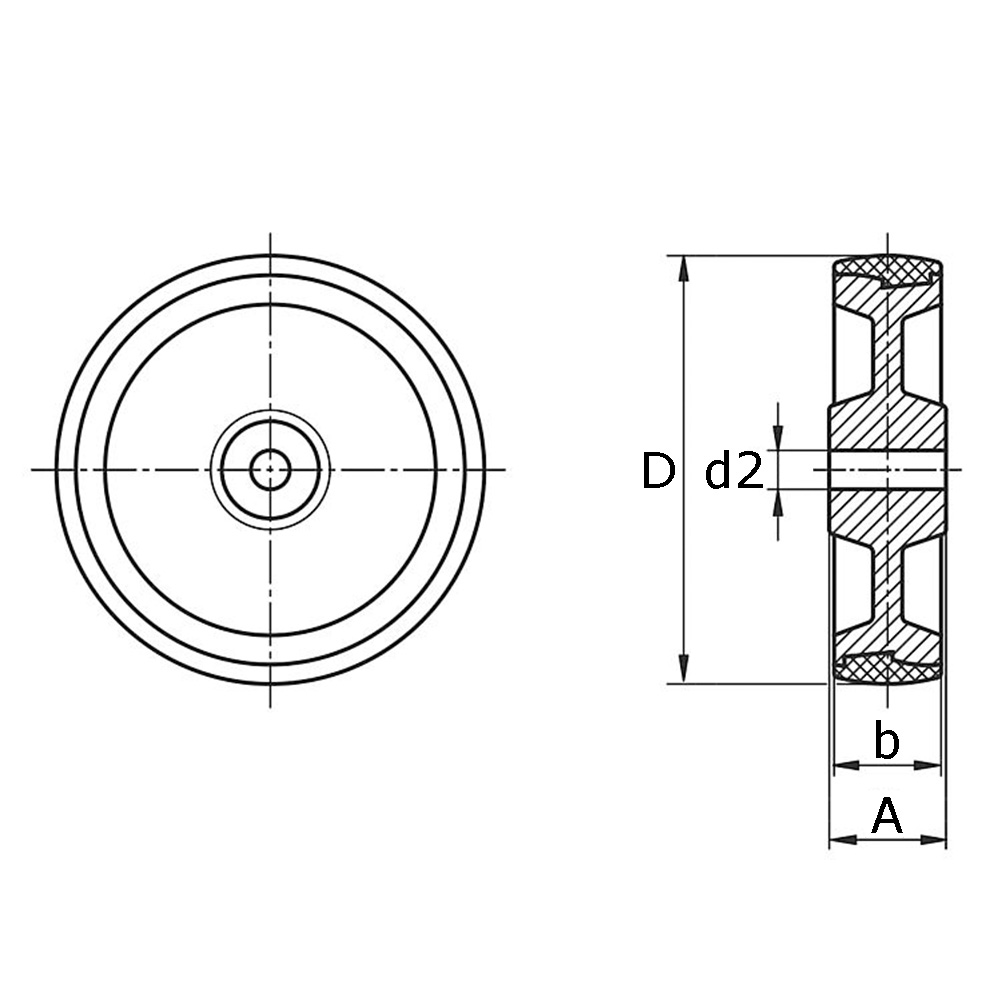

Legend
A=hub width, b=tread width, D=Øwheel, d2=Ø-shaft bore, K=maximum static load capacity in kg
